Description

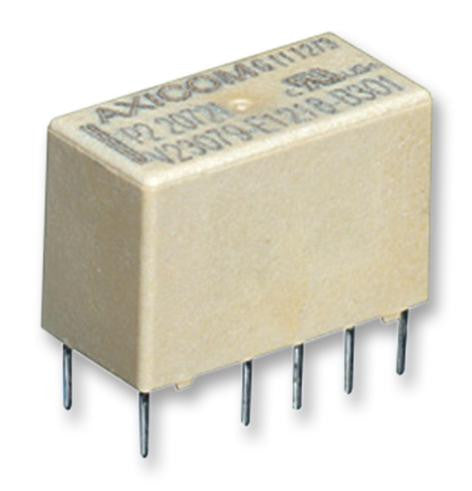

The V23079B1205B301 is a 2-pole Signal Relay with DC coil, P2 series. 2 form-C (2CO) contact configuration, AgNi+Au contact. Standard coil (not for high dielectric version), standard telecom relay (ringing and test access). Slim line 15 x 7.5mm (0.590 x 0.295-inch). Immersion cleanable, high sensitivity for 140mW/70mW low power consumption. Single coil version with surge voltage resistance between contact and coil 2.5kV (2/10�s) meets the Telcordia Requirement GR-1089, 1.5kV (10/160�s) meets FCC Part 68.
- Latching, 2 coils
- THT version
- RT III Environmental protection rating
Applications
Industrial, Power Management, Automation & Process Control, Consumer Electronics, Medical
Product details
| Contact Material | Silver Nickel |
| Relay Mounting | Through Hole |
| Coil Type | Latching Dual Coil |
| Coil Resistance | 4.114kohm |
| Product Range | P2/V23079 Series |
| Relay Terminals | Solder |
| Contact Current | 2A |
| Contact Voltage VAC | 250V |
| Coil Voltage | 24VDC |
| Contact Configuration | DPDT |
| Contact Voltage VDC | 220V |
Other details
| Brand | AXICOM - TE CONNECTIVITY |
| Part Number | V23079B1205B301 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
