AVX TPSE227M016R0150 Surface Mount Tantalum Capacitor 220 µF 16 V 2917 [7343 Metric] TPS Series ± 20% -55 °C

The TPS series from AVX are low ESR tantalum capacitors. These are robust Mn02 solid electrolyte capacitors with an ESR as low as 80mohm makes it suitable for smoothing and filtering on 3.3V power rail of general medium power DC/DC converters. These capacitors are available in 14 EIA metric case sizes of 3216-18, 3528-21, 6032-28, 7343-31, 7343-43, 6032-20, 2012-15, 2012-12, 3216-12, 3528-12, 7361-38, 6032-15, 7343-15 and 7343-20. Device with high capacitance can also be used as battery support in handheld devices where small size is one of the key design requirements.

• Capacitance value range from 0.15µF to 1500µF
• Available in ±10% and ±20% tolerance values
• 2.5VDC, 4VDC, 6.3VDC, 10VDC, 16VDC, 20VDC, 25VDC, 35VDC and 50VDC rated voltages available
• Operating temperature range from -55°C to +125°C
• Pure tin, tin and gold plating terminations

Applications

Industrial, Power Management, Portable Devices, Consumer Electronics

Product details

Capacitance	220µF
Voltage Rating	16V
Tantalum Capacitor Case	2917 [7343 Metric]
Product Range	TPS Series
Capacitance Tolerance	± 20%
Operating Temperature Min	-55°C
Operating Temperature Max	125°C
ESR	0.15ohm
Manufacturer Size Code	E
Automotive Qualification Standard	-
RoHS Phthalates Compliant	Yes

Other details

Brand	AVX
Part Number	TPSE227M016R0150
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Manufacturer Catalogue EN

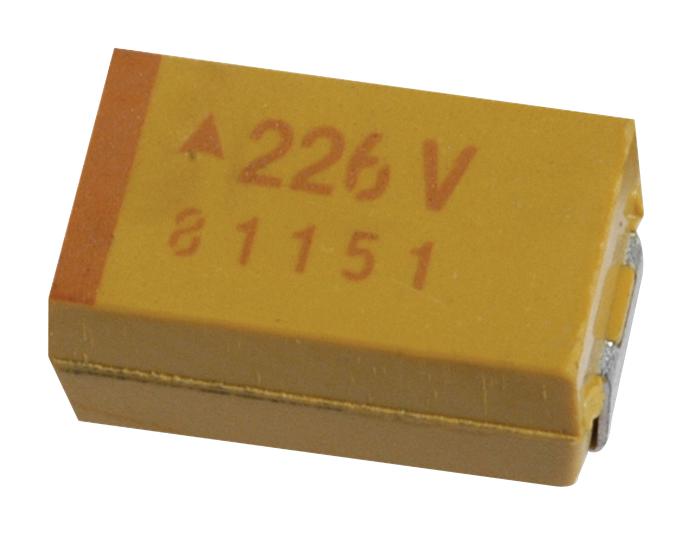

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
