| ₹ 745.46 includes GST and import duties. | |
| B2B customers can avail ₹ 113.68 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

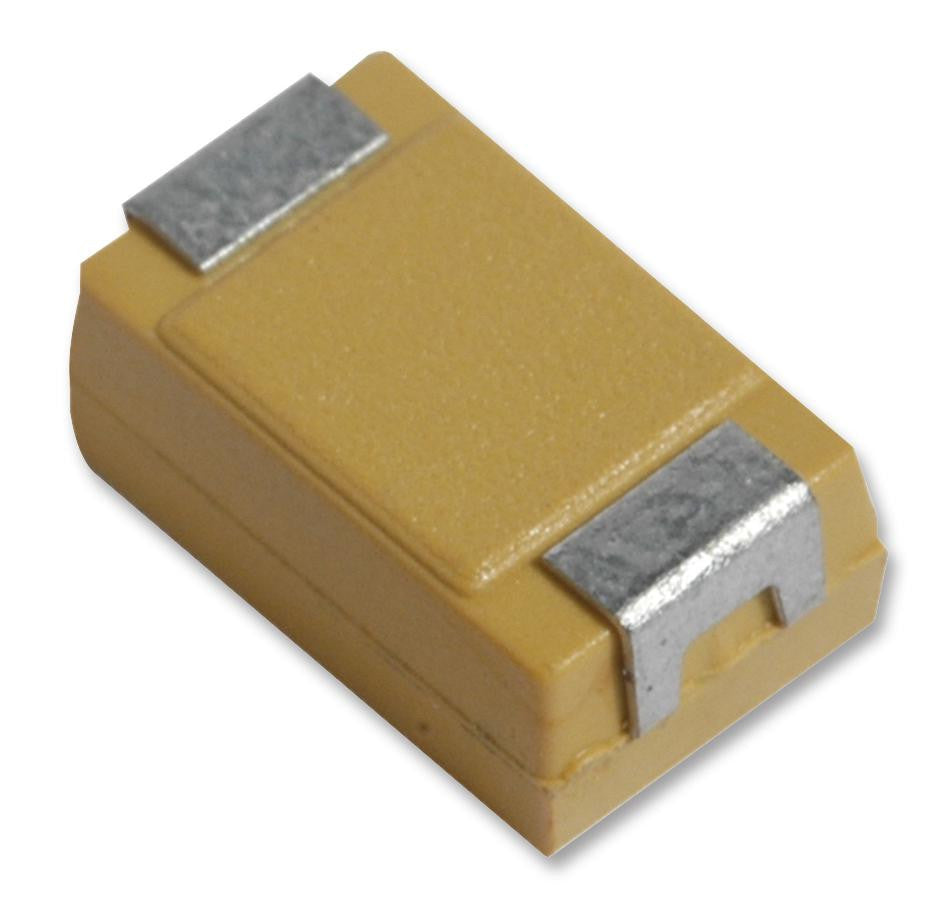

The TPSD336K035R0200V is a surface-mount Tantalum Capacitor with 2917 case. The TPS series capacitor is suitable for smoothing and filtering on 3.3V power rails, which is a favourite output voltage of DC/DC convertors. Devices with high capacitance can also be used as battery support in handheld devices where small size is one of the key design requirements. The TPS tantalum capacitor have a maximum direct leakage current of 19.8�A and a maximum dissipation factor at 120Hz of 12%.
- Low ESR series of robust Mn02 solid electrolyte capacitor
Applications
Power Management
Product details
| Manufacturer Size Code | D |
| Operating Temperature Min | -55�C |
| Operating Temperature Max | 125�C |
| Voltage Rating | 35V |
| Tantalum Capacitor Case | 2917 [7343 Metric] |
| Product Range | TPS Series |
| Automotive Qualification Standard | - |
| ESR | 0.2ohm |
| Capacitance | 33�F |
| Capacitance Tolerance | � 10% |
| Packaging | Cut Tape |
Other details
| Brand | AVX |
| Part Number | TPSD336K035R0200V |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
