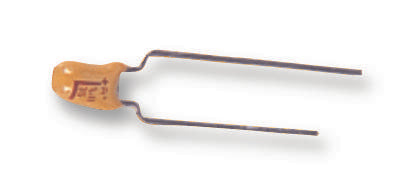

The AVX TAP series capacitors are radial leaded, polarized solid tantalum resin dipped capacitors with 0.10µF to 330µF capacitance range. TAP is a professional grade device manufactured with flame retardant coating. It features low leakage current, impedance, very small size and exceptional temperature stability. The 15 case sizes with wide capacitance and working voltage ranges makes TAP series capacitors to accommodate almost any application.
- Rated voltage range from 6.3VDC to 50VDC
- ±5%, ±10% and ±20% tolerance
- Compliant to CECC 30201 - 032 standard
- Operating temperature range -55°C to 125°C
Applications
Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Capacitance |
15µF |
| Voltage Rating |
25V |
| Product Range |
TAP Series |
| Capacitance Tolerance |
± 20% |
| Capacitor Terminals |
Radial Leaded |
| Lead Spacing |
5mm |
| Operating Temperature Min |
-55°C |
| Operating Temperature Max |
85°C |
| ESR |
2ohm |
| RoHS Phthalates Compliant |
Yes |
Other details
| Brand |
AVX |
| Part Number |
TAP156M025CCS |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
