Description

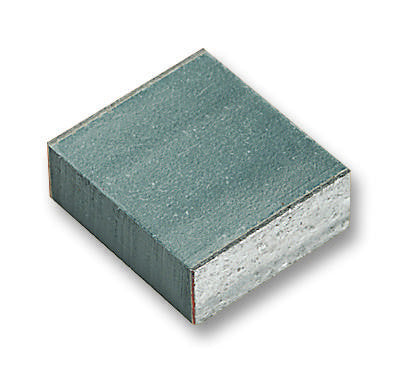

The CB057D0105JBC is a Film Chip Capacitor using a naked and stacked construction with metalized PEN (polyethylene naphthalate). Use of high temperature dielectric films make this capacitor suitable for IR or vapour phase reflow processes. This chip is built without specific encapsulation. The intrinsic elasticity of the dielectric film allows an excellent compatibility of the capacitor with all types of material for printed circuit boards. The self-healing property of film technology results to a safety open failure mode and better overall reliability.
- Excellent thermal shock resistance
- Low dissipation factor ESR and ESL
- No piezoelectric effect
- Non-polar construction
Applications
Automotive, Communications & Networking, Power Management, Industrial
Product details
| Operating Temperature Min | -55°C |
| Voltage Rating V DC | 63V |
| Capacitor Terminals | - |
| Operating Temperature Max | 125°C |
| Product Range | CB Series |
| Automotive Qualification Standard | - |
| Capacitor Case Style | 2824 [7260 Metric] |
| Capacitance | 1µF |
| Lead Spacing | - |
| Capacitance Tolerance | ± 5% |
| Packaging | Cut Tape |
| Capacitor Dielectric Type | PEN (Polyethylene Naphthalate) |
Other details
| Brand | AVX |
| Part Number | CB057D0105JBC |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
