AVX 22205C106K4Z2A SMD Multilayer Ceramic Capacitor 10 µF 50 V 2220 [5650 Metric] ± 10% X7R Mlcc

The AVX FLEXITERM automotive MLCC are multilayer ceramic chip capacitors with X7R dielectric material and flexible terminations. The capacitance value ranges from 0.22nF to 22µF. FLEXITERM is designed to enhance mechanical flexure and temperature cycling performance of a standard ceramic capacitor. The industry standard for flexure is 2mm, FLEXITERM provides up to 5mm of flexure without internal cracks. These capacitors provide improved performance compared to standard termination capacitors. The automotive grade FLEXITERM capacitors provide a design engineer with satisfactory solution for designing PCB's which may be subject to high levels of board flexure.

• Automotive grade AEC-Q200 compliant
• EIA 0402, 0603, 0805, 1206, 1210, 1812, 2220 case sizes available
• Rated voltage of 16VDC, 25VDC, 50VDC, 100VDC, 200VDC and 500VDC
• ±1%, ±2%, ±5%, ±10% and ±20% tolerance
• Reduction in circuit board flex failures
• Soft termination offers improved reliability performance
• Operating temperature range from -55°C to 125°C

Applications

Automotive, Industrial, Power Management, Consumer Electronics, Portable Devices

Warnings Market demand for this product has caused an extension in lead times, delivery dates may fluctuate

Product details

Capacitance	10µF
Voltage Rating	50V
Ceramic Capacitor Case	2220 [5650 Metric]
Capacitance Tolerance	± 10%
Dielectric Characteristic	X7R
Product Range	AVX 2220 MLCC
Operating Temperature Min	-55°C
Operating Temperature Max	125°C
Automotive Qualification Standard	AEC-Q200
MSL	MSL 1 - Unlimited
RoHS Phthalates Compliant	Yes

Other details

Brand	AVX
Part Number	22205C106K4Z2A
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN

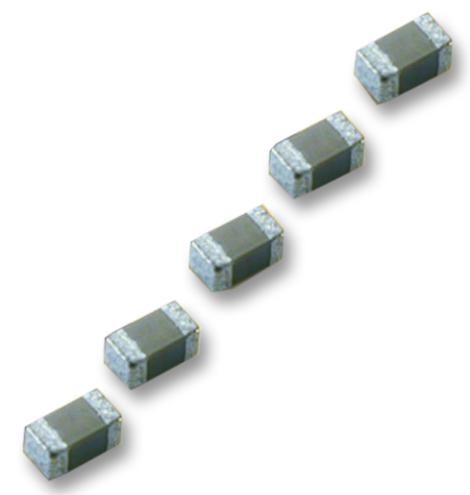

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
