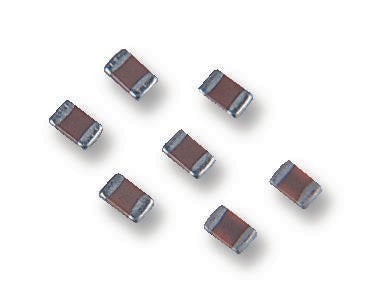

AVX 18125C225KAT2A SMD Multilayer Ceramic Capacitor 2.2 µF 50 V 1812 [4532 Metric] ± 10% X7R Mlcc

The 18125C225KAT2A is a surface-mount (SMT) Multilayer Ceramic Capacitor with Ni and Sn plated terminations. The X7R formulations are called temperature stable ceramics and fall into EIA Class II materials. X7R is the most popular of these intermediate dielectric constant materials. Its temperature variation of capacitance is within ±15% from -55 to 125°C. This capacitance change is non-linear. Capacitance for X7R varies under the influence of electrical operating conditions such as voltage and frequency. The X7R dielectric chip usage covers the broad spectrum of industrial applications where known changes in capacitance due to applied voltages are acceptable.

• Reflow soldering method
• EIA Class II dielectric
• Low parasitics
• Excellent EMI filtering capabilities
• Standard product

Applications

Industrial

Warnings Market demand for this product has caused an extension in lead times, delivery dates may fluctuate

Product details

Capacitance	2.2µF
Voltage Rating	50V
Ceramic Capacitor Case	1812 [4532 Metric]
Capacitance Tolerance	± 10%
Dielectric Characteristic	X7R
Product Range	AVX 1812 MLCC
Operating Temperature Min	-55°C
Operating Temperature Max	125°C
Automotive Qualification Standard	-
MSL	MSL 1 - Unlimited
RoHS Phthalates Compliant	Yes

Other details

Brand	AVX
Part Number	18125C225KAT2A
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
