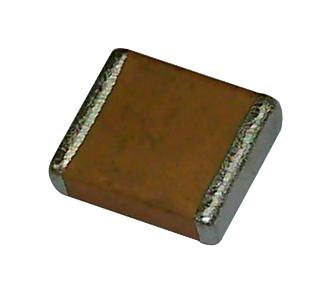

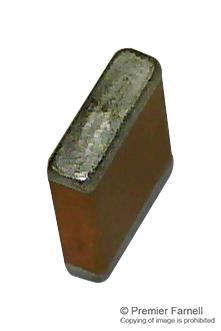

AVX 18125C105KAT2A SMD Multilayer Ceramic Capacitor 1 µF 50 V 1812 [4532 Metric] ± 10% X7R Mlcc

The AVX multilayer ceramic capacitors with EIA class II, X7R dielectric material are temperature stable ceramic chip capacitors. This multilayer ceramic capacitor is a monolithic block of ceramic containing two sets of offset, interleaved planar electrodes that extend to two opposite surfaces of ceramic dielectric. Capacitance for X7R dielectric varies under influence of electrical operating conditions such as voltage and frequency. X7R dielectric chip usage covers broad spectrum of industrial applications where known changes in capacitance due to applied voltages are acceptable.

• Capacitance value ranges from 100pF to 100µF
• EIA 0101, 0201, 0402, 0603, 0805, 1206, 1210, 1812, 1825, 2220, 2225 case sizes available
• Rated DC voltage of 4V, 6.3V, 10V, 16V, 25V, 50V, 100V, 200V, 500V
• ±5%, ±10% and ±20% tolerance
• Available in FLEXITERM/gold/Nickel (Ni) and tin (Sn) plated terminations
• Load life of 1000h at 125?C
• Operating temperature range from -55?C to 125?C

Applications

Industrial, Consumer Electronics, Portable Devices, Power Management

Product details

Capacitance	1µF
Voltage Rating	50V
Ceramic Capacitor Case	1812 [4532 Metric]
Capacitance Tolerance	± 10%
Dielectric Characteristic	X7R
Product Range	AVX 1812 MLCC
Operating Temperature Min	-55°C
Operating Temperature Max	125°C
Automotive Qualification Standard	-
MSL	MSL 1 - Unlimited

Other details

Brand	AVX
Part Number	18125C105KAT2A
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
