AVX 12105C475K4Z2A SMD Multilayer Ceramic Capacitor 4.7 µF 50 V 1210 [3225 Metric] ± 10% X7R Mlcc

The 12105C475K4Z2A is a Multilayer Ceramic Capacitor with Ni/Sn-plated termination, X7R dielectric and 1210 case. A multilayer ceramic (MLC) capacitor is a monolithic block of ceramic containing two sets of offset, interleaved planar electrodes that extend to two opposite surfaces of the ceramic dielectric. X7R formulations are called temperature stable ceramics and fall into EIA class II materials. X7R is the most popular of these intermediate dielectric constant materials. This capacitance change is non-linear. Capacitance for X7R varies under the influence of electrical operating conditions such as voltage and frequency. X7R dielectric chip usage covers the broad spectrum of industrial applications where known changes in capacitance due to applied voltages are acceptable.

• Reflow soldering
• EIA 0402, 0603, 0805, 1206, 1210, 1812, 2220 case sizes available
• Rated voltage of 16VDC, 25VDC, 50VDC, 100VDC, 200VDC and 500VDC
• ±1%, ±2%, ±5%, ±10% and ±20% tolerance
• Reduction in circuit board flex failures
• Soft termination offers improved reliability performance
• Operating temperature range -55°C to 125°C

Applications

Industrial, Industrial, Power Management, Consumer Electronics, Portable Devices, Automotive

Product details

Capacitance	4.7µF
Voltage Rating	50V
Ceramic Capacitor Case	1210 [3225 Metric]
Capacitance Tolerance	± 10%
Dielectric Characteristic	X7R
Product Range	AVX 1210 MLCC
Operating Temperature Min	-55°C
Operating Temperature Max	125°C
Automotive Qualification Standard	AEC-Q200
MSL	MSL 1 - Unlimited

Other details

Brand	AVX
Part Number	12105C475K4Z2A
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
CAD CadSoft_EAGLE EN

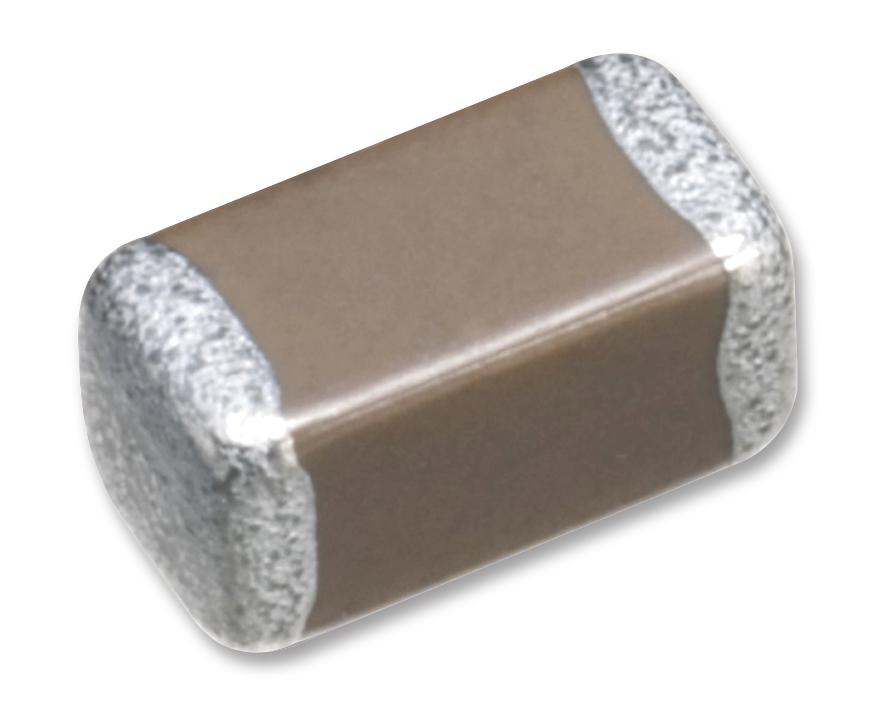

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
