Description
AVPro Edge AC-MXNET Overview
- 1Description
- 2Key Features
- 3JPEG 2000
- 4Resolution and HDR Metadata Management
- 5Data Window
- 6Control Data Routing
- 7Compatible with AVPro Edge Products:

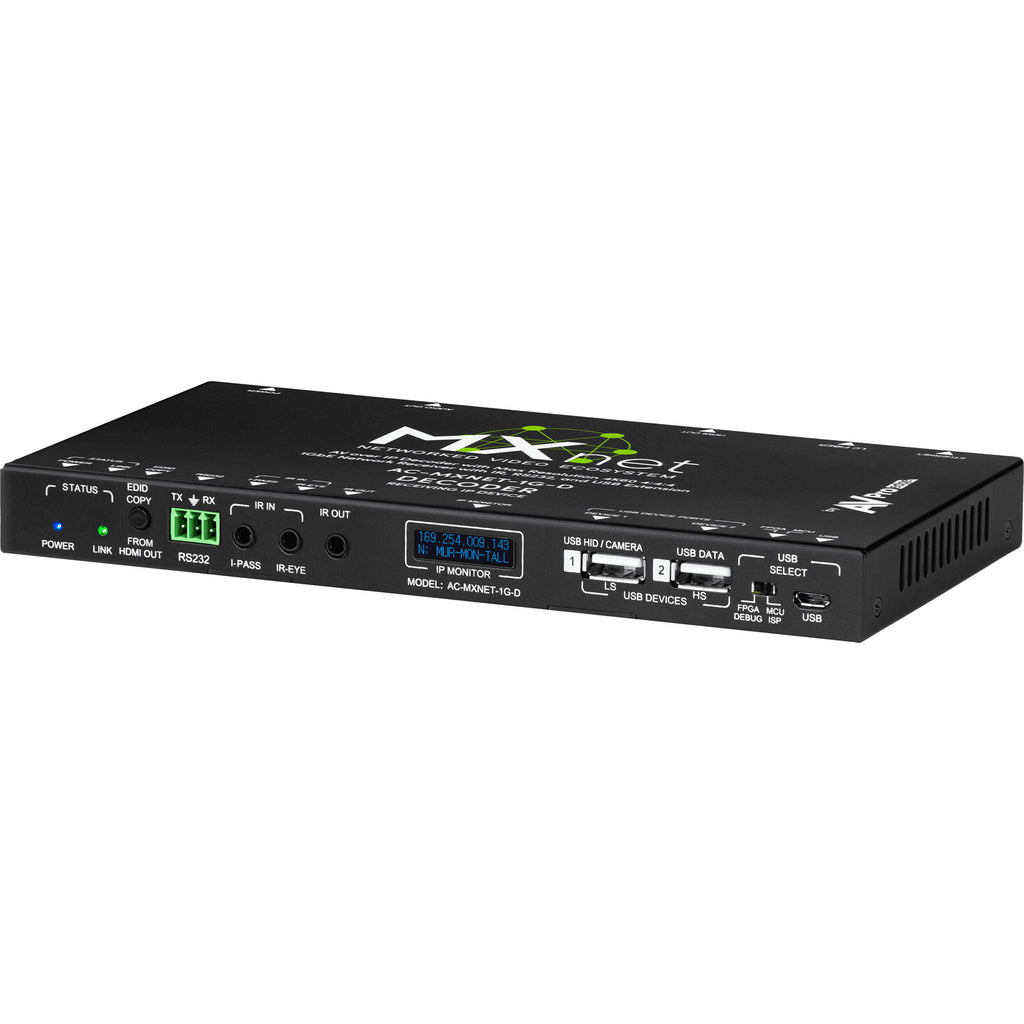

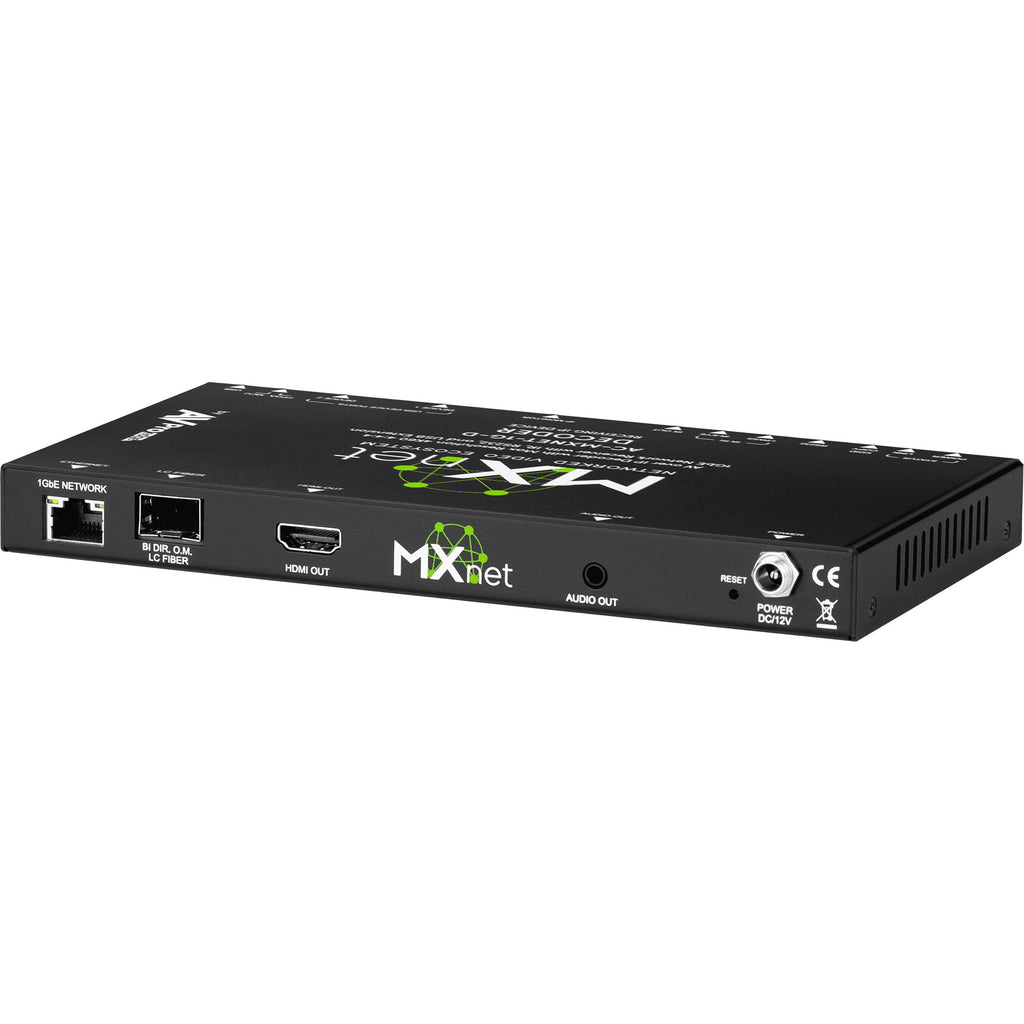

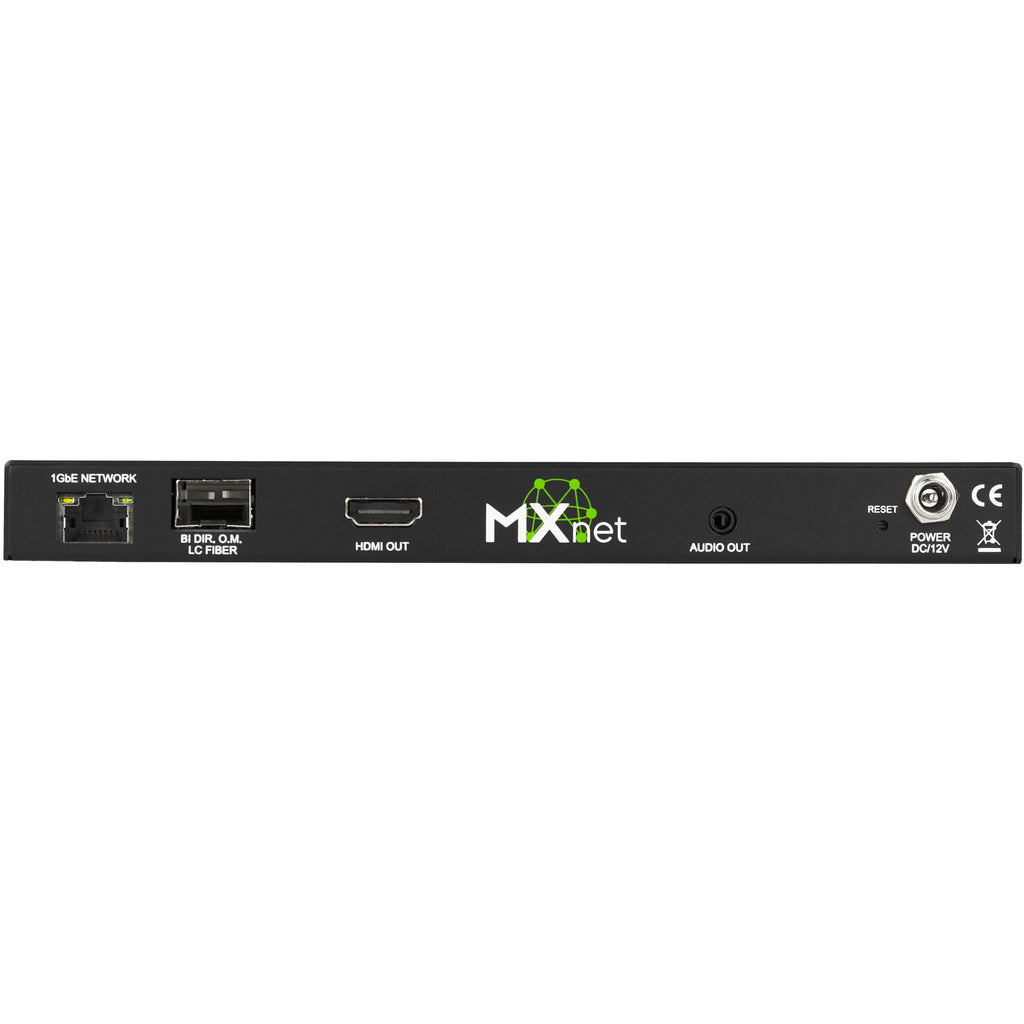

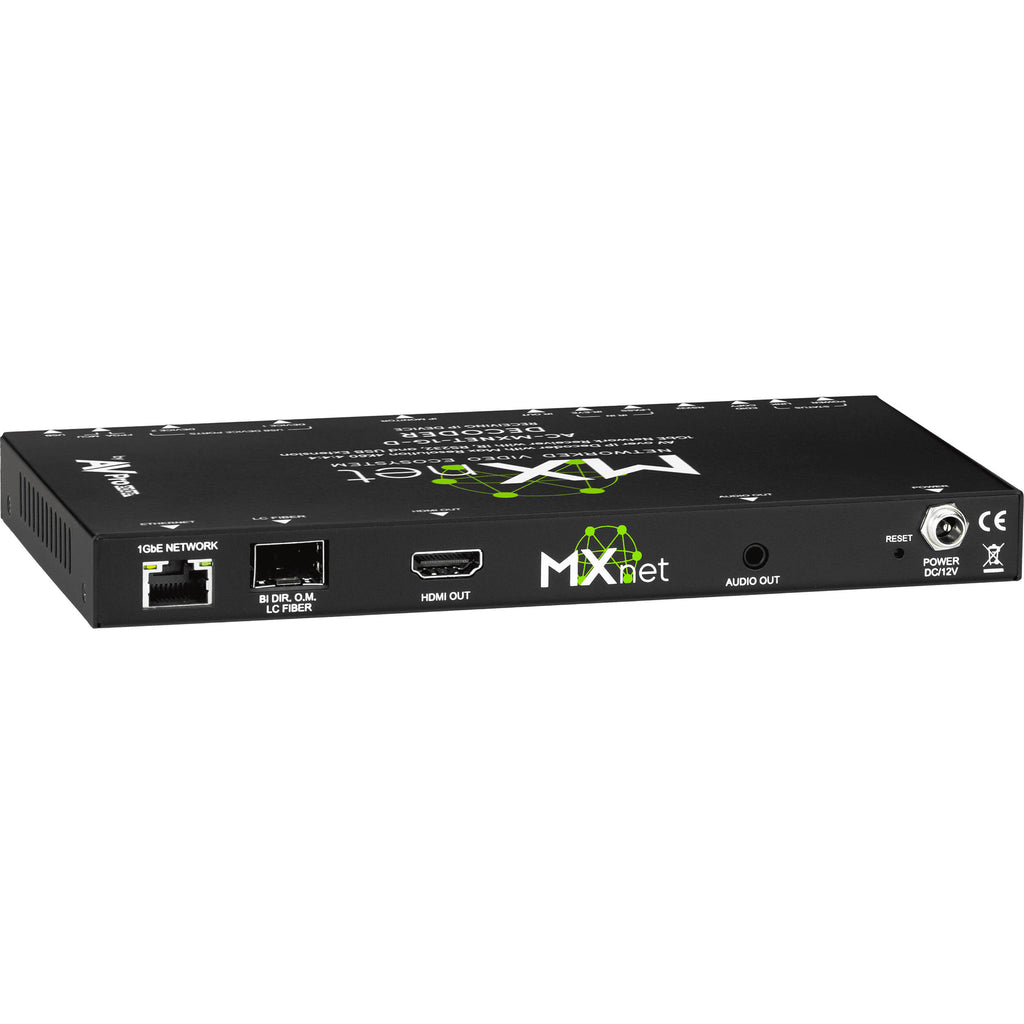

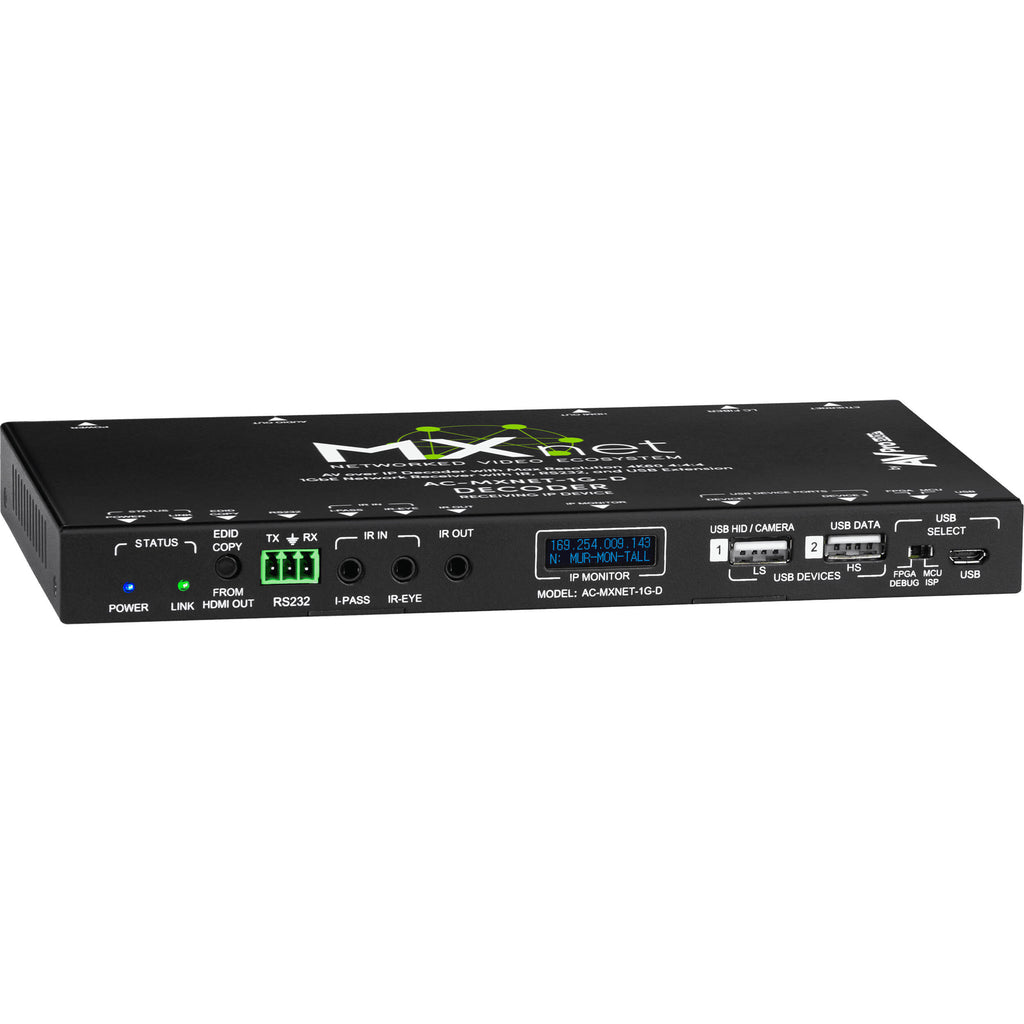

The MXNet Weatherproof 1G Decoder from AVPro Edge receives and decodes incoming audio/video signals at resolutions up to 4K60 4:4:4, along with control, power, and HDR metadata while remaining protected from direct rain, moisture, humidity, dust, salt-air, and corrosion of various types.
Thanks to the Sealoc nano-coating solution designed specifically for select AVPro Edge products, a virtually invisible and durable waterproofing layer keeps the unit's circuitry protected and, most importantly, dry at all times to extend the life of the product even in harsher conditions.
Key Features
- 1G maximum data rate
- Uses any standard category cable (Cat 5e or better )
- SFP fiber connection for long runs
- Built-In �Data Window� OLED display
- USB/KVM device support
- Full exterior light control (for discreet installs)
- RS-232 and IR direct routing end point
- Encapsulated RS-232 over IP serial pass-through
JPEG 2000
JPEG 2000 supports progressive decoding and delivers both lossy and lossless compression within a code stream. JPEG 2000 supports genlock so that the frames of a video source are synced to all decoders resulting in tear-free video walls. JPEG 2000 enables the handling of color-space information, 10-bit color, and it supports interactivity in networked applications.
Resolution and HDR Metadata Management
Specify resolutions starting with 720p50 and up to 4K60. Using the MXNet Mentor software, you can specify whether you want to retain HDR metadata regardless of resolution.

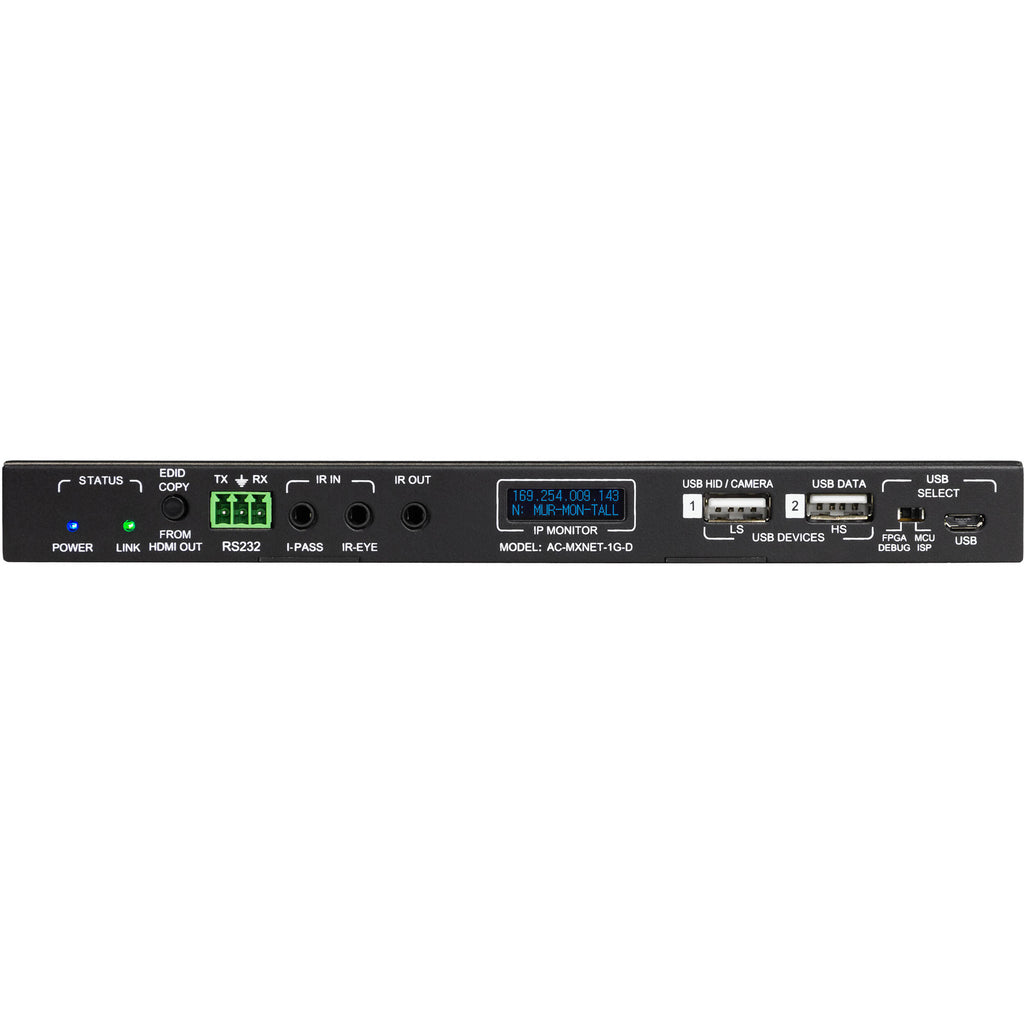

Data Window
Built-in mini OLED screen displaying critical information that makes setup and troubleshooting a much easier task. The data window displays the IP address and the MAC address, or you can modify the name using MXNet Mentor to display custom names such as LG-OLED-TV, WEST-BAR-12, TW-PROJ-3, etc. You have up to 12 characters available to use for your custom name.
Control Data Routing
RS-232 and IR signals can be direct routed to the decoder.
Compatible with AVPro Edge Products:
- AC-MXNET-1G-E
- AC-MXNET-1G-AVDM-E
- AC-MXNET-SW24
- AC-MAXNET-SW48
- AC-MXNET-CBOX
In the Box
- AVPro Edge MXNet Weatherproof 1G Decoder
- IR Emitter
- IR Receiver
- 2 x Mounting Bracket
- 4 x Screw for Mounting Bracket
- 2 x 3-Pin Terminal Block
- Limited 10-Year Manufacturer Warranty
Table of Contents
- Description
- Key Features
- JPEG 2000
- Resolution and HDR Metadata Management
- Data Window
- Control Data Routing
- Compatible with AVPro Edge Products:
AVPro Edge AC-MXNET Specs
| Video Inputs | 1 x RJ45 Female |
| Audio Inputs | None |
| Video Outputs | 1 x HDMI (HDMI 2.0b) Female |
| Audio Outputs | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Other I/O | 1 x LC Fiber Input/Output 2 x 1/8" / 3.5 mm IR Input 1 x 1/8" / 3.5 mm IR Output 1 x Block 5-Pin RS-232 2 x USB-A 1 x Micro-USB Service |
| Expansion Slots | None |
| Input Video Format | RJ45 (10/12/16-Bit 4:4:4/4:2:2/4:2:0) UHD 4K up to 60 fps |
| Output Video Format | HDMI (10/12/16-Bit 4:4:4/4:2:2/4:2:0) UHD 4K up to 60 fps |
| Output Audio Format | Analog |
| Embedded Audio | LAN (RJ45)/HDMI |
Standards
| EDID Support | Manual Control |
| HDR Compatibility | HDR10, Hybrid Log Gamma |
| DTS Compatibility | DTS, DTS-ES, DTS-HD High Resolution |
| Dolby Compatibility | Dolby Digital, Dolby Digital Plus |
Power
| Power I/O | 1 x Barrel (12 VDC at 2 A) Output |
| PoE Support | PoE 802.3af |
| Power Consumption | 9 W |
Environmental
| Operating Temperature | 23 to 125°F / -5 to 51°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 5 to 90% (Non-Condensing) |
General
| Certifications | CE, FCC, UL *as per Manufacturer |
| Dimensions | 7.87 x 4.09 x 0.79" / 19.99 x 10.39 x 2.01 cm |
| Weight | 1.2 lb / 544 g |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
