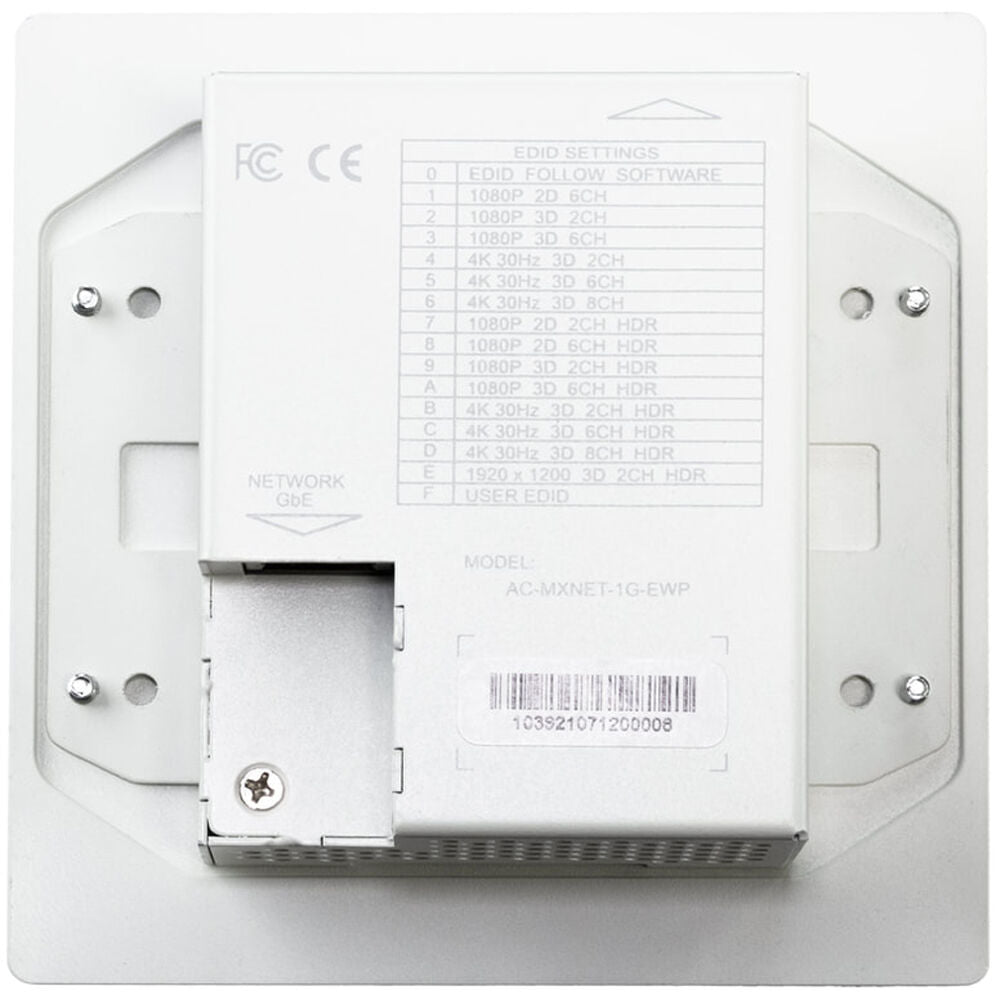

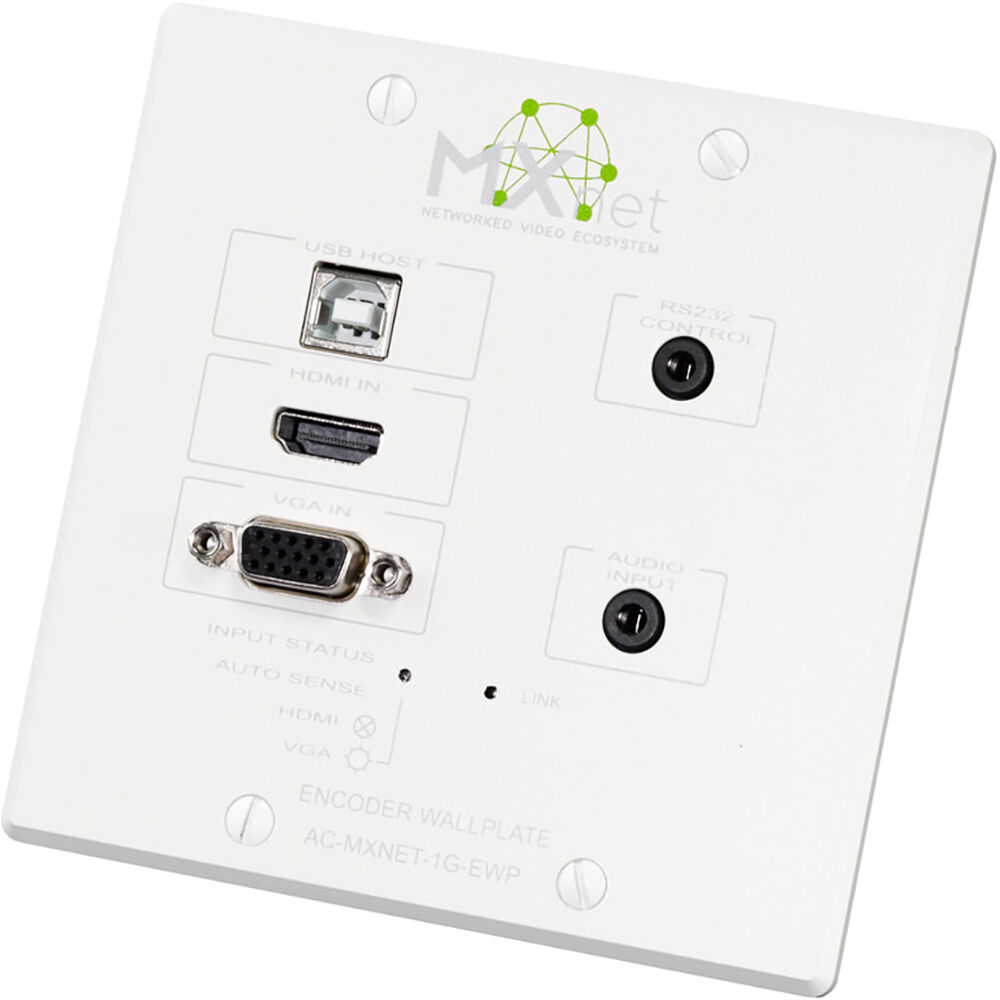

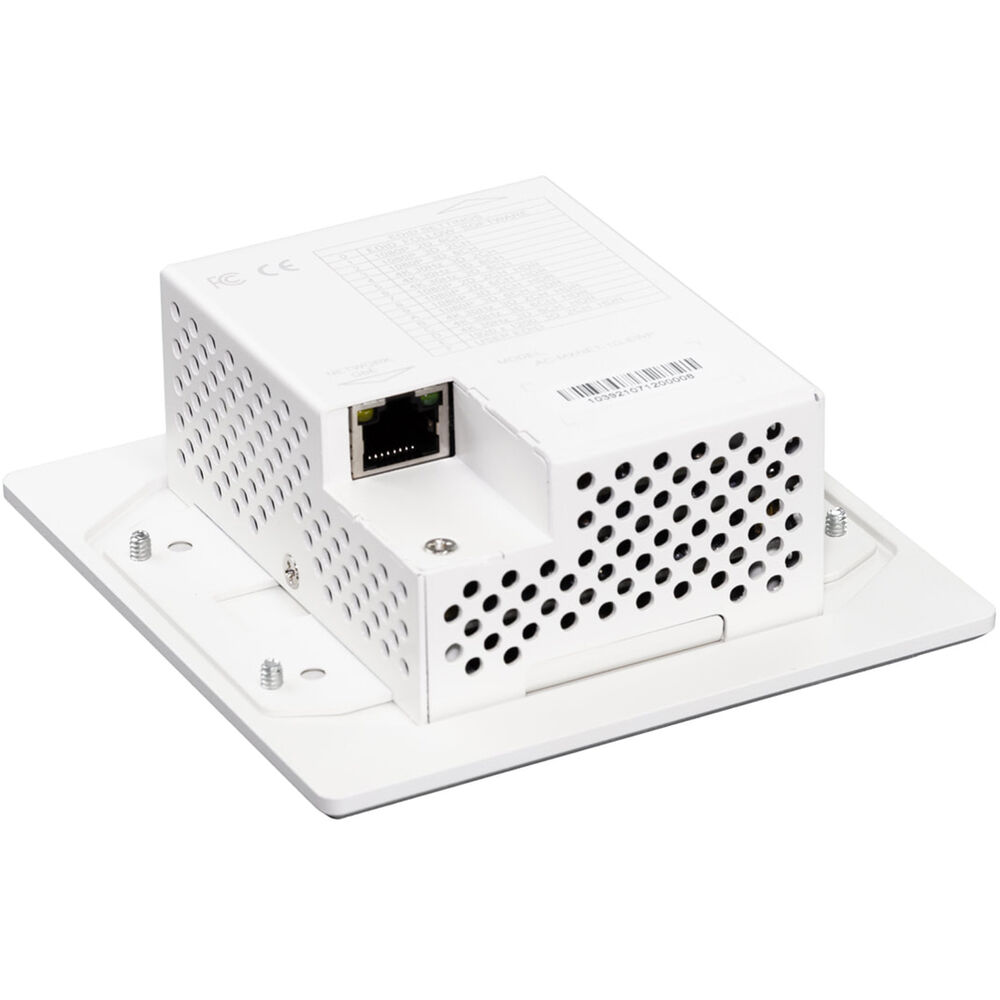

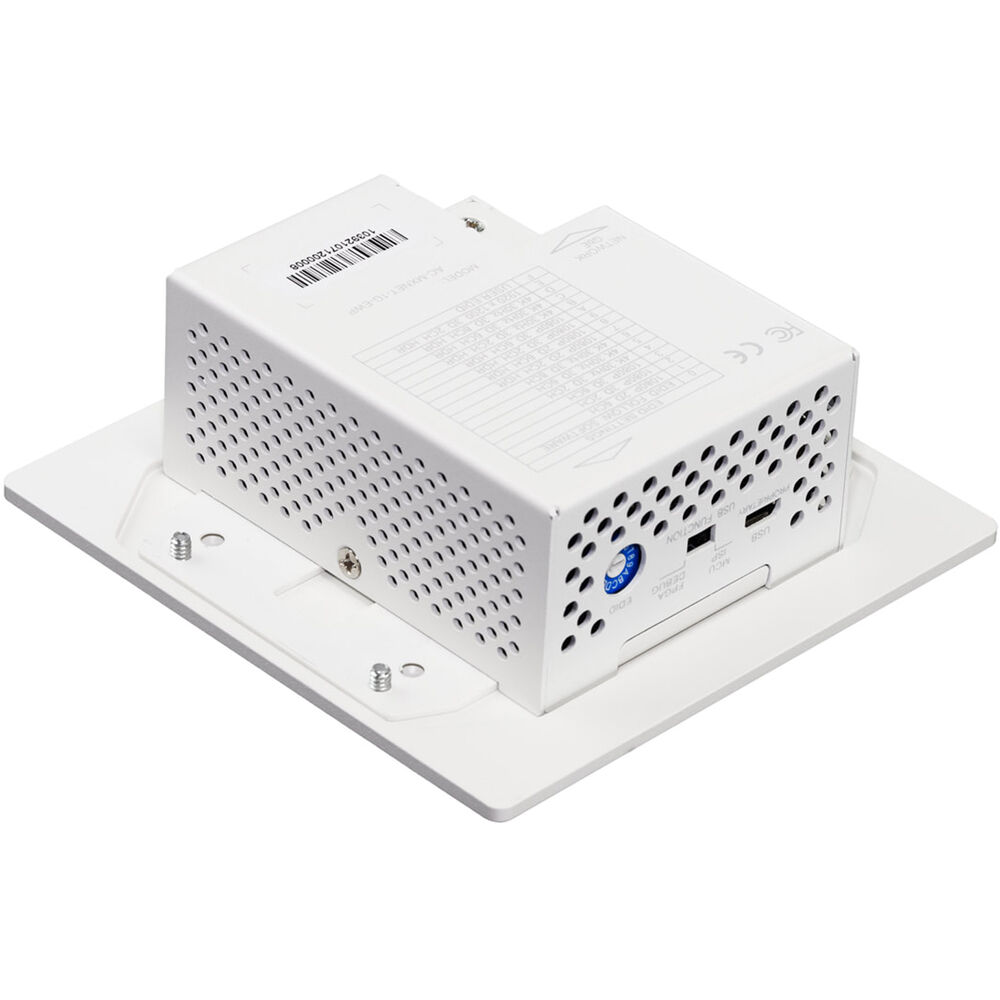

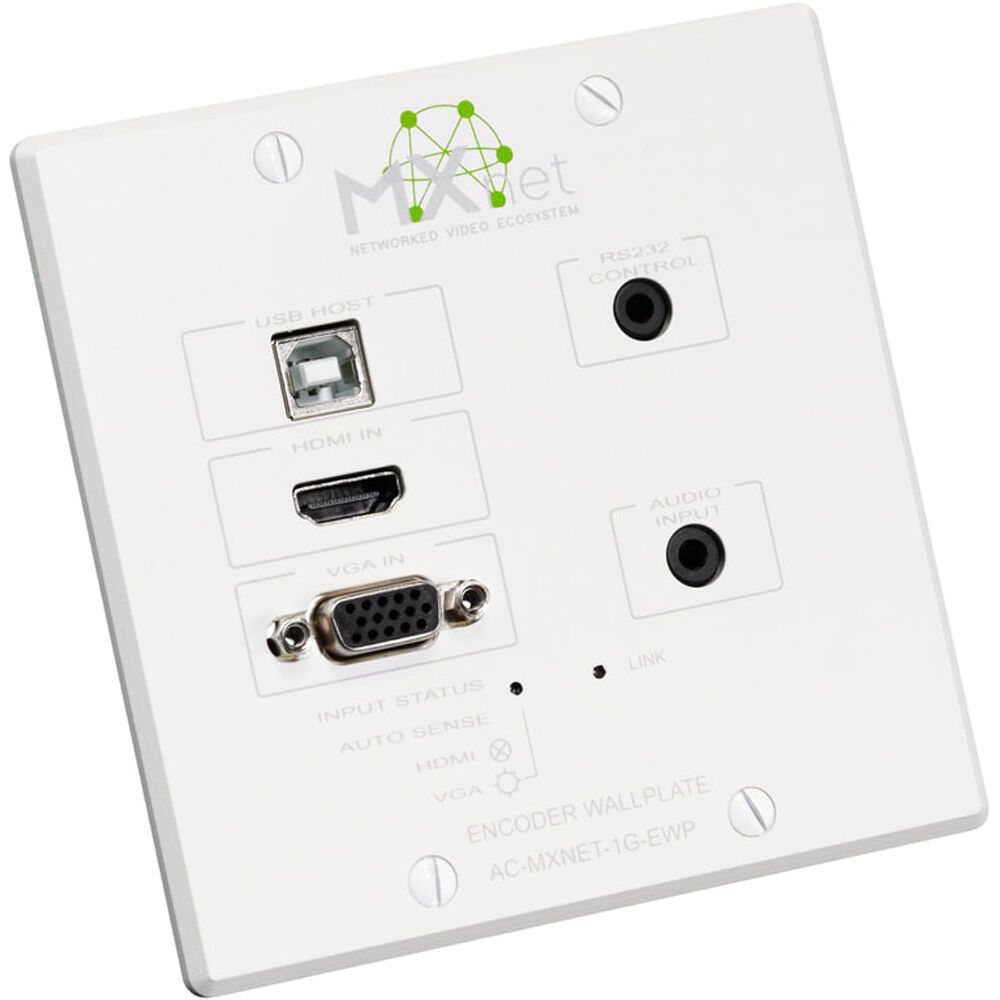

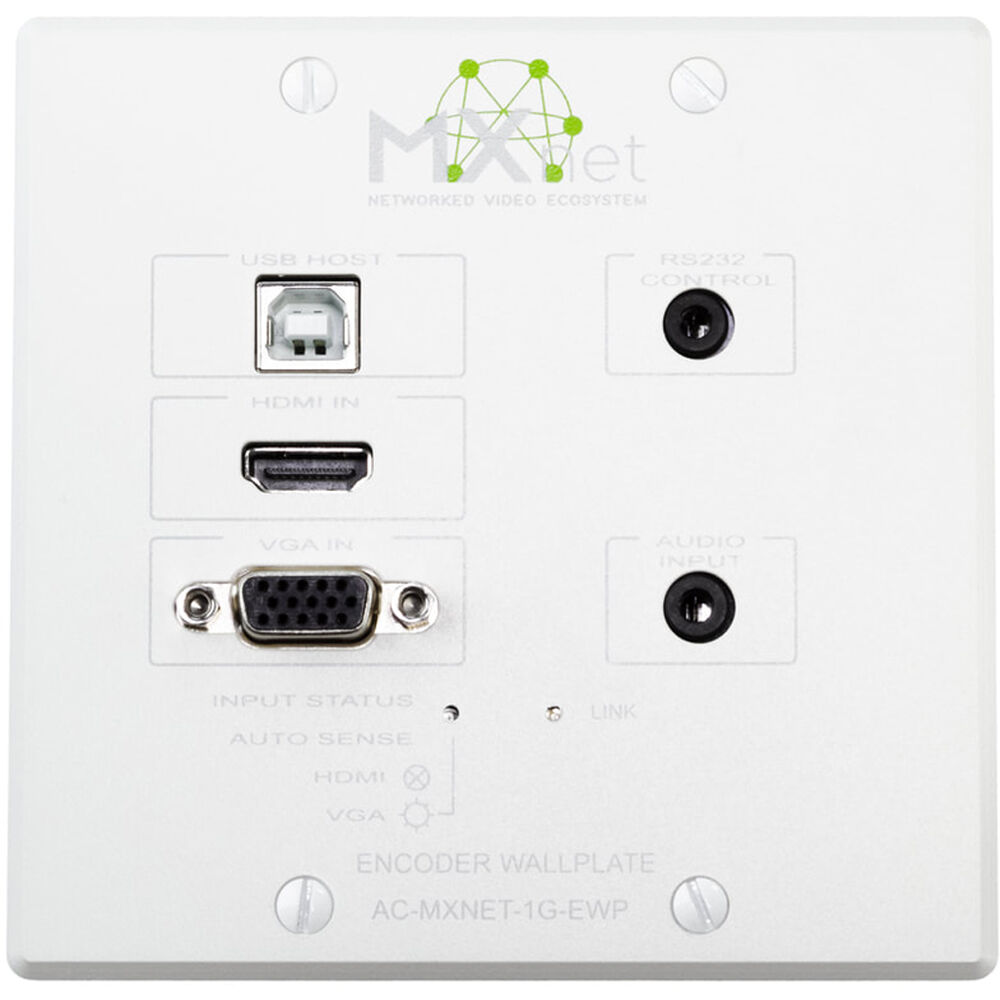

This AVPro Edge MXNet 1G Wall Plate Encoder Device is an AV over IP encoder device that fits into any standard dual-gang mud ring. Connect this MXNet wall plate to any HDMI source and it will encode the audio/video signal into a multicast data format that can be routed to any Decoder endpoint within the project/installation. This device connects directly via category cable (CAT 5e or better) to any MXNet switch. The AC-MXNET-1G-EWP is a part of the MXNet family of AV-over-IP products from AVPro Edge.
The AC-MXNET-1G-EWP will encode a full 4K 4:4:4 60 Hz HDMI video signal along with audio, control, power, and HDR metadata. These signals are passed to single or multiple decoder endpoints via multicast routing through an MXNet or multicast compatible L3 managed network switch. It does all this with next to zero latency. MXNet Encoders encode audio/video/control signals into IP packets using an optimized JPEG2000 codec at a flexible data rate (200 Mb/s for 1080p content, 300 Mb/s for 4K30 content, 850 Mb/s at peak).
JPEG 2000 is the obvious and essential video encoding choice when picture quality is critical. JPEG 2000 supports progressive decoding and delivers both lossy and lossless compression within a code stream. JPEG 2000 supports genlock, so that the frames of a video source are synced to all decoders, resulting in tear-free video walls. JPEG 2000 enables the handling of color-space information, 10-bit color, and it supports interactivity in networked applications.
Full External Light Control
Our integrators pride themselves on their work, so don't let a small blue, green, red, or yellow light ruin your perfectly engineered viewing room. When you install an encoder in a discreet location, you have the option to turn off all the lights on the device�including network link lights�as well as the Data Window OLED light. This allows you to install the encoder, and once you know everything is working, eliminate any light outputted from the device. This way, the end-user will never even know it's there.
Both RS-232 and IR signals can be direct routed through the AC-MXNET-1G-E encoder. When you route these signals through a network switch, you can specify either single or multiple decoders to receive these control signals.
Each encoder unit has a USB-B host connection. This allows you to connect and route any connected USB signals to a decoder device. Use the MXNet mentor software to specify the host encoder and the upstream USB device connected to the selected decoder.
In the Box
- AVPro Edge MXNet 1G Wall Plate Encoder Device
- Decora Wall Plate Cover (White)
- 2 x Long Electrical Outlet Screw
- Limited 10-Year Warranty
Table of Contents
- Description
- JPEG 2000
- Full External Light Control
- Control Signal Routing
- USB and KVM Support
AVPro Edge MXNET-1G Specs
| Video Inputs |
1 x HDMI (HDMI 2.0)
1 x DE-15/DB-15 (VGA) |
| Audio Inputs |
1 x 1/8" / 3.5 mm TRS |
| Audio Outputs |
None |
| Other I/O |
1 x RJ45 LAN
1 x 1/8" / 3.5 mm RS-232 Input/Output |
| Expansion Slots |
None |
| Input Audio Format |
Analog |
| Embedded Audio |
HDMI |
Standards
| HDR Compatibility |
HDR10, Hybrid Log Gamma |
Power
| Power I/O |
1 x RJ45 Input |
| PoE Support |
PoE 802.3af |
Environmental
| Operating Temperature |
23 to 125°F / -5 to 51°C |
| Storage Temperature |
-4 to 140°F / -20 to 60°C |
| Operating Humidity |
5 to 90% (Non-Condensing) |
General
| Dimensions |
3.4 x 2.6 x 1.9" / 87 x 67 x 47 mm |
| Weight |
18.7 oz / 530 g |
