Description

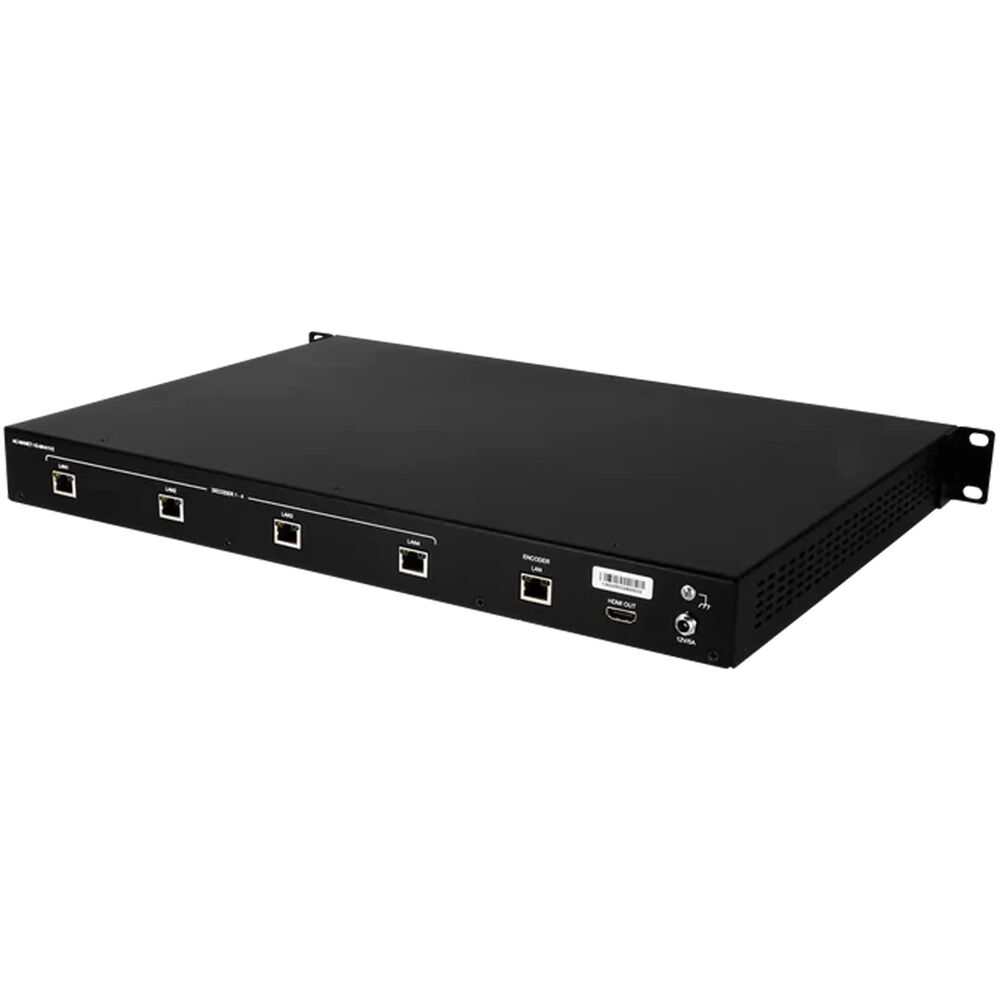

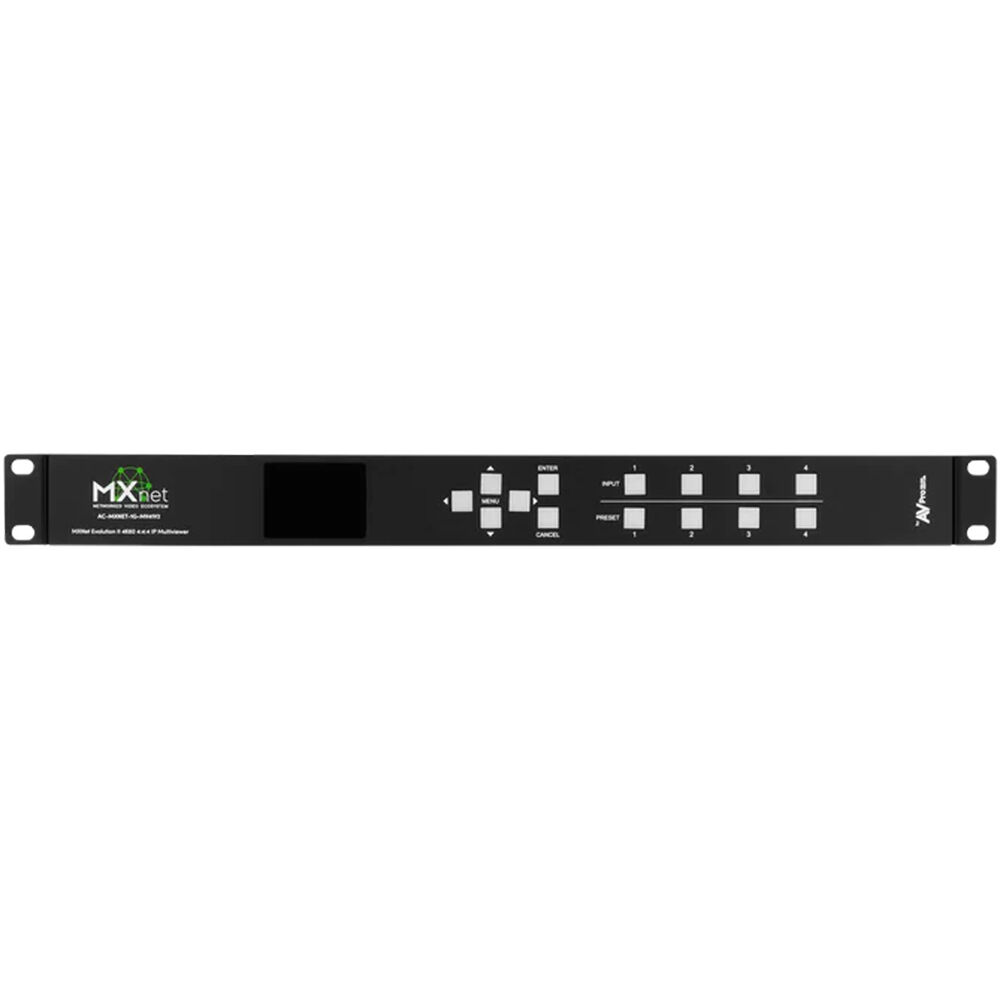

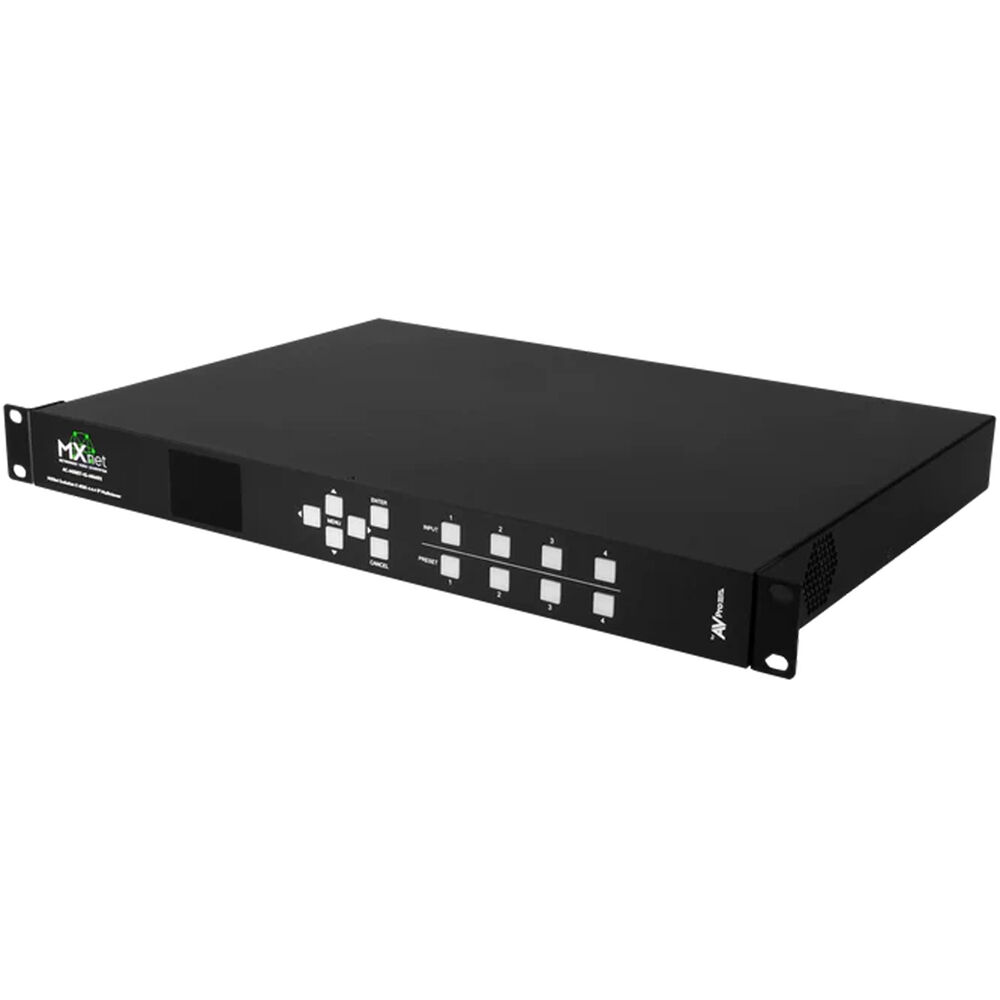

AVPro Edge MXnet 1G Evolution II Overview
The MXnet 1G Evolution II 4K 4x1 Multiviewer from AVPro Edge integrates four encoders and one decoder to facilitate the combination and simultaneous display of up to four 4K60 video streams across any connected decoder. The unit supports live tiling and drag-and-drop editing with sources intuitively configured via MXnet's Mentor web-hosted management interface, and it comes pre-loaded with four multiview layouts.
Multiview Functionality
Users can display and share multiple video sources simultaneously on a single screen, which is ideal for a wide range of applications, including video conferencing, exports, and watching multiple sporting events concurrently.

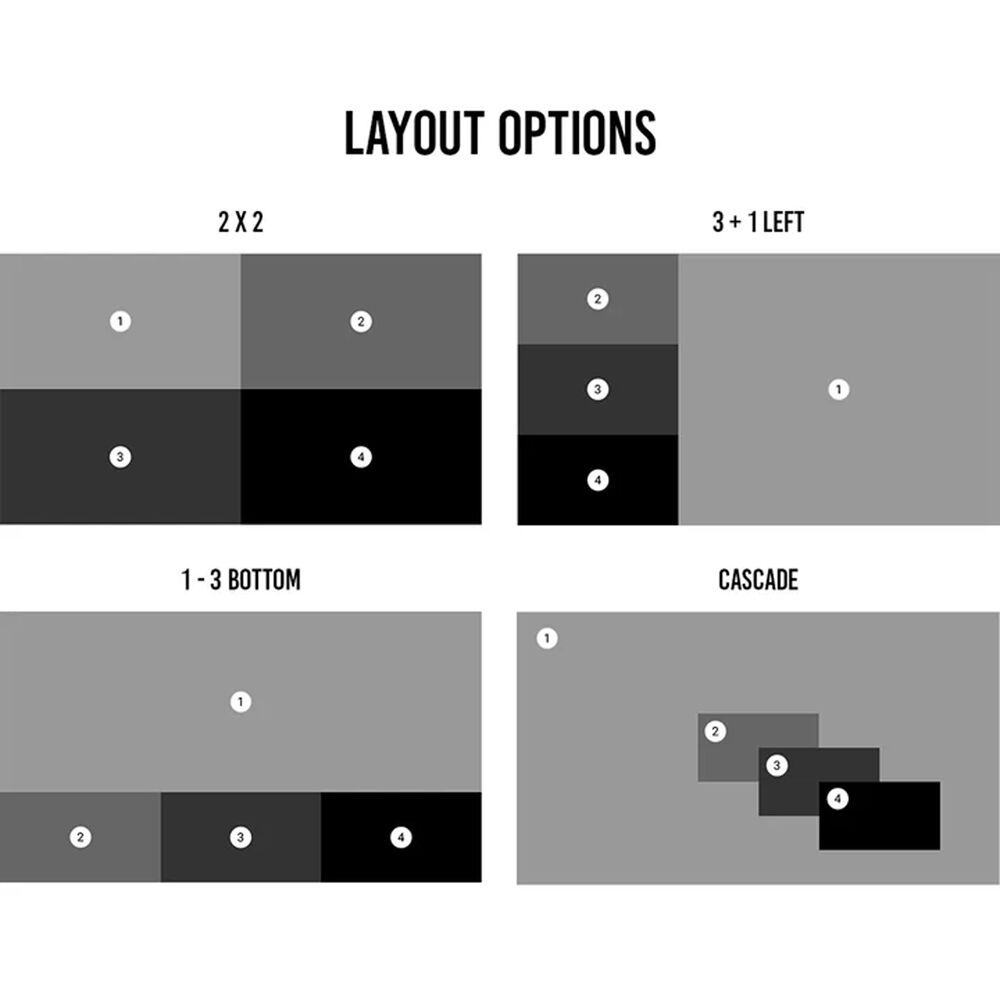

Customizable Layouts
For installations requiring specific visual arrangements, customizable layouts provide the flexibility to tailor the screen presentation to meet the needs of unique or application-specific requirements.
EDID Management
EDID management ensures optimal video output by automatically matching the source device settings (resolution, refresh rate, etc.) to the capabilities of the connected display. This minimizes compatibility issues and streamlines the user experience, particularly in complex multi-display environments.
Third-Party Control Integration
A robust and well-documented API enables seamless integration, easily routes A/V signals, and tailors multiview layouts to fit any environment with robust driver support for most leading control systems, streamlining integration and enhancing user experience.
Ultralow Latency
The multiviewer's ultralow latency ensures near-instantaneous response times, which are crucial for real-time applications where delay must be minimized to maintain performance and interactivity.
User-Friendly Interface
The familiar Mentor-style interface provides intuitive navigation and streamlined access to all essential settings and configuration options.
Additional Details
- Combines up to four 4K60 video streams from MXnet Evolution II encoders
- All MXnet Evolution II encoders qualify as sources for unlimited tiling combinations
- The integrated encoder enables multiviewing at any MXnet Evolution II decoder location
- Simplified setup and configuration via MXnet Mentor
- The slim 1 RU rackmount chassis streamlines installation

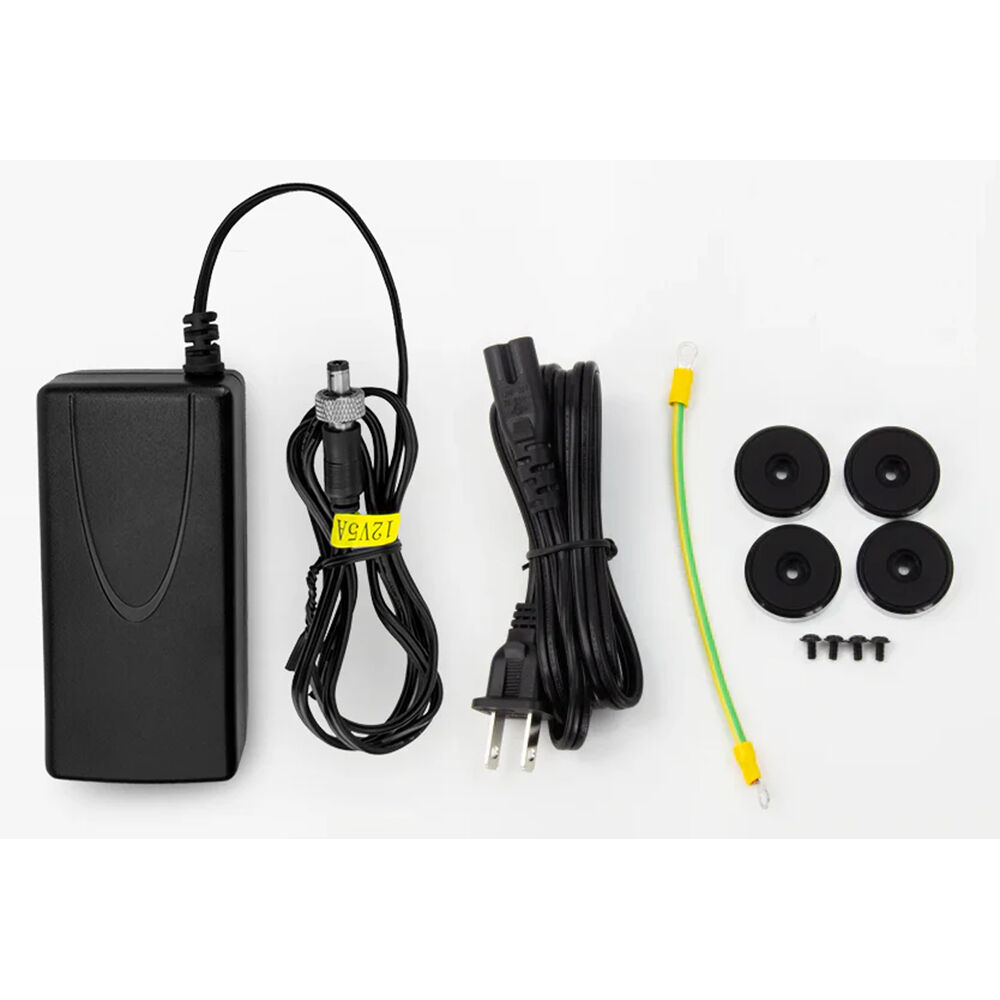

Items Included
- AVPro Edge MXnet 1G Evolution II 4K 4x1 Multiviewer
- 12 VDC, 5A Power Supply
- Grounding Wire
- 4 x Optional Base Riser
- 4 x Screw
- Limited 10-Year Manufacturer Warranty
Additional Resources
No additional resources available
AVPro Edge MXnet 1G Evolution II Specs
Key Specs
| Inputs |
4 x RJ45 (LAN) Female
|
| Embedded Audio |
HDMI/LAN (RJ45)
|
| Outputs |
1x HDMI (HDMI 2.0) Female
|
| Video Format |
HDMI Output (10/12/8-Bit 4:4:4/4:2:2/4:2:0 RGB)
4096 x 2160: 24/30/60/50 fps 3840 x 2160: 24/30/60/50 fps 1920 x 1080p: 24/60/50 fps 1280 x 720p: 60/50 fps RJ45 (10/12/8-Bit 4:4:4/4:2:2/4:2:0 RGB) 4096 x 2160: 24/30/60/50 fps 3840 x 2160: 24/30/60/50 fps 1920 x 1080p: 24/60/50 fps 1280 x 720p: 60/50 fps |

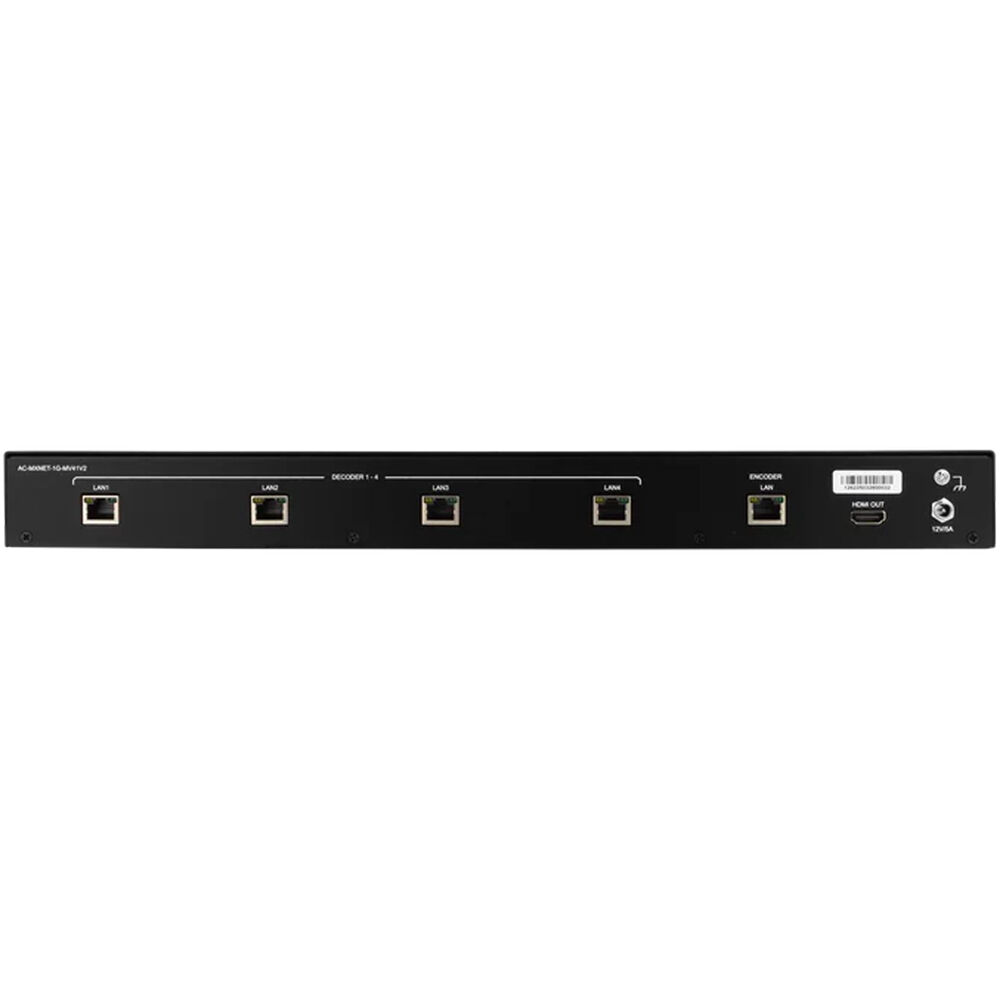

Interfaces
| Inputs |
4 x RJ45 (LAN) Female
|
| Embedded Audio |
HDMI/LAN (RJ45)
|
| Outputs |
1x HDMI (HDMI 2.0) Female
|
| Other I/O |
1x RJ45 Output
|
Standards
| HDR Support |
Yes: HDR10/Hybrid Log Gamma
|
| HDCP Support |
Yes
|
| EDID Support |
Auto-Detect
|
| Audio Decoding |
DTS Digital Surround, DTS-ES, DTS-HD High-Resolution, DTS-HD Master Audio, Dolby Atmos, Dolby Digital, Dolby Digital Plus, PCM
|
Transmission
| Video Format |
HDMI Output (10/12/8-Bit 4:4:4/4:2:2/4:2:0 RGB)
4096 x 2160: 24/30/60/50 fps 3840 x 2160: 24/30/60/50 fps 1920 x 1080p: 24/60/50 fps 1280 x 720p: 60/50 fps RJ45 (10/12/8-Bit 4:4:4/4:2:2/4:2:0 RGB) 4096 x 2160: 24/30/60/50 fps 3840 x 2160: 24/30/60/50 fps 1920 x 1080p: 24/60/50 fps 1280 x 720p: 60/50 fps |
| Audio Format |
Unspecified Digital Signal
|
| Audio Channels |
7.1-Channel
|
Power
| Power I/O |
1x Barrel (12 VDC at 5 A) Output
|
General
| Certifications |
CE, FCC, UL
|
| Operating Conditions |
23 to 125?F / -5 to 51?C at 5 to 90% Humidity
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C at 5 to 90% Humidity
|
| Dimensions |
12.4 x 17.3 x 1.7" / 315.9 x 439.6 x 44.4 mm
|
| Weight |
9.34 lb / 4.24 kg
|
