Description
AVPro Edge MXNET-1G-DANTE Overview
- 1Description
- 2Video/Audio Encoding
- 3Data Displays
- 4USB and KVM Support

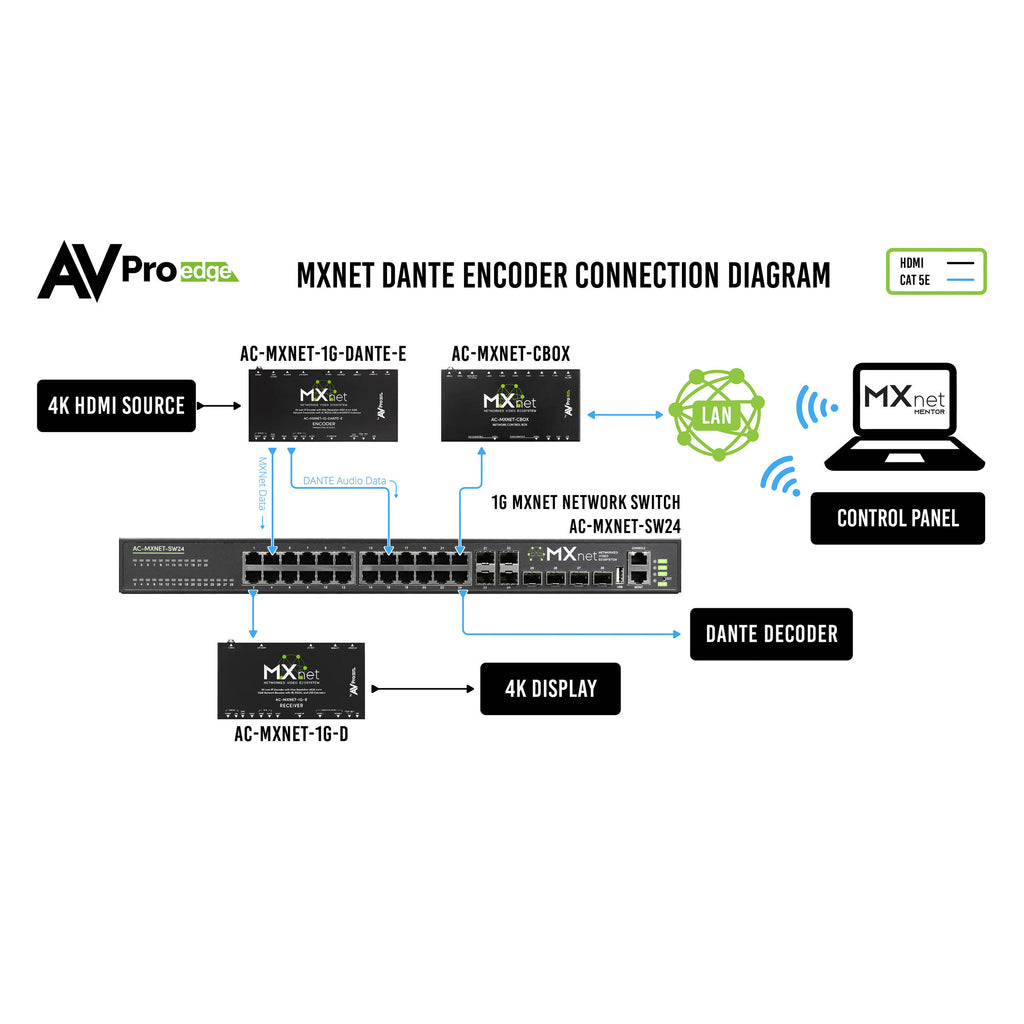

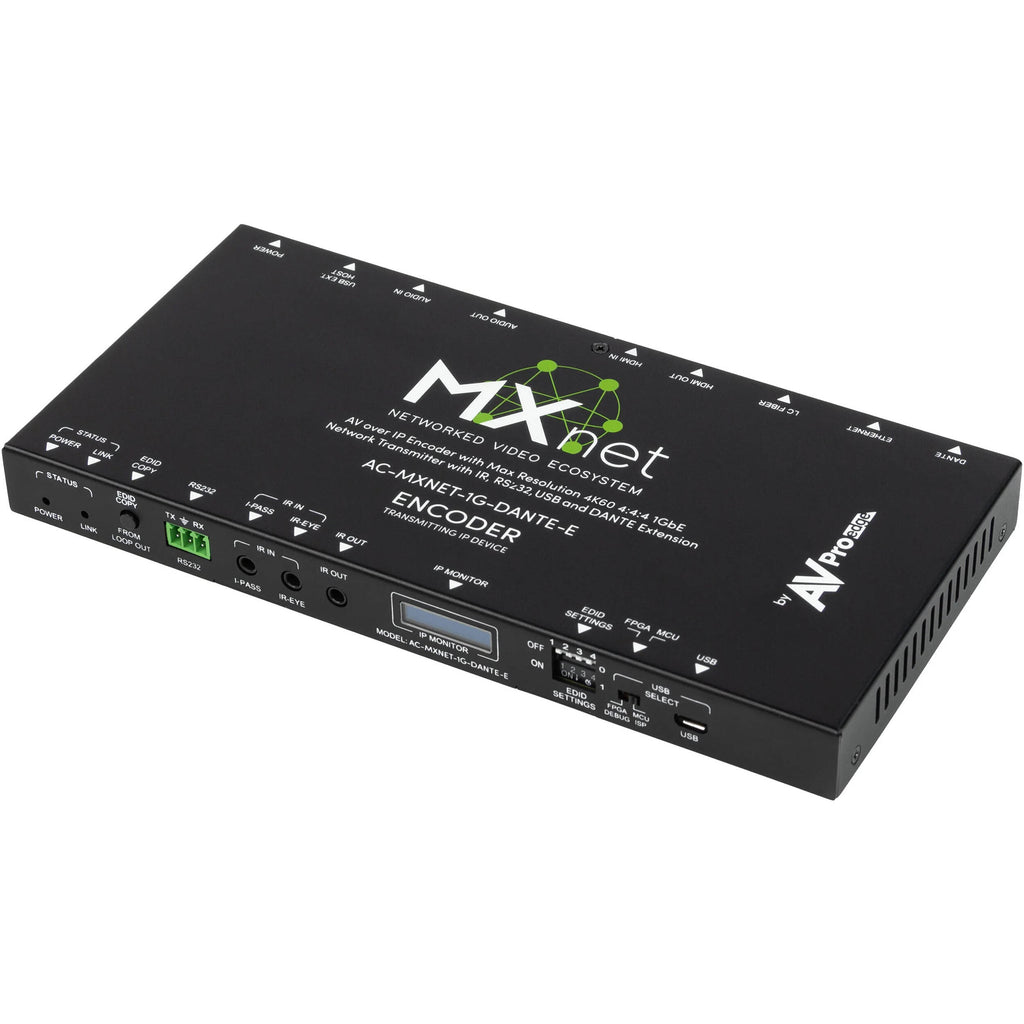

Add the MXNet 1G Dante Encoder/Transmitter Device from AVPro Edge to your network to send IP video for video walls, digital signage, or high-resolution monitoring. This Dante audio-compatible encoder inputs up to 4K60 4:4:4 video from the MXNet switch or a multicast-capable L3 switch over Gigabit Ethernet, and outputs HDMI video up to 4K60. The transmitter encodes and transmits it with near-zero latency with a maximum 1 Gb/s data rate, outputting visually lossless video and audio.
JPEG 2000 is the essential video encoding choice when picture quality is critical. JPEG 2000 supports progressive decoding and delivers both lossy and lossless compression within a code stream and it supports genlock, so that the frames of a video source are synced to all decoders, resulting in tear-free video walls. It also enables the handling of color-space information, 10-bit color, and interactivity in networked applications.
In the Box
- AVPro Edge MXNet 1G Dante Encoder/Transmitter
- IR Emitter
- IR Receiver
- 2 x Mounting Brackets
- 4 x Mounting Screws
- 2 x 3-Pin Terminal Blocks
- Limited 10-Year Manufacturer Warranty
- Description
- Video/Audio Encoding
- Data Displays
- USB and KVM Support
AVPro Edge MXNET-1G-DANTE Specs
| Video Inputs |
1 x HDMI (DVI, 2.0b) Female
|
| Audio Inputs |
1 x 1/8" / 3.5 mm TRS Female
|
| Video Outputs |
1 x HDMI (2.0b) Female (Loop Output)
|
| Audio Outputs |
1 x Block 5-Pin Stereo
|
| Other I/O |
1 x RJ45 PoE Input
1 x Block 3-Pin RS-232 1 x USB-B Firmware 1 x Micro-USB Service 3 x 1/8" / 3.5 mm IR |
| Expansion Slots |
1 x SFP Slot
|
| Latency |
16 ms
|
| Input Video Format |
HDMI (16-Bit 4:4:4/4:2:2/4:2:0)
1080p 60 fps HDMI (10/12-Bit 4:4:4) UHD 4K 30 fps HDMI (10/12-Bit 4:2:0) UHD 4K 60 fps |
| Output Video Format |
HDMI (Loop) (16-Bit)
1080p HDMI (Loop) (10/12-Bit) UHD 4K 30/60 fps |
| HDCP Support |
Yes, Version 2.2
|
| EDID Support |
Manual Control
|
| HDR Compatibility |
HDR10, Dolby Vision, Hybrid Log Gamma
|
| DTS Compatibility |
DTS, DTS-ES, DTS-HD High Resolution
|
| Dolby Compatibility |
Dolby Digital, Dolby Digital Plus
|
| Video IP Encoding |
MJPEG
|
| Tally Light |
Yes
|
| Wireless |
No
|
| Power I/O |
1 x RJ45 (120 to 240 VAC at 0.8 A) Input
1 x Barrel (12 VDC at 2 A) Input |
| PoE Support |
PoE 802.3af
|
| Power Consumption |
Device: 120 to 240 VAC at 0.8 A (15.4 W)
|
| Operating Temperature |
23 to 125°F / -5 to 51°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
5 to 90% (Non-Condensing)
|
| Certifications |
CE, FCC, UL
|
| Dimensions |
8.46 x 4.09 x 0.79" / 214.88 x 103.89 x 20.07 mm
|
| Weight |
1.29 lb / 0.59 kg
|
