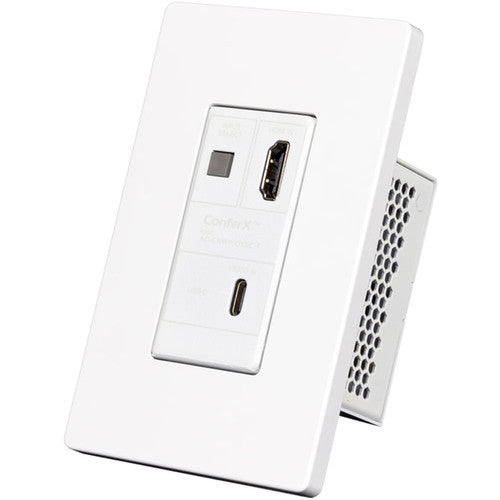

AVPro Edge ConferX HDMI/USB Type-C over HDBaseT Wall Plate Transmitter (White)

Single-Gang Decora-Style Transmitter

HDMI/USB Type-C Inputs, HDBaseT Output

Up to UHD 4K/60, HDR & Audio I/O

Works with Select Devices/PoE Receivers

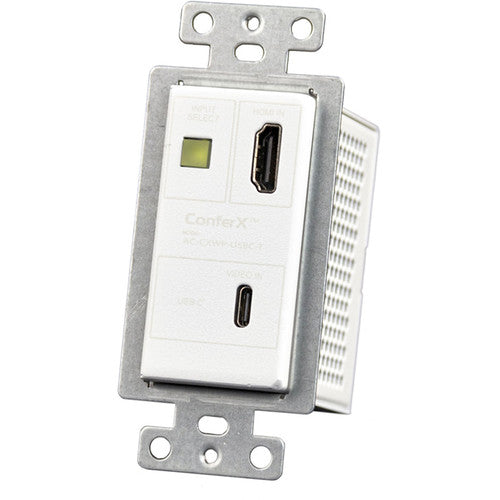

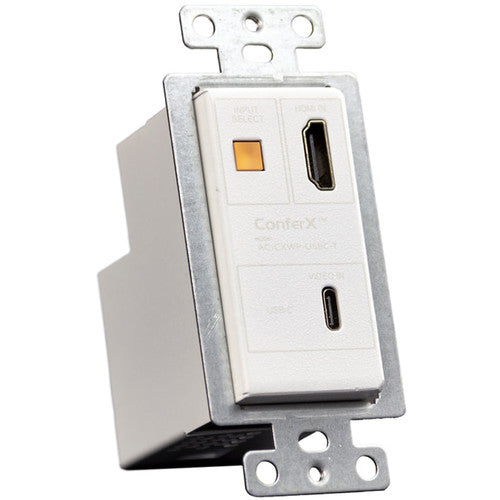

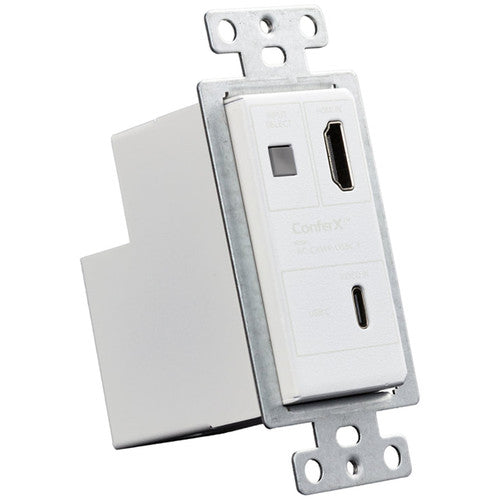

The AVPro Edge ConferX HDMI/USB Type-C over HDBaseT Wall Plate Transmitter is a single-gang, Decora-style wall plate transmitter in white. It features HDMI and USB Type-C inputs and an HDBaseT RJ45 output. It supports up to UHD 4K/60 signals via either input and transmits the signal up to 230' in 4K and 328' in 1080p. The original signal is passed as is without any scaling. HDR is supported in 4K/24 4:2:2 12-bit. Supported audio formats include PCM 2.0 and LPCM 5.1 / 7.1. Optional Cat 6 cabling will carry all signals.

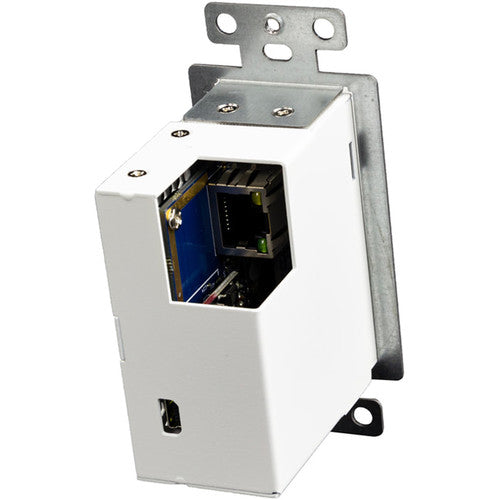

A USB mini port is available on the rear for local power using an included power supply�for use with any HDBaseT receiver or projector that takes HDBaseT input. But with PoE support, no local power is necessary. The device can be powered by the optional AVPro Edge AC-EX100-UHD-R3 receiver or other POE devices.

The transmitter is designed for conference rooms, classrooms, auditoriums, and personal office presentations. Also, thanks to auto-sensing capability, it's suitable for non-technical users because no configuration is necessary by the end-user. When the user plugs in a device, the transmitter automatically senses the signal and makes it active, and indicator lights confirm whether the connection is solid. In all scenarios, the simple design allows the user to focus on the presentation and not the technical aspect.

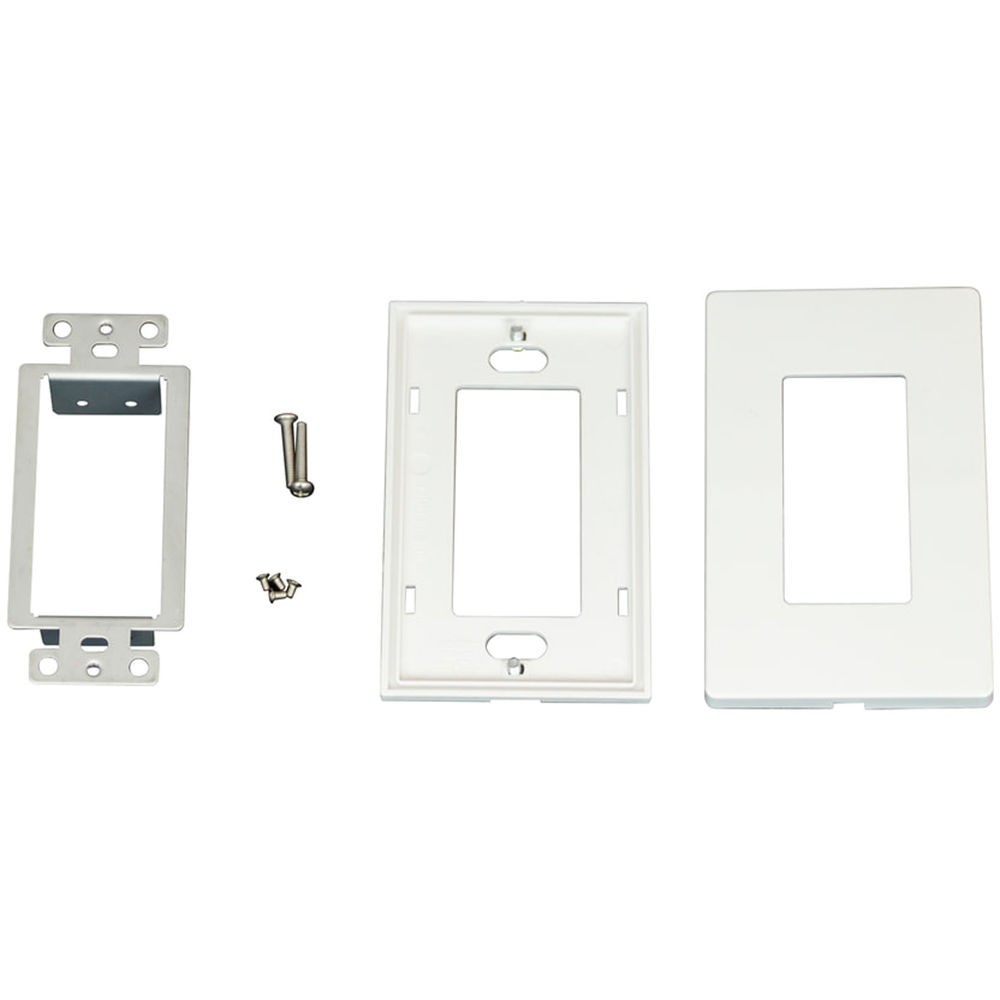

The transmitter fits all standard wall plate covers or mud rings. A single-gang cover is included, and if you want to line up multiple transmitters side by side, standard-size 2-, 3-, or 4-gang wall plate covers are compatible.

Note: Please ensure that you use USB Type-C 3.1 Gen 2 or higher cables for 4K. Some USB Type-C cables are for charging only and may not work at all for video input with this transmitter. Key Features

• Single-gang, low-heat, straight-in rear RJ45 receptacle design; fits Decora-type USA single-gang boxes and mud rings

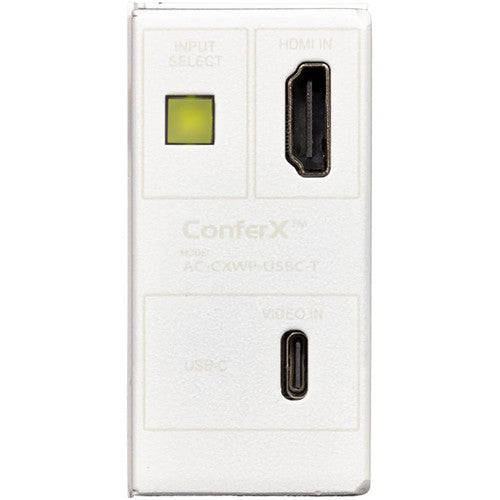

• HDMI input, USB Type-C input, and HDBaseT RJ45 output
• Up to UHD 4K/60 input
• 10.2 GB/s bandwidth
• USB mini port on the rear for local power using an included power supply, but no local power is necessary�the device can be powered by the optional AVPro Edge AC-EX100-UHD-R receiver or other POE devices
• Plug-and-play auto input sensing
• Optional Cat 6A single UTP/STP LAN cable can be used for all signals
• ESD protection circuitry (inputs/output) up to 7 KV
• Compatible with HDBaseT displays, projectors, AVRs

Resolutions Supported

• Up to UHD 4K/60 at 4:2:0 8-bit, 4K/30 at 4:4:4
• Up to 2560 x 2048 (QSXGA) PC resolutions
• HDR (HDMI): 4K/24 4:2:2 12-bit, 4K/24 4:2:0 10-bit
• Color space: YUV (component), RGB (CSC: Rec 601/709, BT2020, DCI, P3 D6500)
• The HDBaseT port outputs whatever is input

Audio Formats Supported

• PCM 2.0
• LPCM 5.1 / 7.1
• Dolby Digital
• DTS 5.1
• Dolby Digital Plus
• Dolby TrueHD
• DTS-HD Master Audio
• DTS-X
• Dolby Atmos

Power Supply

• PoE support
• 100-240 VAC 50/60 Hz input
• 5 VDC USB mini output (power supply included)

Compatible Box Types

• Mud rings
• Stud mounts
• Clamp mounts
• Metal and plastic boxes
• LV boxes

UPC: 850001710138

Input Connectors	1 x HDMI (HDMI 2.0) 1 x USB Type-C
Output Connectors	1 x RJ45 (HDBaseT)

HDCP Support

Version 2.2

Max Transmission Distance	UHD 4K: 230' / 70.1 m (via Cat 6a/7) 1080p: 328.1' / 100 m
Video Format	HDMI (8-Bit 4:2:0) UHD 4K: 60 fps HDMI (4:4:4) UHD 4K: 30 fps
PC Resolutions	2560 x 2048

Power Connector	1 x USB Mini-B (5 VDC) Output
Power Consumption	Device: (8 W)

Operating Temperature	23 to 125°F / -5 to 51°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	5 to 90%

Dimensions	2.75 x 2.55 x 1.22" / 6.99 x 6.48 x 3.1 cm
Weight	0.4 lb / 0.18 kg

Package Weight	0.865 lb
Box Dimensions (LxWxH)	6.2 x 5.4 x 3.5"
