Description
AVPro Edge MX-1616 Overview
- 1Description
- 2Uncompressed
- 3Built-In Test Patterns
- 4Advanced EDID Management
- 5Front-Panel Screen
- 6WebOS
- 7Fast Switching
- 8Key Features
Add a sleek, low-profile, and high-density matrix switcher to your control room with this AC-MX-1616 4K HDMI Matrix Switcher from AVPro Edge. This high-bandwidth powerhouse supports full HDMI 2.0a/b specifications and a rich gamut of uncompressed HDR selections, such as HDR, HDR10, HDR10+, Dolby Vision, HLG, BBC, and NHK. Handling resolutions up to 4K60 with 4:4:4 chroma subsampling, the switcher is HDCP 2.3 compliant with earlier HDCP versions also supported, and it also features advanced EDID management.
Uncompressed
Uncompressed base-band video means that what you put in it is what comes out. This gives integrators ultimate control to use any preferred infrastructure. Use pure fiber like Cleerline, Bullet Train cables, or optional 18 Gb/s HDBaseT extenders to get the full bandwidth and full picture.
Built-In Test Patterns
4K test patterns built into each output allow installers to confirm they have a solid connection before even connecting a single source to ensure infrastructure can handle 4K signals during the early parts of installation.
Advanced EDID Management
With 29 onboard EDIDs, including HDR EDIDs, users can manage the input side of the switch by selecting a preloaded EDID.

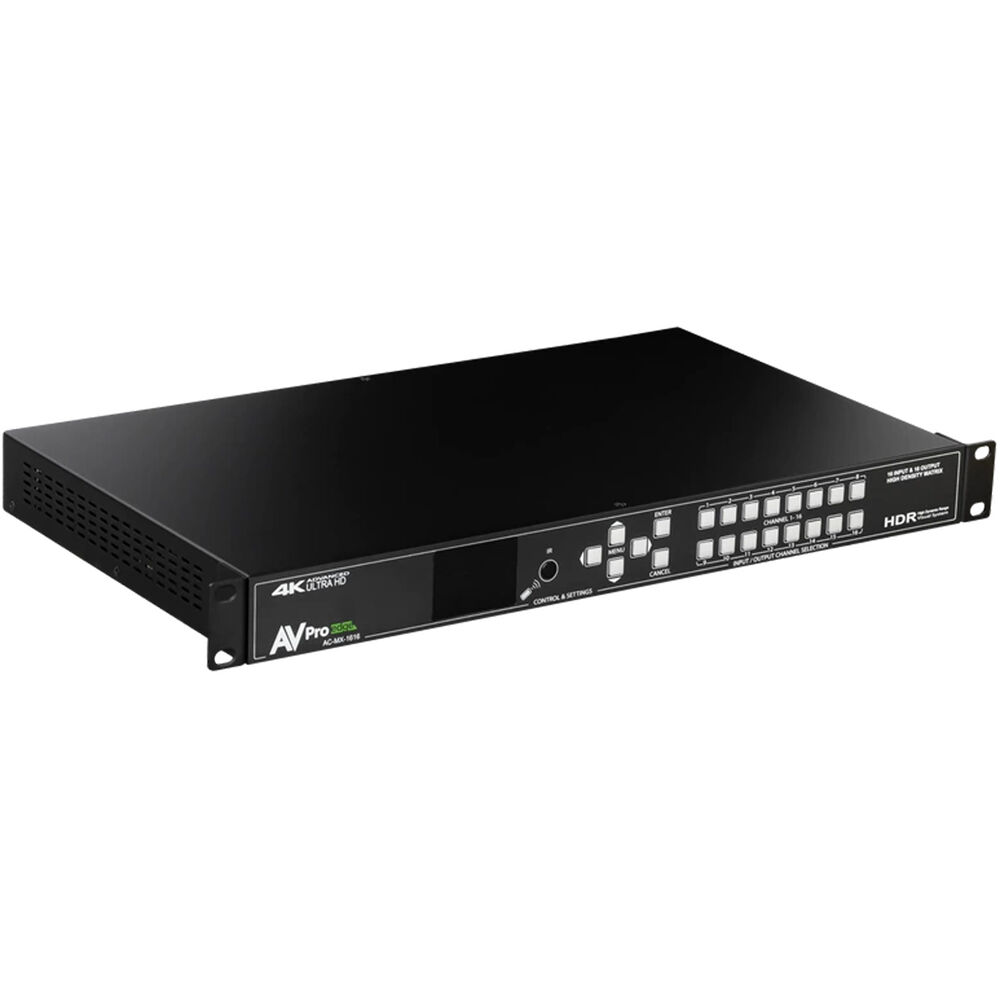

Front-Panel Screen
The front-panel allows for basic setup including EDID, audio, matrixing, and network.
WebOS
Full matrix control is available on the internal WebOS. Simply plug the matrix into the network and punch in the default IP or use DHCP to connect to a full control system. The WebOS is designed with mobile devices in mind, so feel free to use you phone or tablet for real-time control.
Fast Switching
The unique design has allowed for improved high-bandwidth switching speeds, with average speeds of less than 3 seconds.
Key Features
- 18 Gb/s bandwidth support
- 4K60 4:4:4 Support
- Ultimate HDR Support
- Dolby Vision, HDR10+ & HLG Support
- HDCP 2.3 (and all earlier versions supported)
- Simple setup with front-panel control screen
- Built-in test pattern on every output
- WebOS for simple connectivity and control/management
- UltraLow Profile (1 RU)
- Fast Switching
- Advanced EDID management
- Analog audio de-embedding with 5-pin Phoenix connections
- IR, RS-232, and LAN control
- 2-channel analog audio de-embedding
- Driver support for Crestron, C4, RTI, ELAN, and more
In the Box
- AVPro Edge AC-MX-1616 4K HDMI Matrix Switcher
- 12 VDC, 5A Power Supply
- 1 x IR Remote Control
- 1 x IR Extension Cable
- Set of Mounting Brackets
- Set of 5-Pin Terminal Connectors
- Limited 10-Year Manufacturer Warranty
Table of Contents
- Description
- Uncompressed
- Built-In Test Patterns
- Advanced EDID Management
- Front-Panel Screen
- WebOS
- Fast Switching
- Key Features
AVPro Edge MX-1616 Specs
Processing
| Switching Type | IR Remote, Pushbutton, Software |
| Processing Resolution | DCI 4K at 60 |
| Color Processing | 12-Bit 4:4:4 YUV 12-Bit 4:4:4 RGB |
Input
| Video Inputs | 16 x HDMI (HDMI 2.0b) Female |
| Input Video Format | HDMI (10/12/16-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) DCI 4K up to 60 fps |
| Embedded Audio Input | HDMI |
Output
| Video Outputs | 16 x HDMI (HDMI 2.0b) Female |
| Output Video Format | HDMI (10/12/16-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) DCI 4K up to 60 fps |
| Audio Outputs | 16 x Block 5-Pin Stereo Analog |
| Output Audio Format | Analog |
| Embedded Audio Output | HDMI |

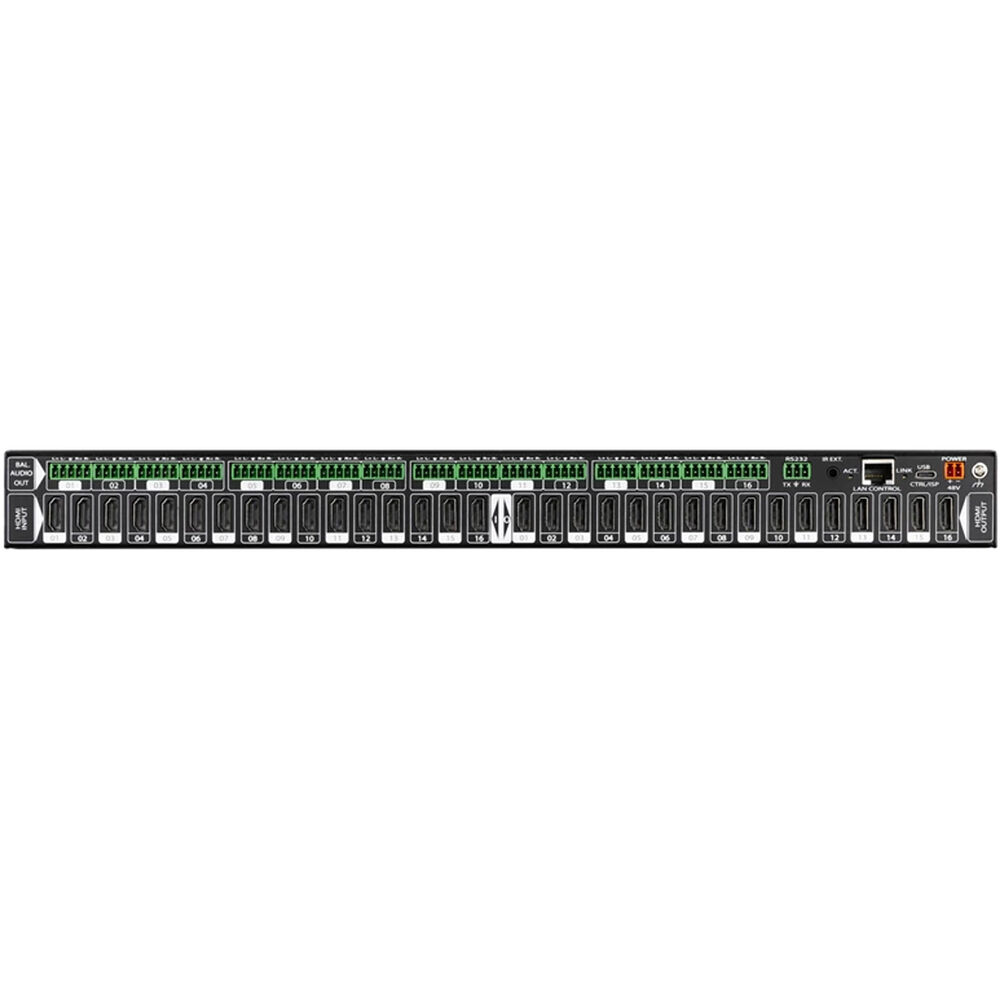

Connectivity
| Other I/O | 1 x Block 3-Pin RS-232 Input/Output 1 x RJ45 Control, LAN 1 x 1/8" / 3.5 mm IR |
| HDCP Support | , Version 2.3 |
| HDR Compatibility | HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma |
| DTS Compatibility | DTS, DTS-HD Master Audio, DTS:X |
| Dolby Compatibility | Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD |
Hardware
| Wi-Fi | Yes |
| Bluetooth | Yes |
Power
| Power I/O | 1 x Block 2-Pin (48 VDC at 3 A) Output |
| Power Consumption | 92 W |
Environmental
| Operating Temperature | 23 to 125°F / -5 to 51°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 5 to 90% (Non-Condensing) |
General
| Rack Form Factor | 1 RU |
| Dimensions | 17.37 x 10.25 x 2" / 44.12 x 26.04 x 5.1 cm |
| Weight | 11 lb / 5 kg |
