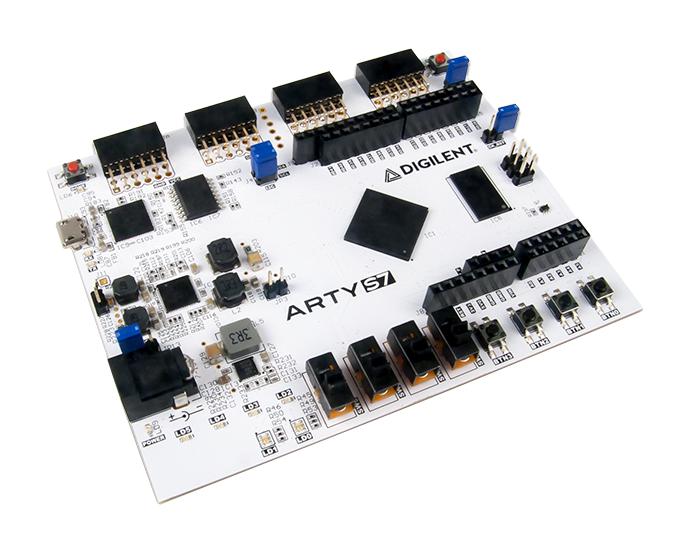

- Arty S7 Spartan-7 FPGA board for hobbyists and makers
- Spartan-7 FPGA offers most size, performance and cost-conscious design with latest technology
- XC7S50-CSGA324 FPGA in Arty form factor provides users with variety of I/O and expansion options
- Internal clock speeds exceeding 450MHz, on-chip analogue-to-digital converter (XADC)
- Programmable over JTAG and quad-SPI flash
- 256MB DDR3L with a 16bit bus at 650MHz, 128Mbits quad-SPI flash, 100MHz external clock
- SB-JTAG programming circuitry (USB micro cable required, not included)
- USB-UART bridge, powered from USB or any 7V-15V source
- 4 switches, 4 buttons, 1 board reset button, 1 FPGA reset button, 4 green LEDs, 2 RGB LED
- 4 Pmod connectors, Arduino/chipKIT Shield connector
Contents
Arty S7 Spartan-7 FPGA board, Digilent cardboard packaging with protective foam.
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Silicon Manufacturer |
Xilinx |
| No. of Bits |
- |
| Silicon Family Name |
Spartan-7 |
| Core Architecture |
FPGA |
| Core Sub-Architecture |
- |
| Silicon Core Number |
XC7S50-1CSGA324C |
| Kit Contents |
Arty S7 Board Spartan-7 FPGA, Digilent Cardboard Packaging with Protective Foam |
| Product Range |
- |
Other details
| Brand |
AVNET |
| Part Number |
410-352 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
