Description

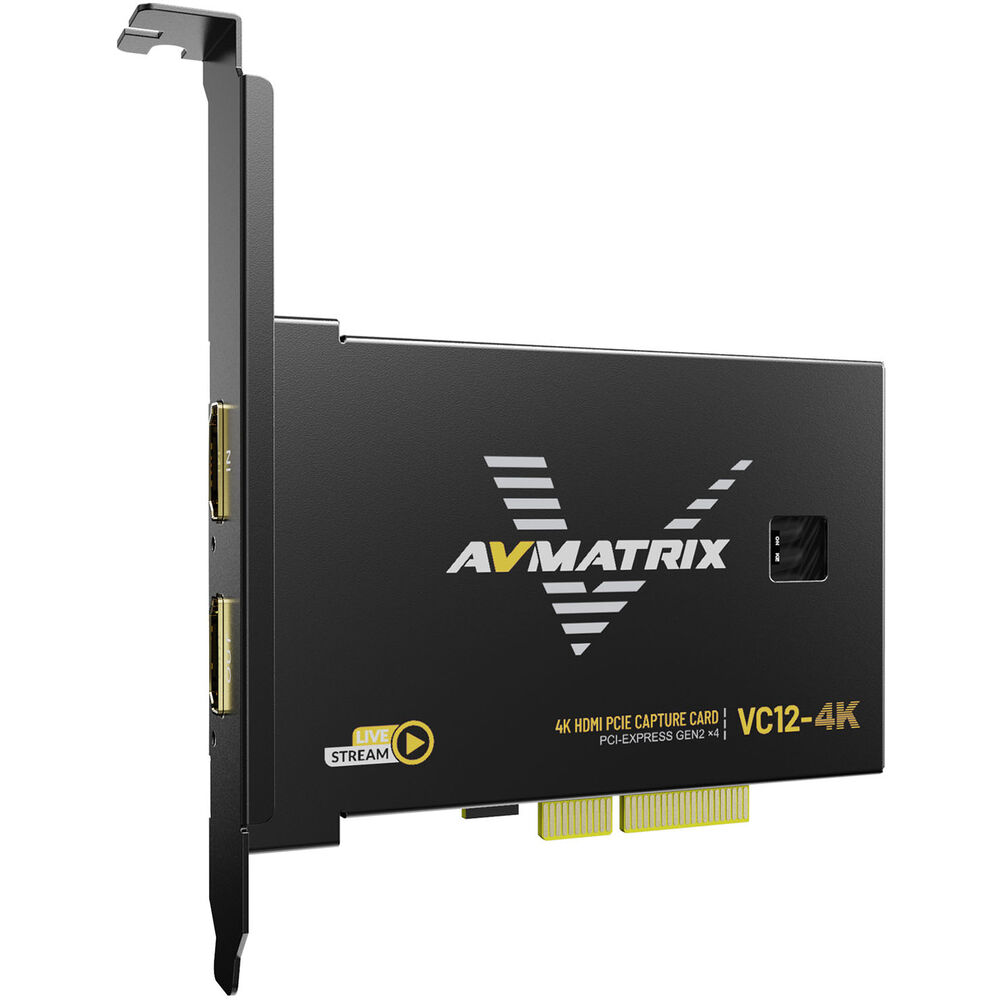

AVMATRIX VC12-4K Overview
- 1Description
- 2High Bandwidth and Ultralow Latency
- 324-Hours of Non-Stop Work
- 4Compatibility
Simultaneously stream and display your gameplay or broadcast using this VC12-4K UHD 4K HDMI PCIe Capture Card from AVMATRIX with its HDMI input and loop output. The PCIe 2.0x4 interface supports up to UHD 4K video at 60 fps. It outputs YUY2 uncompressed video for a high-quality picture.
The image integrity is further preserved thanks to the 1080i hardware deinterlacing and 3D noise reduction algorithm. Compatible with Windows and Linux operating systems, the card is capable of recording to applications like OBS and Teams and livestreaming the captured video to major platforms.
High Bandwidth and Ultralow Latency
The PCIe 2.0 interface has 2.5GB/s transmission bandwidth for faster data transfer speed in gaming and livestream applications, bringing uncompressed and ultralow latency to the streaming experience.
24-Hours of Non-Stop Work
The card has a thick gold-plated interface for more stable contact and transmission to work continuously for a long period of time.
Compatibility
Windows 7 and Linux 18.04 operating systems and above are supported by the card. Streaming and recording via OBS, Teams, Twitch, and other platforms is also supported for broadcast to major livestreaming platforms like YouTube and Facebook via the network.
In the Box
- AVMATRIX VC12-4K UHD 4K HDMI PCIe Capture Card
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- High Bandwidth and Ultralow Latency
- 24-Hours of Non-Stop Work
- Compatibility
AVMATRIX VC12-4K Specs
| System Connection |
PCIe 2.0 x4
|
| Video Inputs |
1 x HDMI (HDMI 2.0) Female
|
| Audio Inputs |
No
|
| Video Outputs |
1 x HDMI (HDMI 2.0) Female (Loop Output)
|
| Input Video Format |
HDMI
UHD 4K 60 fps 1440p 144 fps 1080p 240 fps |
| Input Audio Format |
LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit
|
| Output Video Format |
HDMI
UHD 4K 25/30/50/60 fps DCI 4K 25/30/50/60 fps 1440p 60 fps DCI 2K 60 fps 2560 x 1440 25/30/50/60/120/144 fps 1080p Ultrawide (2560 x 1080) 60 fps WUXGA (1920 x 1200) 60 fps 1080p 25/30/50/59.94/60/120/144/240 fps UXGA (1600 x 1200) 60 fps WXGA+ (1440 x 900) 60 fps SXGA (1280 x 1024) 60 fps WXGA (1280 x 800) 60 fps 1280 x 720 (Non-Standard WXGA) 25/30/50/59.94/60/120/144/240 fps XGA (1024 x 768) 60 fps SVGA (800 x 600) 60 fps 576p 60 fps 480p 60 fps |
| Output Audio Format |
LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit
|
| Embedded Audio |
HDMI
|
Standards
| HDR Compatibility |
Not Specified by Manufacturer
|
Hardware
| OS Compatibility |
Windows 7 or Later
Linux 18.4 or Later *As of August, 2022: Check with manufacturer for the most up-to-date compatibility |
| Power Consumption |
Device: 2 W
|
Environmental
| Operating Temperature |
32 to 140°F / 0 to 60°C
|
| Storage Temperature |
-4 to 158°F / -20 to 70°C
|
| Operating Humidity |
5 to 90% (Non-Condensing)
|
General
| Dimensions |
4.7 x 3.8 x 0.9" / 120.1 x 95.7 x 21.6 mm
|
| Weight |
3.5 oz / 100 g
|
Packaging Info
| Package Weight |
0.35 lb
|
| Box Dimensions (LxWxH) |
5.8 x 4.6 x 1.4"
|
