Description
AVMATRIX SE1217 Overview
- 1Description
- 2HDMI Input/Output, Audio Input
- 3H.264 & H.265 Encoding
- 4No Computer Required
- 5Dual Streaming
- 6Versatile Streaming Protocols
- 7Video & Audio or Single Audio Stream
- 8Overlays
- 9Image Flip/Mirror
- 10Compatible Platforms

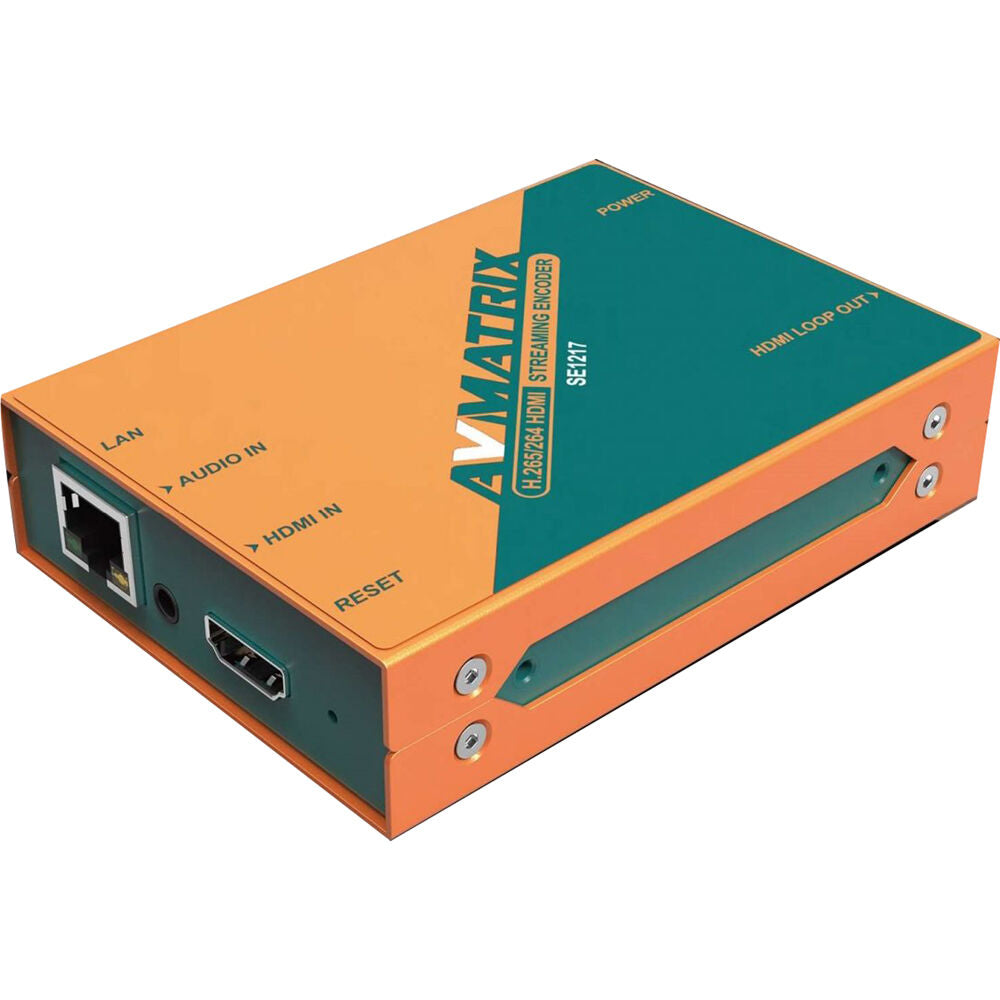

Designed for both unicast and multicast use, the SE1217 H.265/264 HDMI Streaming Encoder from AV Matrix supports both LAN and WAN streaming. This encoder features simultaneous main� and sub�streaming and compatibility with all major streaming platforms.
The SE1217 encoder supports a variety of video resolutions up to 1080p60 and features image and text overlay and mirror image and flip functions. It can be used for streaming without requiring the use of a computer and comes with a power supply.
HDMI Input/Output, Audio Input
One HDMI input, one HDMI loop-out and one 3.5mm audio line input
H.264 & H.265 Encoding
Encode in H.264 or H.265 at rates up to 1080p60
No Computer Required
Stream content without the need of a computer
Dual Streaming
Enables simultaneous main-stream and sub-stream output
Versatile Streaming Protocols
- RTSP, RTP, RTMPS, RTMP
- HTMP, UDP, SRT
- Unicast, Multicast
Video & Audio or Single Audio Stream
Choose video and audio streaming for webcasts or audio-only streaming for podcasts
Overlays
Enables the addition of text and image overlays
Image Flip/Mirror
Mirror image and image flip functions
Compatible Platforms
- Facebook Live
- Twitch
- YouTube
- Periscope
- Caffeine
- Livestream
- Akamai
- Niconico
- AfreecaTV
- Bilibili
- HUYA
- DouYu
In the Box
- AVMATRIX SE1217 H.265/264 HDMI Streaming Encoder
- AC Power Supply
- Limited 3-Year Warranty
Table of Contents
- Description
- HDMI Input/Output, Audio Input
- H.264 & H.265 Encoding
- No Computer Required
- Dual Streaming
- Versatile Streaming Protocols
- Video & Audio or Single Audio Stream
- Overlays
- Image Flip/Mirror
- Compatible Platforms
AVMATRIX SE1217 Specs
Input
| Video Input Connectors | 1 x HDMI |
| Input Video Format | HDMI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps 576p: 50 fps 576i / 625 lines: 50 fps 480p: 59.94/60 fps 480i / 525 lines: 59.94/60 fps |
| Audio Input Connectors | 1 x 1/8" / 3.5 mm TRS Stereo Analog |
| Input Audio Format | Analog |
| Embedded Audio Input | HDMI |
Output
| Video Output Connectors | 1 x HDMI (Loop Output) |
| Output Video Format | HDMI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps 576p: 50 fps 576i / 625 lines: 50 fps 480p: 59.94/60 fps 480i / 525 lines: 59.94/60 fps |
| Audio Output Connectors | None |
| Embedded Audio Output | HDMI |
Connectivity
| Other I/O | 1 x RJ45 LAN |
| Expansion Slots | None |
IP Streaming
| Video IP Encoding | H.264, H.265: 640 x 360 to 1920 x 1080 at 60p |
| Audio IP Encoding | AAC, MPEG Layer 2, G.711 |
Hardware
| Wi-Fi Support | Yes |
Power
| Power Connector | 1 x Barrel (12 VDC at 2 A) Input |
| Power Consumption | 5 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
General
| Dimensions | 4.1 x 3 x 1" / 104 x 75.5 x 24.5 mm |
| Weight | 10.9 oz / 310 g |
| Warranty Length | Limited 3-Year Warranty |
Packaging Info
| Package Weight | 1.425 lb |
| Box Dimensions (LxWxH) | 5.5 x 5.45 x 3" |
