Description
AVMATRIX SC7030 Overview

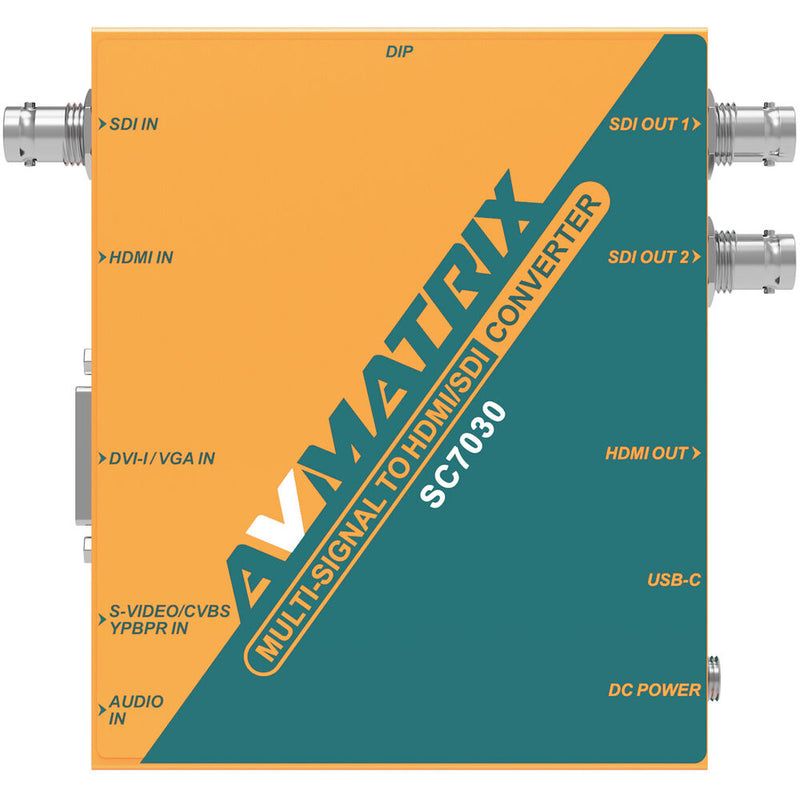

The SC7030 Multi-Signal to SDI/HDMI Cross Converter from AVMATRIX combines cross-conversion and frame rate conversion capabilities with up/down scaling. The SC7030 features SDI, HDMI, DVI-I, VGA, CVBS, S-Video, and YPbPr input connectivity, as well as a 3.5mm analog audio input that can be embedded into your output signal. The unit's selectable conversion modes are accessible via integrated DIP switches or using a Windows computer with AVMATRIX PC software via the USB-C port, which may also used to power the unit. Dual threaded locking connectors allow you to power the unit with external power supplies for redundancy, and LED indicators provide video and power signal status.
Flexible Format Conversion
The converter offers flexible format conversion with passthrough, up/down scaling, and frame rate conversion capabilities, with support for resolutions up to 1080p60.
All-in-One Conversion Solution

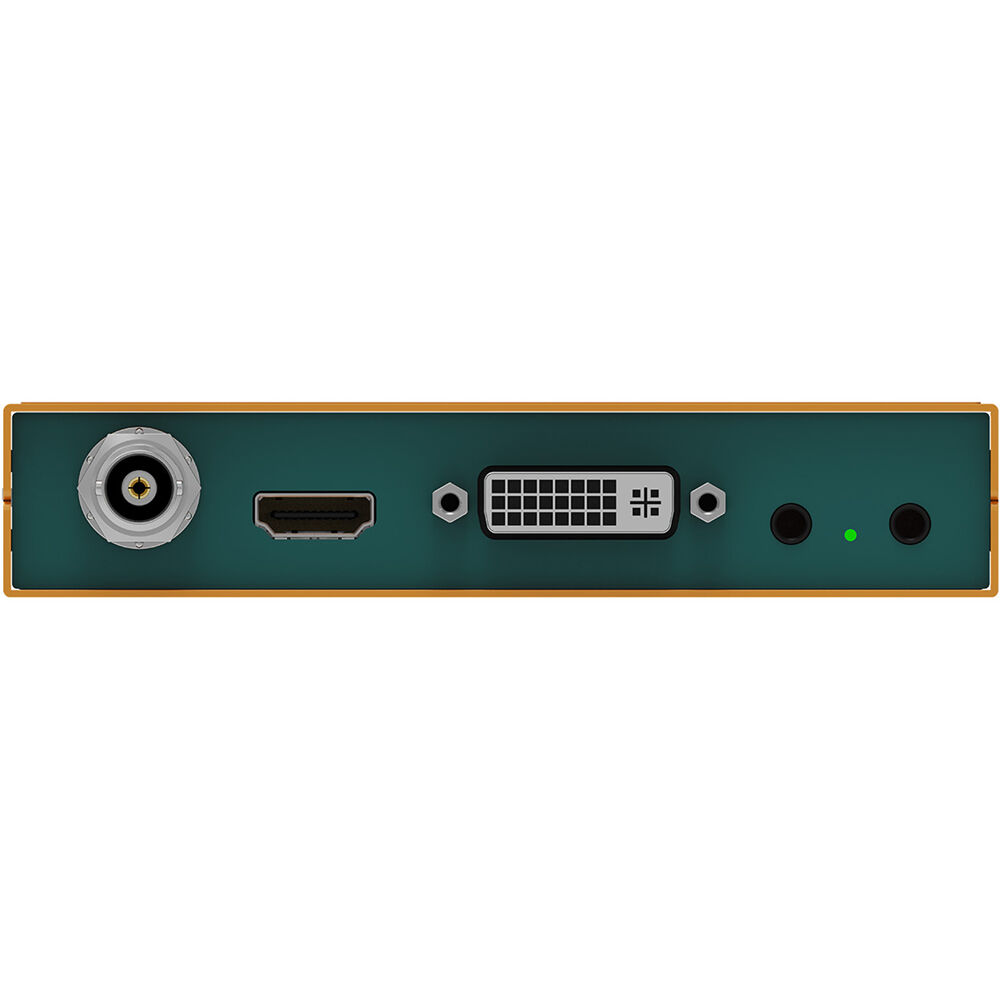

Equipped with a wide range of inputs, including SDI, HDMI, DVI-I, VGA, CVBS, S-Video, and YPbPr, the SC7030 provides conversion flexibility for both consumer and professional broadcast equipment.
Output Flexibility

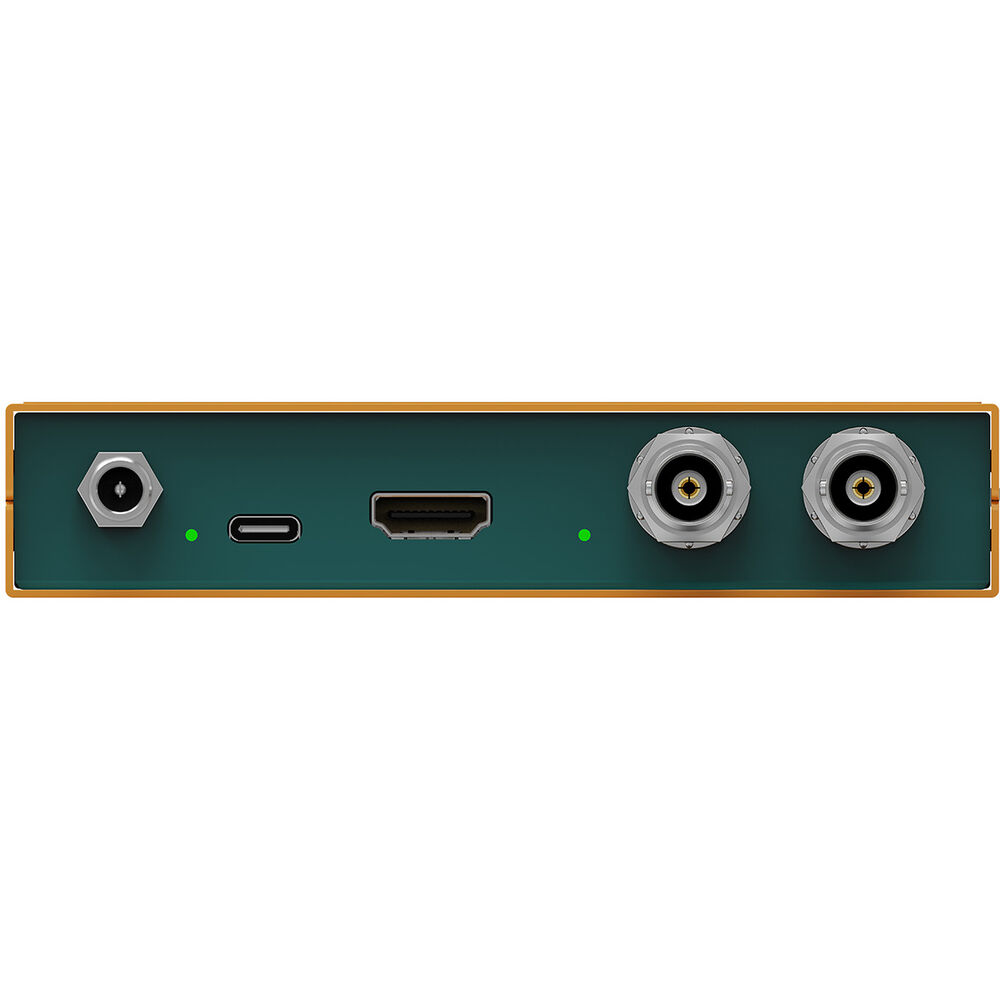

Simultaneously convert and split input signals to two 3G-SDI outputs and one HDMI output for long-distance, lossless transmission of high-quality video signals.
Easy Audio Embedding
Easily add audio to your video content via the external analog audio input, embedding it directly into the SDI and HDMI outputs.
Aspect Rate Conversion
Seamlessly convert a 4:3 aspect ratio to 16:9, pillarboxing your image or stretching it for a full screen presentation.
User-Friendly Configuration

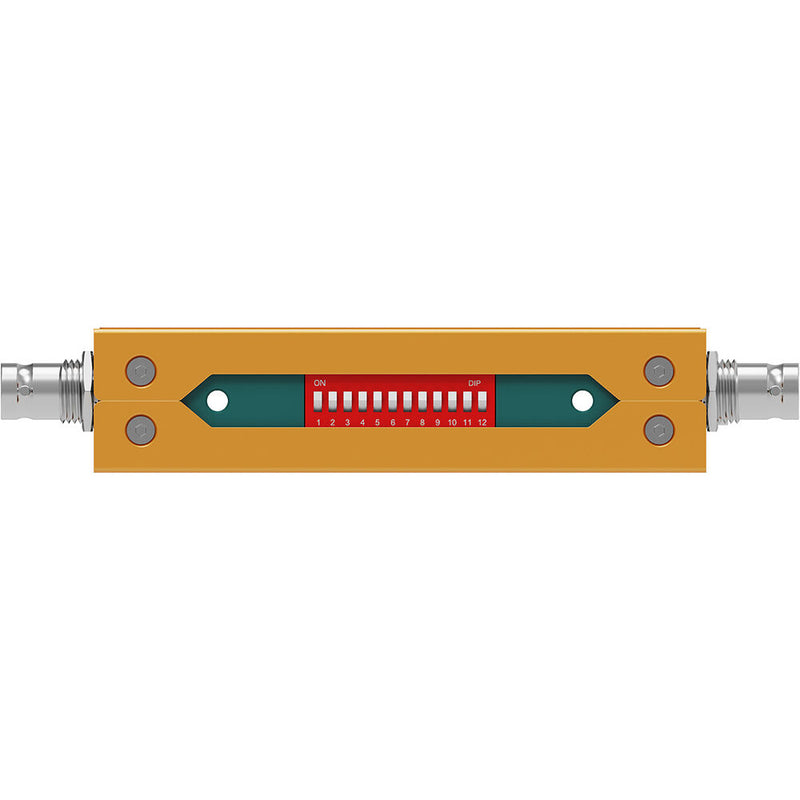

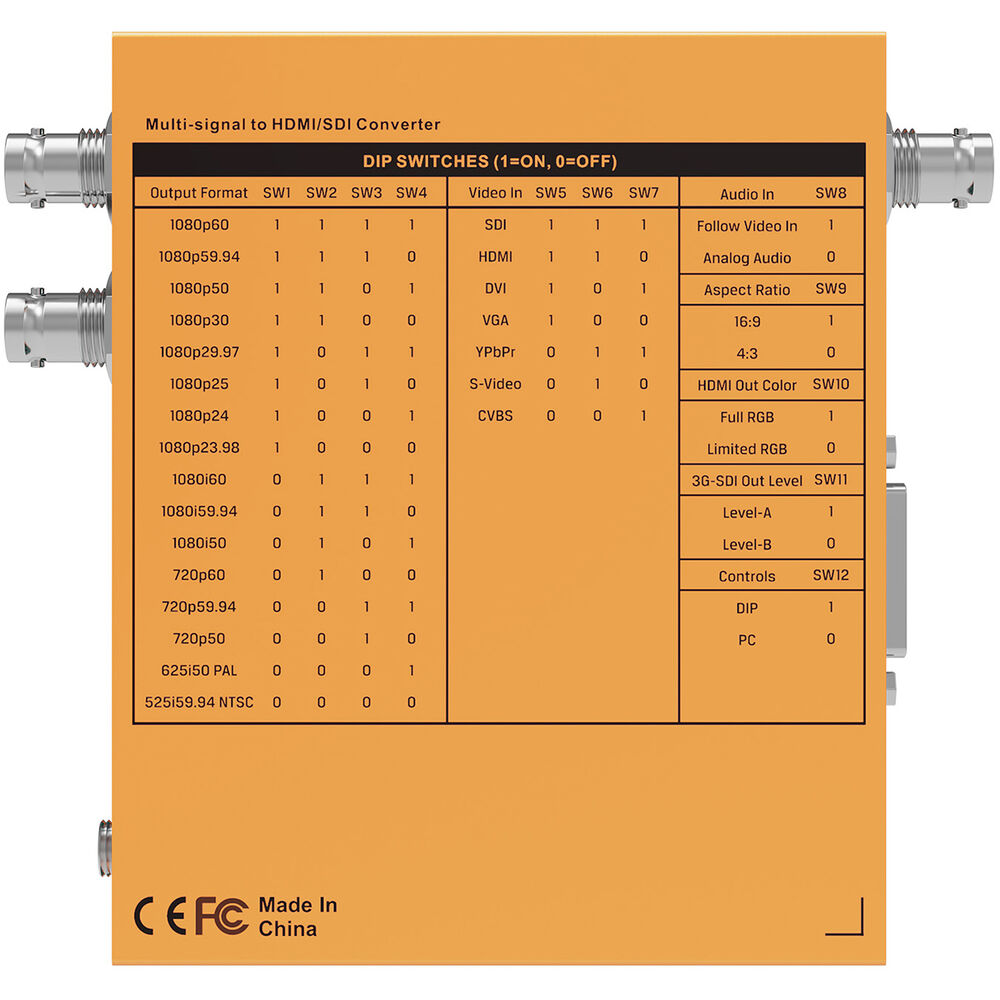

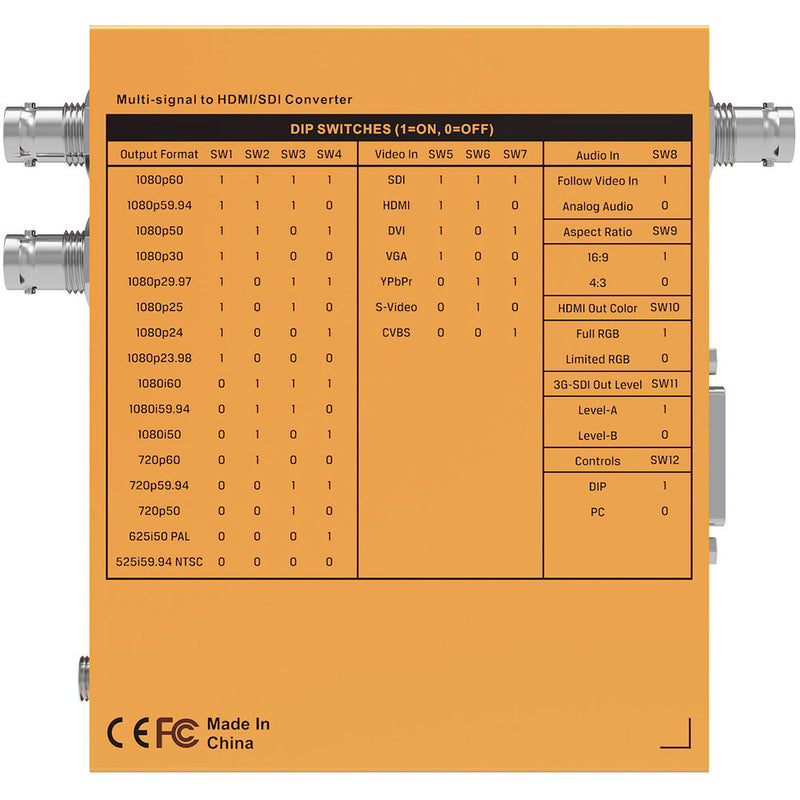

The converter's user-friendly configuration options allow users to easily set input, output, and other parameters via the integrated DIP switches and remote control PC software.
USB-C Connectivity for Power & Firmware Updates
The SC7030 features a built-in USB-C port that provides power and can also be used for future firmware updates.
Items Included
- AVMATRIX SC7030 Multi-Signal to SDI/HDMI Cross Converter
- 12V, 2A Locking Power Supply
- DVI to VGA Adapter
- 3-in-1 Multi-Interface Connector
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
AVMATRIX SC7030 Specs
Key Specs
| Video I/O |
Input

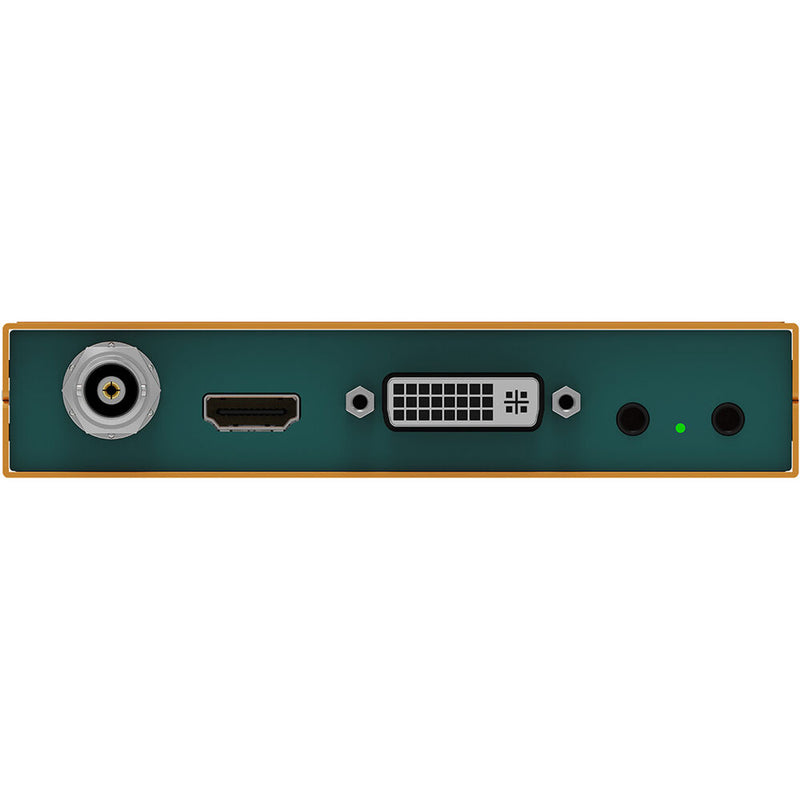

1x BNC 1x HDMI 1x DVI-I DL 1x 1/8" / 3.5 mm TRRS A/V (Composite) Output 2x BNC 1x HDMI |
| Audio I/O |
Input
1x 1/8" / 3.5 mm TRS |
| Video Resolution |
BNC Input
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080i at 50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1280 x 720 at 23.98/24/25/29.97/30/50/59.94/60 fps 720 x 480i at 59.94 fps 720 x 576i at 50 fps HDMI Input 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 768 at 60 fps 1280 x 720 at 23.98/24/25/29.97/30/50/59.94/60 fps DVI Input 1920 x 1080p 1680 x 1050 1600 x 900 1400 x 1050 1366 x 768 1360 x 768 1280 x 1024 1280 x 960 1280 x 800 1280 x 768 1280 x 720 1280 x 600 1152 x 864 1024 x 768 800 x 600 Component Input 1920 x 1080p 1920 x 1080i 1280 x 720 720 x 480p 720 x 480i 720 x 576p 720 x 576i HDMI Output (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps 720 x 480i at 59.94 fps 720 x 576i at 50 fps SDI Output (10-Bit 4:2:2 YUV) 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps 720 x 480i at 59.94 fps 720 x 576i at 50 fps |
| Audio Format |
Unspecified Digital Signal Input
|
| Broadcast System Compatibility |
NTSC, PAL
|
| Wireless |
No
|
Inputs/Outputs
| Video I/O |
Input
1x BNC 1x HDMI 1x DVI-I DL 1x 1/8" / 3.5 mm TRRS A/V (Composite) Output 2x BNC 1x HDMI |
| Audio I/O |
Input
1x 1/8" / 3.5 mm TRS |
| Other I/O |
Input
1x USB-C (Firmware) (Shared with Power) |
| Expansion Slots |
No
|
Format Support
| Video Resolution |
BNC Input
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080i at 50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1280 x 720 at 23.98/24/25/29.97/30/50/59.94/60 fps 720 x 480i at 59.94 fps 720 x 576i at 50 fps HDMI Input 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 768 at 60 fps 1280 x 720 at 23.98/24/25/29.97/30/50/59.94/60 fps DVI Input 1920 x 1080p 1680 x 1050 1600 x 900 1400 x 1050 1366 x 768 1360 x 768 1280 x 1024 1280 x 960 1280 x 800 1280 x 768 1280 x 720 1280 x 600 1152 x 864 1024 x 768 800 x 600 Component Input 1920 x 1080p 1920 x 1080i 1280 x 720 720 x 480p 720 x 480i 720 x 576p 720 x 576i HDMI Output (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps 720 x 480i at 59.94 fps 720 x 576i at 50 fps SDI Output (10-Bit 4:2:2 YUV) 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps 720 x 480i at 59.94 fps 720 x 576i at 50 fps |
| Audio Format |
Unspecified Digital Signal Input
|
| Embedded Audio |
HDMI/SDI
|
Standards
| Broadcast System Compatibility |
NTSC, PAL
|
Hardware
| Wireless |
No
|
Power
| Power I/O |
1x Barrel (6 to 24 VDC ) Input
1x USB-C (5 VDC ) Input |
| Power Consumption |
5.5 W
|
General
| Operating Conditions |
-4 to 140°F / -20 to 60°C at 20 to 90% Humidity
|
| Storage Conditions |
-22 to 158°F / -30 to 70°C at 20 to 90% Humidity
|
| Dimensions |
4.9 x 4.1 x 1" / 125.5 x 104 x 24.5 mm
|
| Weight |
17.5 oz / 496.1 g
|
Packaging Info
| Package Weight |
2.09 lb
|
| Box Dimensions (LxWxH) |
8.9 x 5.5 x 2.8"
|
