Description

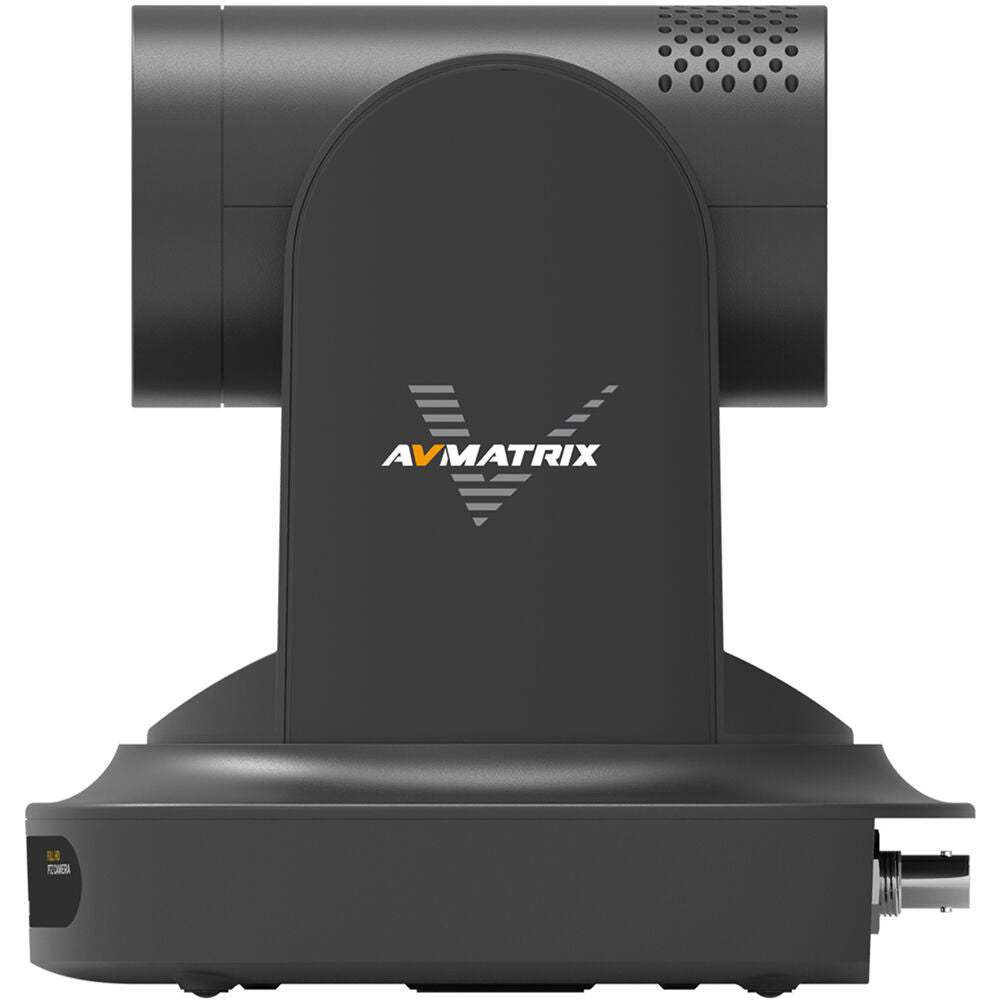

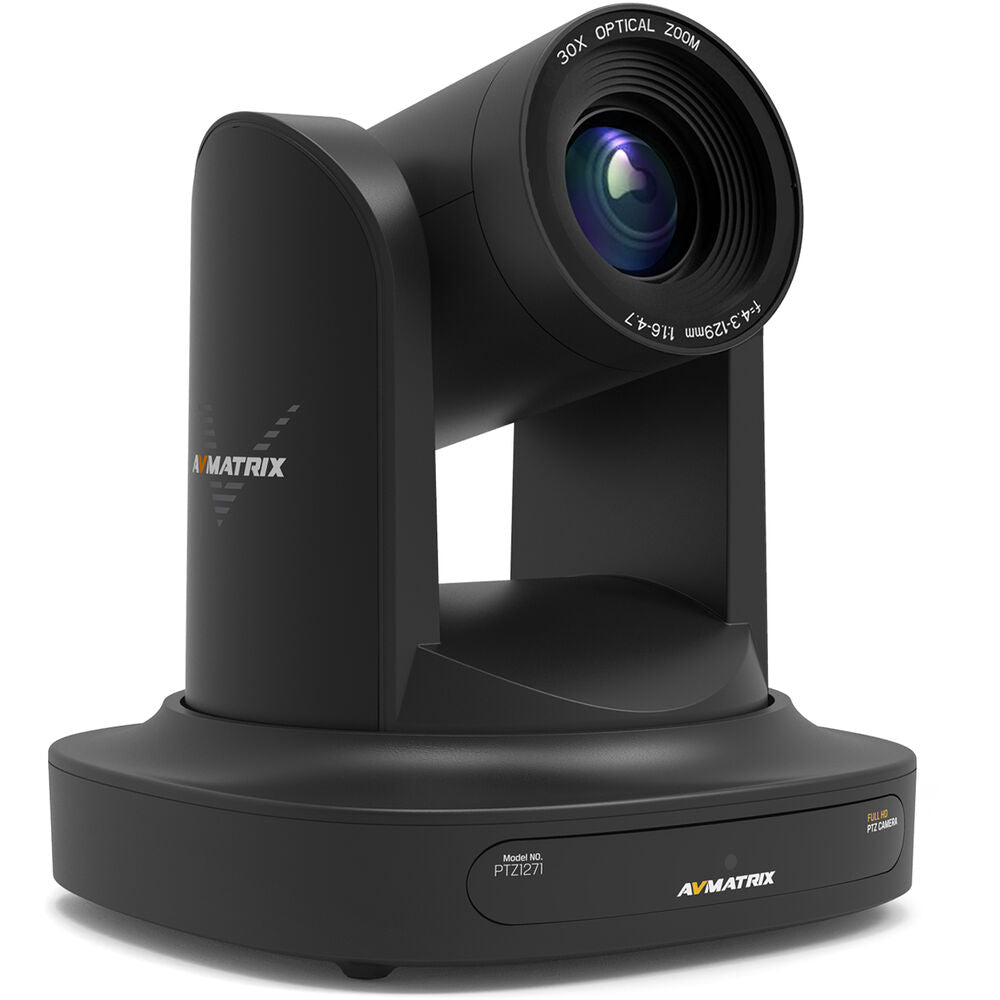

AVMATRIX PTZ1271 Overview
Add a powerful PTZ camera setup with HD video capture to your production with this PTZ1271-20X-NDI Full HD PTZ Camera from AVMatrix. The camera offers precision control and multiple output ports offering up to 1080p video, and it also supports control and streaming over LAN. Designed for broadcast, security, and teleconferencing needs, the PTZ1271-20X-NDI also supports VISCA, PELCO-D, and PELCO-P control protocols, in addition this version of the PTZ1271 supports NDI|HX 5.0 as well as audio line in for NDI|HX streams.
The integrated f/1.6 to 3.5 lens offers 20x optical and 10x digital zoom functions. This camera supports video output via HDMI and 3G-SDI and has a LAN port for streaming via RTMP, RTSP, or ONVIF. Power this PTZ camera using the the included 12 VDC adapter or via PoE. Quick pan and tilt speeds and picture controls like brightness, color, saturation, contrast, sharpness, and 2D/3D Noise Reduction provide precision control of your images.
In the Box
- AVMATRIX PTZ1271-20X-NDI Full HD PTZ Camera with NDI HX
- Power Supply
- RS232 Control Cable
- Remote Control
AVMATRIX PTZ1271 Specs
| Sensor Type | 1/2.8"-Type CMOS Sensor |
| Sensor Resolution | Effective: 2.07 Megapixel |
| Built-In ND Filter | None |
| Focus Control | Autofocus |
| Signal-to-Noise Ratio | 55 dB |
| Flip / Mirror Support | Image Flip |
| White Balance | 3000 to 7000K |
| Focal Length | 5.5 to 110mm |
| Optical Zoom Ratio | 20x |
| Max Digital Zoom | 10x |
| Field of View | 3.3 to 54.7° |
| Maximum Aperture | f/1.6 to 3.5 |
| External Recording Modes | SDI/BNC / HDMI 1920 x 1080p |
| Broadcast Output | NTSC |
| IP Streaming | NDI|HX, RTMP, RTSP, SRT 1920 x 1080 |
| Presets | 255 |
| Move Speed | Pan: 0.1 to 180°/sec Tilt: 0.1 to 80°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | Pelco-D Pelco-P VISCA |
| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input |

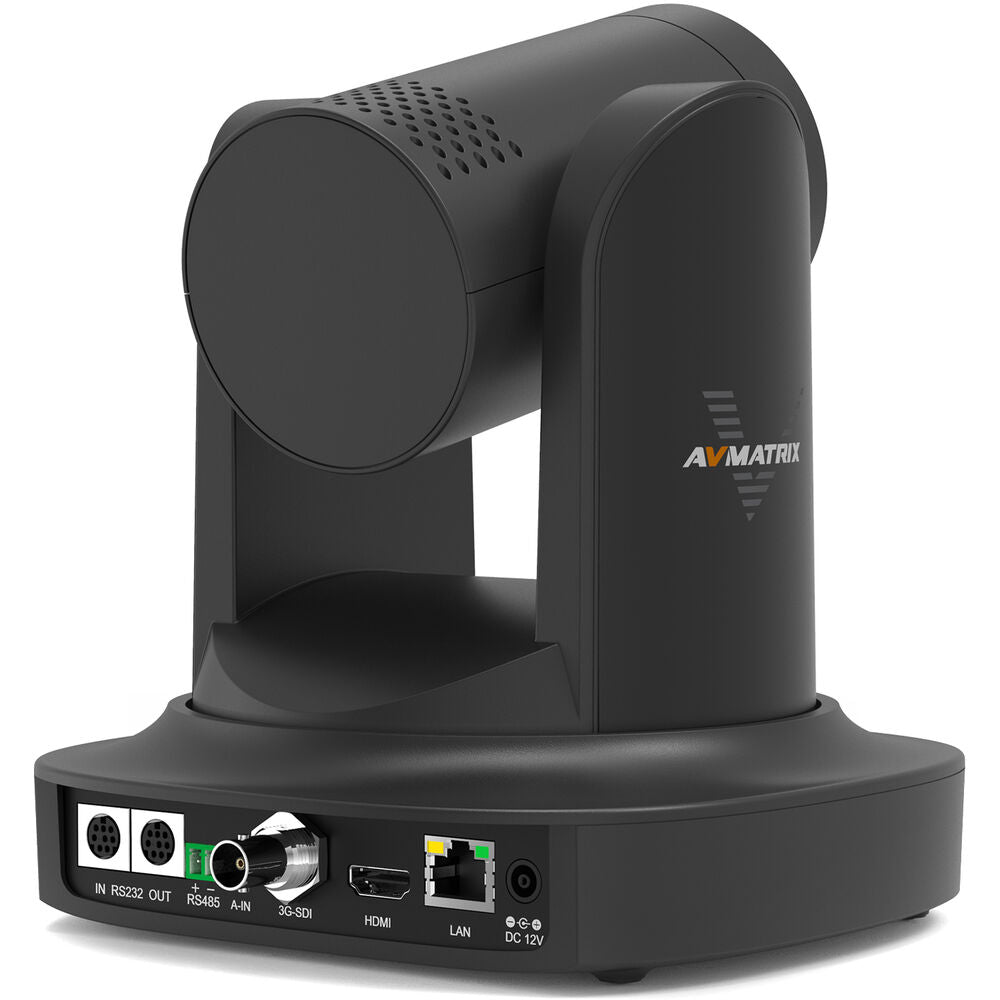

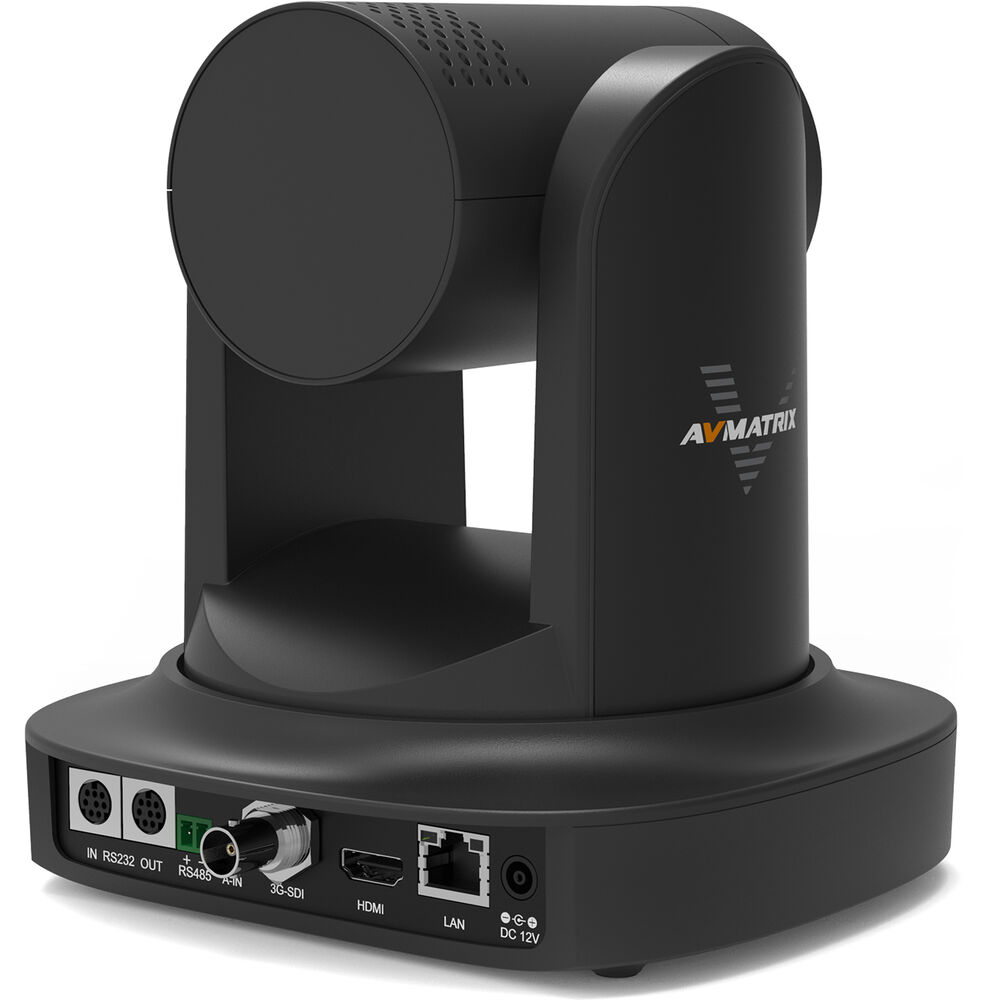

| Other I/O | 1 x RJ45 (LAN) 1 x Mini-DIN 8-Pin (RS-232) Input 1 x Mini-DIN 8-Pin (RS-232) Output 1 x Block (RS-485) Input |
| PoE Support | PoE 802.3af |
| Power I/O | 1 x Barrel Input |
| Power Consumption | Device: 12 VDC at 1 A (12 W) |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | 20 to 80% (Non-Condensing) |
| Storage Humidity | 20 to 95% (Non-Condensing) |
| Mounting | 1 x 1/4"-20 Female for Tripod |
| Dimensions (W x H x D) | 6.7 x 7.1 x 6.7" / 170 x 180.31 x 170 mm |
| Weight | 2.76 lb / 1.25 kg |
| Package Weight | 4.705 lb |
| Box Dimensions (LxWxH) | 10.5 x 9.9 x 9.2" |
