Description
AVMATRIX SE1117 Streaming Encoder Overview
- 1Description
- 2Encoding Resolution
- 3Video Bitrate
- 4Audio Bitrate
- 5Network Protocols

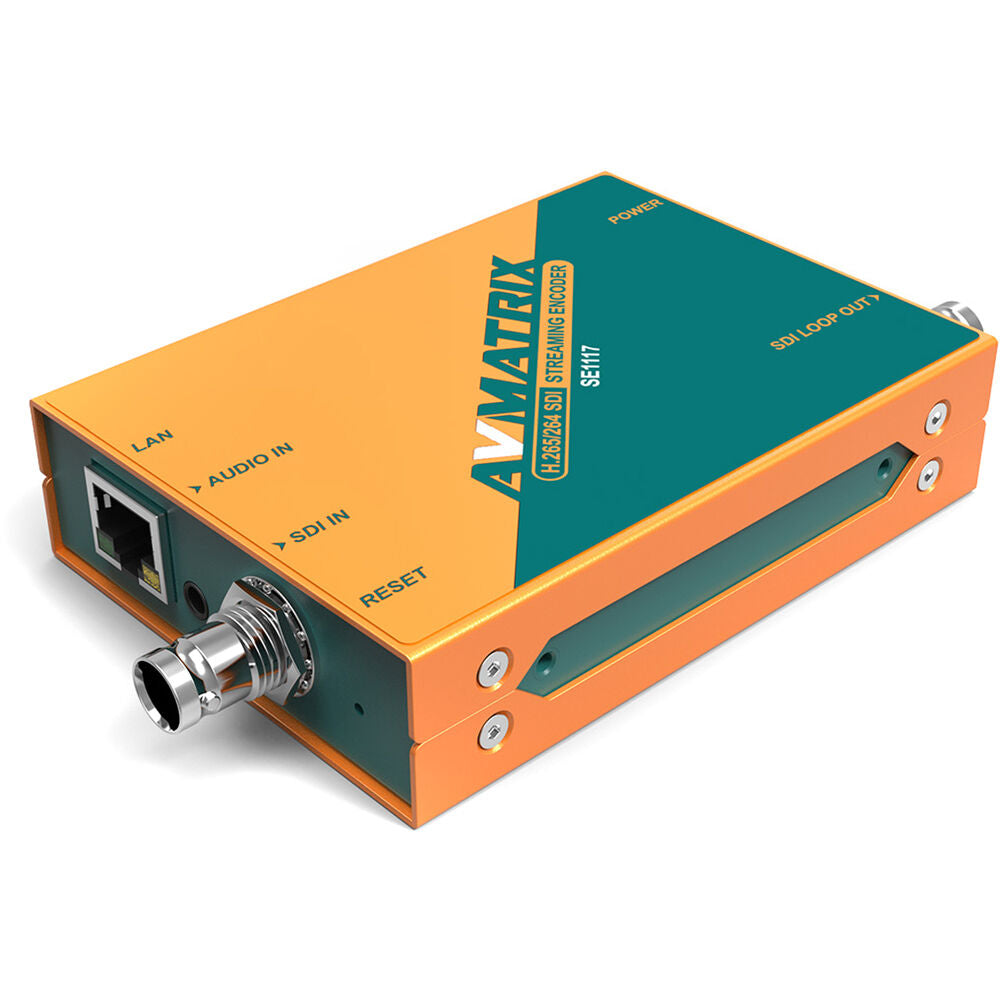

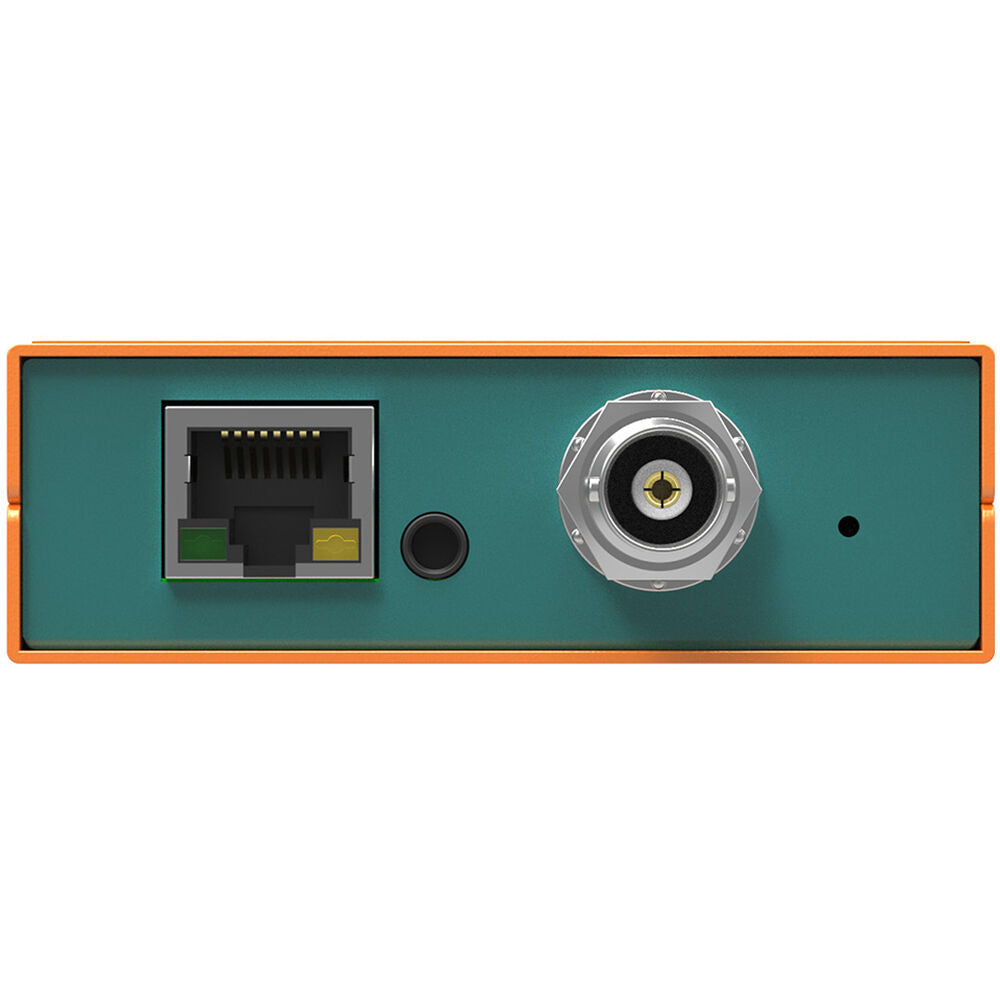

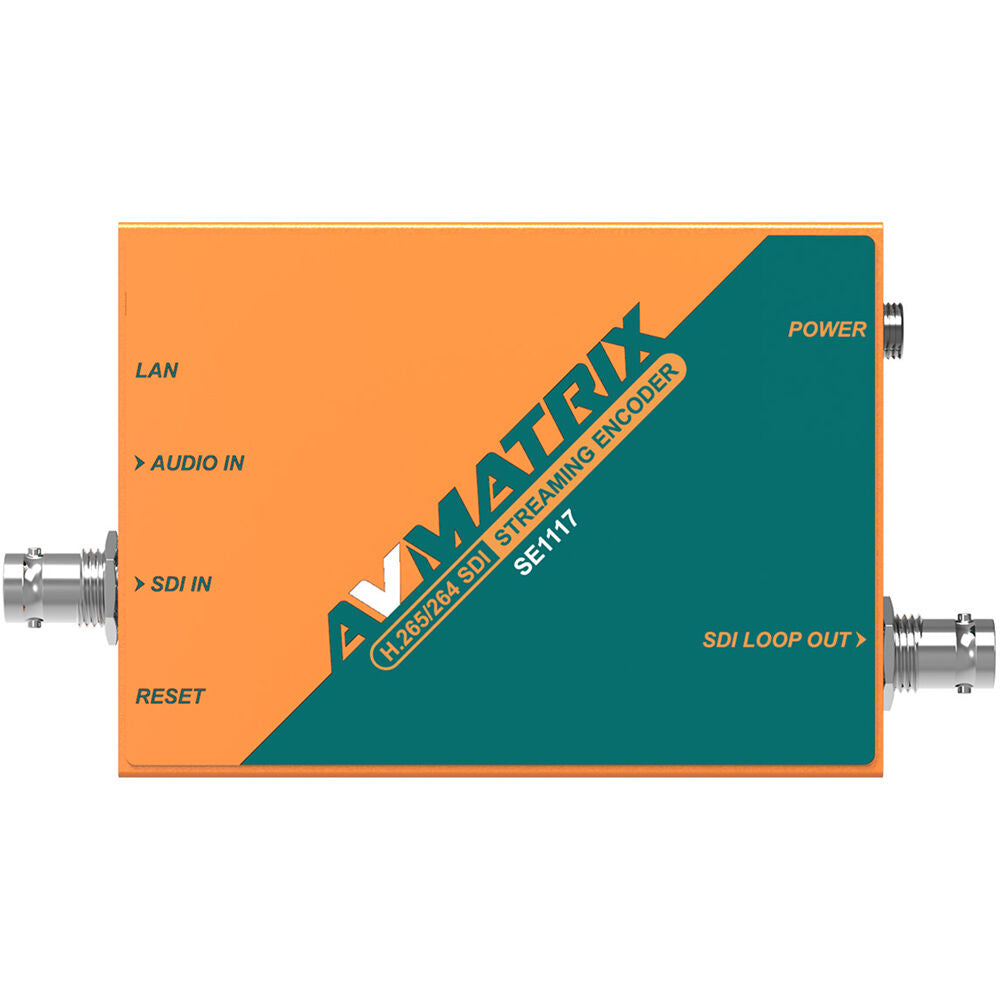

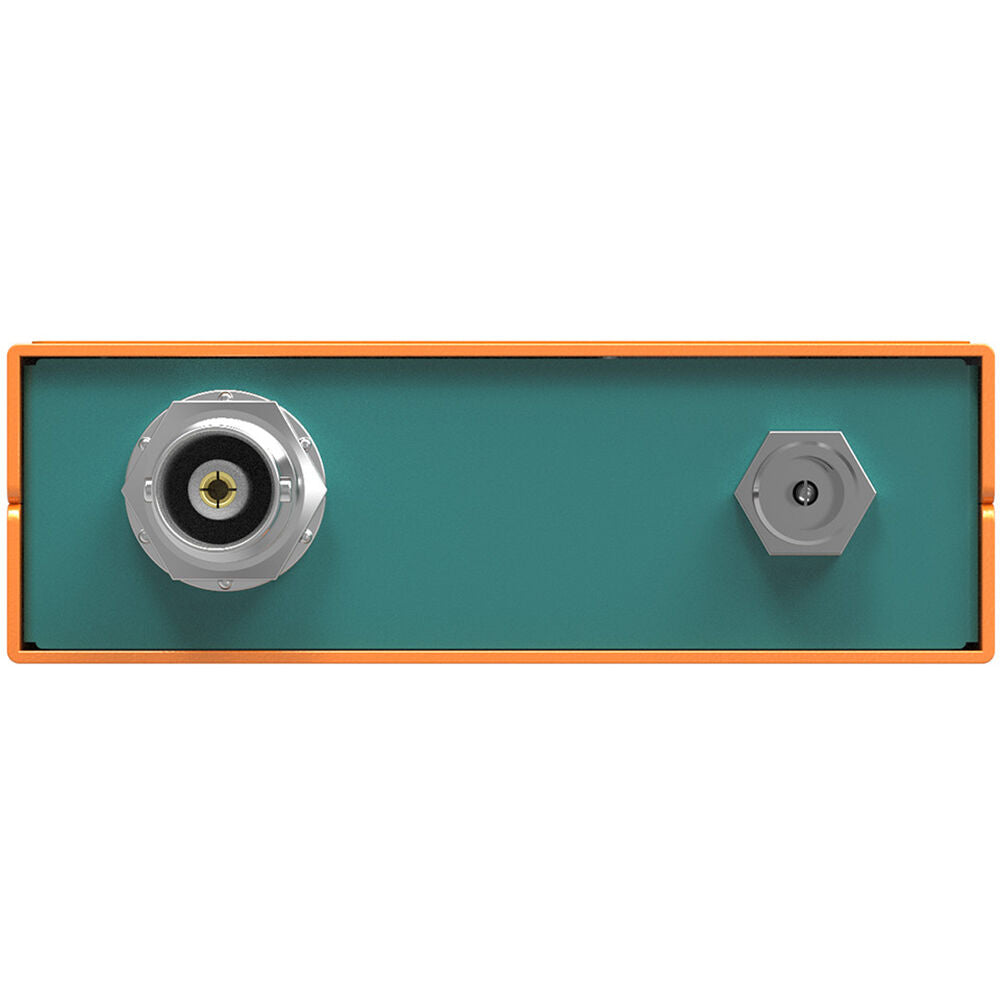

Allowing you to output to a streaming server via an IP address, the AVMATRIX H.264/H.265 SDI Streaming Encoder lets you efficiently live stream without connecting to a computer. Featuring an SDI input and loop output as well as an independent 3.5mm audio input, it allows you to encode up to 1080p60 video with embedded audio into an IP stream, or choose to encode audio only, and send out either signal over an Ethernet interface while monitoring the input video source locally.
You can send to popular streaming destinations such as Facebook, YouTube, and Wowza for applications including live weddings, sporting events, live medical broadcasts, and educational activities. The encoder allows dual streaming via a main stream and a sub stream. Additionally, image and text overlay and mirror image/flip can be applied over your source. All the different options are selectable via a Web user interface.
The encoder has a default IP address and can automatically obtain a new IP address when it is using DHCP on the network. You can disable DHCP and configure the encoder and computer's network in the same network segment.
Encoding Resolution
Video Bitrate
Audio Bitrate
Network Protocols
In the Box
- AVMATRIX H.264/H.265 SDI Streaming Encoder
- 12/2A Power Supply

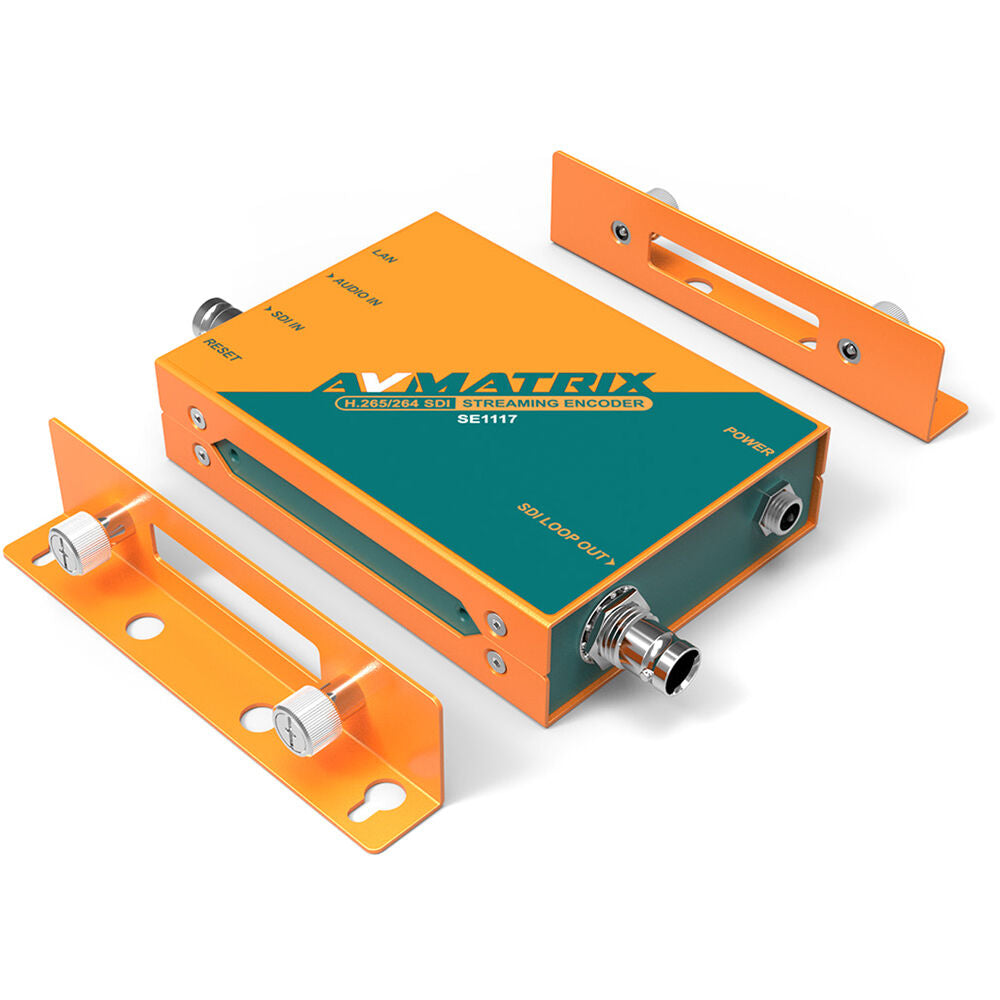

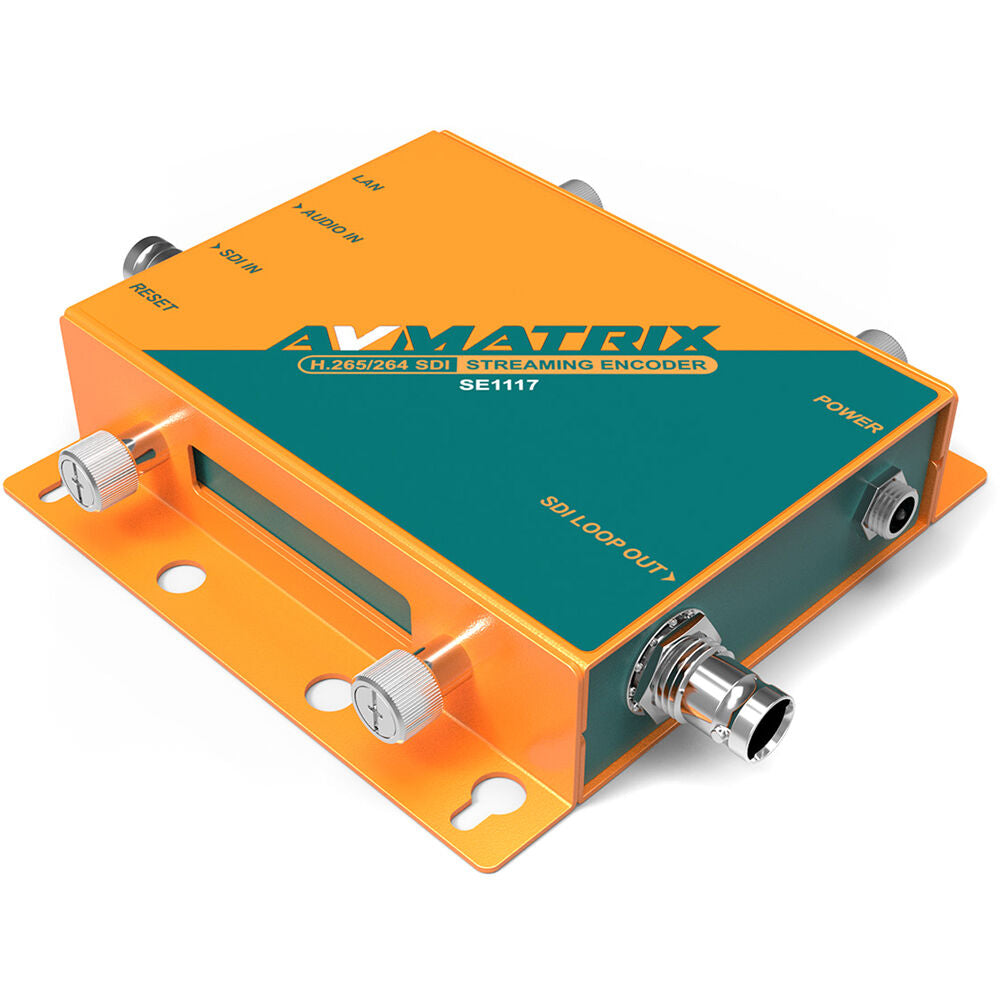

- Set of Mounting Brackets
- Limited 1-Year Warranty
- Description
- Encoding Resolution
- Video Bitrate
- Audio Bitrate
- Network Protocols
AVMATRIX SE1117 Streaming Encoder Specs
| Video Input Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) |
| Input Video Format | SDI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps 576p: 50 fps 576i / 625 lines: 50 fps 480p: 59.94/60 fps 480i / 525 lines: 59.94/60 fps |
| Audio Input Connectors | 1 x 1/8" / 3.5 mm TRS |
| Embedded Audio Input | SDI |
| Video Output Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) (Loop Output) |
| Output Video Format | SDI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps 576p: 50 fps 576i / 625 lines: 50 fps 480p: 59.94/60 fps 480i / 525 lines: 59.94/60 fps |
| Audio Output Connectors | None |
| Embedded Audio Output | SDI |
| HDR Compatibility | None |
| Other I/O | 1 x RJ45 LAN |
| Expansion Slots | None |
| Video IP Encoding | H.264, H.265: 640 x 360 to 1920 x 1080 |
| Audio IP Encoding | AAC, G.711, MP3, MP2 |
| Power Connector | 1 x Barrel (12 VDC) Input |
| Power Consumption | 5 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Dimensions | 4.1 x 3 x 1" / 104 x 76 x 25 mm |
| Weight | 12 oz / 340 g |
| Warranty Length | Limited 1-Year Warranty |
| Package Weight | 1.325 lb |
| Box Dimensions (LxWxH) | 6.9 x 6 x 2.9" |
