Description

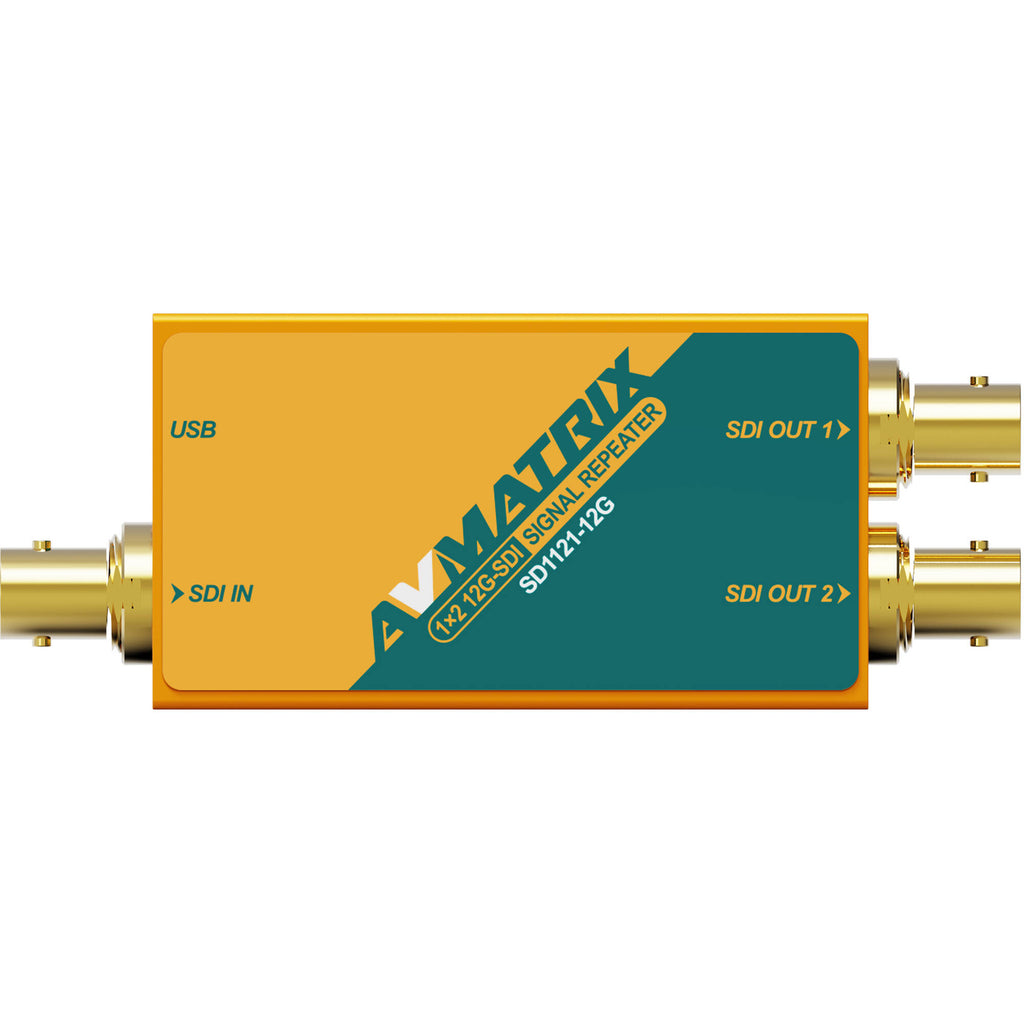

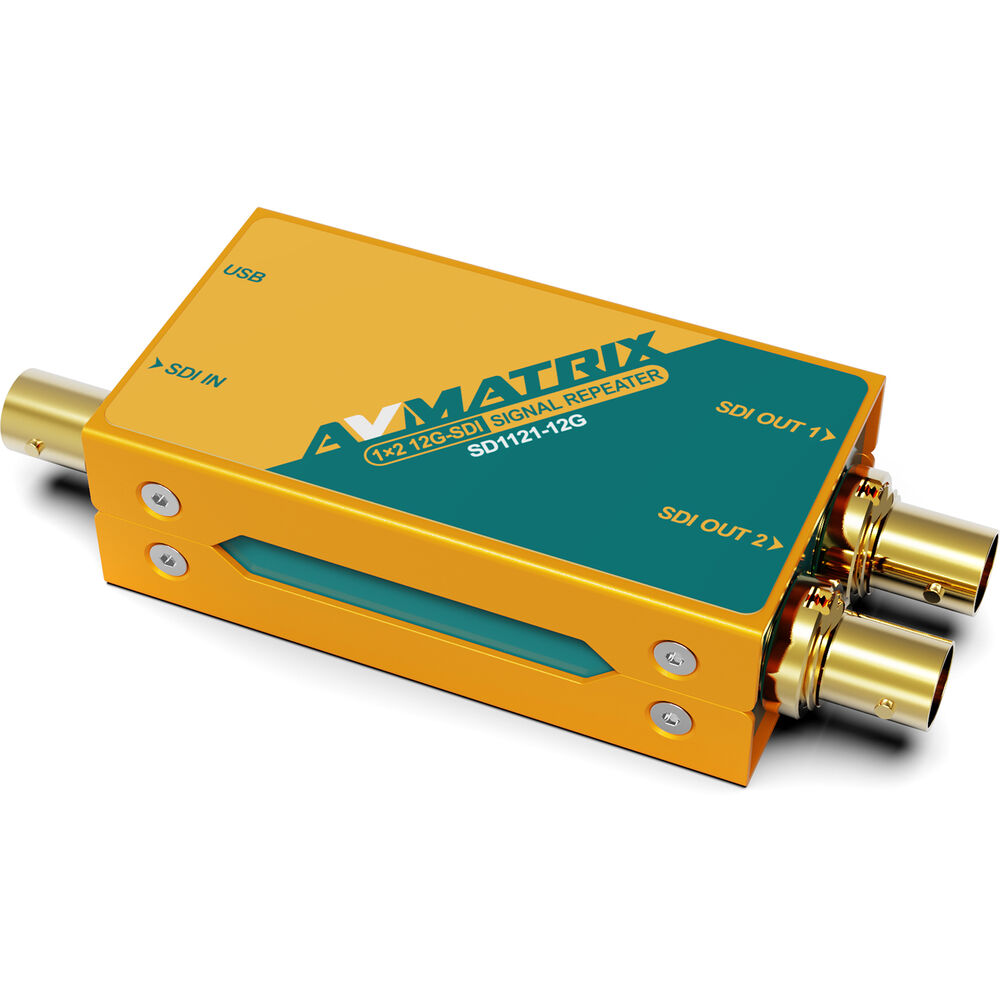

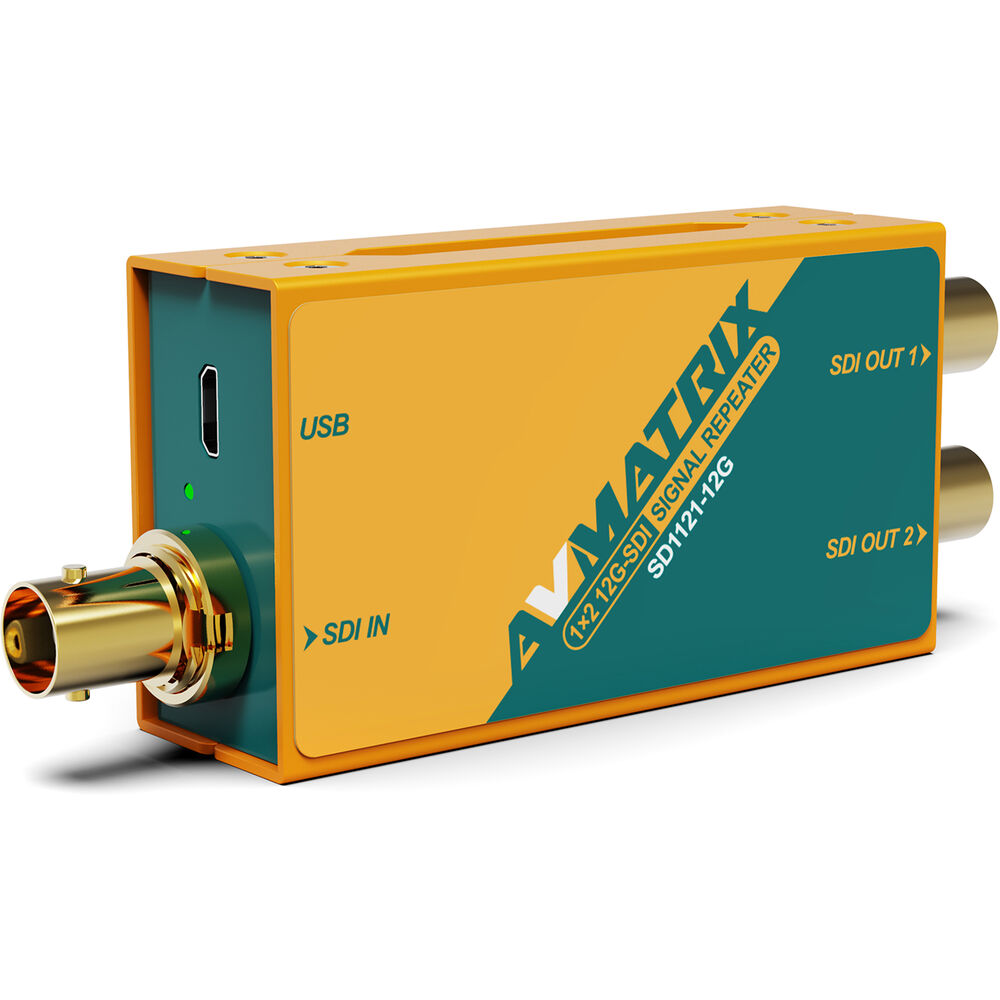

AVMATRIX 1x2 12G-SDI Signal Repeater Overview
Distribute up to a 12G-SDI video input signal to two outputs with the AVMATRIX 1x2 12G-SDI Reclocking Signal Repeater for optimal transmission in broadcast control room applications. One BNC input and two BNC outputs automatically detect 12G, 6G, 3G, HD, or SD signals while equalizing and reclocking them up to 328'. This signal repeater supports DVB-ASI signals, as well as ancillary data and embedded audio pass-through.
A micro-USB input powers the device and connects to the included 5V adapter. The signal repeater can be easily integrated into your studio setup, thanks to its detachable bracket design for wall mounting and compact form factor.
In the Box
- AVMATRIX 1x2 12G-SDI Reclocking Signal Repeater
- 5V Power Adapter
- Limited 3-Year Manufacturer Warranty
AVMATRIX 1x2 12G-SDI Signal Repeater Specs
Interfaces
| Input | 1 x BNC (12G-SDI / 6G-SDI / 3G-SDI / HD-SDI / SD-SDI / DVB-ASI) |
| Embedded Audio | HDMI |
| Output | 2 x BNC (12G-SDI / 6G-SDI / 3G-SDI / HD-SDI / SD-SDI / DVB-ASI) |
Standards
| Video Standard Compliance | SMPTE 259M/274M/292M/296M/424M-B/425M/ST-2081/ST-2082 ITU -R BT.601/BT.656 |
| Reclocking | Yes |
| HDR Compatibility | None |
| HDCP Support | None |
| EDID Support | None |
| Audio Decoding | None |
Transmission
| Max Transmission Distance | 328.1' / 100 m |
Power
| Power Connector | 1 x Micro-USB (5 VDC) Input |
| Power Consumption | Device: 5 VDC (1 W) |
| ESD Protection | None |
Environmental
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Operating Humidity | 0 to 90% (Non-Condensing) |
General
| Dimensions | 4.2 x 0.9 x 1.6" / 105.5 x 23.0 x 41.0 mm |
| Weight | 5.5 oz / 156 g |
Packaging Info
| Package Weight | 0.875 lb |
| Box Dimensions (LxWxH) | 5.1 x 3.3 x 3.1" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
