Description

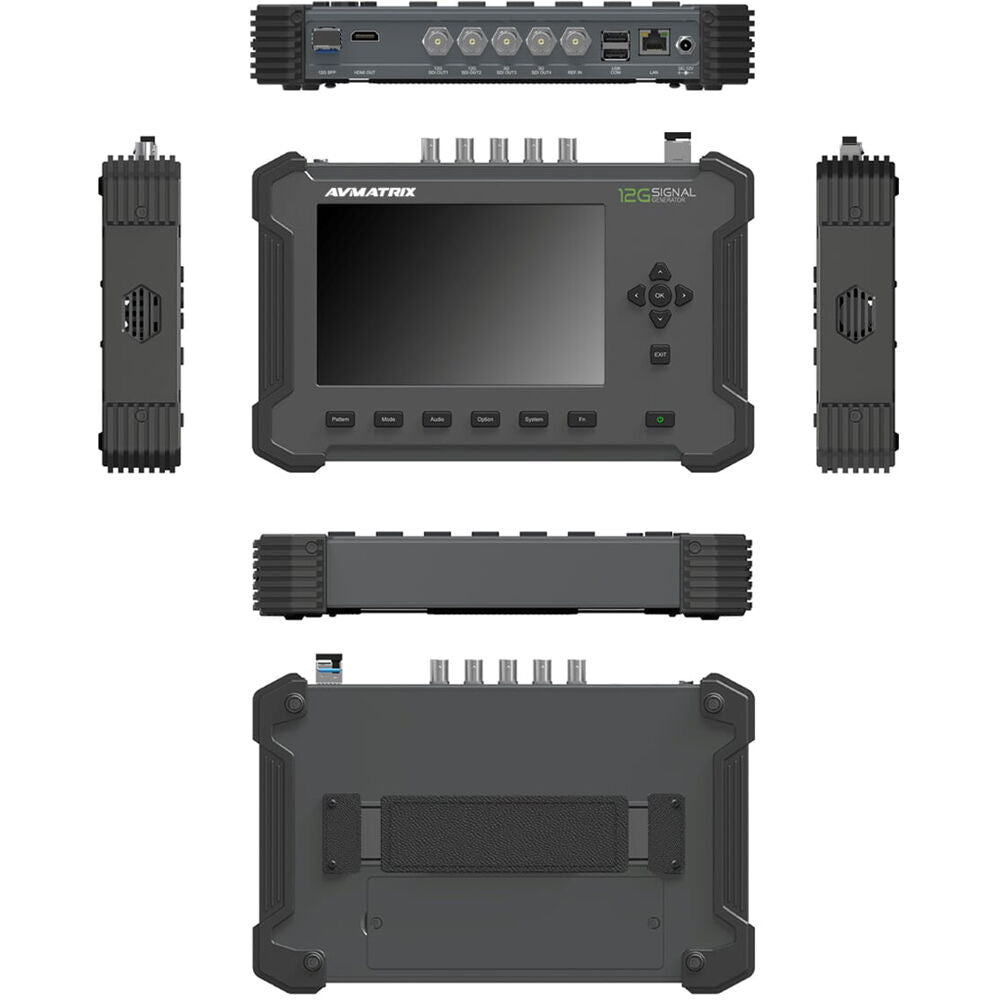

AVMATRIX PG4K Overview
The 12G-SDI & 4K HDMI 2.0 Pattern Generator from AVMATRIX allows you to test the color temperature and grayscale of a monitor with various types of patterns, such as color bar, pathology patterns, and monochrome display.
The generator lets you choose from a variety of preset patterns or create custom pictures based on RGB or YCbCr color spaces. It features a reference input and one HDMI / four SDI outputs supporting up to DCI 4K60 resolution. A LAN port allows you to connect to your computer and control the generator from a Windows software, which is provided as a free download from AVMATRIX. External devices such as a flash drive, keyboard, or mouse can be connected to two USB ports. Additional patterns can be imported via flash drives. An SFP slot is also provided for installing an optional SFP module.

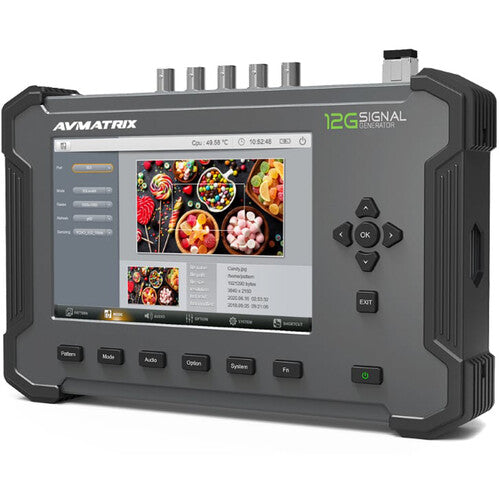

In the user interface of the generator, you can set up over a hundred shortcut functions for a more efficient testing workflow. The generator has a built-in battery that lasts up to 2.5 hours, and it can also be powered continuously using the included power supply.
In the Box
- AVMATRIX 12G-SDI & 4K HDMI 2.0 Pattern Generator
- 12V, 3A Power Adapter
- Waterproof Hard Case
- Limited 3-Year Warranty
AVMATRIX PG4K Specs

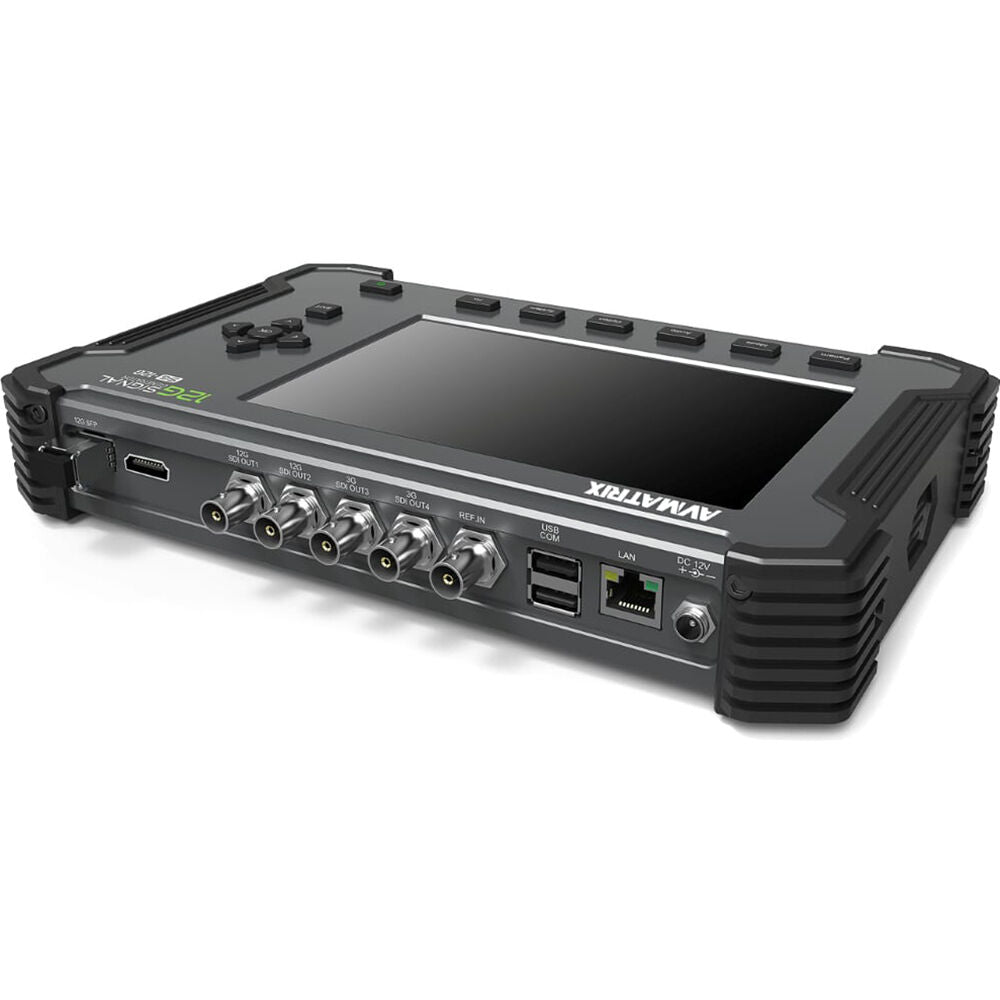

| Input | 1 x BNC Reference 1 x RJ45 LAN 2 x USB Type-A |
| Output | 2 x 12G-SDI 2 x 3G-SDI 1 x HDMI 2.0 1 x SFP Slot (for Optional SFP Module) |
| Standards | Single-Link: 12G-SDI ST 2082-10 Mode 1 Dual-Link: 2 x 6G-SDI ST 2081-11 Mode 1 Quad-Link SQD and 2SI: 4 x 3G-SDI Level A / Level B ST 425-5 |
| SDI Supported Resolutions | Single-Link 12G-SDI / Dual-Link 2 x 6G-SDI / Quad-Link 4 x 3G-SDI: 4096 x 2160 / 3840 x 2160 at 30/29.97/25/24/23.98 fps GBR 4:4:4 10 Bit GBR+A 4:4:4:4 10 Bit YCbCr 4:4:4 10 Bit YCbCr+A 4:4:4:4 10 Bit GBR 4:4:4 12 Bit YCbCr 4:4:4 12 Bit YCbCr 4:2:2 12 Bit 4096 x 2160 / 3840 x 2160 at 60/59.94/50/48/47.95 fps YCbCr 4:2:2 10 Bit |
| HDMI Supported Resolutions | 4096 x 2160 / 3840 x 2160 at 60/59.94/50/48/47.9530/29.97/25/24/23.98 fps |
| Display Size | 7" / 17.8 cm |
| Display Type | IPS |
| Display Resolution | 1280 x 800 |
| Aspect Ratio | 16:10 |
| Brightness | 400 cd/m² |
| Contrast | 800:1 |
| Viewing Angle | 178° H x 178° V |

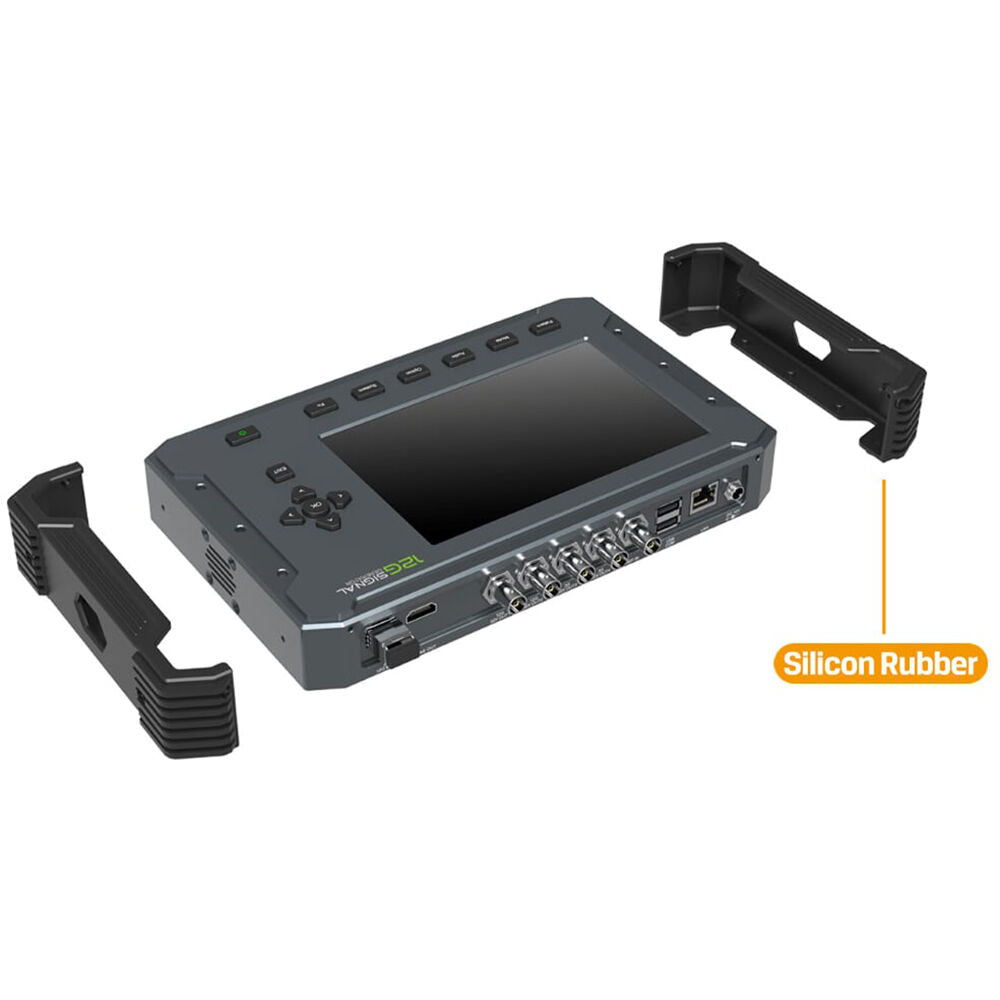

| Housing | Metal |
| Power Connector | 12 VDC Barrel |
| Power Current | 2.3 V |
| Input Voltage | 10 to 15 VDC |
| Power Consumption | 27 W |
| Built-In Battery | 5000 mAh |
| Battery Runtime | 2.5 Hours |
| Operating Temperature | 14 to 140°F / -10 to 60°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Dimensions | 10.4 x 6.7 x 1.7" / 264 x 169 x 42 mm |
| Weight | 6.6 lb / 3 kg |
| Package Weight | 10.41 lb |
| Box Dimensions (LxWxH) | 15.7 x 7.6 x 6.8" |
