Description
AViPAS AV-2000 Overview

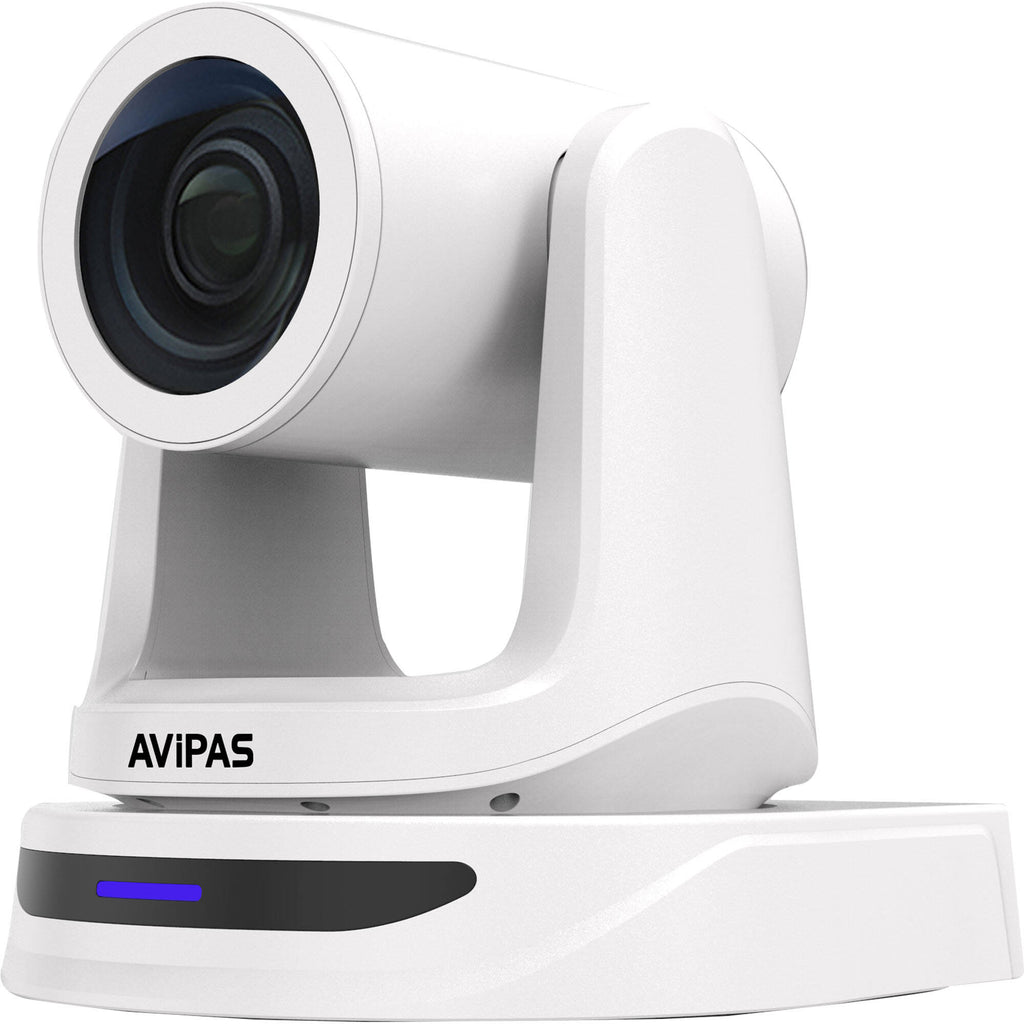

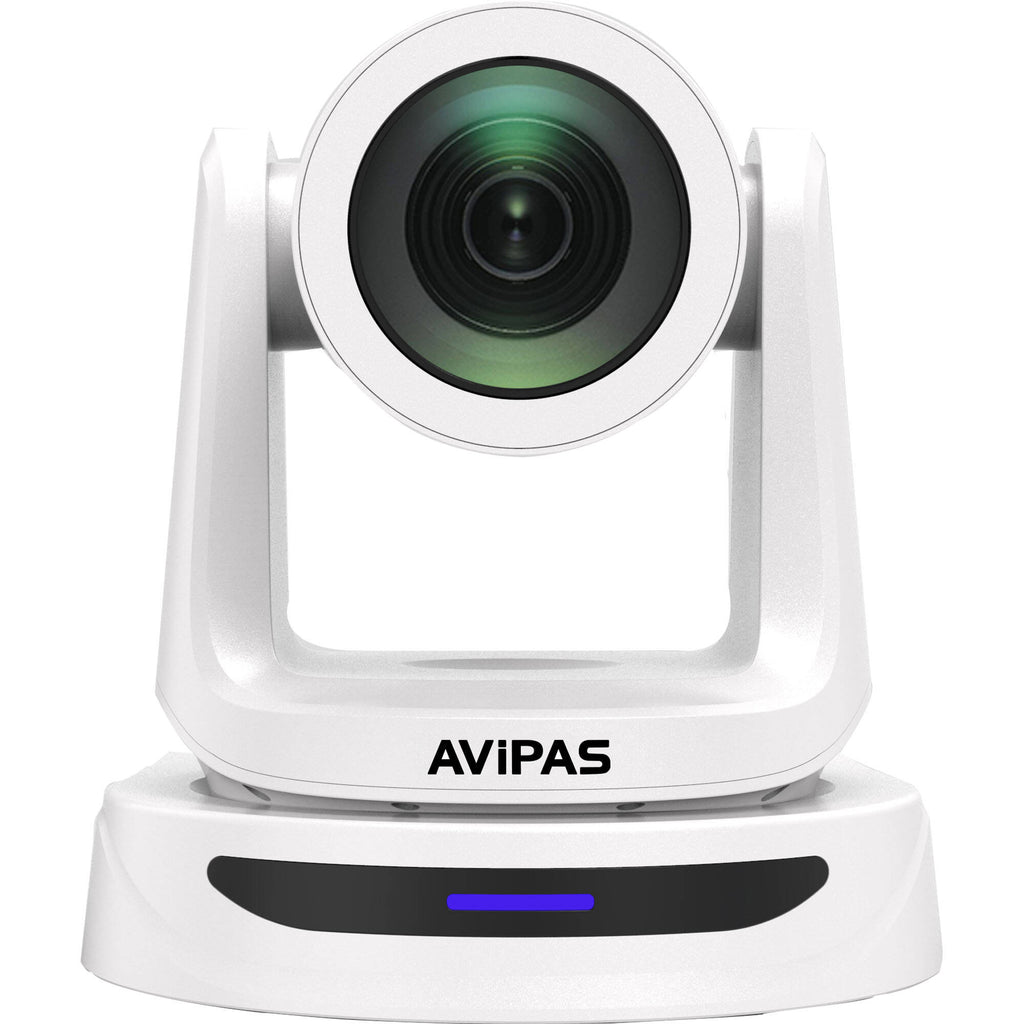

Capture professional HD video for your video conferencing, education, house of worship, or other video application with this white HDMI/NDI|HX PTZ Camera with PoE and 20x Zoom from AViPAS. The remotely controllable PTZ camera allows you to capture up to 1080p60 resolution and features HDMI and IP outputs, and it fits right into an NDI network with its built-in NDI|HX streaming support. It also supports up to 1080p30 with dual IP streams via its RJ45 interface. Featuring 20x optical zoom, it provides a 3.23 to 60° adjustable angle of view, a ±170° panning range, a ±90° tilting range, auto or manual focus, wide dynamic range, and serial control support.
The low-noise 1/2.8" CMOS sensor ensures a high signal-to-noise ratio while advanced 2D/3D noise-reduction technology further reduces image noise, so that an even sharper image is delivered in low light. The RJ45 Ethernet port allows you to control and configure the camera via IP, and it also allows simultaneous dual streaming via IP for a live Internet stream. There is also a 3.5mm audio line input on the back to input stereo audio into your streams and video output.
The pan/tilt/zoom mechanism uses quiet, smooth movements, controllable using the included IR remote controller, ONVIF, and VISCA-over-IP control, or by using the RS-232 input/outputs that support VISCA, Pelco-D, and Pelco-P protocols for use with a separately available controller. You can store up to 128 presets using an optional serial controller, or store 10 presets when using the included IR remote. You can power the camera using a networked PoE+ (Power-over-Ethernet) switch, or by using the included power adapter.
In the Box
- AViPAS HDMI/NDI HX PTZ Camera with PoE and 20x Zoom (White)
- Power Adapter
- Power Cable
- RS-232 Cable
- IR Remote Control
AViPAS AV-2000 Specs
| Sensor Type | 1/2.8"-Type CMOS Sensor |
| Sensor Resolution | Effective: 2.4 Megapixel (1920 x 1080) |
| Built-In ND Filter | None |
| Focus Control | Autofocus Manual Focus |
| Minimum Illumination | 0.1 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| Focal Length | 4.9 to 98mm |
| Optical Zoom Ratio | 20x |
| Maximum Aperture | f/1.5 to 3 |
| External Recording Modes | HDMI / RJ45 1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps |
| Broadcast Output | NTSC |
| IP Streaming | H.264, H.265, NDI|HX, RTMP, RTSP, TCP 1920 x 1080 at 30p 1280 x 720 at 30p 1024 x 576 at 30p 640 x 360 at 30p |
| Presets | 128 |
| Move Speed | Pan: 0 to 120°/sec Tilt: 0 to 80°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 180° (-90 to 90°) |
| Tally Light | No |
| Supported Control Protocols | IP IR NDI Pelco-D Pelco-P RS-232 VISCA |

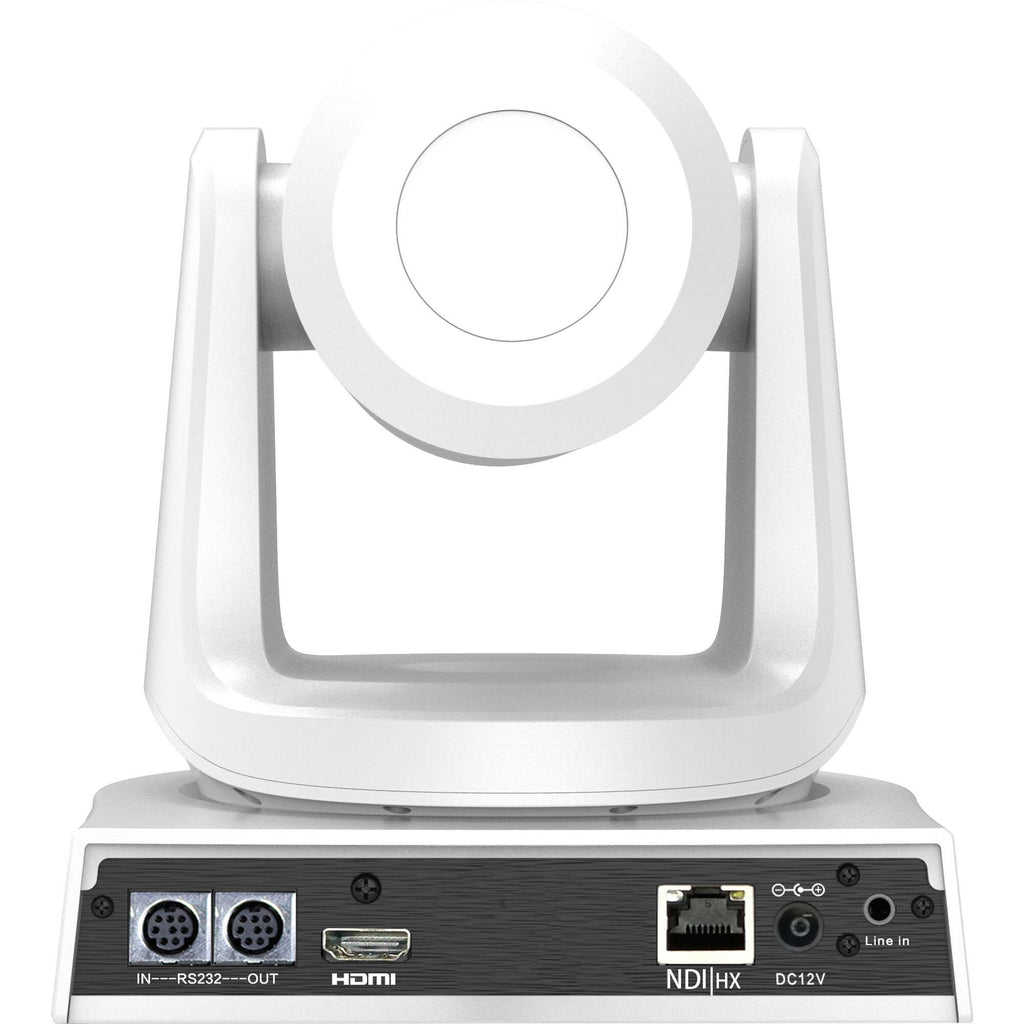

| Video I/O | 1 x HDMI Output 1 x RJ45 (NDI) Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TS Mono Line Input |
| Other I/O | 1 x Mini-DIN 8-Pin (RS-232) Input 1 x Mini-DIN 8-Pin (RS-232) Output |
| PoE Support | PoE 802.3af |
| Power I/O | 1 x Barrel (12 VDC) Input |
| Power Consumption | Device: 11 W |
| App Compatible | No *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Dimensions (W x H x D) | 6.6 x 7.1 x 6.6" / 16.8 x 18 x 16.8 cm |
| Weight | 3.1 lb / 1.4 kg |
| Package Weight | 6.13 lb |
| Box Dimensions (LxWxH) | 11.7 x 11.1 x 10.4" |
