Description
AViPAS AV-3104SE Overview

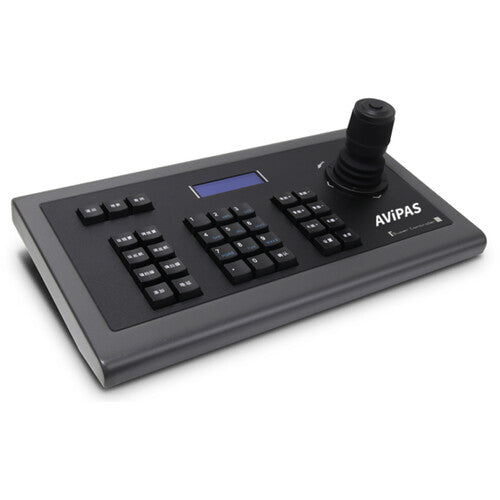

The 4D Serial Joystick Controller from AViPAS offers joystick and button control for your PTZ cameras with support for VISCA, Pelco-P, and Pelco-D protocols over serial RS-232, RS-422, and RS-485 communication. It enables you to control the speed of your pan, tilt, zoom, and lock moves, and incorporates an LCD screen.
The controller also offers presets including gain, iris, focus, and speed control settings to control the finer settings on the PTZ camera. There is also a joystick lock button to ensure the camera movements stay locked in place. The keyboard features three serial control modes using RS=485, RS-422, and RS-232. The unit is powered with the included 12 VDC power adapter.
In the Box
- AViPAS 4D Serial Joystick Controller (No IP Function)
- 12 VDC Power Adapter
- DB-9 to 8-Pin Mini-DIN Serial Cable (8')
AViPAS AV-3104SE Specs
| Number of Supported Cameras | 255 Channels |
| Supported Control Protocols | Pelco-D Pelco-P RS-232 RS-422 RS-485 VISCA |

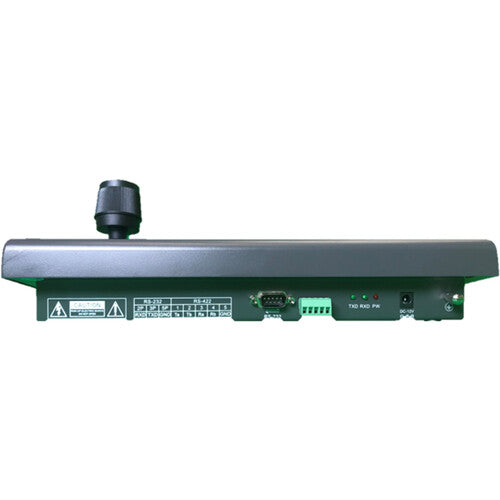

| Control I/O | 1 x RJ45 (LAN) 1 x Block (RS-422, RS-485) 1 x D-Sub 9-Pin (RS-232) |
| Controls | 1 x Pan/Tilt, Zoom Joystick |
| Presets | 255 via Pelco-P, Pelco-D 7 via VISCA |
| PoE Support | None |
| Power Connectors | 1 x Barrel / Coaxial |
| Power Consumption | 6 W |
| DC Input Power | 12 VDC |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Operating Humidity | 90% |
| Security Lock Support | None |
| Dimensions | 12.6 x 7.06 x 4.19" / 32 x 17.93 x 10.64 cm |
| Weight | 5.5 lb / 2.5 kg |
| Package Weight | 4.99 lb |
| Box Dimensions (LxWxH) | 14 x 8.8 x 5.5" |
