Description
- For Pro16 Digital Snake
- 16 Mic & Line Switchable Outputs
- DB25 Connector Outputs
- +24dBu, +18dBu, +4dBu, and Mic Level
- 24-Bit D/A Converters

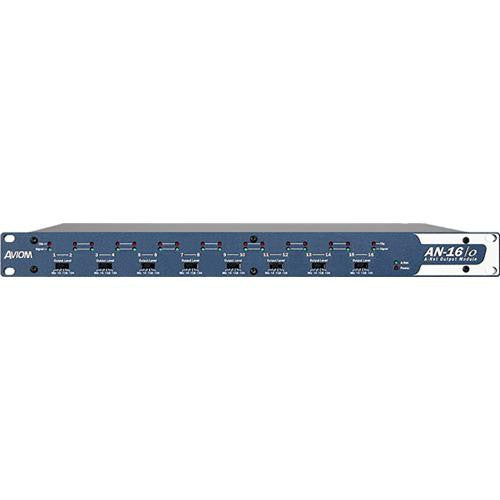

The Aviom AN-16/o V.4 16-Channel Analog Output Module adds an additional 16 output connectors to the Aviom Pro16 series digital network snake systems. This flexible, digital output module features 16 outputs on balanced DB25-pin connectors and switchable output level controls with +24dBu, +18dBu, +4dBu, and mic level switched on each channel.
Pro16 series audio quality and flexible routing is uncompromised with 24-bit D/A converters and variable sample rates from +/- 44.1kHz to 192kHz. Cat-5e connections seamlessly integrate the AN-16/o V.4 with Aviom's Pro16 Network systems for up to 500 feet, and makes the output module ideally suited for providing additional outputs to FOH consoles, multi-track recorders and other applications.
- 16 balanced mic- or line-level outputs
- Four-position output level switch per channel pair
- +24, +18, and +4dBu line-level, or mic-level outputs
- Converts A-Net digital stream to 16 analog audio channels
- 48kHz, 24-bit D/A converters
- Unlimited splits and digital copies
- Optional AN-16SBR System Bridge combines up to 4 A-Net streams onto one cable
- Cat-5e cable runs up to 500 feet (150 meters) between devices
- 1 Year Warranty
| ADC | 24-Bit |
| DAC | 24-Bit |
| Sample Rates | 1x: 39.7-52kHz 2x: 79.4-104kHz 4x: 158.8-208kHz |

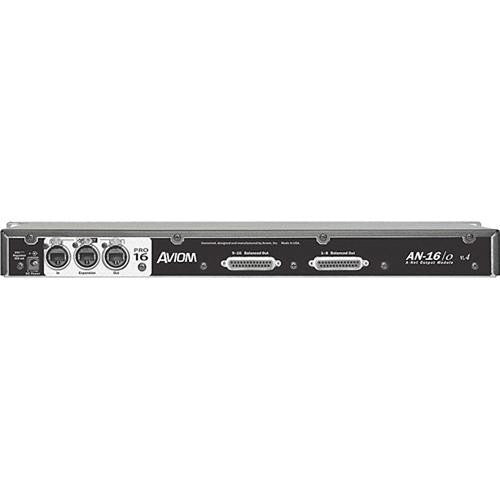

| Analog Outputs | DB25 multipin connectors (2); Tascam analog audio pinout |
| Digital Inputs | Aviom A-Net |
| Digital Outputs | Aviom A-Net |
| Other Connectors | RS232 Remote MIDI IN and Out |
| Maximum Output Level | Variable: +24dBu, +18dBu, +4dBu, and Mic |
| Frequency Response | 3dB: 2Hz and 23kHz +/- 0.5dB: 10Hz-22kHz (at 1x sample rate) |
| THD + N | < .002% at -10dBFS |
| Dimensions | 19 x 5.7 x 1" (482.6 x 146 x 25.4mm) |
| Weight | 6.8lb (3.8 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 6.75 lb |
| Box Dimensions (LxWxH) | 22.1 x 9.6 x 5.8" |
