Aviom AN-16/i V.2 Input Module

The AN-16/i v.2 Input Module from Aviom is used to connect up to 16 balanced line-level inputs from a console�s direct outputs, insert points, aux sends, and/or submixes to a personal mixing system or digital snake. When used alone, one AN-16/i v.2 Input Module can generate a single 16-channel Pro16 A-Net signal. The module converts the 16 line-level analog audio channels into uncompressed 24-bit, 48kHz digital audio data.

The input module�includes an A-Net input jack for connecting up to 3 additional Pro16 series input devices.�It merges its analog inputs with the incoming A-Net stream, creating the expanded Pro16e digital audio stream utilized by Aviom�s A360 Personal Mixer. The digital audio data is output on standard Cat-5e cables.

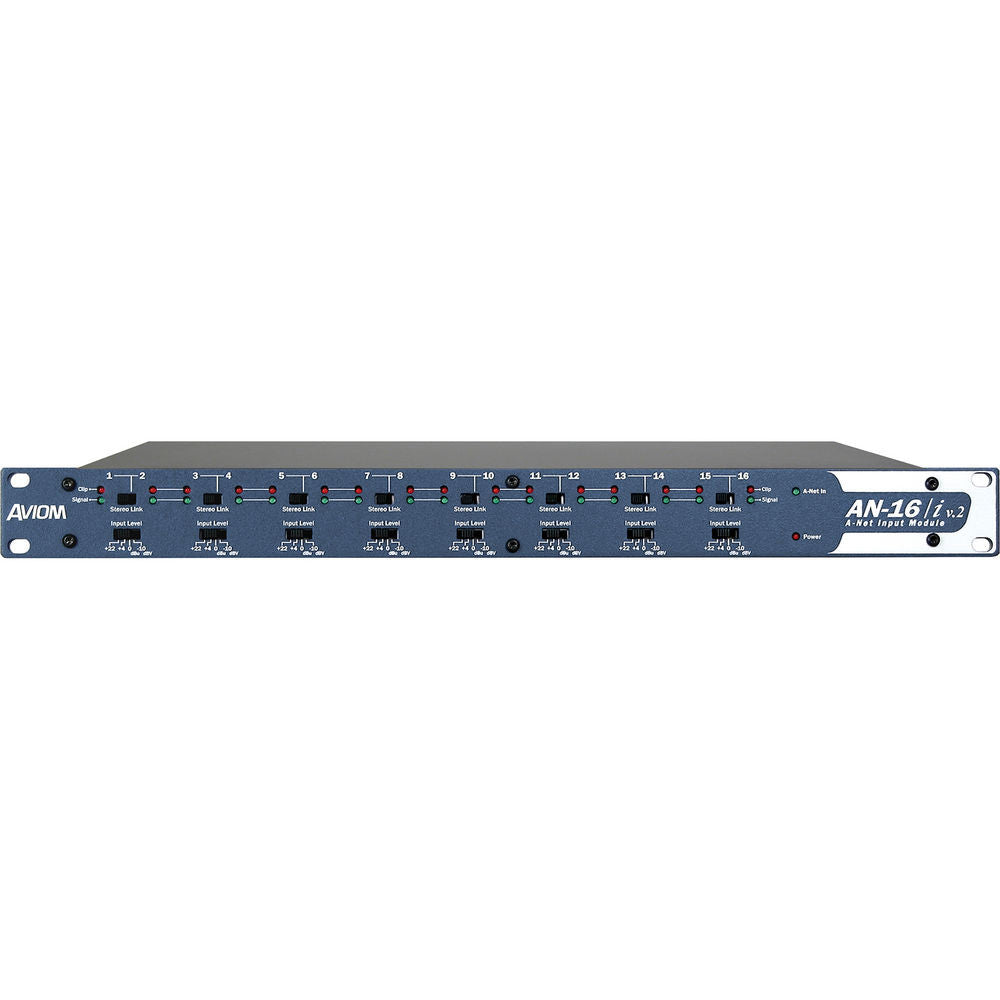

The front panel of the input module has 8 4-position input level/gain sensitivity switches, stereo channel link switches for every channel pair, and per-channel signal present and clip LEDs. Digital network connections on the rear panel include one A-Net in jack and one A-Net out jack.

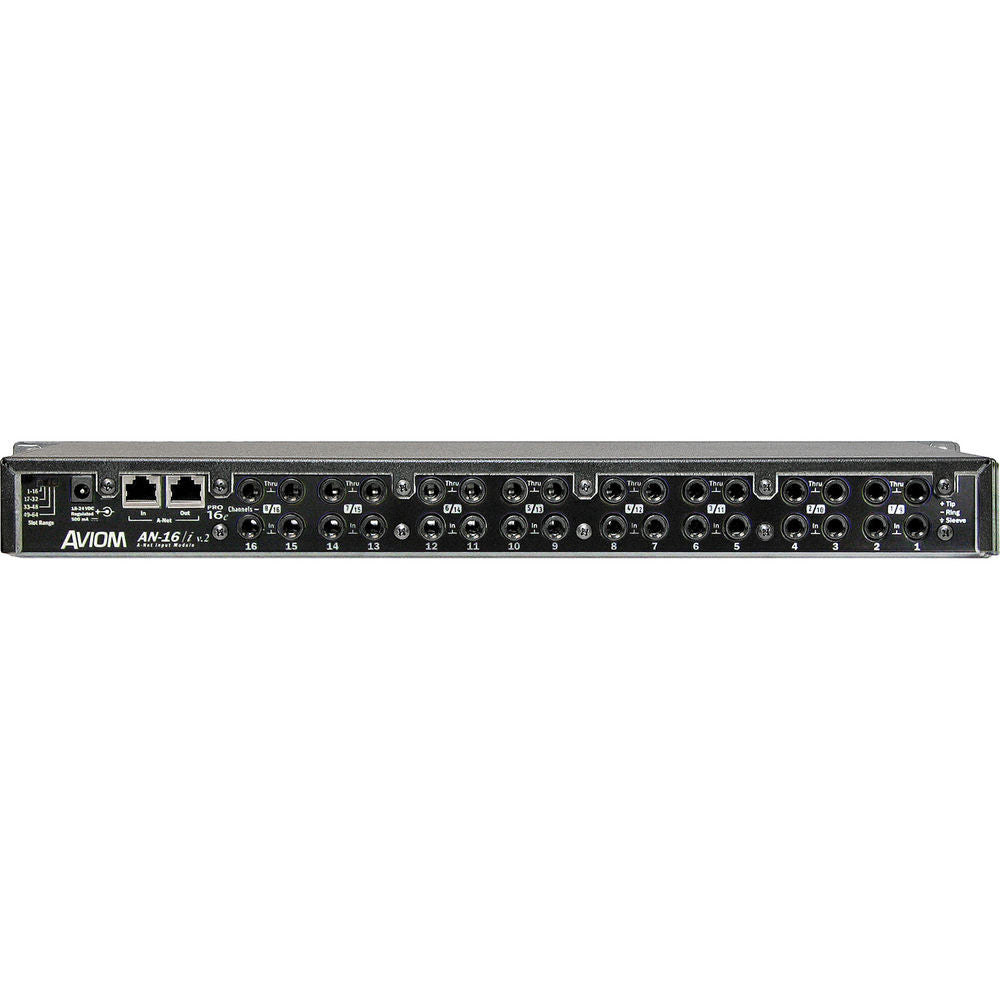

The rear panel of the AN-16/i v.2 Input Module also features 16 analog audio inputs with balanced 1/4� TRS jacks. An audio thru jack for each input allows the�module to be inserted seamlessly into an existing audio signal path. The input module can be used with any line-level analog audio signal such as console direct outs, inserts, or auxiliary sends.

The AN-16/i v.2 Input Module works in conjunction with Aviom�s modular Pro16 digital snake and audio distribution system products to support a range of flexible configurations including 16x0, 32x0, 48x0, 64x0, 16x16, 32x16, 32x32, and 48x16. All configurations support an unlimited number of digital splits with no loss in audio quality.
