Description

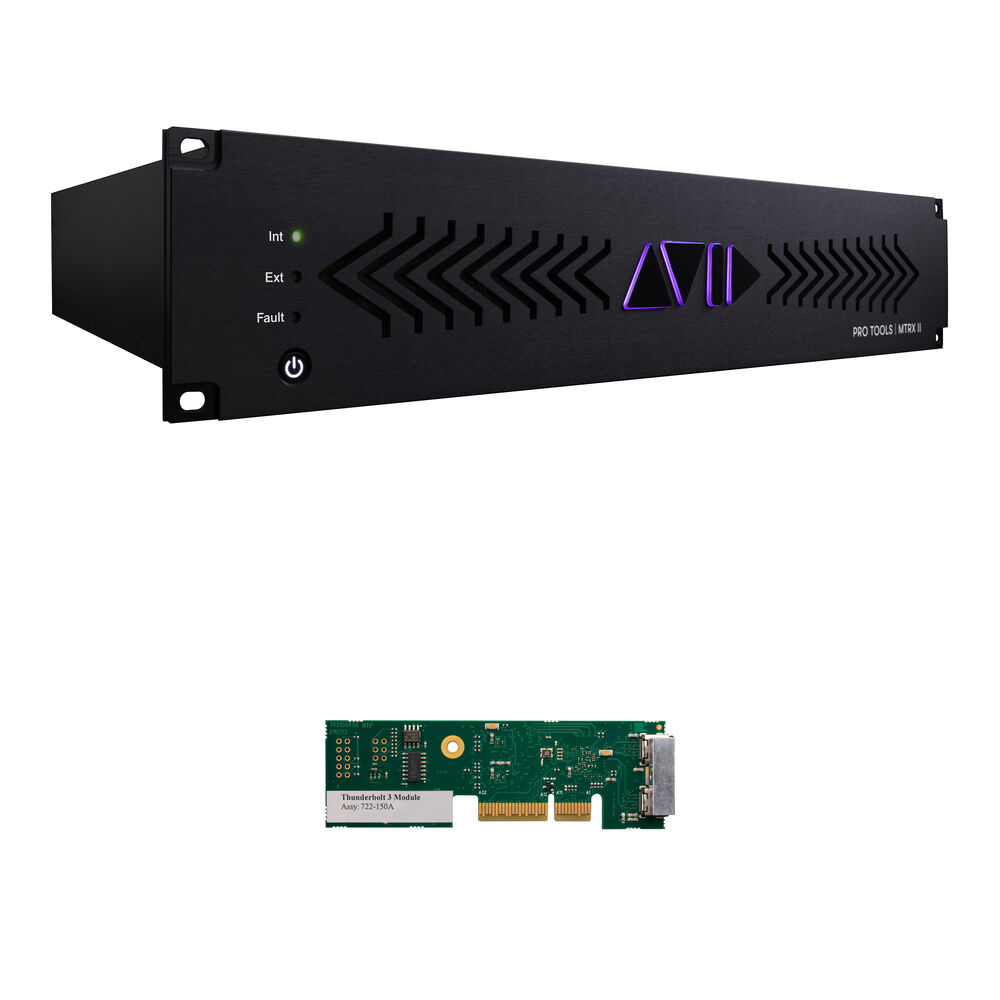

The Avid Pro Tools | MTRX II with Avid MTRX Thunderbolt 3 Module Kit from delivers a fully modular, high-performance studio centerpiece for Pro Tools | HDX and other DAWs. Featuring 64 channels of DigiLink I/O, 256 channels of Dante, 64 channels of MADI, wordclock I/O, 128 channels of SPQ speaker processing, and a massive 4096 x 4096 routing matrix, MTRX II offers exceptional flexibility, monitoring control, and sound quality in a 2 RU rackmount design. With the Thunderbolt 3 module installed, the system adds 256 channels of native, low-latency I/O for Pro Tools Ultimate and other Core Audio DAWs?enabling advanced routing, Dolby Atmos workflows, and seamless integration between DigiLink and Thunderbolt environments.

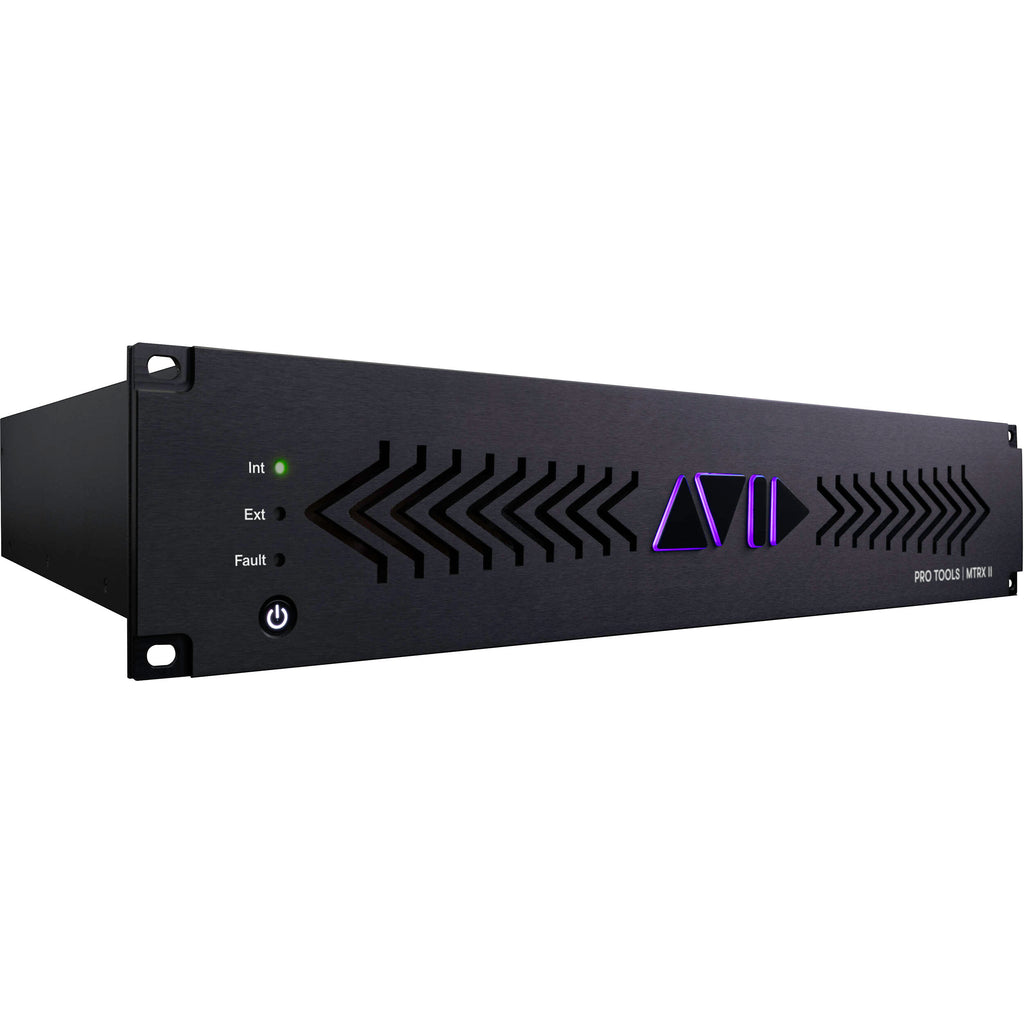

Producers, engineers, and mixers can take on the largest music or audio-post productions with the Avid Pro Tools | MTRX II Audio interface (Base Unit), a powerful studio centerpiece that offers exceptional sound quality, I/O customizability, and extensive routing and monitoring control in one interface. Used as a standalone or with Pro Tools | HDX, other DAWs, and Avid control surfaces, Pro Tools | MTRX II builds on the versatility of its predecessor, providing 64-channels of DigiLink I/O, 256 channels of Dante I/O, 64 channels of MADI I/O, Word Clock I/O, and 128 Channels of SPQ speaker processing to calibrate your room for optimal monitoring. The interface is fully modular, enabling you to customize it with up to eight analog and/or digital audio I/O option cards (available separately) to accommodate recording, mixing, ADR, Foley, or sound-design sessions of any size.
- Streamline your studio by replacing multiple single-format and monitoring interfaces with a single, 2 RU rackmountable Pro Tools | MTRX II.
- Route, split, and patch any input to any output from any connected device in your studio with the massive matrix mixer?offering up to 4096 x 4096 crosspoints.
- Sum your mix stems and subgroups, or monitor full Dolby Atmos theatrical configurations with the expanded 512 x 64 summing mixer.
- Add the Thunderbolt 3 optional card to connect the MTRX II to a Mac/Windows computer, enabling 256 channels of native, low-latency I/O for Pro Tools Ultimate and other Core Audio DAWs.
- Connect multiple HDX systems with a single MTRX II interface by installing up to eight DigiLink I/O Cards, supporting 576 maximum DigiLink channels.
- Easily route and control all playback sources, stems, Dolby Atmos rendering, and monitoring outputs?across multiple workstations?from a single MTRX II interface.
- Route audio to different devices and destinations and save/recall routing workflows that can be recalled in seconds as needed.
- Switch between 5.1, 7.1, Dolby Atmos, and other production formats in seconds to support multiple deliveries.
- Send audio to different mixing rooms and stages across your facility, enabling projects to be completed in parallel.
- Achieve impeccable sound transparency with AD/DA converters that support sample rates up to 384 kHz PCM and DSD.
- Capture pristine-quality sound through ultralow-noise DAD mic preamps, high-precision clock circuitry, and low jitter.
- Hear every sonic nuance of your music with 128 dB of dynamic range and less than -120 dB harmonic distortion.
- With 256 integrated Dante channels, you can connect your Pro Tools | HDX system to any Dante network?the industry?s preferred audio-over-IP solution.
- Configure a single MTRX II with up to 1280 Dante audio channels to distribute audio over IP.
- Easily integrate Dante-enabled devices into your workflow?no matter the manufacturer.
- Route audio to and from any connected Dante device in your facility with the flexible digital patchbay using the included DADman software.
- Enable multiple audio networks to run on individual clocks and sample rates in a single MTRX with multiple Dante cards.
- With its configurable I/O, integrated SPQ Speaker Processing, included Pro | Mon 3 monitoring control, and the expanded 512 x 64 summing mixer, MTRX II can satisfy all of your monitoring, talkback, and cue mixing needs.
- Get up to 128 channels of room correction, each with adjustable delay and filters, from stereo to multi-stem Dolby Atmos summing.
- With the included DADman software, you can remotely control all source inputs, talkback, fold-downs, cue mixes, and speaker sets directly from Pro Tools Ultimate, Avid S6, and other EUCON-enabled control surfaces.
- You can also create multiple monitor profiles, making it easy to switch multichannel audio formats for the project at hand, from stereo and 7.1, up to 64-channel Dolby Atmos.
- Control multiple interfaces and workstations from one to tackle the largest immersive audio mixes.
- Take remote control of sources, monitoring, talkback, summing, and fold-down from Avid S6 and other EUCON-enabled control surfaces.
- 8 Line Pristine AD card (input): adds eight channels of line-level analog inputs
- 2 Mic/Line Pristine AD card (input): adds two channels of analog inputs and mic preamps with relay-based gain circuit?an ideal low-cost option for talkback and tracking
- 8 Mic/Line Pristine AD card (input): adds eight channels of analog inputs and mic preamps with relay-based gain circuit
- 8 Pristine DA card (output): adds eight channels of line-level analog outputs with an output level control
Digital I/O
- DigiLink I/O card: adds 64 channels of DigiLink I/O through two DigiLink Mini ports

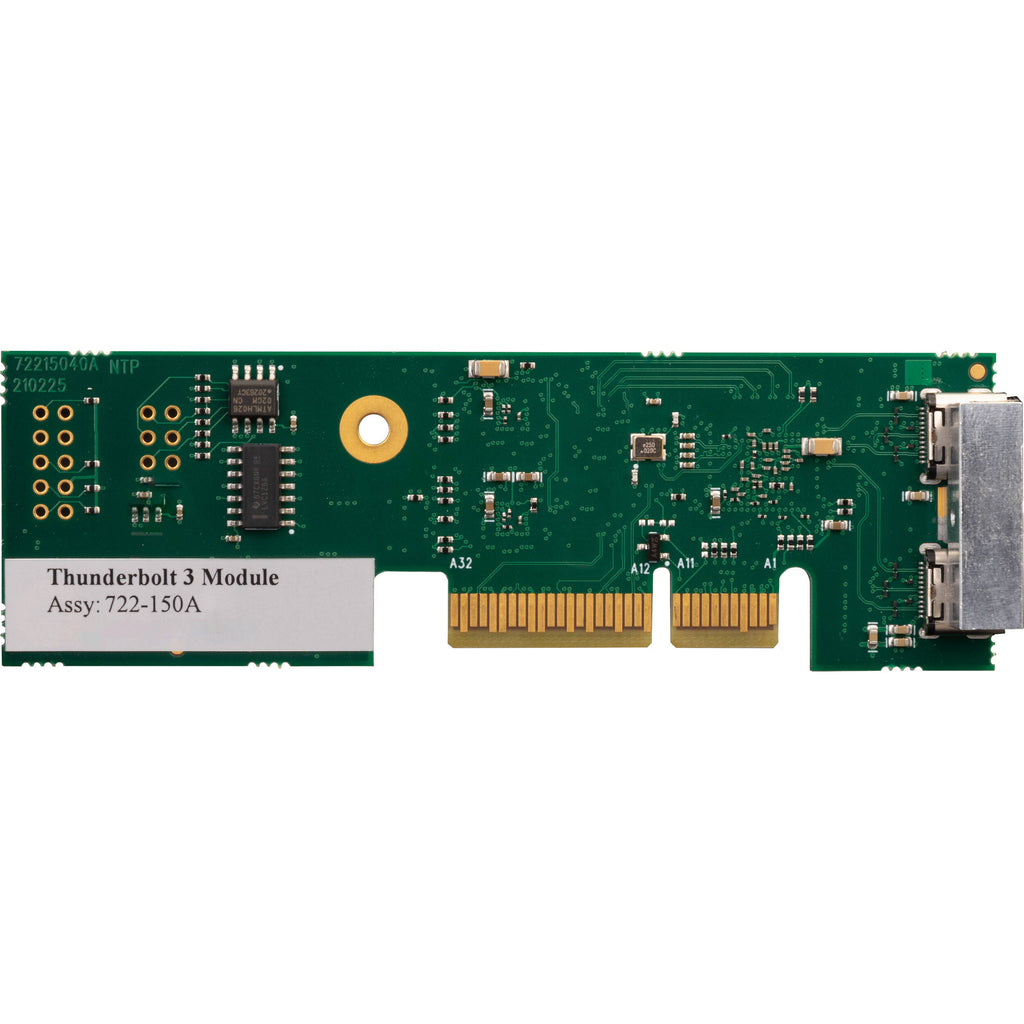

- Thunderbolt 3 module: enables 256 channels of native low-latency I/O connectivity and routing between multiple Core Audio-based DAWs, including Pro Tools
- 8 AES3 I/O card: adds eight line AES3 inputs and outputs (16 channels), with built-in sample rate conversion
- Dual SDI/HD/3G card: adds 2 x 16 channels of SDI/HD/3G connections (embed/de-embed) with built-in sample rate conversion
- 128-Channel IP Audio Dante card: adds up to 128 channels of high-density, low-latency digital audio using Dante (128 channels at 41.1/48 kHz, 64 channels at 88.2/96 kHz, or 32 channels at 176.4/192 kHz)
- Dual MADI I/O card: adds 128 channels of MADI inputs and outputs through two optical SFP ports
- MADI module for base unit: adds an additional one or two 64-channel I/O coaxial or optical MADI module to the chassis
With the Thunderbolt 3 option, MTRX Studio becomes a cost-effective native Pro Tools or other DAW system, enabling 64 channels of low-latency I/O to your Mac or PC. Used in conjunction with DigiLink, you can route audio from other DAWs to Pro Tools, opening up new creative possibilities. Or for immersive music and soundtrack projects, you can route audio to the Dolby Atmos Renderer while maintaining full use of your Pro Tools | HDX DSP cores.
Avid is introducing a new Thunderbolt 3 module for both MTRX II and MTRX Studio, enabling customers to leverage the awesome power of integrated DigiLink connectivity with the added flexibility of low-latency Core Audio over Thunderbolt 3.
From simply being able to route other applications to DADman software to more advanced Dolby Atmos workflows, the Thunderbolt 3 option card gives MTRX II users 256 channels and MTRX Studio users 64 channels of high-speed transfer.
- Avid Pro Tools | MTRX II Audio interface (Base Unit)
- Pro | Mon 3 Monitoring Control
- DADman Software
- AC Power Cable
- Limited 1-Year Manufacturer Warranty
- Avid Pro Tools | MTRX Thunderbolt 3 module (MTRX II & MTRX Studio Only)
Avid MTRX II Specs
| Channels of I/O |
DigiLink:
64 Inputs / 64 Outputs at 44.1/48/88.2/96/176.4/192 kHz MADI: 64 Inputs / 64 Outputs at 44.1/48/88.2/96 kHz MADI: 12 Inputs / 12 Outputs at 176.4/192 kHz Dante: 256 Inputs / 256 Outputs at 44.1/48 kHz Dante: 128 Inputs / 128 Outputs at 88.2/96 kHz Dante: 64 Inputs / 64 Outputs at 176.4/192 kHz |
| Maximum Sampling Rate |
384 kHz / 24-Bit
|
| Number of Microphone Inputs |
No
|
| Analog Audio I/O |
No
|
| Digital Audio I/O |
BNC Coaxial MADI In or Out
|
| Host Connection |
2x DigiLink Mini
|
| Power Requirements |
AC Input
|
| Display |
3x LED
|
| Channels of I/O |
DigiLink:
64 Inputs / 64 Outputs at 44.1/48/88.2/96/176.4/192 kHz MADI: 64 Inputs / 64 Outputs at 44.1/48/88.2/96 kHz MADI: 12 Inputs / 12 Outputs at 176.4/192 kHz Dante: 256 Inputs / 256 Outputs at 44.1/48 kHz Dante: 128 Inputs / 128 Outputs at 88.2/96 kHz Dante: 64 Inputs / 64 Outputs at 176.4/192 kHz |
| Built-In DSP |
Yes
|
| Maximum Sampling Rate |
384 kHz / 24-Bit
|
| Number of Microphone Inputs |
No
|
| Built-In Microphone |
No
|
| Analog Audio I/O |
No
|
| Digital Audio I/O |
2x BNC Coaxial MADI In or Out
|
| Host Connection / USB |
2x DigiLink Mini
|
| Host Connection Protocol |
Avid Proprietary
|
| USB (Non-Host) |
No
|
| Sync I/O |
1x BNC Word Clock Input
1x BNC Word Clock Output |
| Network I/O |
2x RJ45 Dante
|
| MIDI I/O |
No
|
| Expansion Slots |
8x I/O Slot
|
| Wireless |
No
|
| Sample Rates |
44.1 to 384 kHz
|
| Bit Depths |
24-Bit (PCM)
|
| Sync Sources |
Dante, MADI, Word Clock
|
| Media/Memory Card Slot |
No
|
| OS Compatibility |
macOS / Windows
|
| Power Requirements |
AC Input
|
| Rackmount Size |
2 U (with Non-Included Hardware)
|
| Dimensions |
19.1 x 14.2 x 3.5" / 485 x 360 x 90 mm
|
| Weight |
8.8 lb / 4.0 kg
|
| Package Weight |
14.05 lb
|
| Box Dimensions (LxWxH) |
22.5 x 20.8 x 6.6"
|
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
