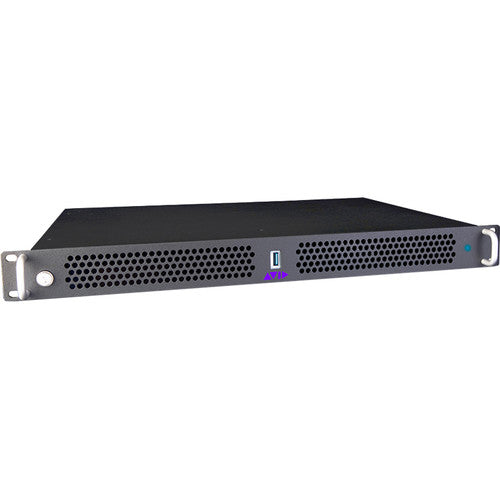

Avid Pro Tools | HDX Thunderbolt 3 Rackmount Chassis

Run Pro Tools | HDX over Thunderbolt 3

Connects to Mac and Windows Computers

Houses Mac Mini and HDX PCie Card

Built with Sonnet for a Durable Design

Integrate the power of a Pro Tools | HDX system with your computer thanks to the Avid Pro Tools | HDX Thunderbolt 3 Rackmount Chassis . Built in conjunction with Sonnet�a formidable player in the realm of durable chassis�this rackmount unit can house an HDX PCIe card, available separately. You can connect the system to your Mac or Windows computer via the Thunderbolt 3 ports.

The device can also house a Mac Mini computer. Load it up with a Mac Mini and a Pro Tools | HDX PCIe card, and you'll be able to take a powerful, self-contained system with you from studio to studio.

This chassis offers two Thunderbolt 3 ports, one for computer connectivity, and another for daisy-chaining other Thunderbolt-compatible devices, making the unit a hub for external DSP or other peripherals if need be. You'll also have a USB 3.0 port on the front panel of the chassis.

With this rackmount solution, you can run Pro Tools | HDX, as well as external monitors, DSP processors, and more, all interfacing with computers as portable as a laptop. This makes the device an important facilitator in turning Pro Tools | HDX into a portable, powerful studio solution.

Connect HDX over Thunderbolt 3 Integrate Pro Tools | HDX with Thunderbolt 3 equipped Mac and Windows based computers and laptops with this high-performance, ultraquiet chassis. Take advantage of the greater processing power of today's machines, enabling you to work with more AAX Native plugins on top of AAX DSP. House a Mac Mini The rackmount chassis can securely house a Mac mini and an HDX card, enabling you to configure a powerful, yet portable self-contained system. This makes it easy to move your HDX-enabled studio from your home to any studio facility, or from your live rig to a hotel room. Ruggedly Built Constructed in partnership with Sonnet, the chassis is robustly built with rugged aluminum and steel housing to protect your investments during transport. It's custom-designed for the size, power, and heat requirements of HDX, providing the guaranteed performance HDX reliably delivers. UPC: 724643121938

Supported PCIe Cards	1 x Expansion Slot for Pro Tools | HDX PCIe Card (Available Separately)
Digital I/O	2 x Thunderbolt 3 Ports (1 for Computer Connection, 1 for Daisy-Chaining up to 5 Additional Devices) 1 x USB 3.0 Port
Bandwidth	Thunderbolt Interface: 40 Gb/s PCIe Interface: 2.75 MB/s
Power Supply	96 W
Operating Temperature	32 to 95°F / 0 to 35°C
Dimensions (H x W x D)	1.7 x 19.0 x 17.3" / 4.4 x 48.2 x 43.9 cm (with Ears and Rails)
Weight	Not Specified by Manufacturer

Package Weight	17.63 lb
Box Dimensions (LxWxH)	24.7 x 21.7 x 6.1"
