Description

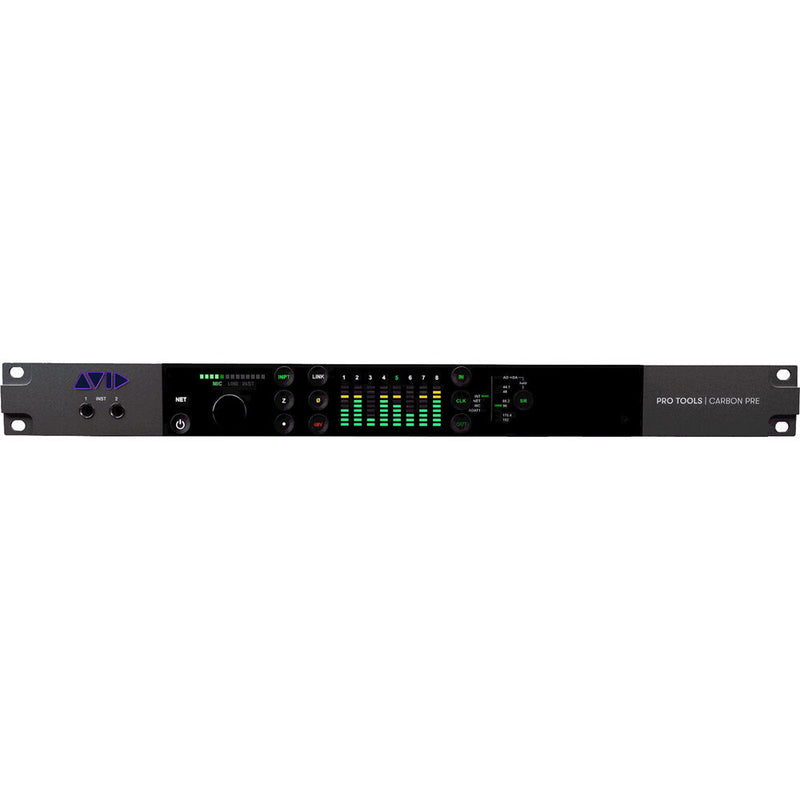

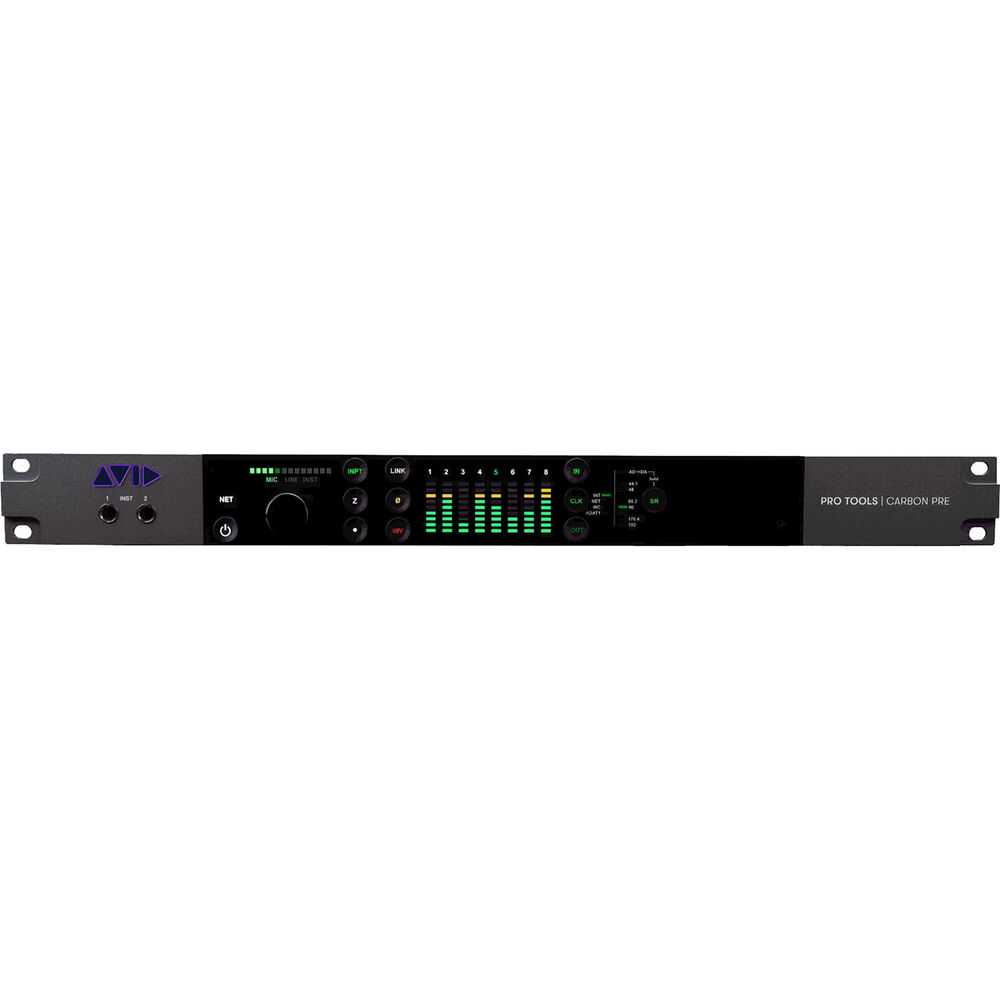

Avid Carbon Pre Overview
Expand the connectivity of your Pro Tools | Carbon system to 16 mic inputs and track bands with drums with the Avid Pro Tools | Carbon Pre, and AVB audio interface that delivers impeccable sound quality across your entire system, from capture to output. With superior 32-Bit / 192 kHz audio conversion, stacked ADCs, double-resolution clocking, and Avid's most transparent preamp design ever (the same preamps as in Pro Tools | Carbon) you can capture every sonic nuance of a performance with the greatest depth, dimension, and clarity. The interface also utilizes the Pro Tools Hybrid Engine for latency-free recording.
The Pro Tools | Carbon Pre provides eight mic / line / Hi-Z preamps and eight line outputs. You can network two Carbon Pres, enabling you to expand your Pro Tools | Carbon-based studio up to 24 mic/line inputs and 24 line outputs total. Two Variable-Z instrument inputs, 8 x 8 line I/O, ADAT I/O, and Word Clock I/O provide even more connection versatility. And because it's EUCON-enabled, the interface integrates with Avid control surfaces for seamless recording and mix control.
- Expand your Pro Tools | Carbon interface with eight mic / line / Hi-Z preamps and eight line outputs.
- Expand or replace preamps in a Pro Tools | HD system.
- Leverage Carbon Pre as an 8-channel ADAT mic preamp.
- Utilize Carbon Pre as a standalone AD/DA converter.
- Can be used as a standalone AVB Core Audio interface.
- No need to access your interface to make changes. You can remotely control, save, and recall all of your preamp settings�including phantom power, gain, and impedance switching�directly in Pro Tools across all Pro Tools | Carbon connected interfaces.
- And with instant session recall, courtesy of the virtual assistant, you can quickly switch between sessions without any manual setup and reconfiguration delay.
- Use Pro Tools | Carbon Pre as an 8-channel preamp expansion unit for your existing Pro Tools | HD system.
- Scale up your I/O, with the flexibility of remotely controlling and recalling all preamps right from Pro Tools.
- Integrate up to nine Carbon Pres in an HD system through your interface�s ADAT inputs.
Items Included
- Avid Pro Tools | Carbon Pre AVB Audio Interface
- Ethernet Cable
- Power Cable
- Rackmount Screws and Desktop Feet
Additional Resources
Avid Carbon Pre Specs
| Compatibility |
Avid Pro Tools | Carbon Audio Interface
|
| Connectivity |
2 x AVB Ethernet Port for Pro Tools | Carbon I/O Expansion
|
| Maximum I/O Expansion |
Pro Tools | Carbon Supports Up to Two Pro Tools | Carbon Pre Interfaces for Up to 24 Mic/Line inputs and 24 Line Outputs
|
| Audio Resolution |
Up to 32-Bit / 192 kHz
|
| Mic Preamps |
Dynamic Range: 126 dB (A-weighted)
THD+N: -105 dB (0.00056%) Frequency Response: 20 Hz to 20 kHz, ±0.1 dB EIN: -129 dB (A-Weighted) |
| Line Inputs |
Dynamic Range: 125 dB (A-weighted)
THD+N: -106 dB (0.0005%) Frequency Response: 20 Hz to 20 kHz, ±0.1 dB |
| Line Inputs (True Bypass) |
Dynamic Range: 126 dB (A-weighted)
THD+N: -113 dB (0.00022%) Frequency Response: 20 Hz to 20 kHz, ±0.1 dB |
| Instrument Inputs |
Dynamic Range: 125 dB (A-weighted)
THD+N: -103 dB (0.0007%) Frequency Response: 20 Hz to 20 kHz, ±0.1 dB |
| Line Outputs |
Dynamic Range: 120 dB (A-weighted)
THD+N: -110 dB (0.0003%) Frequency Response: 20 Hz to 20 kHz, ±0.1 dB |

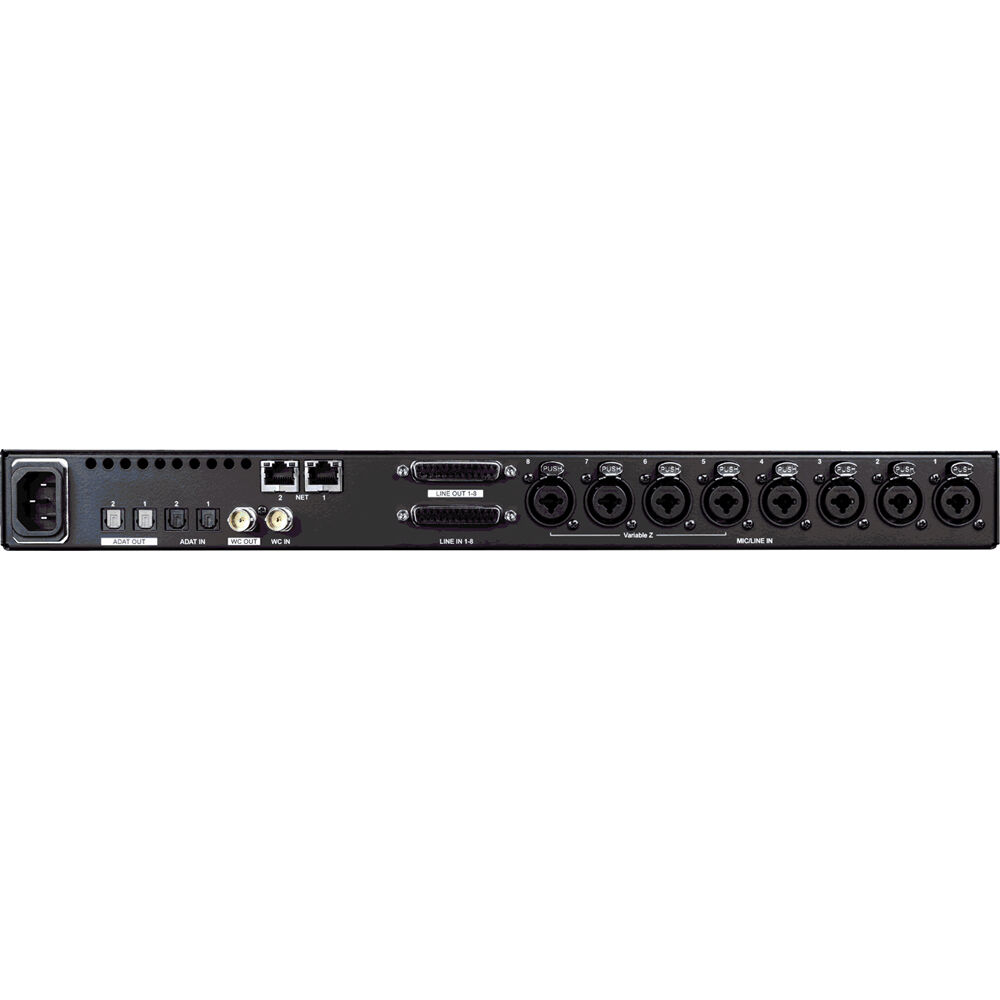

| Audio I/O |
8x Combo XLR-1/4" TRS Input (Mic / Line / Hi-Z)
2x 1/4" TS Hi-Z/Instrument Input (Variable Hi-Z) 1x DB-25 Line Input (Balanced) 1x DB-25 Line Output (Balanced) |
| Digital I/O |
2 x ADAT Inputs: 16 Channels at 44.1 to 48 kHz, 8 Channels at 88.2 to 96 kHz, 4 Channels at 176.4 to 192 kHz
2 x ADAT Outputs: 16 Channels at 44.1 to 48 kHz, 8 Channels at 88.2 to 96 kHz, 4 Channels at 176.4 to 192 kHz |
| Other I/O |
2 x BNC Word Clock I/O
|
| Phantom Power |
48 V
|
| Power Source |
AC Input
|
| Mounting |
1x Rackmount
1x Desktop |
| Dimensions |
19 x 13.5 x 1.8" / 48.3 x 34.3 x 4.6 cm
|
| Weight |
11 lb / 5 kg
|
| Package Weight |
17.6 lb
|
| Box Dimensions (LxWxH) |
23.1 x 18.6 x 7.9"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 448707.7 |
| 3-5 | ₹ 444129.05 |
| 5-10 | ₹ 434971.75 |
| 10+ | ₹ 425814.45 |
Bulk discount will be automatically applied during checkout based on quantity.
