Description
Avenview AVXWALL Overview
- 1Description
- 2General Features
- 3Control Pro Features
- 4Source Control Features
- 5Layout Control Features
- 6Additional Features

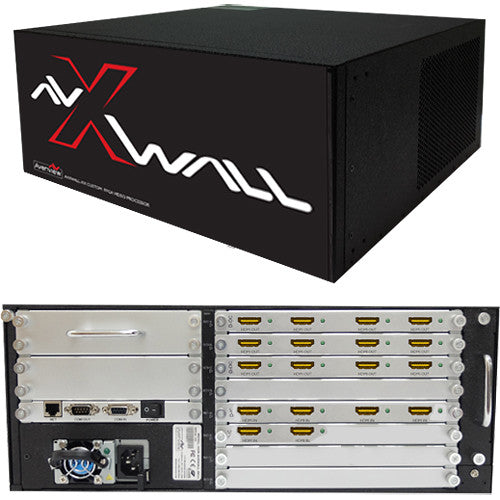

The Avenview AVXWALL is a modular chassis-based 4K-capable video wall processor using an FPGA (Field Programmable Gate Array) built into the design. This model comes preinstalled with 6 input and 12 output 1080p HDMI cards. Having an FPGA as its core design enables this unit to manage multiple video walls with one single processor. The user has the ability to control each video wall separately within the control software. The output resolution can also be managed within each individual screen/monitor and also for different video walls.
The AVXWALL modular unit can be upgraded to accept video signal formats with resolutions up to 4K by replacing the preinstalled 1080p HDMI I/O cards with the separately available I/O cards of your choice. I/O cards are available in CVBS (composite), YPbPr (component), VGA, DVI, HDMI, SDI, DisplayPort, HDBaseT, and optical fiber. These I/O cards offer high video bandwidth, ensuring real-time signal processing with minimal delay or frame loss. The unit is equipped with a separate DVI port for real-time monitoring to an external monitor.
No overly extensive training is required to use the control software. Creative and useful features include drag and drop, image placement, zoom, and user preset buttons for recalling favorites. You can also directly preview the input source directly within the control software which is connected through TCP/IP. Touchscreen devices can be used with the optional automation Linux-based controller to manage multiple video walls and layouts with fully customizable interface.
General Features
- Modular input and output chassis design 720 x 480 to 4096 x 2160 with a local DVI loop-out for monitoring
- Supports CVBS, YPbPr, VGA, DVI, HDMI, SDI, DisplayPort, UTP, and optical fiber
- Full-Screen Modes: Zoom, image crop, and adjustable size and position, through the software
- Functions as a multiviewer, video screen splitter, video converter, and matrix switcher
- Single screen grid formatting 2x2, 3x3, 4x4
- Minimum single screen up to 64 screens horizontally by 32 screens vertically @ 600 x 800, 768 x 1024, 768 x 1024, 720 x 1280, 800 x 1280, 1024 x 1280, 768 x 1366, 768 x 1360, 1050 x 1400, 900 x 1440, 1200 x 1600, 1050 x 1680, 1080 x 1920, and 1200 x 1920
- Image parameters and layouts are automatically saved in Preset Mode of the device, creating easy buttons
- Background Image storage
- Management of multiple video walls
- EDID management
- Input signal preview through Control Software
- Software control through TCP/IP
Control Pro Features
- Position windows anywhere on the wall using a mouse or keyboard
- Precisely resize a window by entering the custom input size. Use four separate fields to enter custom input size, or click and drag a window corner to maintain the aspect ratio while scaling or resizing a window
- Clone an inputs source to multiple windows
- Label visible windows
- Advanced window cropping�either by graphically resizing the viewport through the UI or by entering precise cropping coordinates to achieve maximum pixel accuracy
- Intuitive Z-Order management
- Supports picture-in-picture configurations
- Text overlay function with control over text font, color, size, location, blink, and scroll speed
- Window transparency and color keying functions
Source Control Features
- Renaming, cropping, rotation (90°/180°/270°), and text overlay functionality
- Source-specific hue, saturation, brightness, and contrast color correction parameters
- Multiple deinterlacing filters, including single field, bob, weave, and adaptive techniques
- Source touring for automated source switching within one or more windows in a layout
Layout Control Features
- Create, save, rename, copy, and delete layouts
- Switch from layout to layout with a single click
- Lock a layout to prevent accidental changes
- Import or export a layout
- Control background color as well as window border color and width
- Create a scrolling text across the entire video wall with the marquee function
- Create a layout offline and then push it live, or edit layouts online in real time
- Add and control external applications such as VLC, VNC, Internet Explorer, PowerPoint Viewer, and Image Viewer on the video wall
- Create layout schedules to automatically switch from one layout to another
Additional Features
- FPGA architecture provides excellent image processing performance
- Input Signal Preview: Input signals can be previewed in the software UI before being displayed on screens
- Card to main board plugging structure
- Multi Video Wall Control (MVWC) for up to four video walls
- Graphic cropping and signal upscaling
- High-resolution background image
- Character superimposition
- Scene Saving: Any configuring arrangement of video signal displayed on the screen wall can be saved as "scenes"
- HDCP compliant
- Redundant power supply
In the Box
- Avenview AVXWALL Modular 4K Video Wall Controller Chassis with 6 x 12 1080p HDMI I/O Cards
- Limited 3-Year Warranty
- Description
- General Features
- Control Pro Features
- Source Control Features
- Layout Control Features
- Additional Features
Avenview AVXWALL Specs
| Input Connectors | 6 x HDMI |
| Output Connectors | 12 x HDMI 1 x DVI-I |
| Other I/O | 1 x RJ45 1 x DE-9/DB-9 RS-232 |
| Video Format | HDMI UHD 4K 1080p |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 20 to 90% |
| Rack Form Factor | 4 RU |
