Description
The AV Matrix SC1120 3G-SDI to HDMI & AV Scaling Converter is suitable for broadcasting and AV post production applications. It converts an SDI signal to HDMI and AV signals at the same time. The output is suitable for pass-through or up/down scaling and frame rate conversion. De-interlacing function and seamless conversion can also be supported to avoid jitter. It also features AES/EBU or analog audio embedding and de-embedding.
The converter can automatically switch to the redundant SDI input to avoid the loss of video signal in case of an accident. This makes it suitable for studios, live shows or outdoor live events. Meanwhile, re-clocked SDI output ensures a long-distance transmission without loss of signal quality. All the functions can be easily set by built-in DIP switches or remotely controlled using software when connected to a PC via USB.
- 3G-SDI, Alt 3G-SDI, AES/EBU, and analog audio inputs
- 3G-SDI loop, HDMI, AV, AES/EBU, and analog audio outputs
- Supports resolutions up to 1080p 60 Hz
- Up/down scaling and frame rate conversion
- AES/EBU or analog audio embedding and de-embedding
- Redundant SDI input and re-clocked output
- Input signal automatic detection and configuration
- LED indicators for power and signal lock
- Easy control via DIP switches
- Remote control for PC via USB
- Software can be upgraded via PC
- Threaded locking power connector

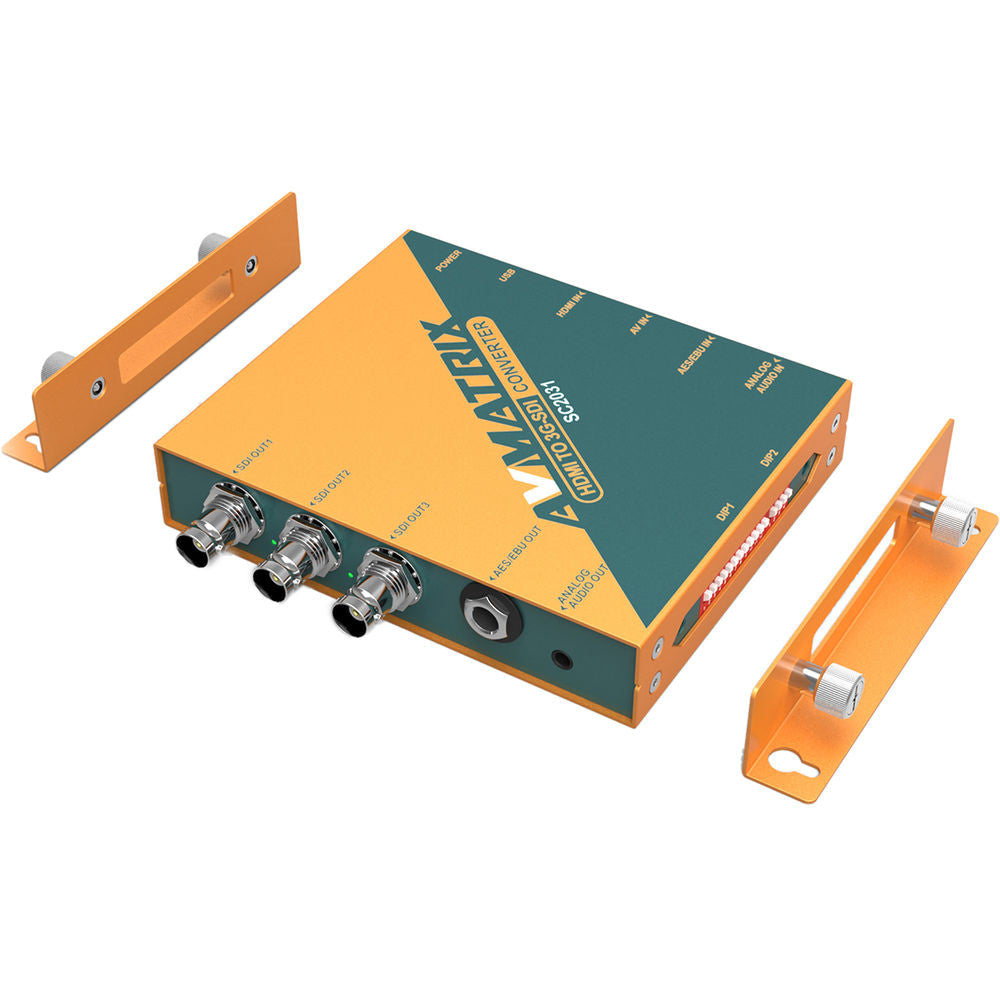

- Detachable bracket design for wall mounting
- 2 x Brackets
- Power Adapter
- Micro-USB Cable
- Limited 3-Year Warranty
| Inputs | SDI Video Input: 1 x SD/HD/3G-SDI 1 x Alt 3G-SDI AES/EBU Digital Audio Input: 1 x 1/4" (6.35 mm) TRS jack Analog Audio Input: 1 x 1/8" (3.5 mm) jack |
| Outputs | HDMI Video Output: 1 x HDMI type-A AV Output: 1 x 1/8" (3.5 mm) jack SDI Video Loop Output: 1 x SD/HD/3G-SDI AES/EBU Digital Audio Output: 1 x 1/4" (6.35 mm) TRS jack Analog Audio Output: 1 x 1/8" (3.5 mm) jack |
| SDI Formats Supported | 1080p 60/59.94/50/30/29.97/25/24/23.98 1080psF 30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25/24/23.98 625i 50, 525i 59.94 |
| SDI Video Rates | SD/HD/3G-SDI |
| SDI Compliance | SMPTE 292M/SMPTE 259M/SMPTE 424M |
| SDI Color Space | YUV 4:2:2 |
| SDI Auto Switching | Auto selects SD, HD, and 3G-SDI on input |
| HDMI Format Support | 1080p 60/50/30/25/24 1080i 60/50 720p 60/50/30/25/24 576i 50, 480i 60 |
| HDMI Color Space | YUV 4:2:2., YUV 4:4:4, RGB 4:4:4 |
| AV Output | NTSC, PAL |
| Power Connector | Threaded locking connector |
| Power Supply | 12 VDC |
| Power Consumption | 6 W |
| Operating Temperature | -4 to 140°F (-20 to 60°C) |
| Storage Temperature | -22 to 158°F (-30 to 70°C) |
| Relative Humidity | 0 to 90% non-condensing |
| Dimensions | 4.9 x 4.1 x 1.0" (125.5 x 104 x 24.5 mm) |
