Description
- 3G/HD/SD-SDI Input (Auto-Selecting)
- HDMI Type-A Output
- 3G/HD/SD-SDI Loop Out
- Supports up to 1080p60 Resolution
- Works 24/7 without Lag/Delay
- Micro-USB Port for Power
- AC Power Adapter Included
- Can Be Connected to Power Banks, Etc.
- LED Power Indicator
- Mounting Bracket Included

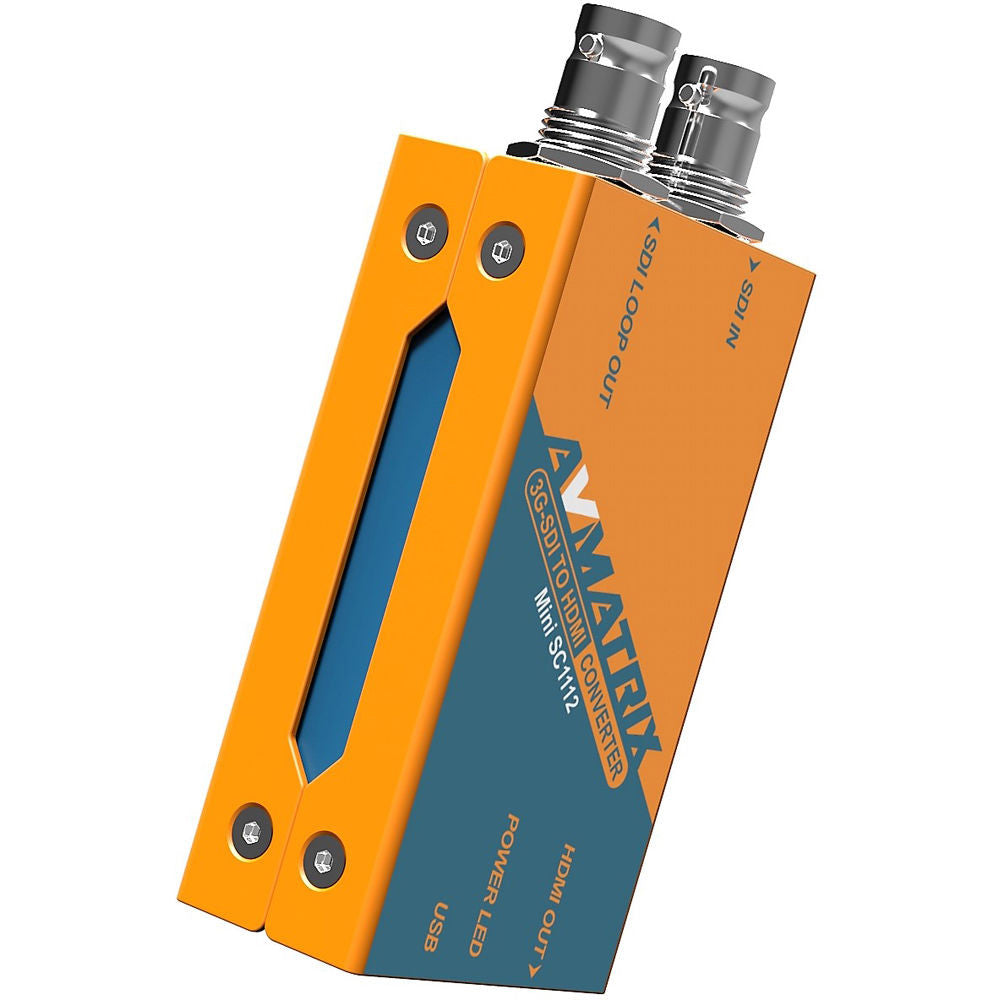

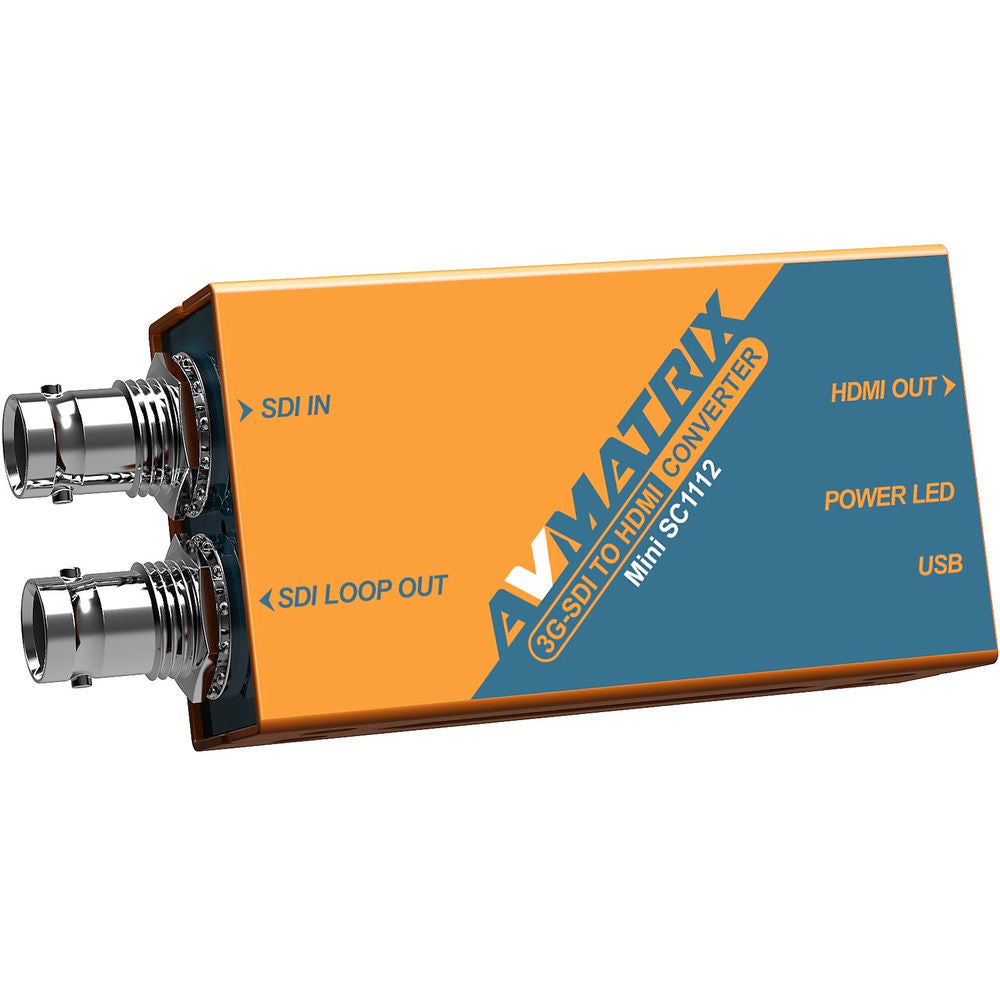

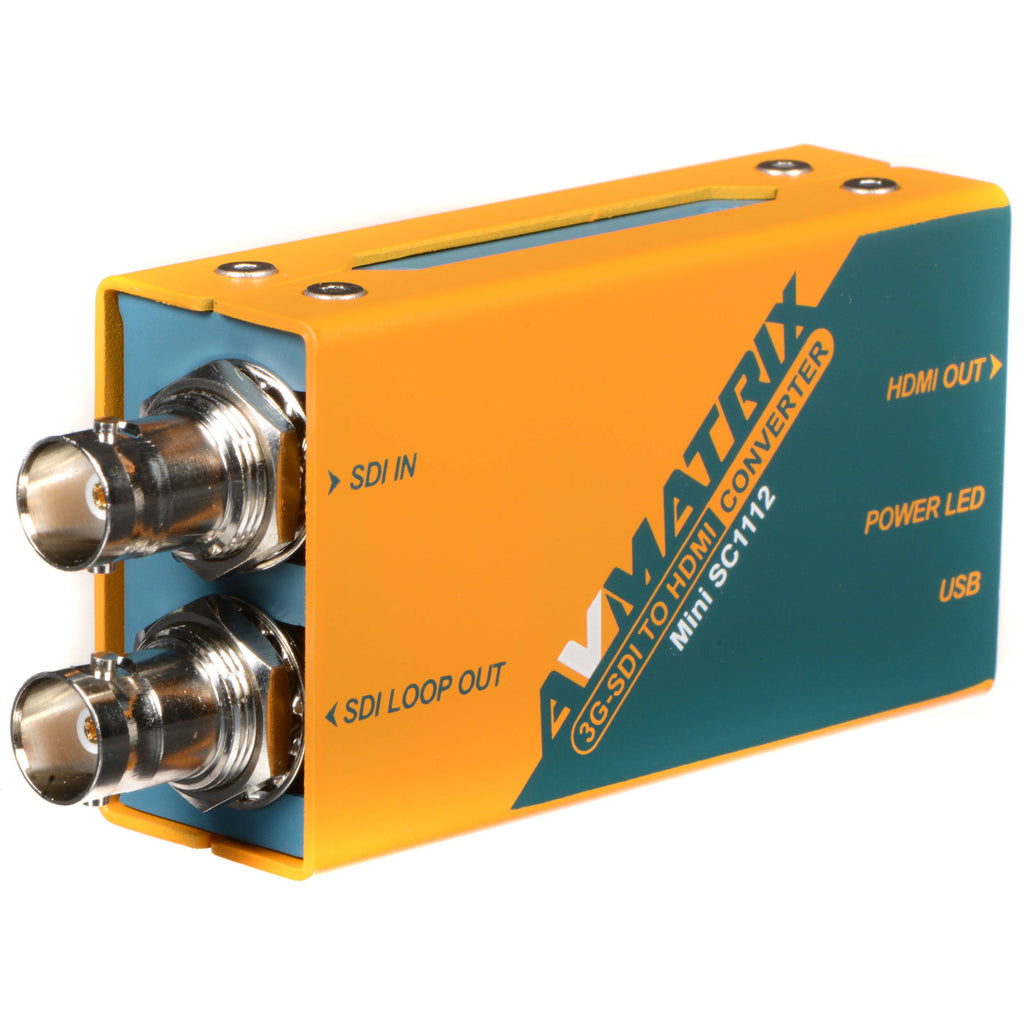

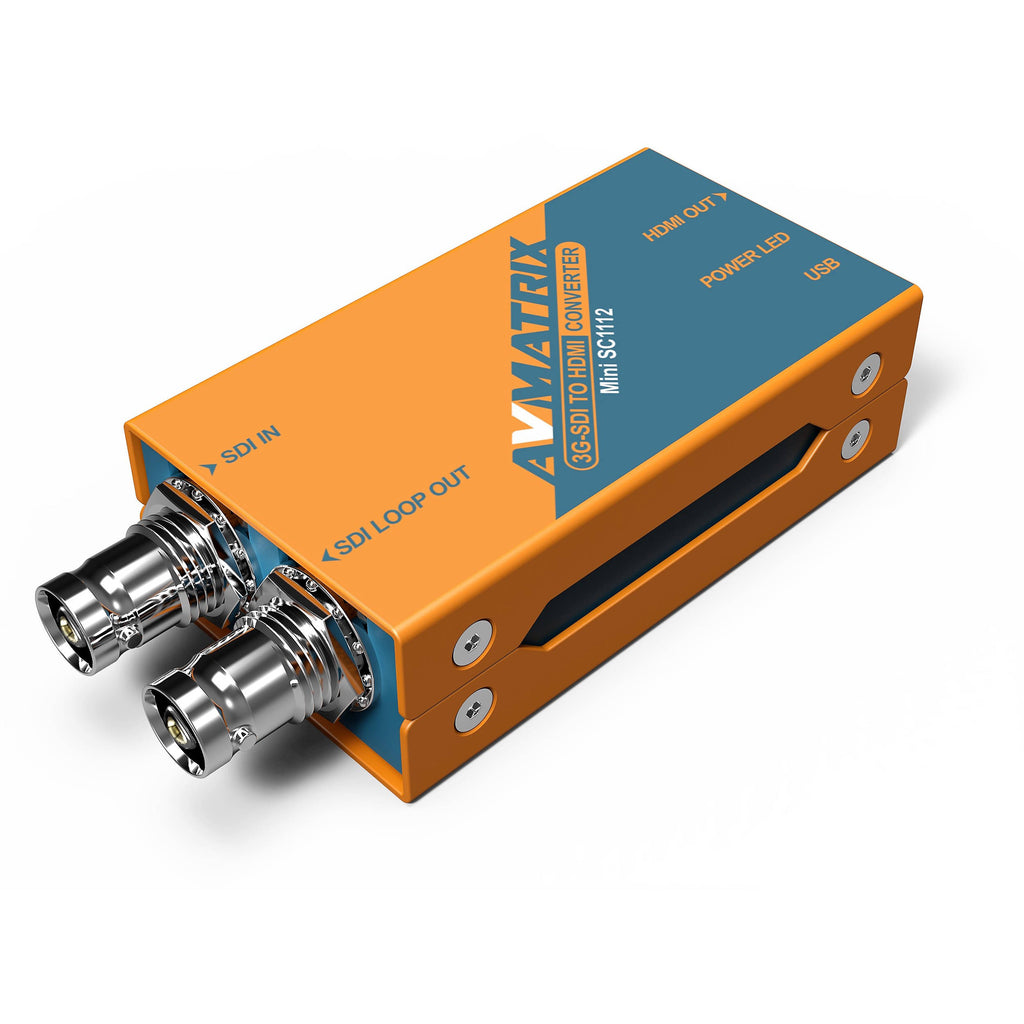

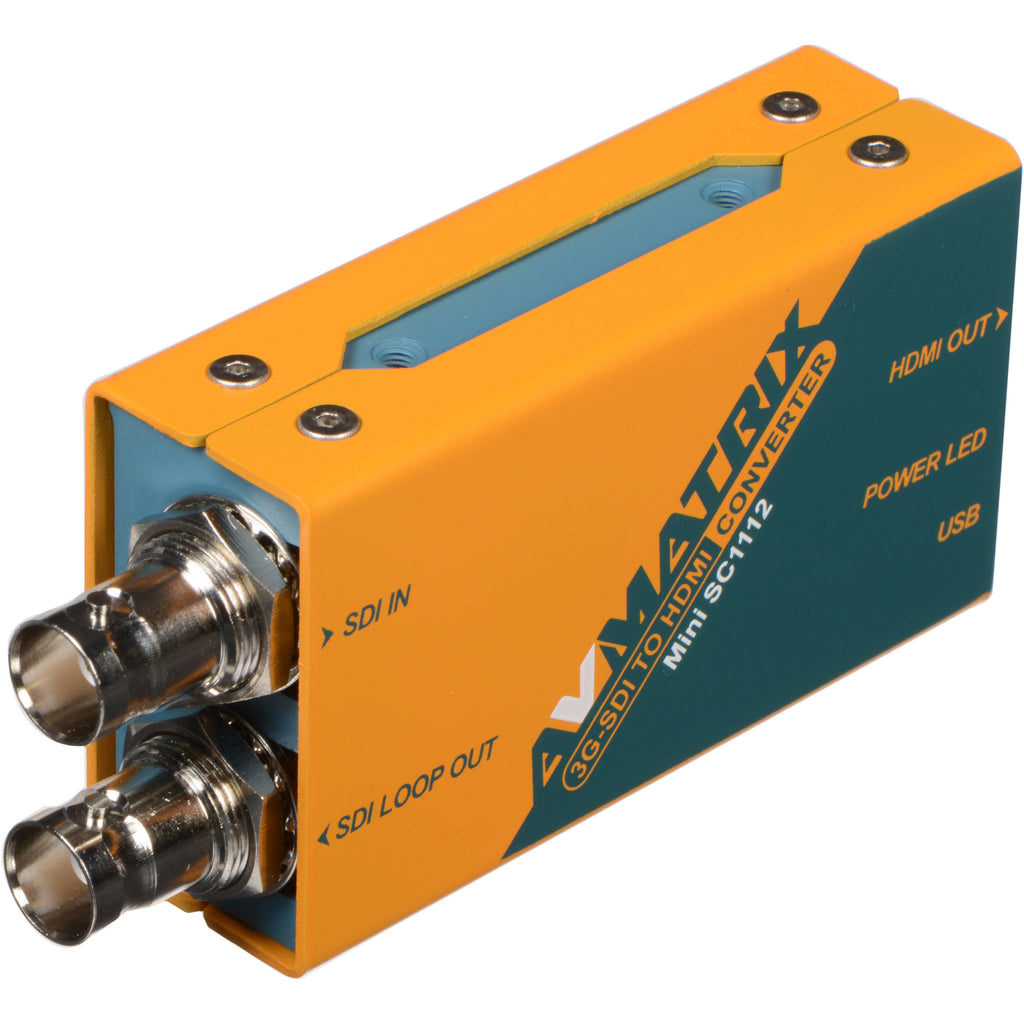

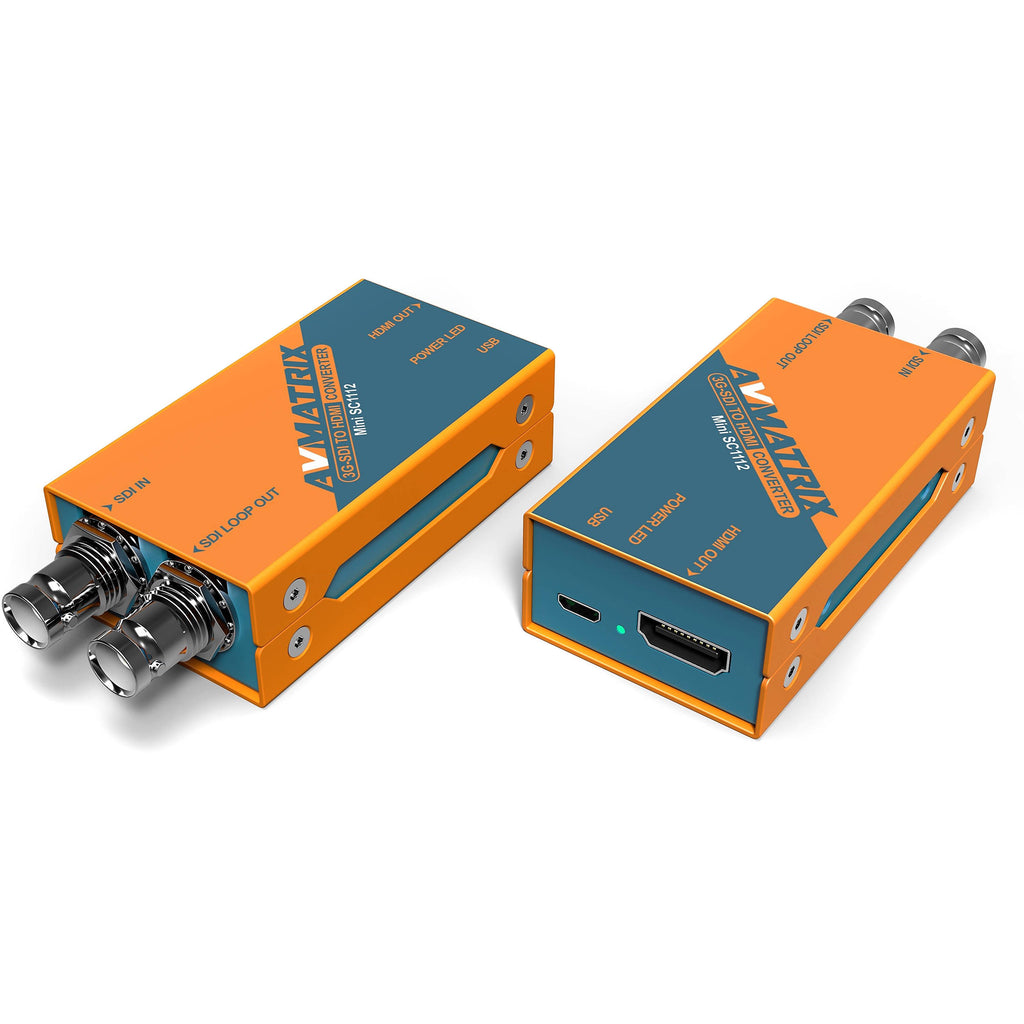

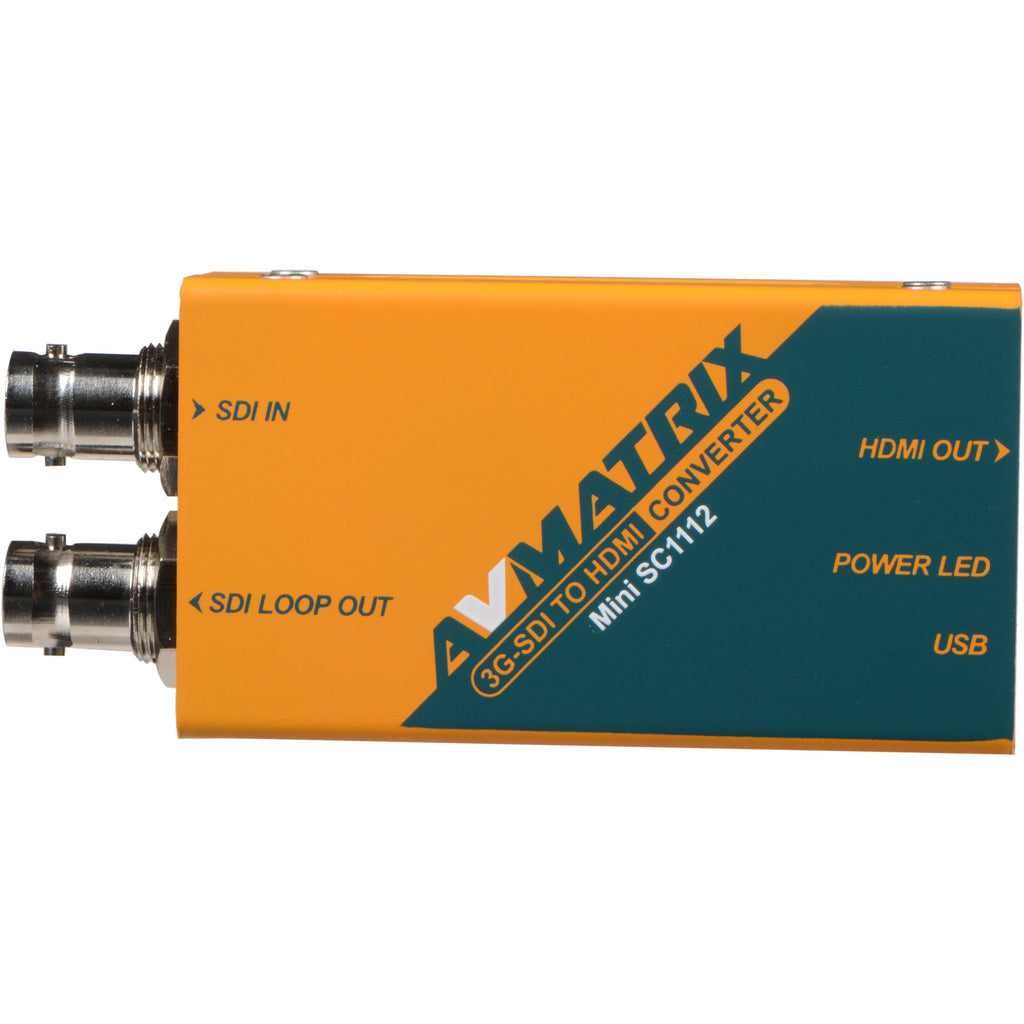

The AVMatrix Mini SC1112 from Lilliput Electronics is an ultra-compact SDI to HDMI signal converter in a robust metal housing.

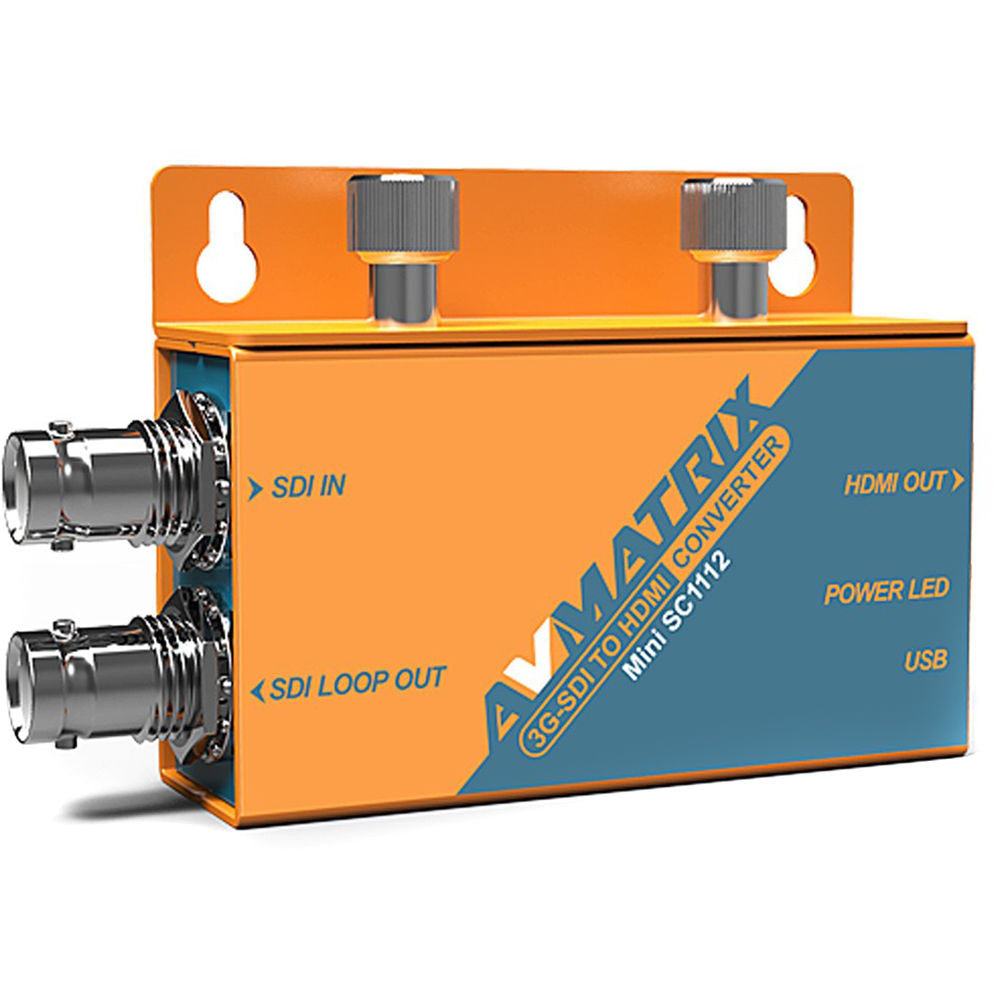

The Mini SC1112 features a 3G-SDI input and full-size HDMI output, and an SDI loop out for monitoring. It supports up to 1080p60 resolution and auto-selects between 3G, HD, and SD on input. EMC compliant, the Mini SC1112 can reliably be used 24 hours a day, 7 days a week without interruptions, lag, or delay. A mounting bracket is also included that easily attaches/detaches and allows for convenient mounting indoors or outdoors.

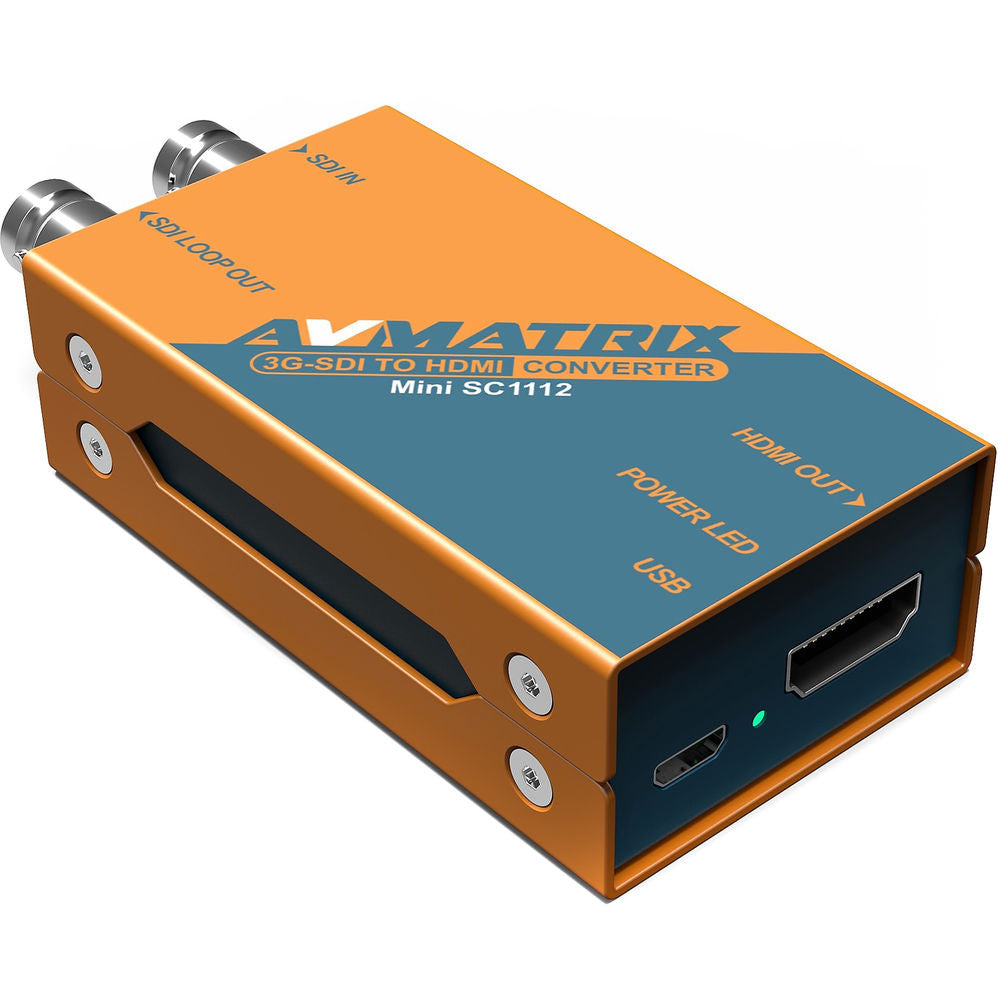

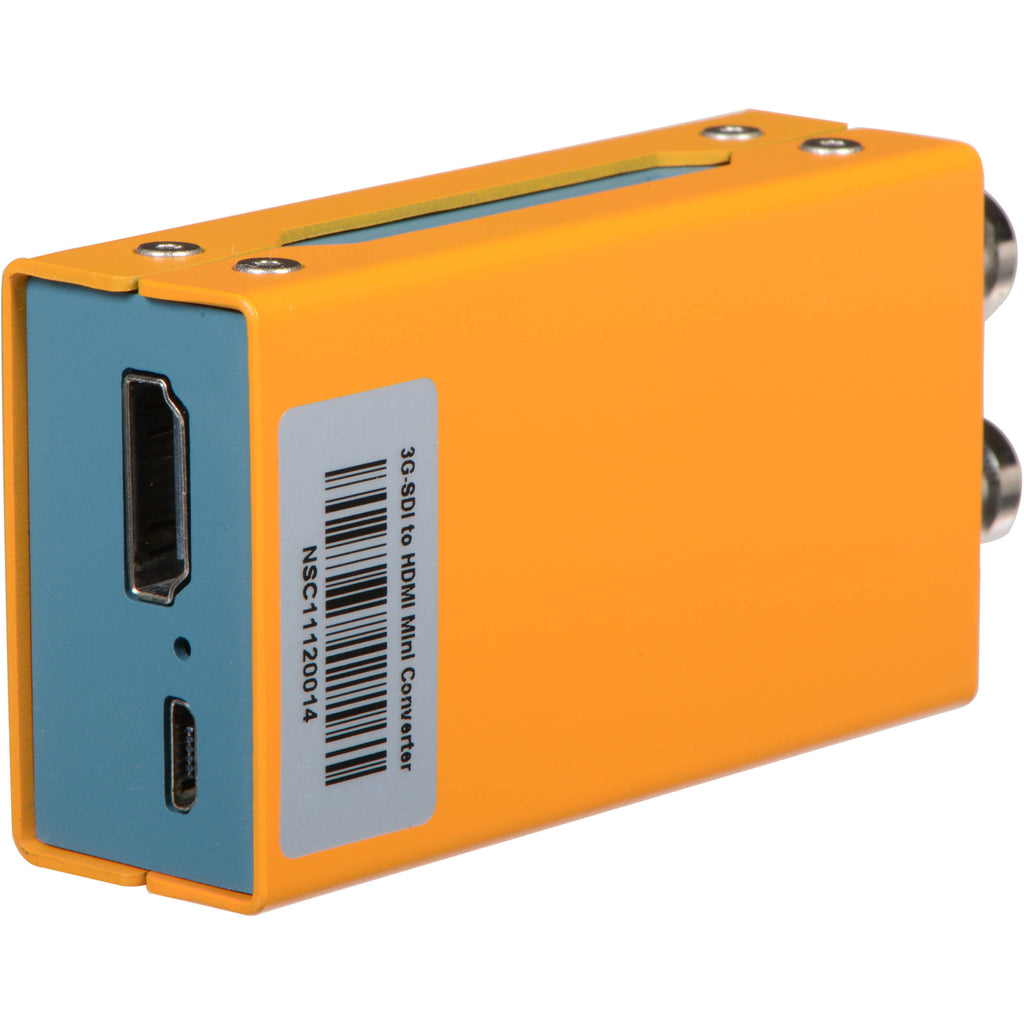

The Mini SC1112 has a USB port for power and an LED indicator that confirms power status. An AC adapter is supplied that connects into the micro-USB port to provide continuous power, but you can also connect it to other sources over a USB cable (included). For example, you can connect it to a laptop or a power bank. A 10,000mAh power bank will run the converter for approximately 24 hours.
The converter is also capable of working in a wide temperature range of -4 to 140°F.
- Key Features
-
- 3G/HD/SD-SDI input (auto-selecting)
- HDMI Type-A output
- 3G/HD/SD-SDI loop out
- Supports up to 1080p60 resolution
- EMC compliant and works 24/7 without lag/delay
- Micro-USB port for power
- LED power indicator
- AC power adapter included
- Mounting bracket included
- Mounting Bracket
- Power Adapter
- Micro-USB Cable
- Limited 3-Year Warranty
| Input | 1 x 3G/HD/SD-SDI (auto-selecting; level A and B supported) |
| Output | 1 x HDMI type-A 1 x 3G/HD/SD-SDI loop out |
| SDI Format Support | 1080p at 50/59.94/60 fps 1080psf at 23.98/24/25/29.97/30 fps 1080p at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 24/25/30/50/59.94/60 fps 625i at 50 fps 525i at 59.94 fps |
| SDI Compliance | SMPTE 292M/SMPTE 259M/SMPTE 424M |
| SDI Color Space | YUV 4:2:2 |
| HDMI Format Support | 1080p at 50/59.94/60 fps 1080p at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 24/25/30/59.94/60 fps 576i at 50 fps 480i at 60 fps |
| HDMI Color Space | YUV 4:2:2 |
| Power Port | 1 x micro-USB |
| Power Consumption | 1.5 W |
| Voltage Range | 3.3 - 5 V |
| Operating Temperature | -4 to 140°F (-20 to 60°C) |
| Storage Temperature | -22 to 158°F (-30 to 70°C) |
| Relative Humidity | 0 to 90% non-condensing |
| Dimensions | 2.9 x 1.6 x 0.9" (7.4 x 4.1 x 2.3 cm) |
| Packaging Info | |
|---|---|
| Package Weight | 0.9 lb |
| Box Dimensions (LxWxH) | 4.6 x 3.3 x 3.1" |
