Description
AV Matrix MSS0811 Overview

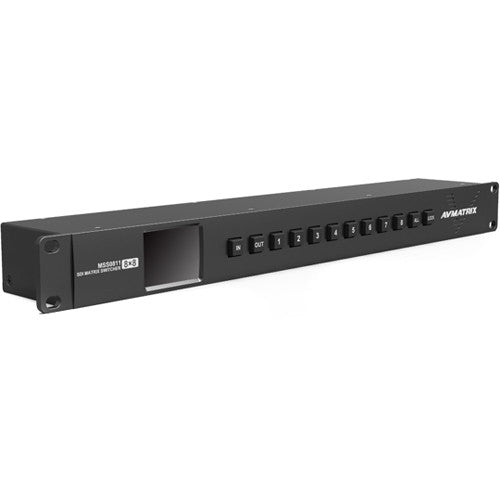

The 1 RU 8 x 8 3G-SDI Matrix Switcher from AVMATRIX accepts eight channels of input, and can drive them to eight separate output feeds. It includes a multi-format technology that detects multiple video format sources of SD/HD/3G-SDI (level A&B) and DVB-ASI signals at the same time, and routes the multiple video destinations in 1080, 720, SD, NTSC, and PAL. It is controlled by manual switches on the front of the device and via RJ45 and RS-232 ports for software control as well as a USB Type-A port for keyboard control. Two 12 VDC power adapters are included to provide redundant power.
Multi-format technology can auto detect multiple video format sources of SD/HD/3G-SDI (level A & B) and DVB-ASI signals at the same time and route the multiple video destinations in NTSC and PAL SD, 720p, 1080 at any frame rate.

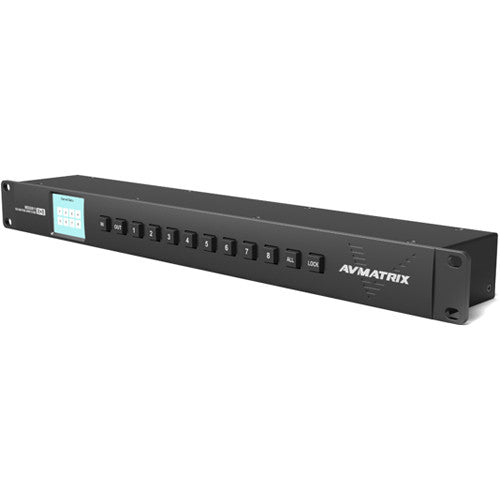

Full control from the front panel
Current channel status can be viewed visually from the 2.2" LCD screen
Lock button
PC control software allows you to connect a computer via Ethernet or via the RS-232 serial port
USB keyboard
Redundant power supply
Compact design
In the Box
- AV Matrix 8 x 8 3G-SDI Matrix Switcher (1 RU)
- 2 x 12 VDC, 2 A Power Adapters
- Limited 3-Year Warranty
AV Matrix MSS0811 Specs

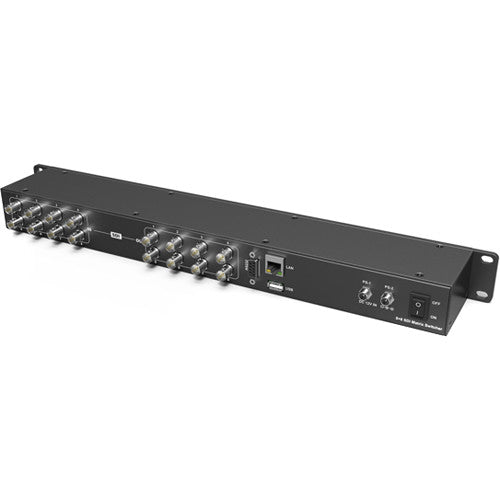

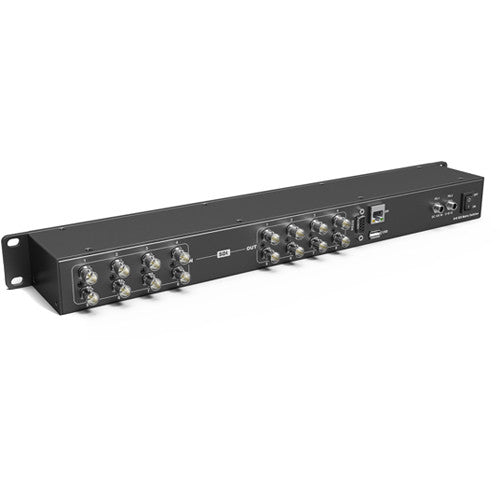

| Connectors | 8 x BNC, SD/HD/3G-SDI/DVB-ASI Inputs 8 x BNC, SD/HD/3G-SDI/DVB-ASI Outputs 1 x RJ45, LAN Control Port, on Back Panel 1 x RS-232, Control Port, on Back Panel 1 x USB Type-A, Control Port, on Back Panel |
| SDI Input Formats | 1080p at 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 1080PsF at 30, 29.97, 25, 24, 23.98 1080i at 60, 59.94, 50 720p at 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 625i at 50, 525i, 59.94 |
| SDI Video Rates | SD/HD/3G-SDI |
| SDI Compliance | SMPTE 259M/292M/296M/372M/424M/425M |
| SDI Color Precision | RGB 4:4:4 10/12-Bit, YUV 4:2:2/4:4:4 10/12-Bit |
| SDI Auto Switching | Auto Selects SD, HD, and 3G-SDI on Input |
| Power Connector | Threaded Locking Connector |
| Voltage Range | 6-24 VDC |
| Power Supply | PS-1, PS-2, Power Redundancy |
| Power Consumption | 7 W |
| Relative Humidity | 0 to 90% Non-Condensing |
| Temperature | Operating: -4 to 140°F / -20 to 60°C Storage: -22 to 158°F / -30 to 70°C |
| Rackmount | 1 RU |

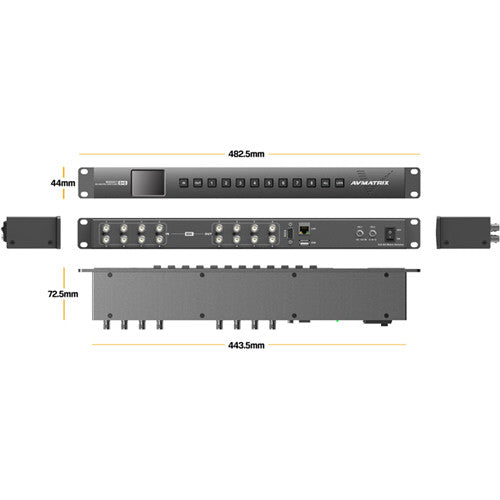

| Dimensions | 19.0 x 1.75 x 2.85" / 482.5 x 44.0 x 72.5 mm |
| Weight | 2.4 lb / 1.1 kg |
Packaging Info
| Package Weight | 3.77 lb |
| Box Dimensions (LxWxH) | 21.8 x 7.8 x 3.4" |
