Description
AV Matrix FE1121-12G Overview
The 12G-SDI Fiber Optic Extender from AV Matrix extends HD/SD signals up to 12G-SDI using your fiber optic cable network. This transmitter and receiver set has a range of up to 6.2 miles and features dual 12G-SDI outputs on the receiver. Supporting all SDI video resolutions up to 4K60 plus embedded audio and metadata, this compact set is compatible with single-mode LC simplex fiber cable.
Features include SDI equalization, hot-pluggable SFP modules with LC connectors, up to 32-channel embedded audio support, and two included USB power supplies.
Features
Extends HD/SD signals up to 12G-SDI, 4K60 over single-mode LC fiber optic cable

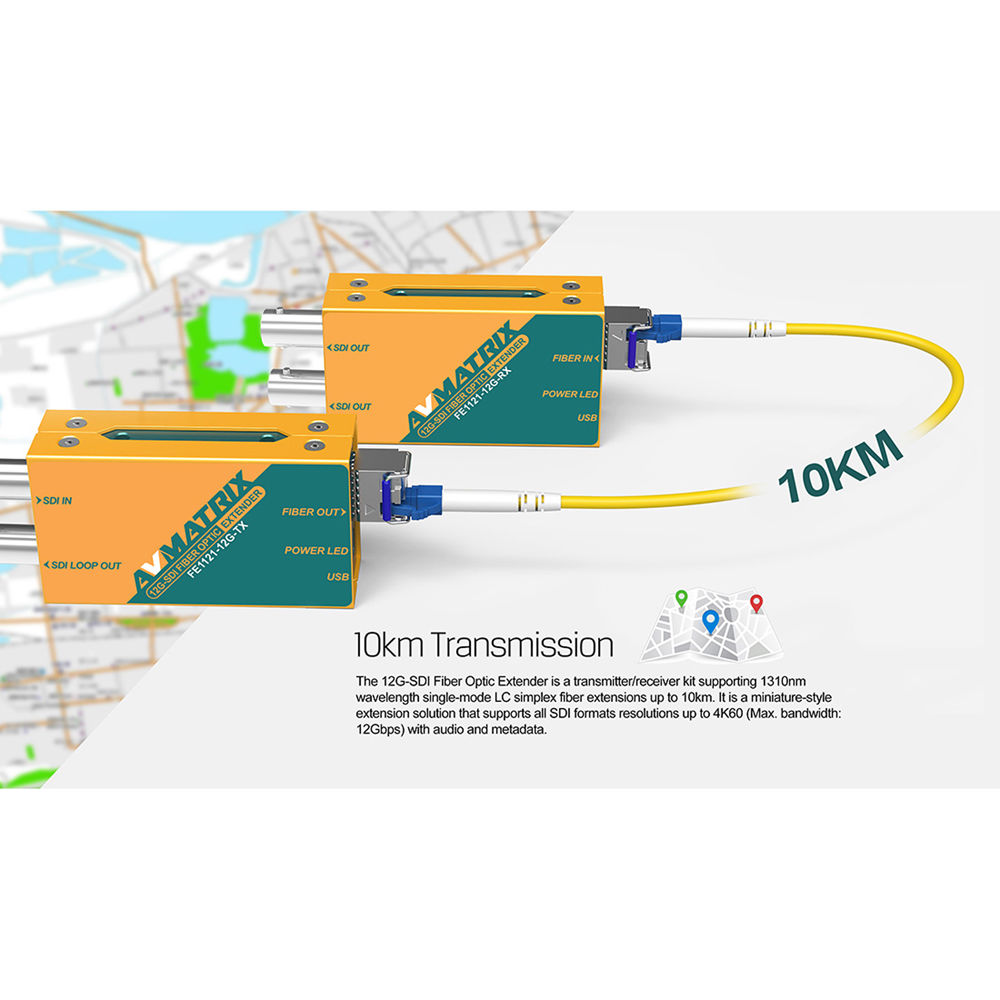

Supports a range of up to 6.2 miles

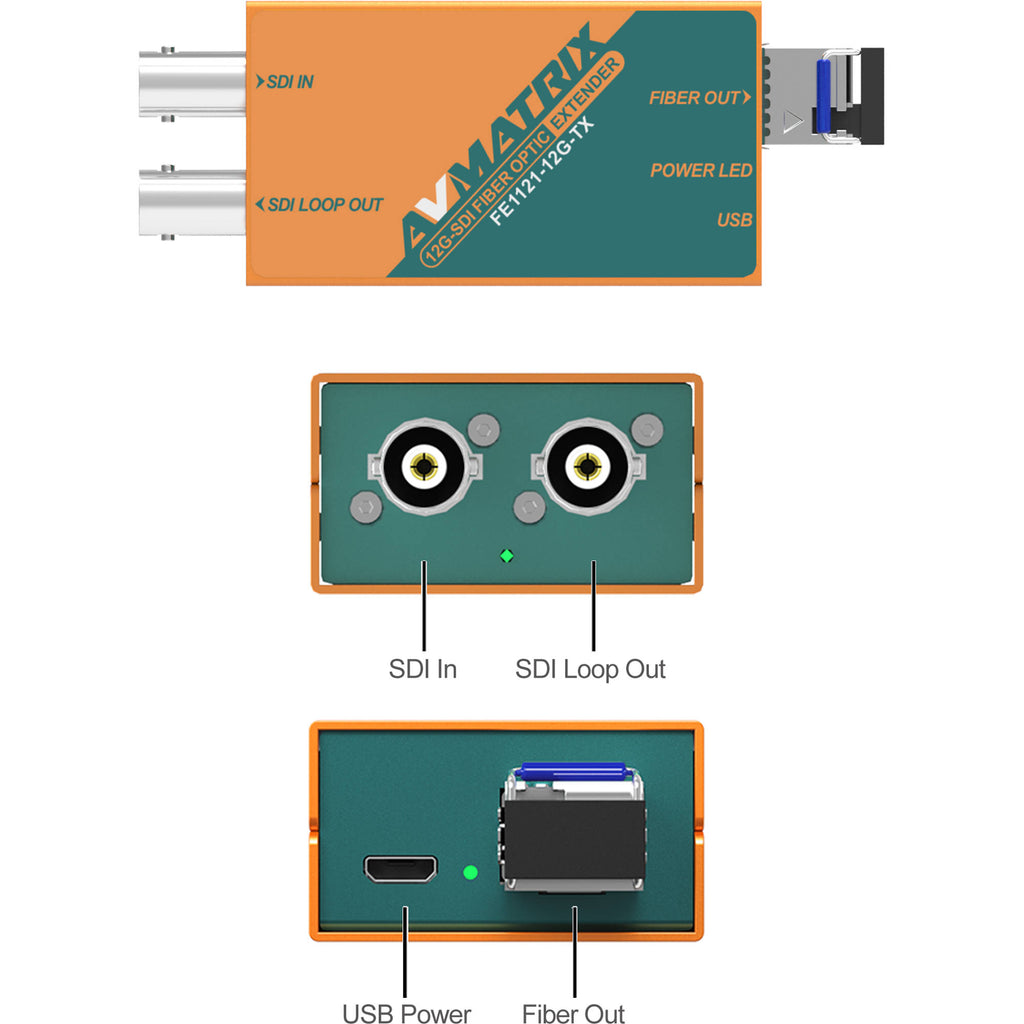

SDI input and loop out, LC single-mode fiber output on transmitter

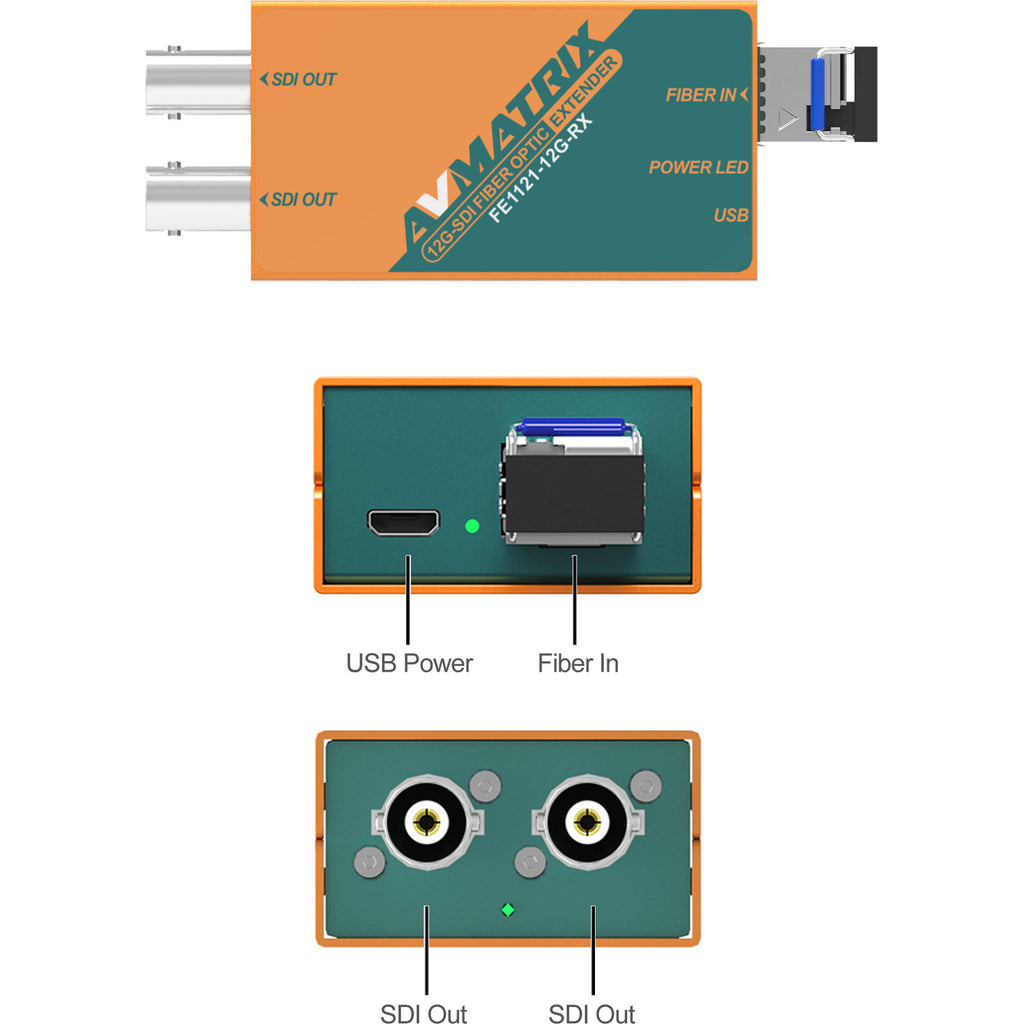

LC single-mode fiber input, dual SDI outputs on receiver
Supports metadata and 32/16-channel embedded audio
Signal re-clocking
Compact, USB-powered form
In the Box

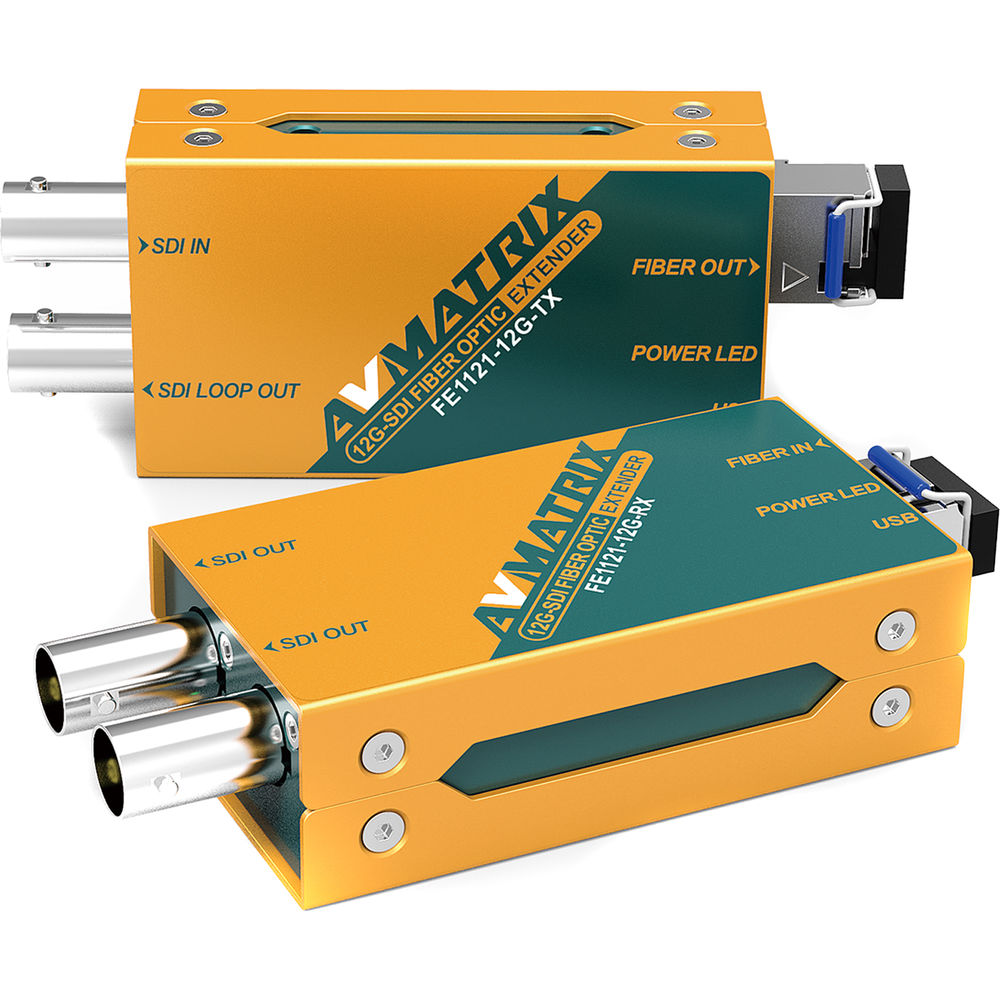

- AV Matrix 12G-SDI Fiber Optic Extender Transmitter/Receiver Set
- Transmitter
- Receiver
- 2 x USB Power Supply
- Limited 3-Year Warranty

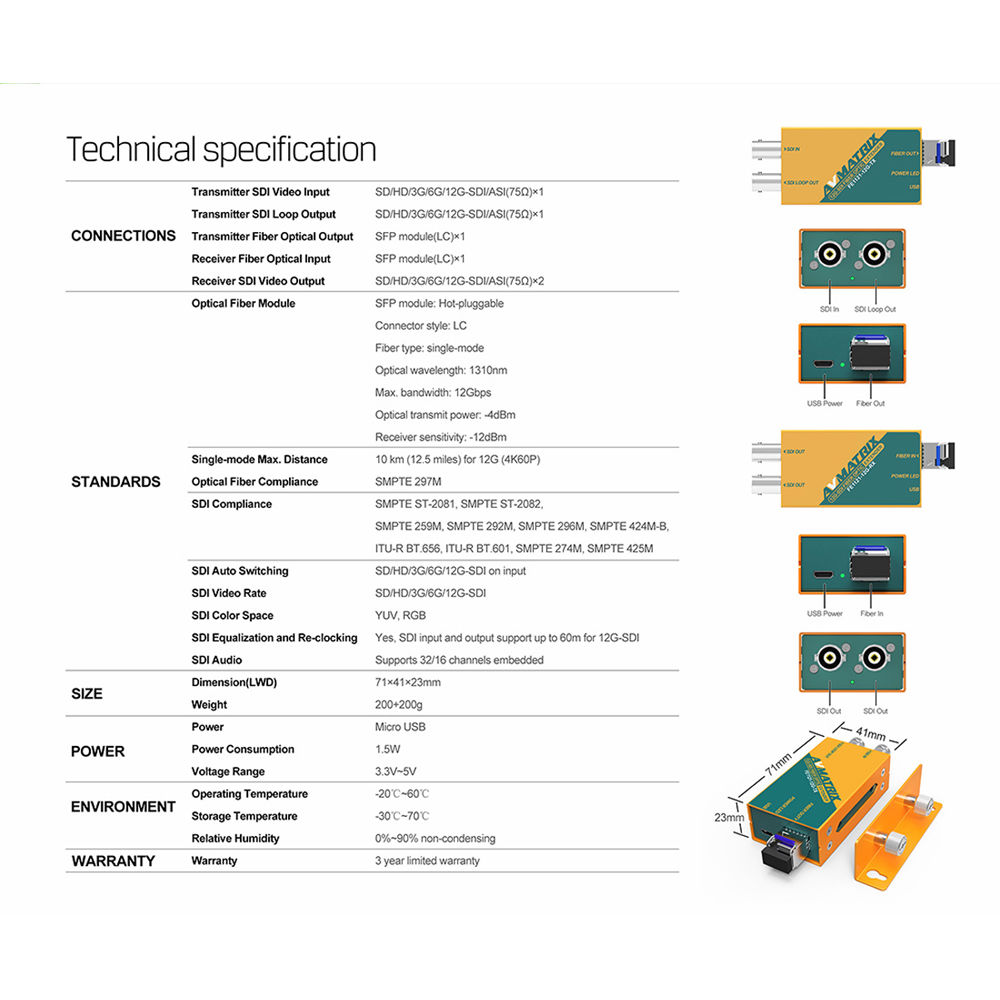

AV Matrix FE1121-12G Specs
Transmitter Interfaces
| Input Connectors | 1 x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI / SD-SDI) |
| Embedded Audio Input | SDI: 16-Channel SDI: 32-Channel |
| Output Connectors | 1 x BNC (12G-SDI / 6G-SDI / 3G-SDI / HD-SDI / SD-SDI) |
Receiver Interfaces
| Input Connectors | 1 x ST (12G-SDI / 6G-SDI / 3G-SDI / HD-SDI / SD-SDI) |
| Output Connectors | 1 x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI / SD-SDI) |
| Embedded Audio Output | SDI: 16-Channel SDI: 32-Channel |
Standards
| Video Standard Compliance | SMPTE 259M/274M/292M/296M/297M/424M-B/ST-2081/ST-2082 ITU -R BT.601/BT.656 |
| Re-Clocking | Yes |
| HDCP Support | Yes |
| EDID Support | Yes |
Transmission
| Max Transmission Distance | UHD 4K: 6.2 Miles / 10 km (via Single-Mode Fiber) |
| Video Format | SDI UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps |
| Supported Cable Types | Single-Mode Fiber |
| Fiber Center Wavelength | 1310 nm |
Power
| Transmitter Power Connector | 1 x USB Micro-B (3.3 to 5 VDC) Input |
| Receiver Power Connector | 1 x USB Micro-B (3.3 to 5 VDC) Input |
| Transmitter Power Consumption | Device: (1.5 W) |
| Receiver Power Consumption | Device: (1.5 W) |
Environmental
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Operating Humidity | 0 to 90% |
General
| Transmitter Dimensions | 2.8 x 1.61 x 0.91" / 71 x 41 x 23 mm |
| Receiver Dimensions | 2.8 x 1.61 x 0.91" / 71 x 41 x 23 mm |
| Transmitter Weight | 7.1 oz / 200 g |
| Receiver Weight | 7.1 oz / 200 g |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
