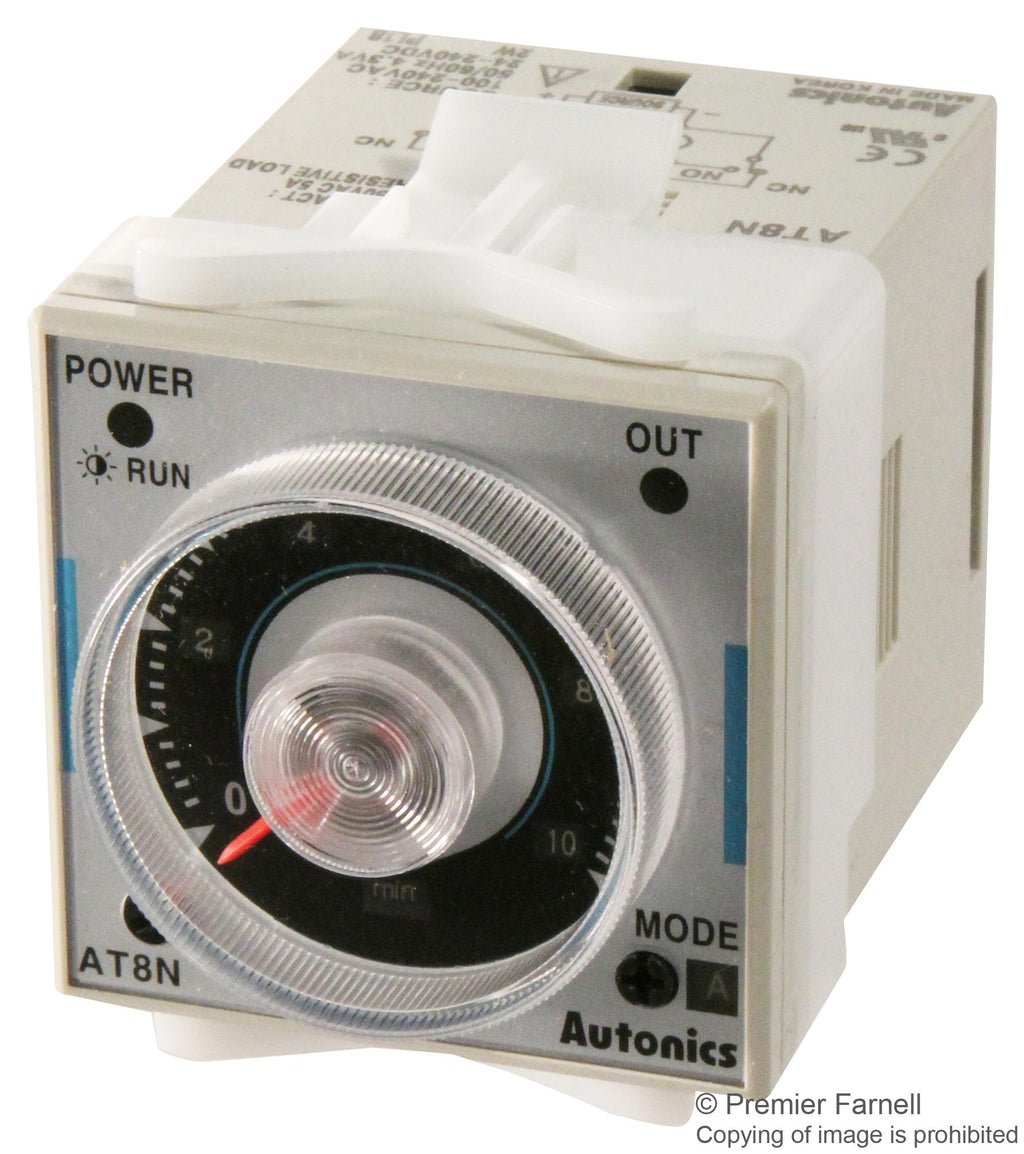

The AT8N is an 8-pin socket type, compact 1/16 DIN timer with an analog type dial for easy adjustments. The AT8N has a variety of selectable timer modes, functions, and ranges, which makes this product a convenient universal timer application choice Universal input power supply of 100-240 volt AC or 24-240 volt DC allows for flexibility in product use. A power on and output status LED easily verifies proper mode function.
- Power on start timing operation
- Control time selectable setting range: 0.05 seconds to 100 hours
- Time limit or instantaneous double pole, double throw, 250 volt AC/5 amp contacts available
- Power on delay, flicker type and interval output operation modes available
- Socket type pin connection allows for panel (PG-08) or DIN rail (PS-08)mounting (sold separately)
- Panel mounting bracket included with AT8N
Applications
Clock & Timing
Product details
| Product Range |
ATN Series |
| Timer Functions |
Multifunction |
| No. of Timing Ranges |
16Ranges |
| Time Min |
0.05s |
| Time Max |
100h |
| Timer Output |
2 Changeover Relays |
| Supply Voltage Max |
240V |
| Current Rating Nom |
- |
| Connection / Termination |
Plug-In |
| Panel Cutout Height |
45mm |
| Panel Cutout Width |
45mm |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
AUTONICS |
| Part Number |
AT8N-24-240 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Operating Instructions EN |
|
