Description
Audix DN43 Overview
- 1 Description
- 2 Dante Features
- 3 Power Features
- 4 Connectivity

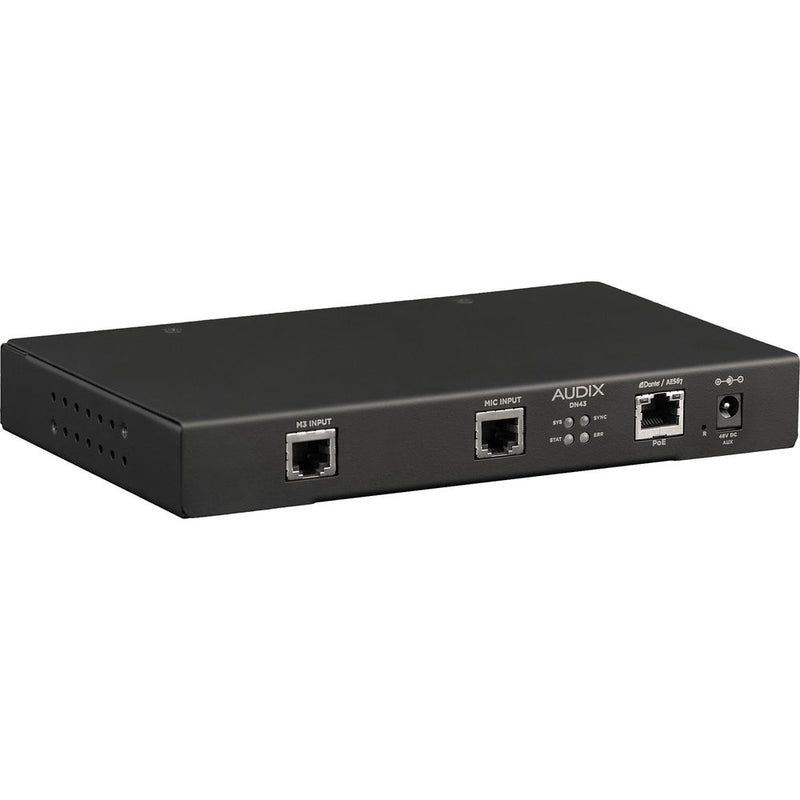

The DN43 Dante AES67 Integrated Microphone System Interface from Audix is the heart of a microphone system that offers audio performance through Ethernet networks. It can be used to provide microphone functions including on-off contact closure and LED status indicators for meeting rooms, convention centers, educational facilities, and houses of worship through a single Cat 5 - Cat 7 cable with RJ45 connections.
The DN43 interface features one port for the Audix M3 tri-element microphone and one port for Audix RJ45-equipped single-element microphones. The configuration eliminates wiring errors and accelerates installation. In addition, all Audix RJ45-equipped microphone gain structures are optimized for their intended placement, which provides quality audio at the DSP. The result is true plug-and-play installation.
Furthermore, the interface is equipped with two 5V logic outputs per port and source/sink capability for LEDs that are controlled by network-connected DSPs. Low-pass and high-pass filter settings are available for each audio channel as well as eight selectable gain levels with all settings configurable via software.
Dante Features
- Supports AES67 audio streams
- Dante Domain Manager (DDM) ready
- Dynamic or static IP address
- Evaluated to the requirement of UL2043 and is suitable for use in above-ceiling applications
Power Features
- PoE from any IEEE 802.3af compliant equipment
Connectivity
- Two 5V logic outputs per port, with source/sink capability for LEDs controlled by network-connected DSPs
- One logic input per single-element microphone port for buttons
In the Box
- Audix DN43 Dante AES67 Integrated Microphone System Interface
- Pair of Mounting Brackets (MNTDN) with Attachment Screws
- Limited 1-Year Warranty
- Description
- Dante Features
- Power Features
- Connectivity
Audix DN43 Specs
| Mic Input | Balanced, RFI Filtered 1 x Tri-Element Mic Port, 1 x RJ45 Port |
| Mic Input Connector | Shielded 8P8C, RJ45 |
| Phantom Power | 48 VDC, 14 mA/Port (Short-Circuit Protected) |
| Max Input | -14 dBu, 155 mV (0 dB Gain) |
| Input Impedance | 1.15 kOhms (Balanced) |
| Frequency Response | 15 Hz to 22 kHz, +0, -3 dB |
| THD+N | 0.003% (1 kHz, 0 dB Gain) |
| CMRR | 50 dB |
| EIN | -120 dBu (Unweighted) |
| SNR | -96 dB (Unweighted) |
| Channel Crosstalk | <-80 dB (1 kHz) |
| Dante / AES67 Channels | 4 |
| Chipset | Dante: UXT-01-004 |
| Sample Rate | 48 kHz |
| Word Width | 24-Bit |
| Logic Input | Logic Inputs Per Port: 1 x Per Single-Element Microphone Port Logic Outputs Per Port: 2 x |
| Low-Pass Frequency | Off, 5 kHz, 7 kHz, 10 kHz |
| High-Pass Filter | 15 Hz, 238 Hz |
| Gain Options | 0 / +8 / +12 / +15 / +18 / +24 / 30 / and +36 dB |
| Power | External DC Jack: +48 VDC, 125 mA PoE (IEEE 802.3af: Class 2 (3.84 to 6.49 W) |
| Temperature (Operating) | 50 to 122°F / 10 to 50°C |
| Dimensions (H x W x D) | 1.1 x 8.0 x 4.9" / 2.8 x 20.2 x 12.5 cm |
| Weight | 1.39 lb / 0.63 kg |
