Description

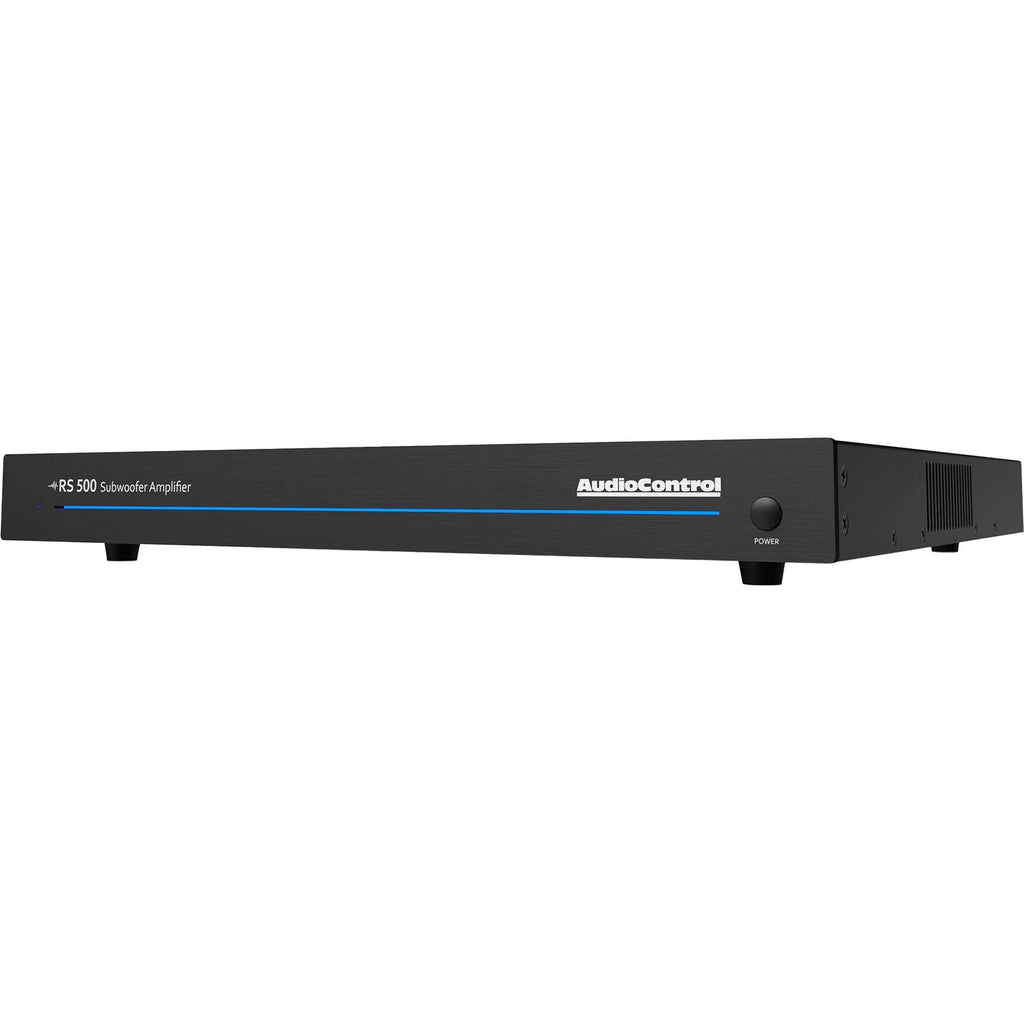

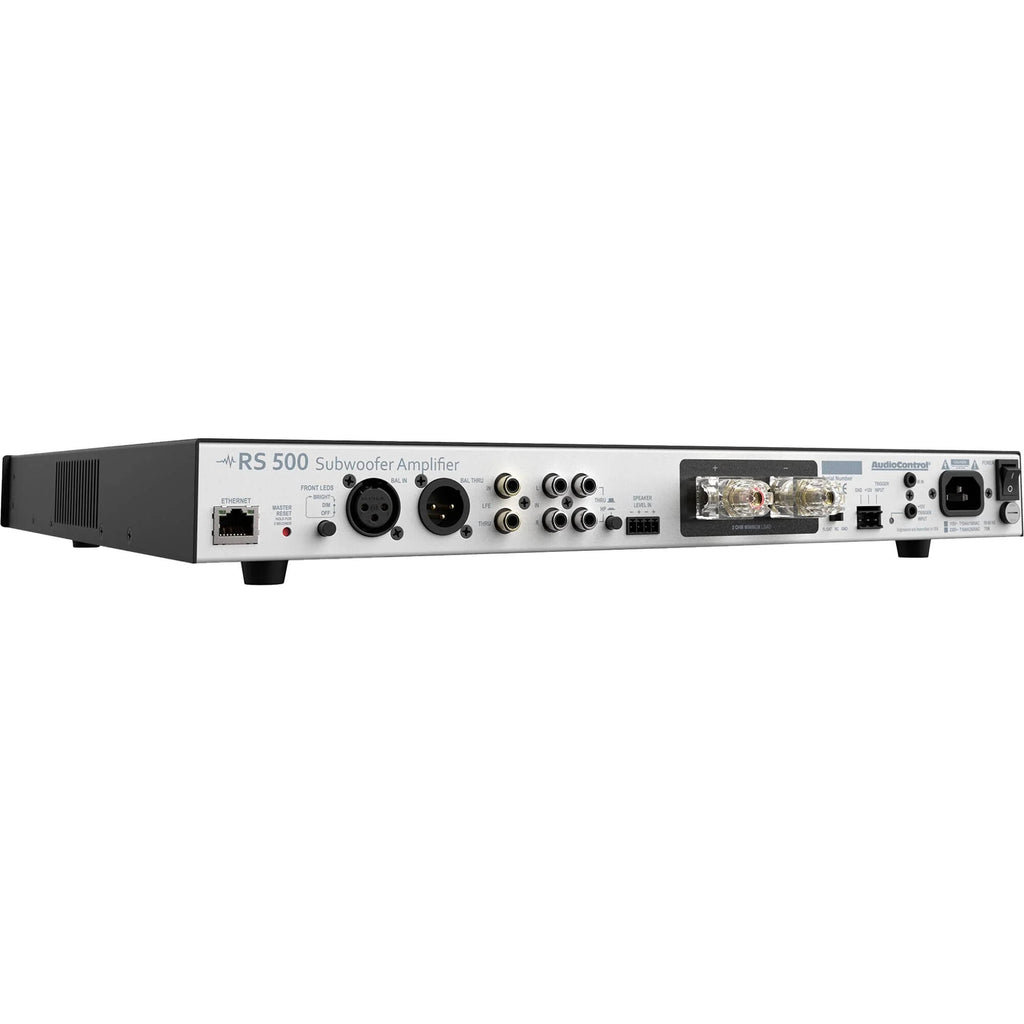

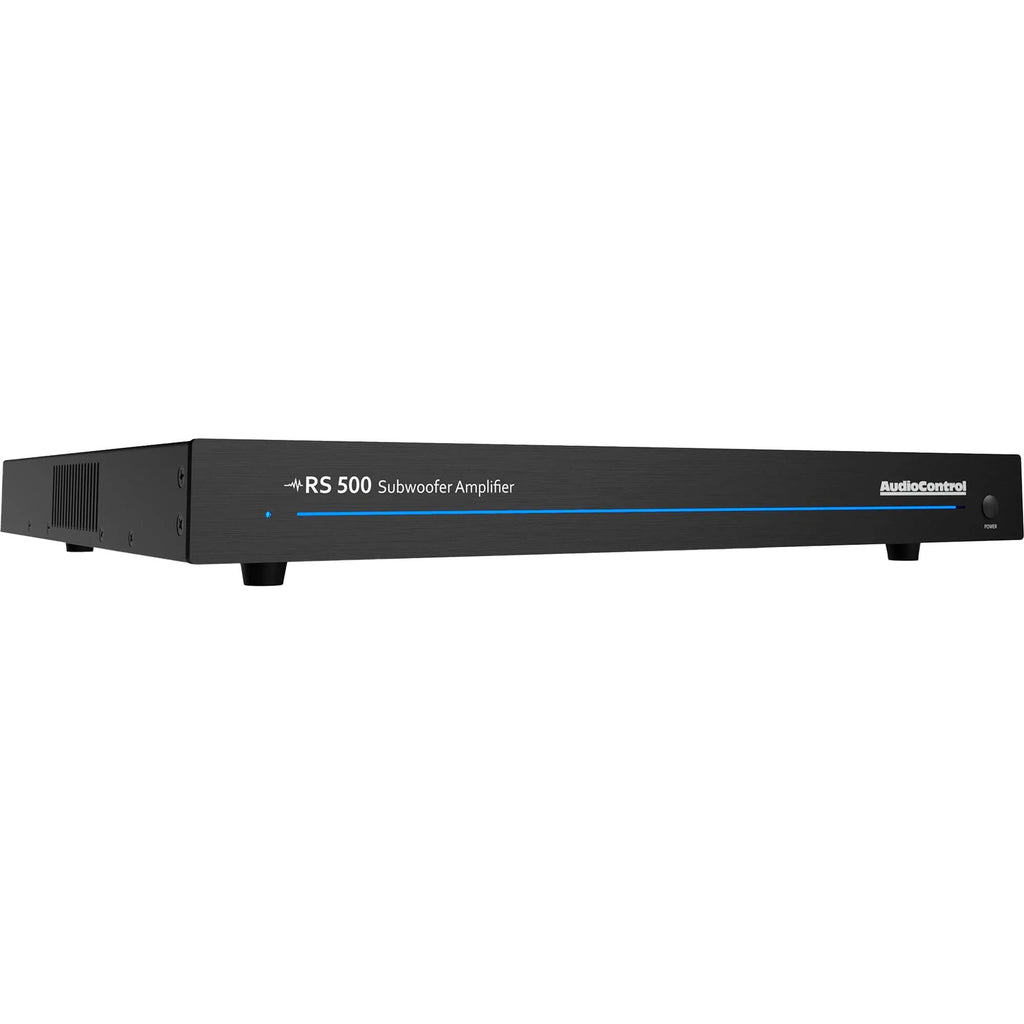

AudioControl RS 500 Overview
The RS 500 500W Subwoofer Amplifier with DSP from AudioControl is a bass amplification solution for any home cinema, multi-zone audio, or 2.1-channel music system, delivering continuous power into speaker loads from 2 to 8 ohms.
Like many AudioControl amplifiers, the RS series offers IP or IR control, plus looped outputs with an optional high-pass filter. AudioControl's DSP engine, coupled with features such as graphic equalization, parametric equalization, high/low filter cutoff, and incremental signal phase with delay compensation, put precise calibration and fine-tuning control at the user's fingertips for accurate, impressive bass response. RS Series amplifiers are a great choice to power passive subwoofers in entertainment systems that require professional quality and longevity.
- Six-band graphic EQ
- Eight-band parametric EQ
- Variable crossover with protective subsonic filter
- Downloadable speaker optimization profiles (including AudioControl partners Dynaudio, Gray, Monitor Audio, James Loudspeaker, Nuvo, Origin Acoustics, Stealth Acoustics, and Triad)
- Ethernet port for status monitoring, source switching, and 12V trigger control
- Network programmable graphic & parametric equalization with user memories
- Digital signal sense
- AudioControl lightDrive anti-clipping speaker protection
- Balanced input/thru output
- Unbalanced inputs/thru output
- LFE input/thru output
- Speaker-level inputs
- 12V triggerable
- 5-way binding posts
- Perfect for home and commercial installations
- AudioControl RS 500 500W Subwoofer Amplifier with DSP (1 RU)
- IEC Power Cable
- Rack-Mounting Hardware
- Limited 5-Year Manufacturer Warranty
No additional resources available
AudioControl RS 500 Specs
| Frequency Response |
20 Hz to 350 Hz
|
| SNR/Noise |
> 95 dB SNR (A-Weighted Ref Full Output)
|
| THD/Distortion |
? 0.1% THD
|
| DSP |
Yes
|
| EQ & Filters |
8-Band Parametric EQ, Graphic EQ
|
| Analog Audio I/O |
1x XLR 3-Pin Balanced Line Input
1x XLR 3-Pin Line Output/Thru 2x RCA Line Input/Output 1x RCA Preset Input 1x Block Input 2x Screw Terminal Output |
| Digital Audio I/O |
No
|
| Network I/O |
1x RJ45 Ethernet
|
| USB I/O |
No
|
| Phantom Power |
No
|
| Wireless |
No
|
| Input Power |
115 to 230 VAC, 50 / 60 Hz
|
| AC Power Connector |
1x IEC
|
| Display |
No
|
| Rackmount Size |
1 U
|
| Dimensions |
17.5 x 17 x 1.75" / 44.5 x 43.2 x 4.45 cm
|
| Weight |
14.9 lb / 6.8 kg
|
| Form Factor/Type |
Tabletop (Rack-Mountable with Included Hardware)
|
| Number of Amplifier Channels |
1
|
| Load Impedance/Voltage Support |
2 / 4 / 8 Ohms
|
| Power Rating per Channel |
1x 500 W at 2/4/8 Ohms
|
