Description

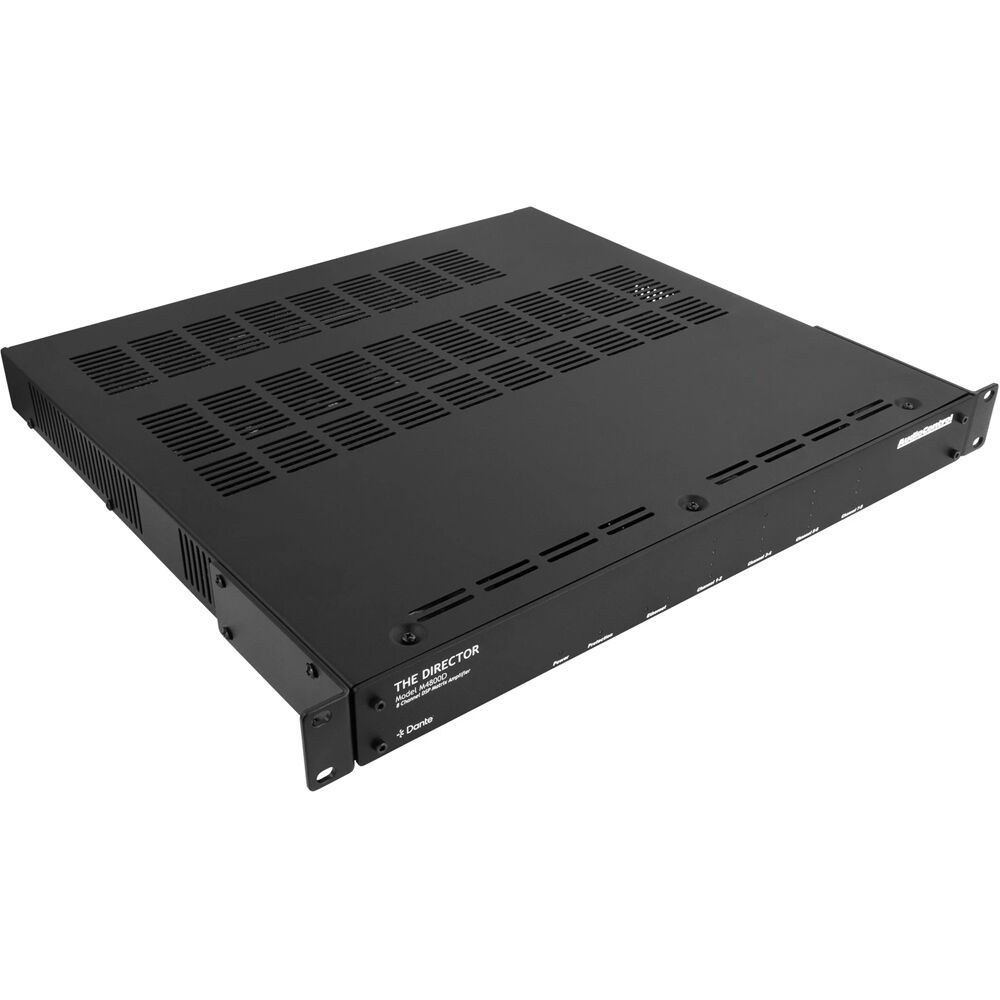

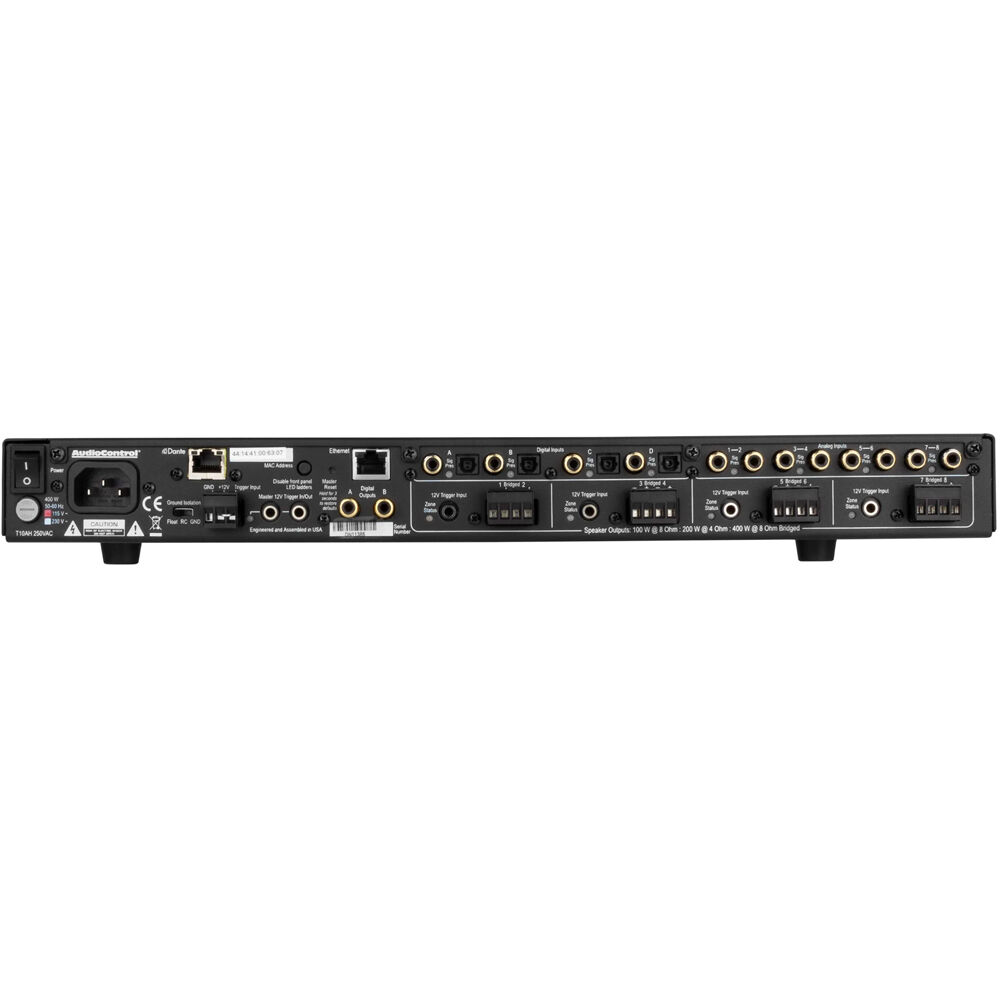

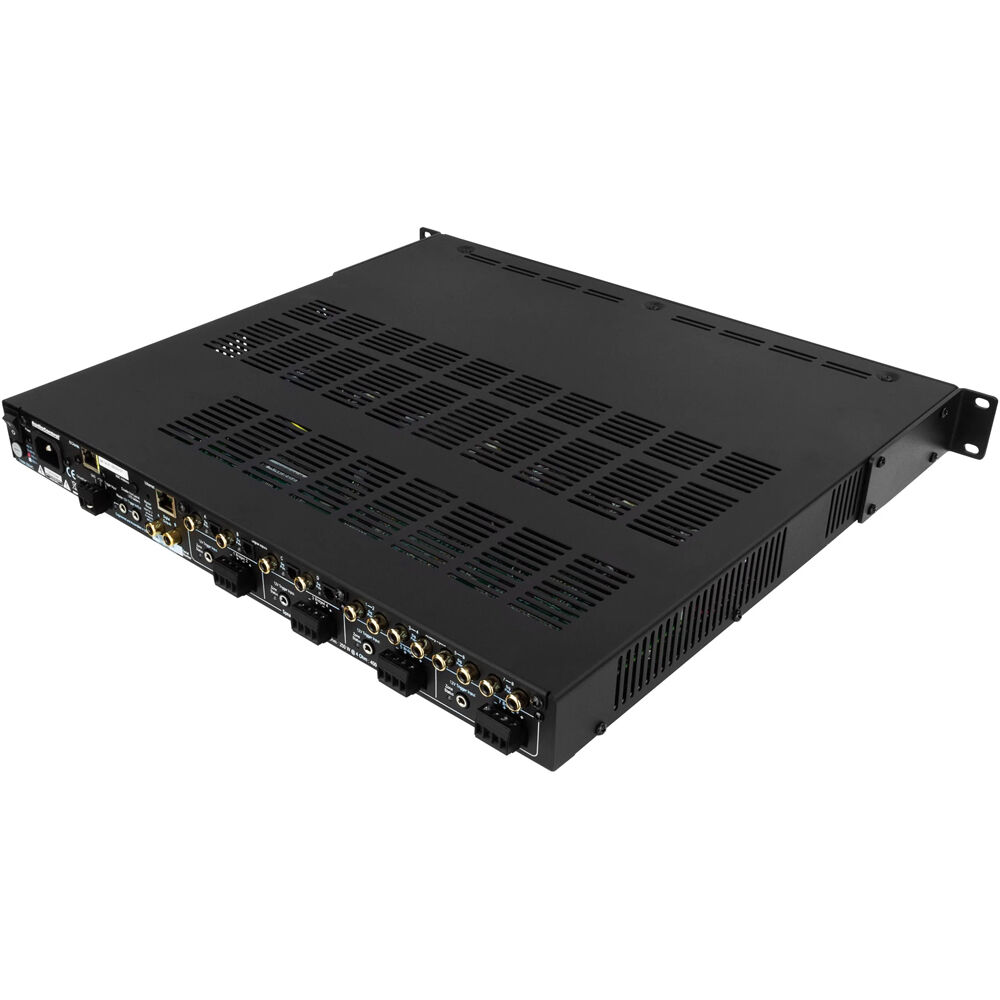

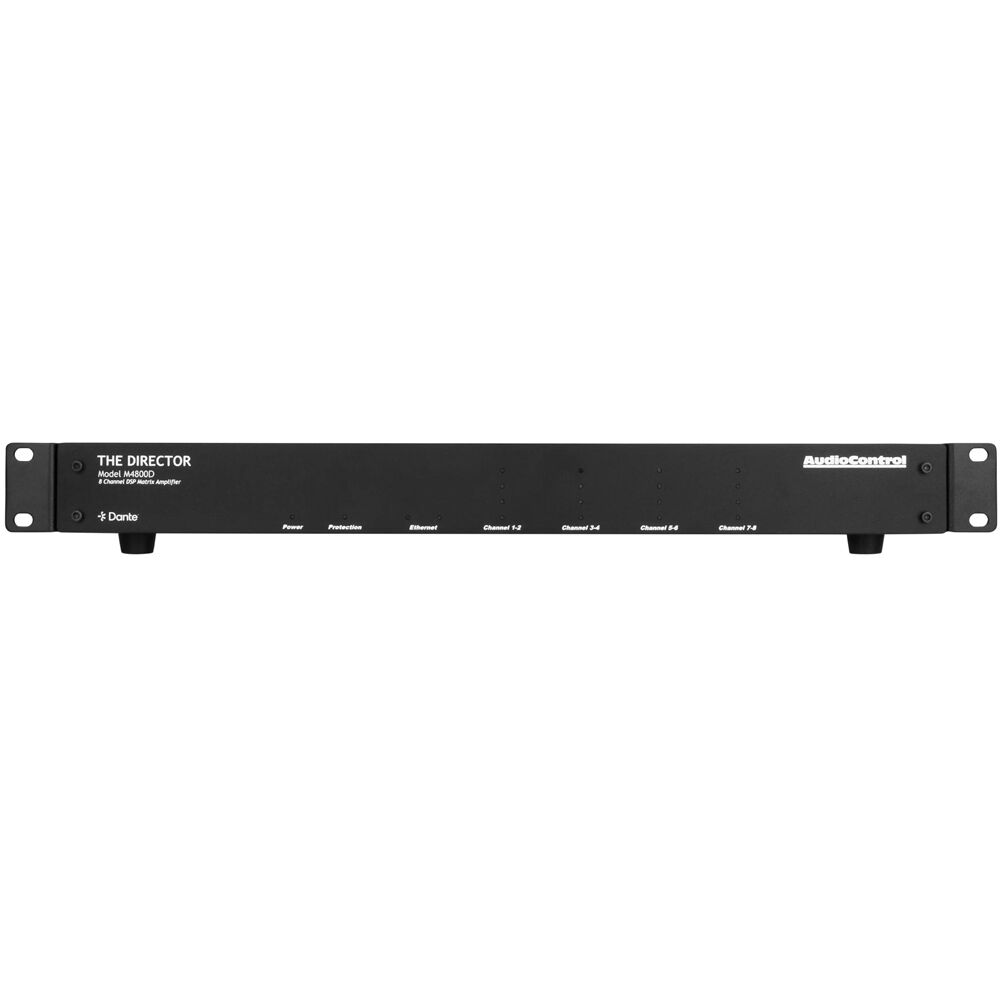

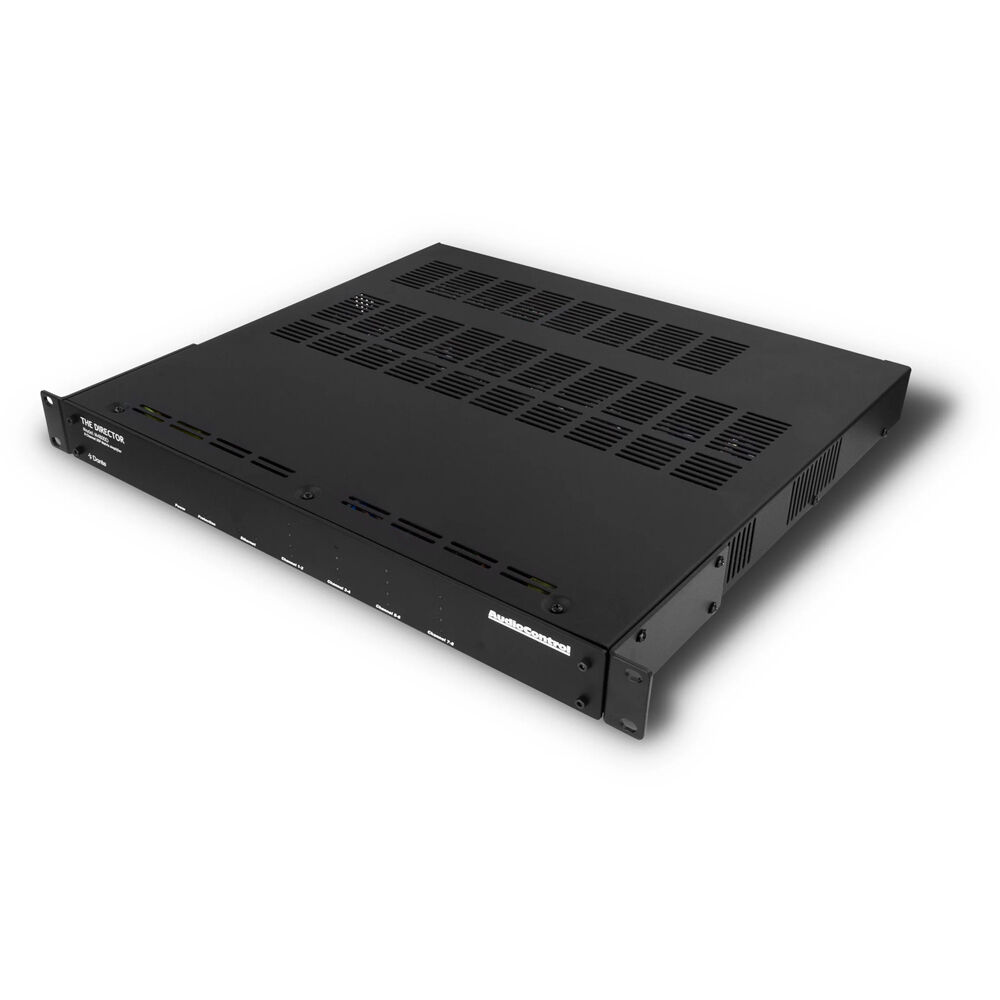

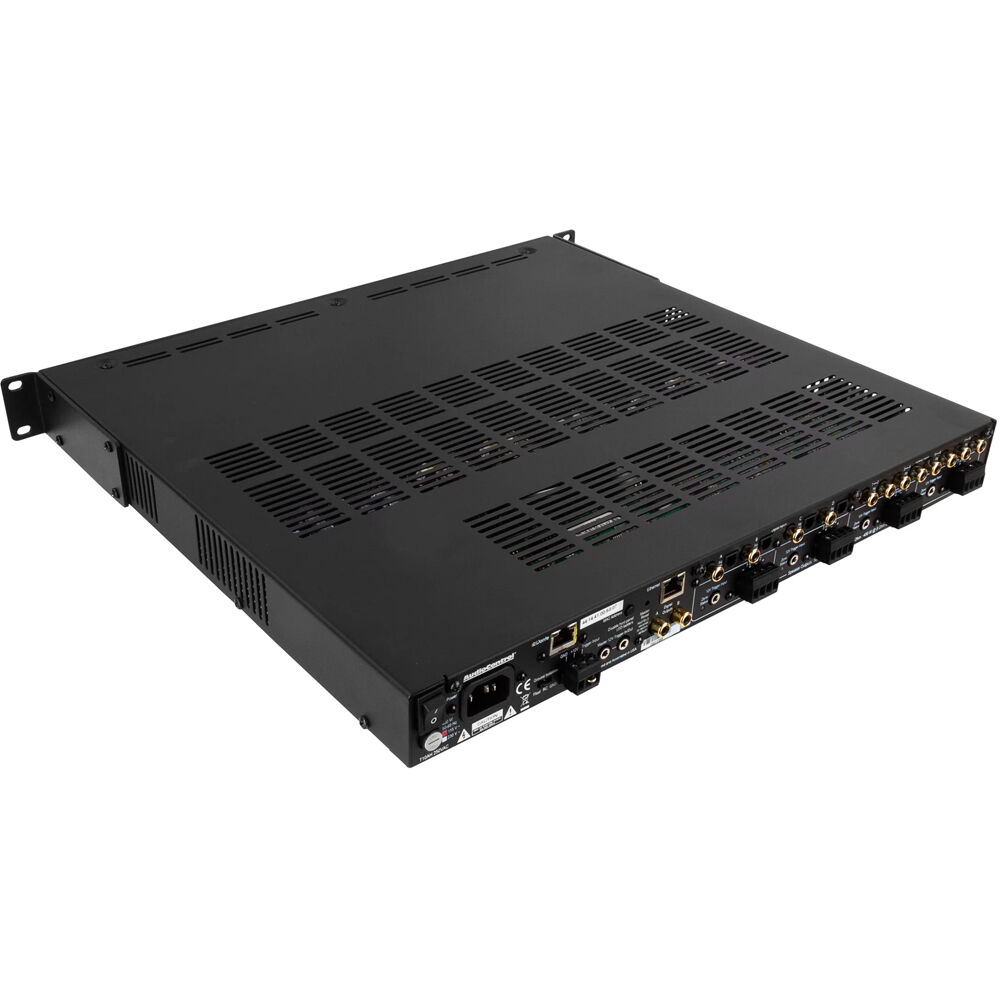

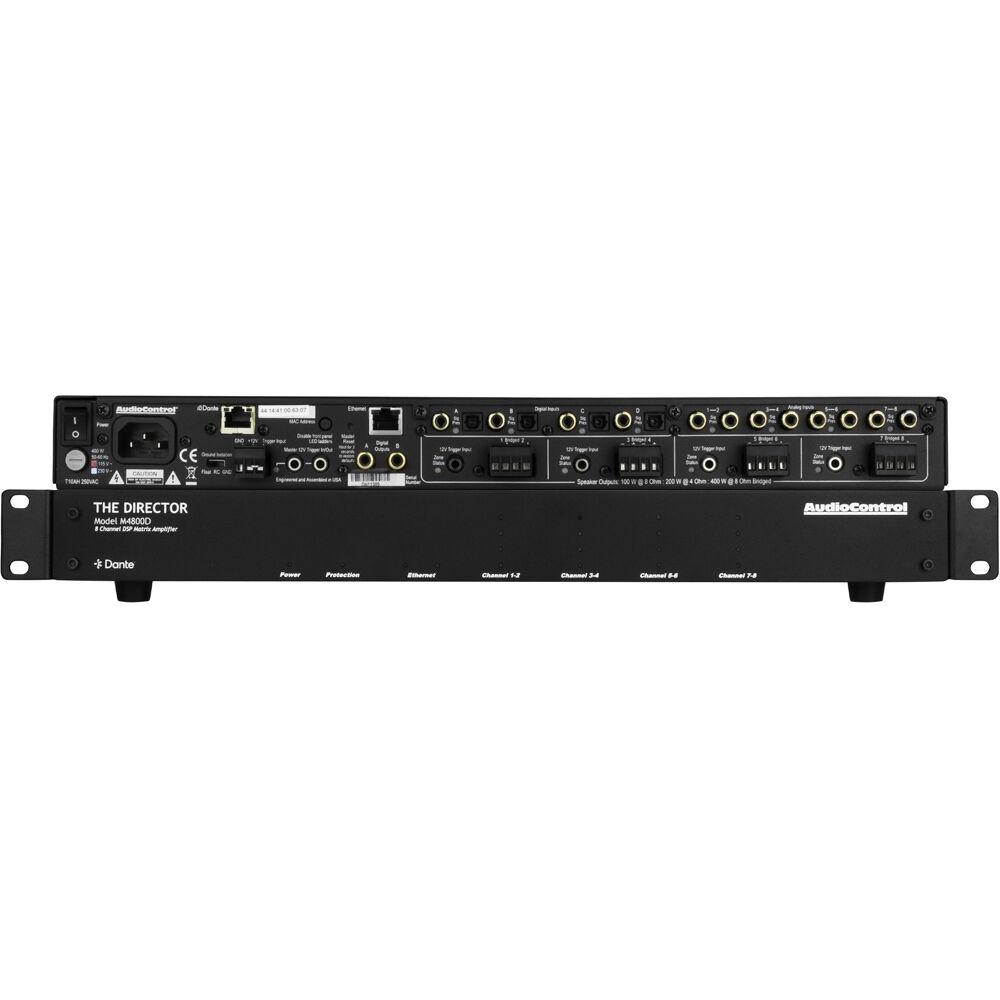

AudioControl M4800D Overview
The Director M4800D 8-Channel High-Power with Dante DSP Matrix Amplifier with Dante (1 RU) from AudioControl is a powerful and useful matrix/distribution amplifier, ideal for home or commercial permanent audio installations. The M4800D delivers eight channels of audio into up to eight zones.
Remarkably shallow in depth yet still delivering 100 watts per channel into 8 ohms, and a stable 200 watts into 4 ohms, the user has control over many parameters including channel volume, loudspeaker equalization and delay times, crossover points, and preset speaker profiles (included with AudioControl software) to help you get your system optimized, sounding as good or clear as possible. The Director M4800D adds Dante input/output matrixing and system integration with additional M4800D and AudioControl CM series amplifiers. Using the Dante Controller, physical M4800D inputs become virtual sources that are available to other Dante devices with input/amplification capabilities. When two channels bridge outputs, the single channel produces more than enough power for even the most demanding loudspeaker configurations in any home theater or commercial installation.
- 8 channels x 100W at 8 ohms (all channels driven)
- 8 channels x 200W at 4 ohms (all channels driven)
- Bridgeable to 400W of bridged power
- Digital Signal Processing (DSP) performance
- Built-in speaker optimization profiles
- Ethernet port for status monitoring, source switching, and 12V trigger control
- Built-in matrix routes analog or digital inputs to any zone or digital bus output
- Network programmable graphic & parametric equalization with user memories
- Assignable names for all zones & amplifiers
- Digital signal sense
- Programmable electronic crossover for local subwoofer applications; subsonic filter
- AudioControl LightDrive proprietary anti-clipping speaker protection
- Digital audio outputs and thrus
- AudioControl Director M4800D 8-Channel High-Power with Dante DSP Matrix Amplifier with Dante (1 RU)
- Power Cable
- Mounting Hardware
- Limited 5-Year Manufacturer Warranty
No additional resources available
AudioControl M4800D Specs
| Item Type |
Line Amplifier
|
| Number of Mixer Inputs |
32
|
| Number of Distribution Outputs |
32
|
| Number of Amplifier Channels |
8
|
| Load Impedance/Voltage Support |
4 / 8 Ohms
|
| Power Rating per Channel |
8x 100 W at 4 Ohms
4x 200 W at 8 Ohms |
| Amplifier Class |
Class-D
|
| SNR/Noise |
> 95 dB SNR (A-Weighted, Full Ref Output)
|
| DSP |
Yes
|
| Analog Audio I/O |
8x RCA Input
4x Block 4-Pin Output |
| Digital Audio I/O |
4x RCA Coaxial AES3 Input
4x TOSLINK Optical S/PDIF Input 2x RCA Coaxial AES3 Output |
| Network I/O |
1x RJ45 (Link)
1x RJ45 Dante |
| Other I/O |
4x 1/8" / 3.5 mm 12 V Trigger Input
2x 1/8" / 3.5 mm 12 V Trigger In/Out 1x Block 3-Pin 12 V Trigger In/Out |
| USB I/O |
No
|
| Wireless |
No
|
| AC Power Connector |
1x IEC
|
| Display |
No
|
| Rackmount Size |
1 U
|
| Dimensions |
17 x 15.5 x 1.75" / 43.2 x 39.4 x 4.45 cm
|
| Weight |
16.5 lb / 7.5 kg
|
| Package Weight |
18.83 lb
|
| Box Dimensions (LxWxH) |
20.9 x 19.5 x 5.5"
|
