Description

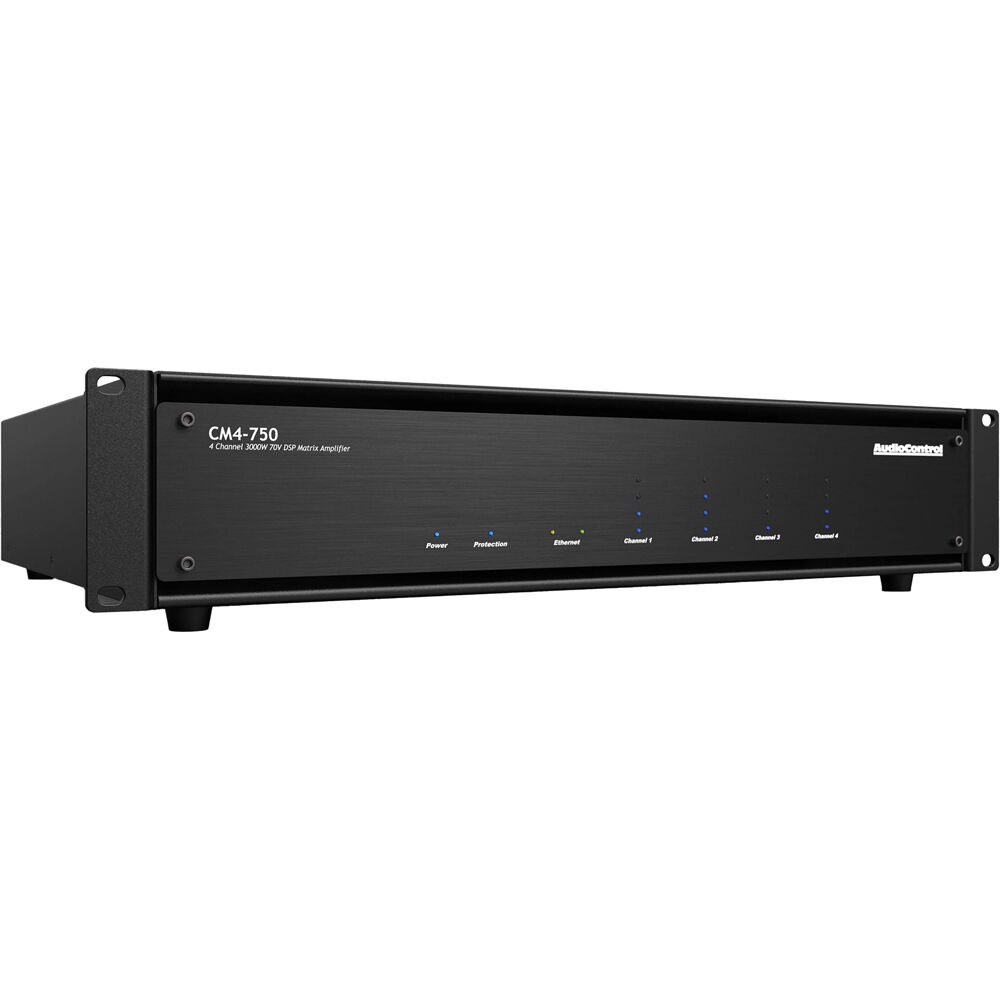

AudioControl CM4-750 Overview
The CM4-750 4-Channel High-Power Dual Mode 70V DSP Amplifier (2 RU) from AudioControl delivers superior quality power and sound through high-count speaker systems, ideal for outdoor audio installations as well as a variety of commercial A/V applications.
DSP control and signal matrixing capabilities from AudioControl's Director Series amplifiers enable integrators to precisely craft their sound to any environment or taste. Choose from balanced/unbalanced analog microphone and digital inputs. Outputs can be configured in mono or stereo, giving you the configuration flexibility needed to accommodate any system architecture. For maximum efficiency, system setup and diagnostics can be managed remotely via an IP using a responsive web interface.
- Dynaudio
- Ambisonic
- Gray
- Krix
- James Loudspeaker
- Monitor Audio
- Nuvo
- Origin Acoustics
- Stealth Acoustics
- Totem
- Triad Speakers
- Amina
- Leon
- AudioControl CM4-750 4-Channel High-Power Dual Mode 70V DSP Amplifier (2U)
- IEC Power Cord
- Speaker Connectors
- Remote Connector
- Limited 5-Year Manufacturer Warranty
No additional resources available
AudioControl CM4-750 Specs
| Damping Factor |
> 200
|
| SNR/Noise |
> 104 dB SNR ((A Wtd, Ref Full Output, 8 Ohms)
|
| Crosstalk |
> 85 dB (1 kHz)
|
| DSP |
Yes
|

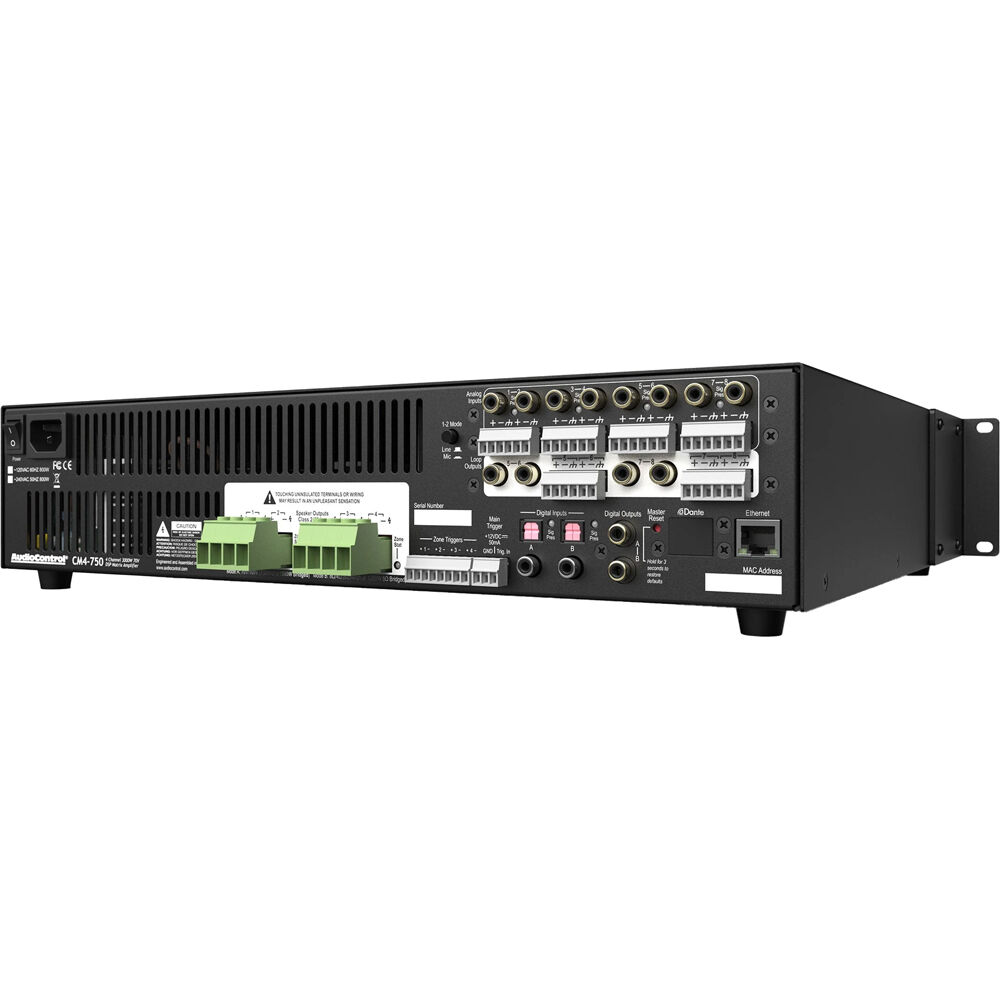

| Analog Audio I/O |
4x Stereo 2RCA Input
2x Stereo 2RCA Output 6x Block 6-Pin Output 4x Screw Terminal 2-Pin Speaker Output |
| Digital Audio I/O |
2x RCA Coaxial AES3 Input
2x TOSLINK Optical S/PDIF Input 2x RCA Coaxial AES3 Output |
| Network I/O |
1x RJ45
|
| Other I/O |
1x Block 3-Pin 12 V Trigger Output
4x Block 2-Pin 12 V Trigger Output |
| USB I/O |
No
|
| Phantom Power |
No
|
| Wireless |
No
|
| AC Power Connector |
1x IEC
|
| Display |
No
|
| Rackmount Size |
2 U
|
| Dimensions |
17 x 15.5 x 3.5" / 43.2 x 39.4 x 8.9 cm
|
| Weight |
20 lb / 9.1 kg
|
| Form Factor/Type |
Rackmount (Rack-Mountable with Included Hardware)
|
| Number of Amplifier Channels |
4
|
| Load Impedance/Voltage Support |
2 / 4 / 8 Ohms
|
| Power Rating per Channel |
4x 750 W RMS at 70/100 V
|
| Channel Bridging & Power Sharing |
4x 625 W Bridged at 4/8 Ohms
4x 1250 W Bridged at 8 Ohms 1x 1500 W Single Channel Driven at 70/100 V |
| Amplifier Class |
Class-D
|
| Package Weight |
24.225 lb
|
| Box Dimensions (LxWxH) |
21.6 x 20.3 x 9.1"
|
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 610295.0 |
| 3-5 | ₹ 604067.5 |
| 5-10 | ₹ 591612.5 |
| 10+ | ₹ 579157.5 |
Bulk discount will be automatically applied during checkout based on quantity.
