Description
AudioControl P2660 Overview

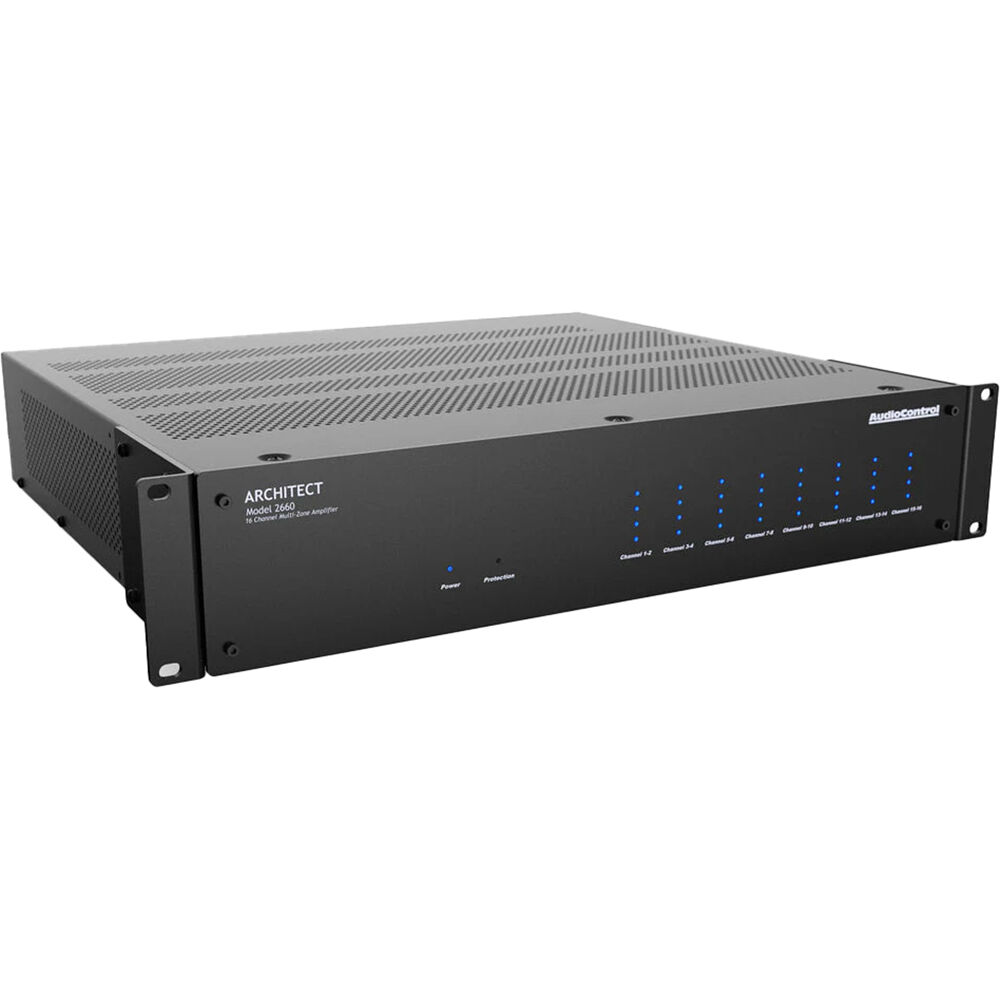

The Architect P2660 16-Channel High-Power Multi-Zone Amplifier (2U) from AudioControl is an audiophile-grade amplifier constructed from high-quality components, delivering 100 watts RMS per channel into 8 ohms, and 200 watts RMS per channel into 4 ohms with all channels driven.
sixteen channels of high-powered amplification are generated by the compact, 2U rack-mountable chassis to 8 available zones, with channel-bridging increasing power to a formidable 400 watts into 8 ohms. Benefitting from 35 years of proprietary cooling design, the Architect series is equipped with features like input bussing, output pass-through, global 12 VDC trigger control with inputs for all eight zones, and input signal sensing on/off. Bus A includes a coaxial S/PDIF input for a digital source, while channels and connected loudspeakers are protected by proprietary LightDrive anti-clipping circuitry.
- 100 watts per channel into 8 ohms (all channels driven)
- 200 watts per channel into 4 ohms (all channels driven)
- Configurable into 8 bridged channels
- Bridged channel power 400 watts into 8 ohms
- Energy-efficient cool operation
- Low standby current draw, 1 watt or less
- Compact 2U rack-mountable
- LightDrive anti-clipping protection circuitry

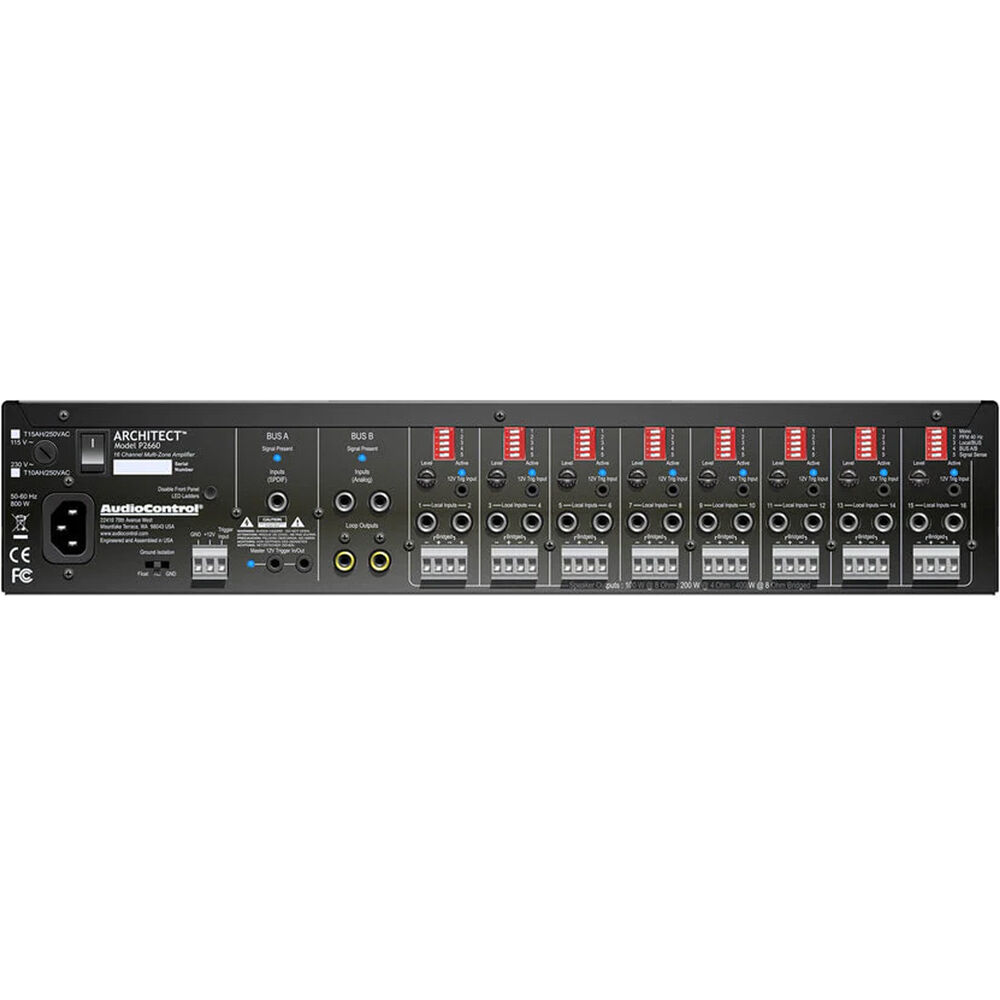

- Analog RCA inputs and digital S/PDIF coaxial RCA input
- Global 12 VDC trigger input and output
- Remote/local zone input trigger
- Signal-sensing on all channels
- Level controls for all input pairs
- Stereo-to-mono switch for easy channel bridging
- Rack-mount brackets included
- AudioControl Architect P2660 16-Channel High-Power Multi-Zone Amplifier (2U)
- Rack-Mounting Hardware
- Speaker Connectors
- Remote Connector
- Power Cord
- Limited 5-Year Manufacturer Warranty
No additional resources available
AudioControl P2660 Specs
| Form Factor/Type |
Tabletop (Rack-Mountable with Included Hardware)
|
| Number of Amplifier Channels |
16
|
| Load Impedance/Voltage Support |
4 / 8 Ohms
|
| Power Rating per Channel |
16x 200 W RMS at 4 Ohms
16x 100 W RMS at 8 Ohms |
| Channel Bridging & Power Sharing |
400 W RMS Bridged at 4/8 Ohms
|
| Protections |
DC Offset, Dynamic Clip, Reactive/Mismatched Load, Short Circuit, Thermal, Ultrasonic
|
| Damping Factor |
> 300
|
| SNR/Noise |
> 105 dB SNR
|
| Crosstalk |
> 80 dB (1 kHz)
|
| Inputs |
Input Sensitivity: Variable 0 to 1 Vrms
Analog Input Sensitivity: 1 Vrms for Full Output (Maximum) |
| Control |
Remote Power Trigger: + 12 VDC or Dry Contact Closure, 2 x 1/8" TS Mono In/Out
|
| Performance |
Gain: 30 dB
DAC Specifications: 32 to 96 kHz Sample Rate, 16/24-Bit Depth |
| DSP |
Yes
|
| Analog Audio I/O |
8x Stereo 2RCA Balanced Input
8x Push Terminal Speaker Output 1x Stereo 2RCA Balanced Output |
| Digital Audio I/O |
1x RCA Coaxial S/PDIF Input
|
| Network I/O |
No
|
| Other I/O |
2x 1/8" / 3.5 mm TS 12 V Trigger In/Out
|
| USB I/O |
No
|
| Wireless |
No
|
| AC Power Connector |
1x IEC
|
| Power Consumption |
42 W (Idle)
338 W (1/8 Power) 2400 W (Max) |
| Display |
No
|
| Rackmount Size |
2 U (with Included Hardware)
|
| Dimensions |
19 x 15.5 x 3.5" / 48.3 x 39.4 x 8.9 cm (with Rack Ears)
17 x 15.5 x 3.5" / 43.2 x 39.4 x 8.9 cm (without Rack Ears) |
| Weight |
20.5 lb / 9.3 kg
|
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
