Description
Atomos Shinobi 7 Overview

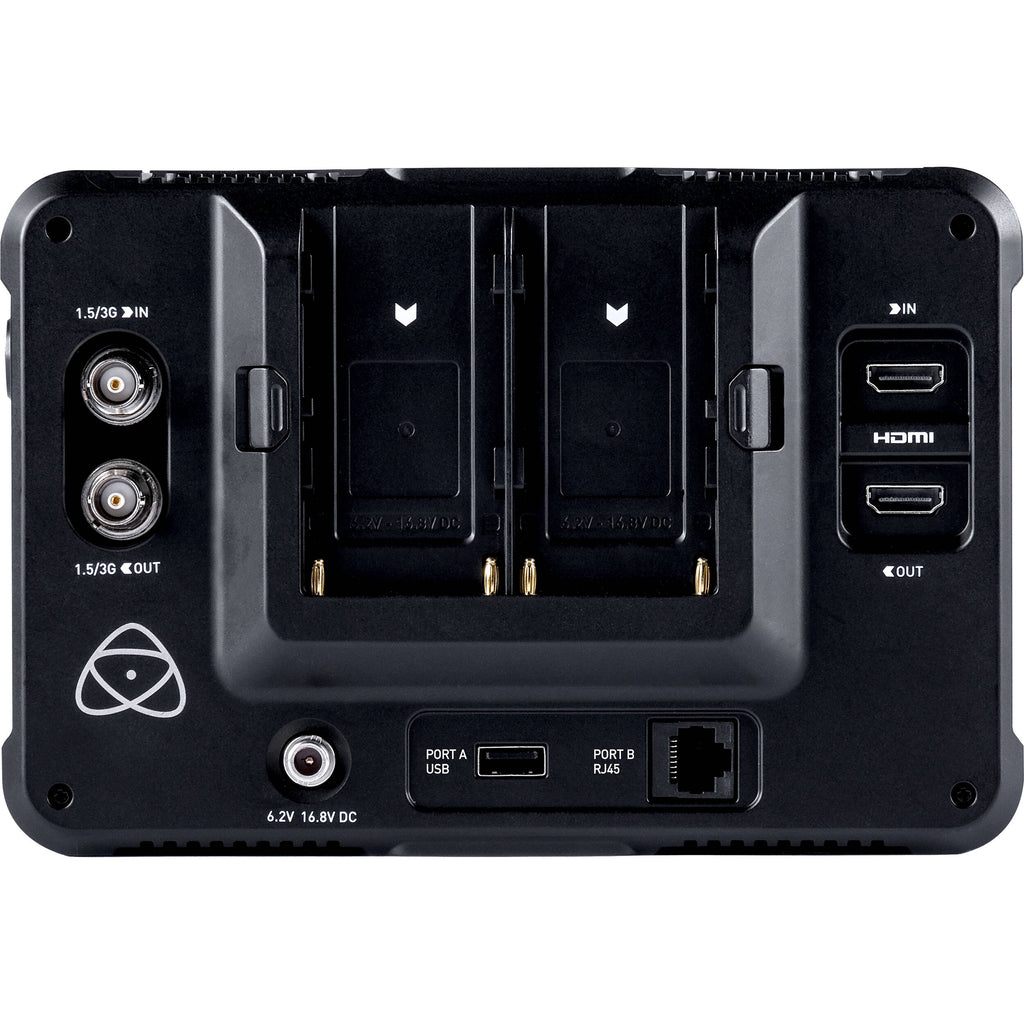

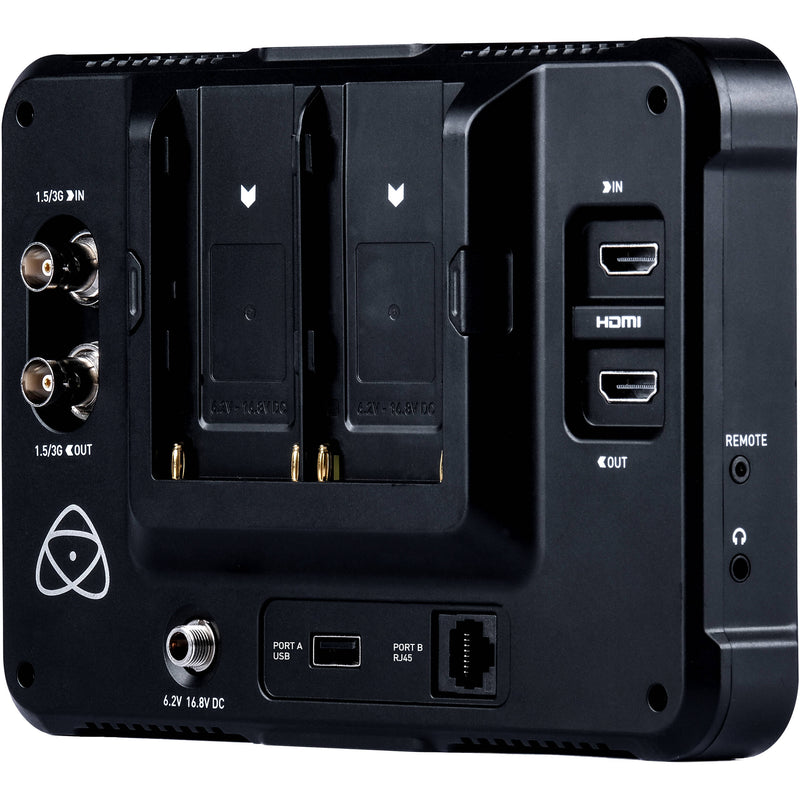

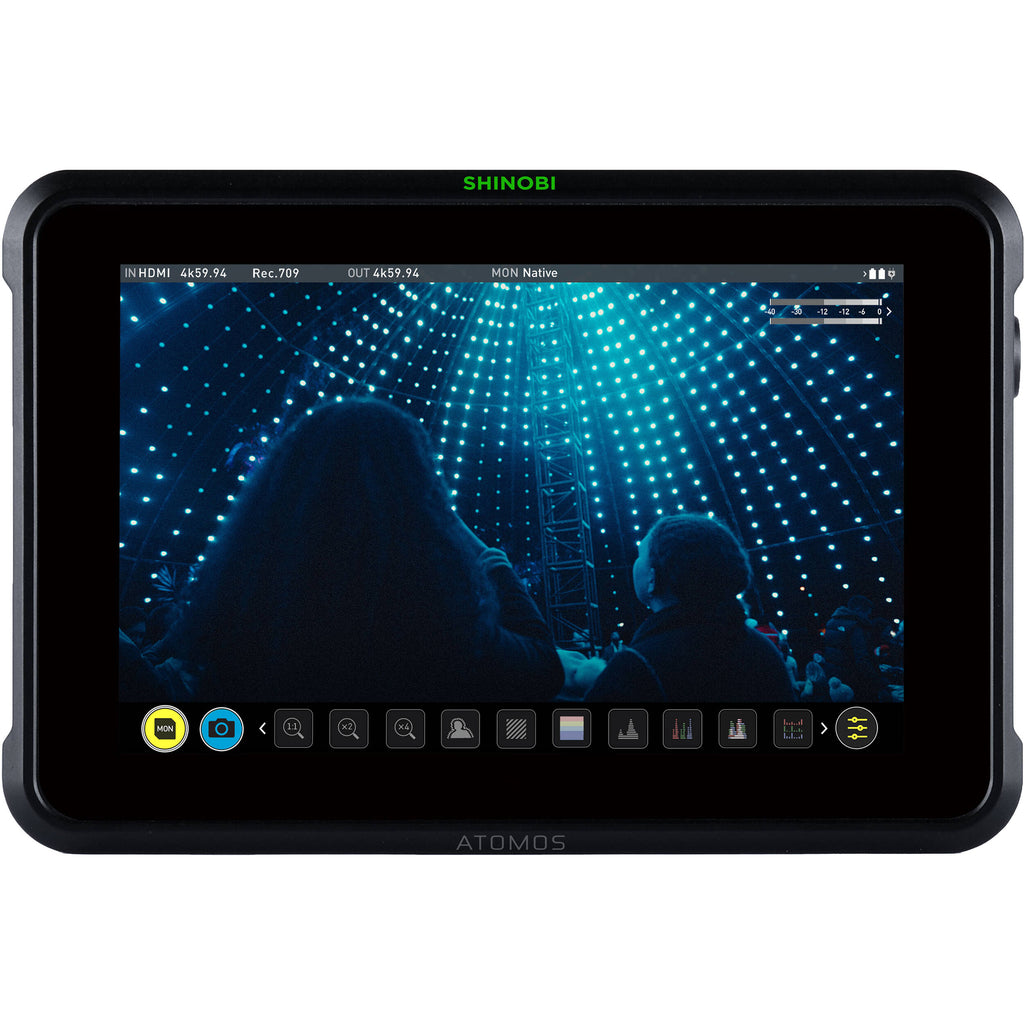

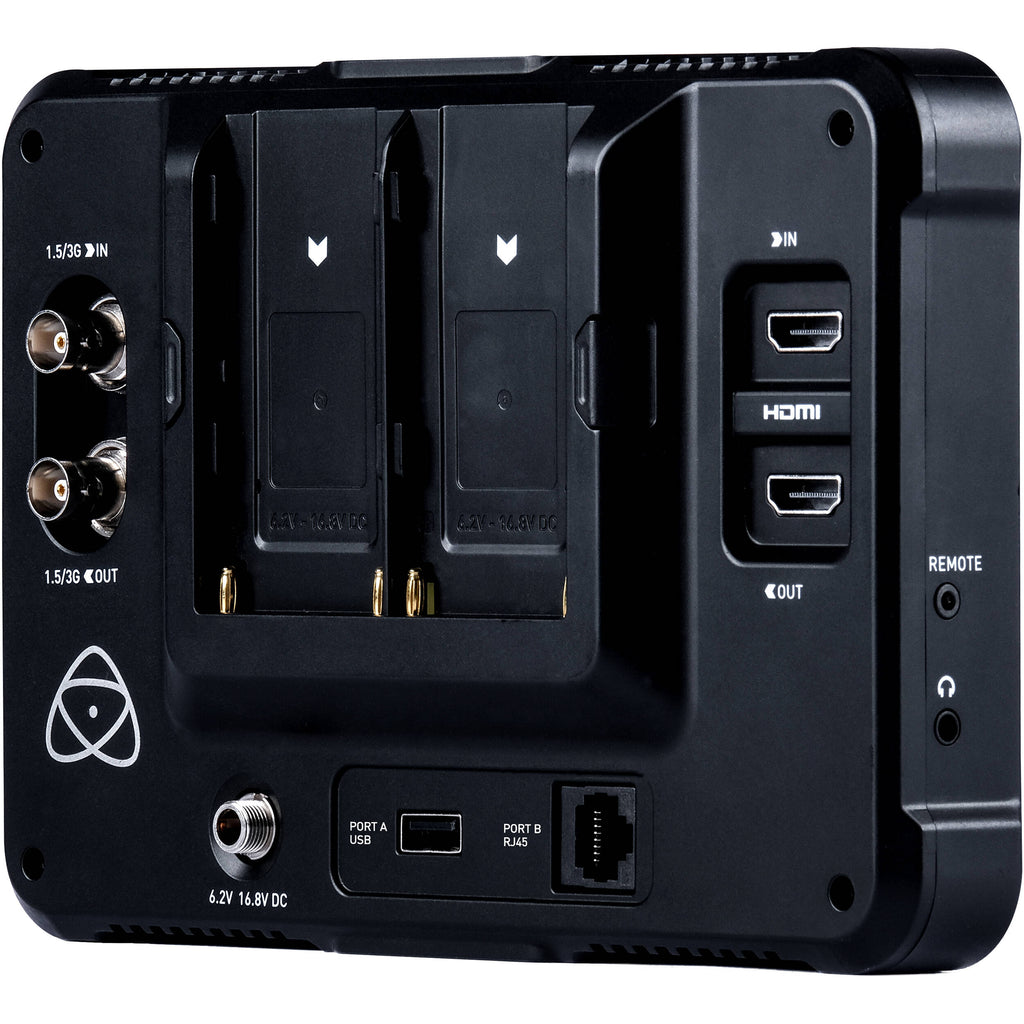

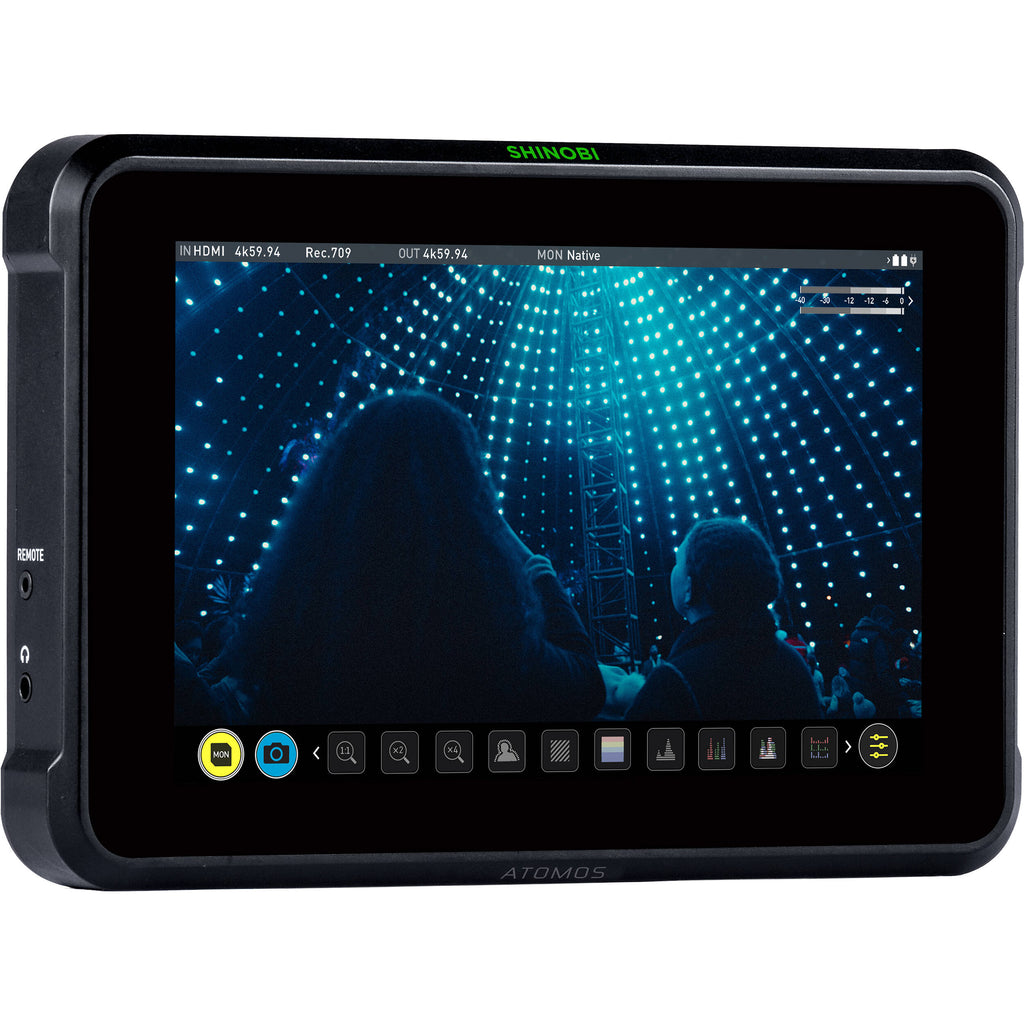

Add a bright, high-resolution monitor to view your 4K/2K footage from a cinema camera such as a Z CAM E2, Panasonic BGH1, or RED KOMODO with the Shinobi 7" 4K HDMI/SDI Monitor from Atomos. This 7" on-camera monitor features a 1920 x 1200 10-bit FRC IPS display with a brightness of 2200 cd/m², which makes it suitable for use in both exterior and interior conditions. This larger model improves on the original Shinobi as it adds 3G-SDI input and loop output up to 2K60, HDMI 2.0 input and loop output up to 4K60, signal cross conversion, a camera control port, dual L-series battery slots, and future possibilities with its built-in USB and RJ45 ports.
The touchscreen Shinobi 7 runs the latest AtomOS firmware that features a variety of onscreen analysis tools such as multi-scope views, exposure, framing, focus assist, waveform, RGB parade, and histogram tools. It also features an SDI card input to load custom 3D LUTs, and it supports SDR and HDR viewing. The AtomHDR display technology allows you to accurately monitor your log gamma footage without having to view flat, washed-out images or use a LUT to compress the dynamic range and color space. The monitor supports popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras.
It also supports camera control using its 2.5mm control port and optional cables, and it currently supports control of the Z CAM E2 series of cinema cameras. Built to withstand the rigors of production, the Shinobi 7 features a lightweight chassis and powers from a dual L-series battery plate or using the included power adapter.
- ARRI Log CEI160 / CEI200 / CEI250 / CEI320 / CEI400 / CEI500 / CEI640 / CEI800 / CEI1000 / CEI1280 / CEI1600
- Canon CLog / CLog 2 / CLog 3
- Fuji F-Log
- JVC JLog
- Nikon N-Log
- Sony SLog / SLog2 / SLog3
- Panasonic Vlog
- RED Log3G10 / RED LogFilm
- PQ10k
- HLG
- Sony SGamut / SGamut3 / SGamut3.cine
- Canon Cinema / DCI P3 / DCI P3+
- Panasonic V Gamut
- ARRI ALEXA Wide Gamut
- Rec. 709 / BT.2020
- JVC
- RED WideGamut / RED DragonColor / DragonColor2
- RED Color2 / RED Color3 / RED Color4
In the Box
- Atomos Shinobi 7" 4K HDMI/SDI Monitor
- Universal Power Adapter
Atomos Shinobi 7 Specs
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Resolution | 1920 x 1200 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Maximum Brightness | 2200 cd/m2 |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| HDR Compatibility | Advanced HDR |
| Pixels Per Inch (ppi) | 325 ppi |
| Real-Time LUT Monitoring | SDR, HDR |
| Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
| Video I/O | 1 x HDMI 2.0 Input 1 x BNC (3G-SDI) Input 1 x HDMI 2.0 Loop Output 1 x BNC (3G-SDI) Loop Output |
| Embedded Audio | HDMI: 2-Channel SDI: 8-Channel |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x Barrel (16.8 VDC) Input |
| Other I/O |
1 x 2.5 mm (LANC) Output 1 x USB-A 2.0 Input 1 x RJ45 Input/Output |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC |
| Wi-Fi | None |
| Video Format | HDMI (8/10-Bit 4:2:2) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI (8/10-Bit 4:2:2) DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Gamma Curve | ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, HDR-HLG, HDR-PQ, JVC J-Log, Panasonic V-Log, REDlogFilm, Rec2020, Rec709, Sony S-Log 2, Sony S-Log 3 |
| Video Signal Conversion | HDMI to SDI SDI to HDMI |
| DC Input Power | 6.2 to 16.8 VDC |
| Battery Type | 2 x L-Series |
| Power Consumption | 4 W (Typical) 7 W (Maximum) |
| Mounting | 2 x 1/4"-20 Female |
| Operating Temperature | 32 to 104°F / 0 to 40°C (Recommended) |
| Material of Construction | Plastic |
| Dimensions | 7.8 x 5.2 x 1.5" / 198 x 133 x 39 mm |
| Weight | 1.3 lb / 577 g |
| Package Weight | 2.695 lb |
| Box Dimensions (LxWxH) | 9.5 x 7.8 x 3.8" |
Atomos Shinobi 7 Reviews
Great Monitor
Solid monitor, great screen and awesome user interface. Fan noise was a bit surprising but you can adjust the fan to go on less.
Great for the price
Pros: -Inexpensive -Bright -Lightweight Cons: -Interface is not very good compared to SmallHD -Seems to be a small amount of ghosting when in full brightness. Not a huge deal but can give you the impression there's less noise in the image than there really is. -In very high heat, it can clamp down on brightness. I haven't found a setting to disable this.
Excelente
Espectacular!!
Nice screen, not so nice build quality
The Shinobi 7 is a nice, bright monitor with all the scopes you need but I have to knock a couple of stars down for build quality. On my unit, it's very hard to get the HDMI cable out of the port and my HDMI cable was messed up when taking it out. I'm also not sure what kind of glass they're using on the monitor but it won't hold up to being hit at all. The screen got hit on the first day of use and it's got a nice crack in it. To be fair, it was a direct hit but I feel like it could be more durable. I also don't think this thing could stand a drop, so it would be wise to get some protection for it. I know you get what you pay for but I wouldn't mind paying a little more for something built a little sturdier.
Bright and Perfect
Running two 970's this thing lasts all day, it's bright I have no complaints everything I needed and expect from Atomos products
Can't sync to 60FPS 1080P
I mean, really? I'll probably have to return it. It just constantly blacks out for a few seconds when it's receiving 60FPS 1080P video, whether from SDI or HDMI, directly from camera or across three different wireless video systems. Defective? Maybe. But my Ninja V has similar problems with certain inputs, though at least it handles 1080/60 reliably.
Monitor For Video Switchers, Cameras, and Streaming
I needed a larger, yet portable monitor for use with video switching and streaming. The Shinobi 7 has both HDMI and SDI inputs, and looping outputs, and fits my needs perfectly. In particular, I need a good multi-view monitor, without the size and weight of rack-mounted components. The Shinobi runs a very long time on NP-F batteries, or an AC power supply.
Crapped out on me
This monitor died after a few hours of use on a really important shoot and screwed me good. Now they are taking 3-4 weeks to try and repair it. NEVER AGAIN!!
