Description

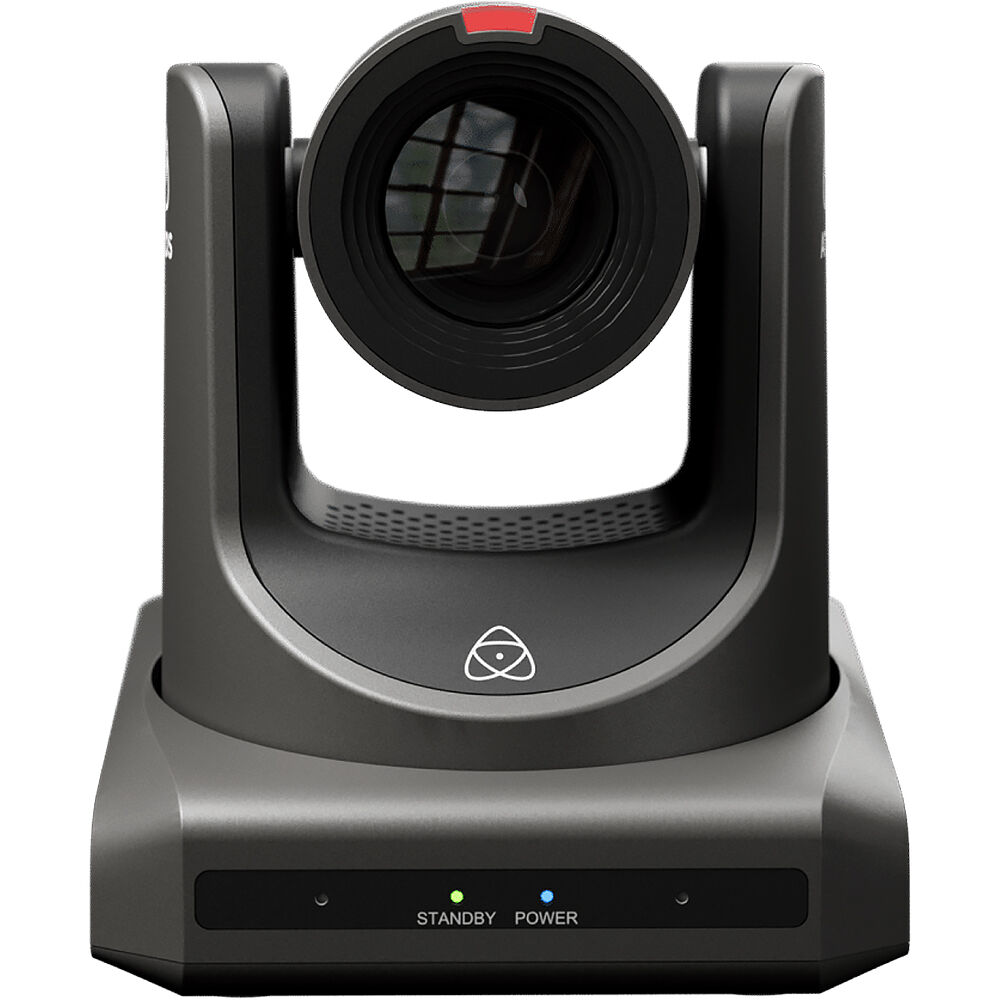

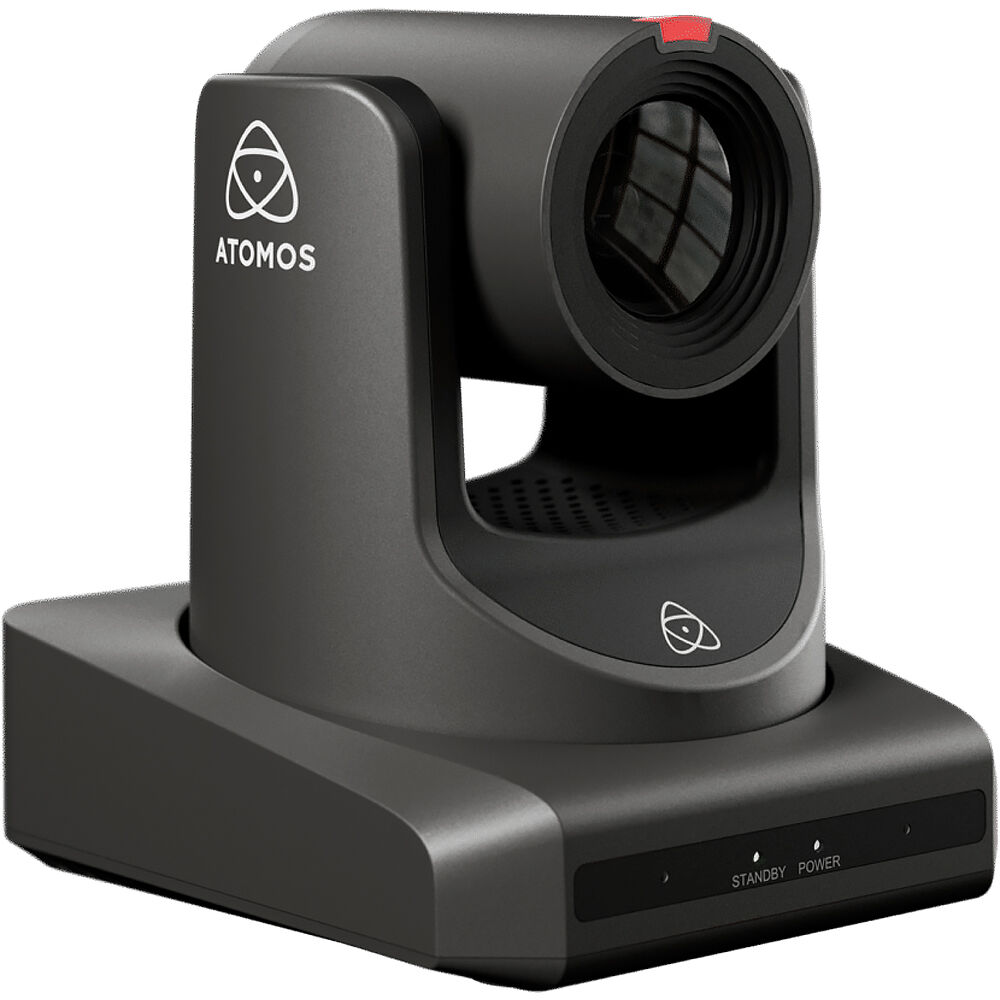

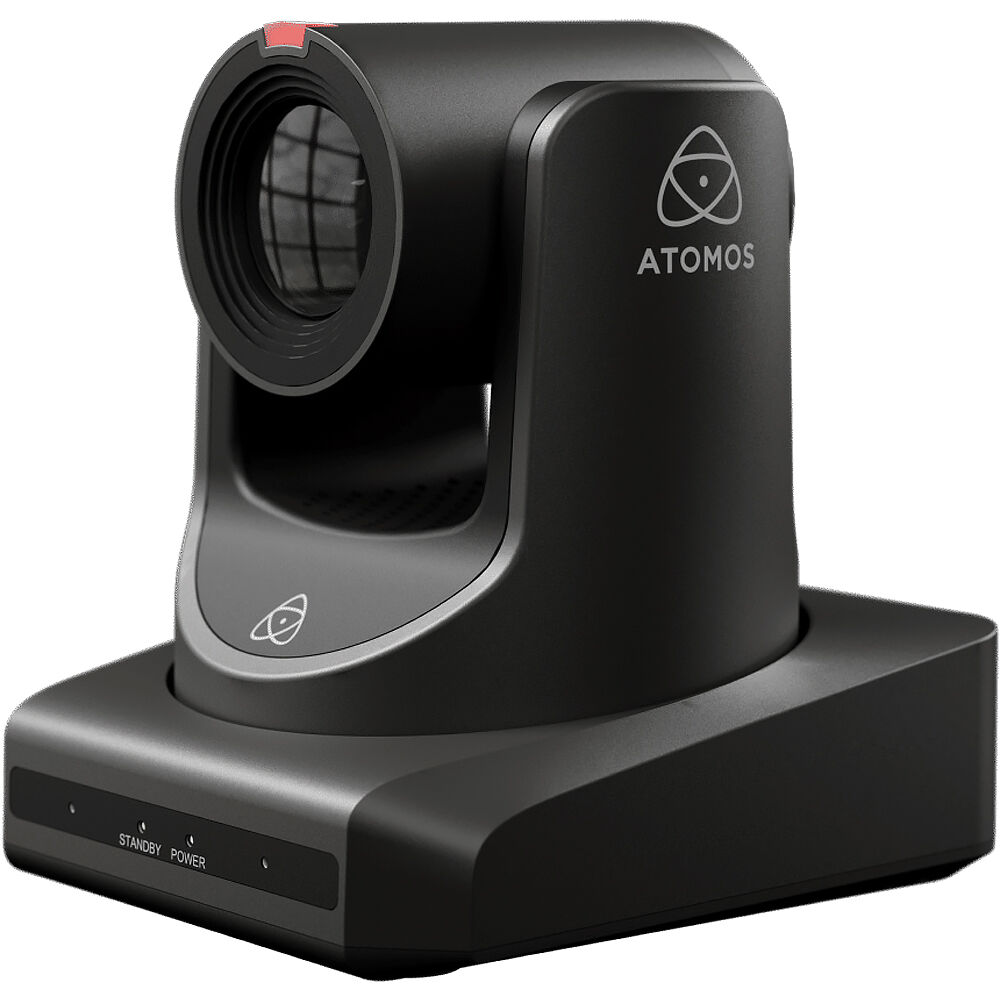

Atomos A-Eye HD 20x Overview
Add a high-resolution streaming and tracking camera to your classroom, house of worship, or conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with the A-Eye HD-20X PTZ Camera with 20x Optical Zoom from Atomos. The A-Eye HD-20X camera captures HD resolutions up to 2K60 (2048 x 1080) over IP, HDMI, USB-A, and 3G-SDI, and it features AI auto-tracking for presentations where your subject moves around the room. It is great for education, how-to videos, and corporate environments without the need for an operator. It also includes a license for NDI|HX3 high-quality, low-latency streaming networks.
The built-in zoom lens has an optical zoom range of 20x and further 16x digital zoom for closer shots. You can remotely control the camera to rapidly move between positions using IP or RS-485 with a separately available controller. Video output is compressed using H.265, H.264, or MJPEG formats. The camera features a built-in mic and supports external audio input via a 3.5mm stereo line-level jack for embedding audio into your stream. Power is provided by power adapter or via PoE+ (Power-over-Ethernet) on a supported network.
- 1/2.8" CMOS sensor
- Effective pixels: 2.07MP up to HD 2K60
- Includes NDI|HX3 license
- 20x optical zoom, 16x digital zoom
- HDMI, 3G-SDI, USB-A 3.0, and IP outputs
- 3.5mm stereo audio in/out and built-in mic
- RS-232 serial in/out
- UVC, RS-485 serial, and IP VISCA control
- Supports H.265/H.264/MJPEG compression
- DC and PoE+ support
- Tally lights
- AI tracking
- For education, houses of worship, and budget-friendly productions
NOTE: USB 3.0 outputs video but does not support recording
Items Included
- Atomos A-Eye HD-20X PTZ Camera with 20x Optical Zoom
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Atomos A-Eye HD 20x Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2.07 Megapixel
|
| Max Optical Zoom |
20x
|
| Max Digital Zoom |
16x
|
| Video Output |
SDI/BNC / HDMI / RJ45 / USB
DCI 2K (2048 x 1080) up to 60.00 fps |
| Broadcast Output |
NTSC/PAL
|
| Supported Protocols |
Camera Control Protocol
NDI|HX3/VISCA/RS-232/RS-485/IP |
| Wireless |
No
|
| PoE Support |
PoE+ 802.3at
|
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2.07 Megapixel
|
| IR Cut Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
| Max Optical Zoom |
20x
|
| Max Digital Zoom |
16x
|
| Video Output |
SDI/BNC / HDMI / RJ45 / USB
DCI 2K (2048 x 1080) up to 60.00 fps |
| Embedded Audio |
HDMI/IP/NDI/SDI/USB
|
| Audio Recording |
AAC Audio
|
| Broadcast Output |
NTSC/PAL
|
| Supported Protocols |
Camera Control Protocol
NDI|HX3/VISCA/RS-232/RS-485/IP |
| Pan/Tilt |
Tilt: 120? (-30 to 90?) at 1.7 to 100?/s
Pan: 340? (-170 to 170?) at 1.7 to 69.9?/s |
| Tally Light |
Yes
|
| Wireless |
No
|

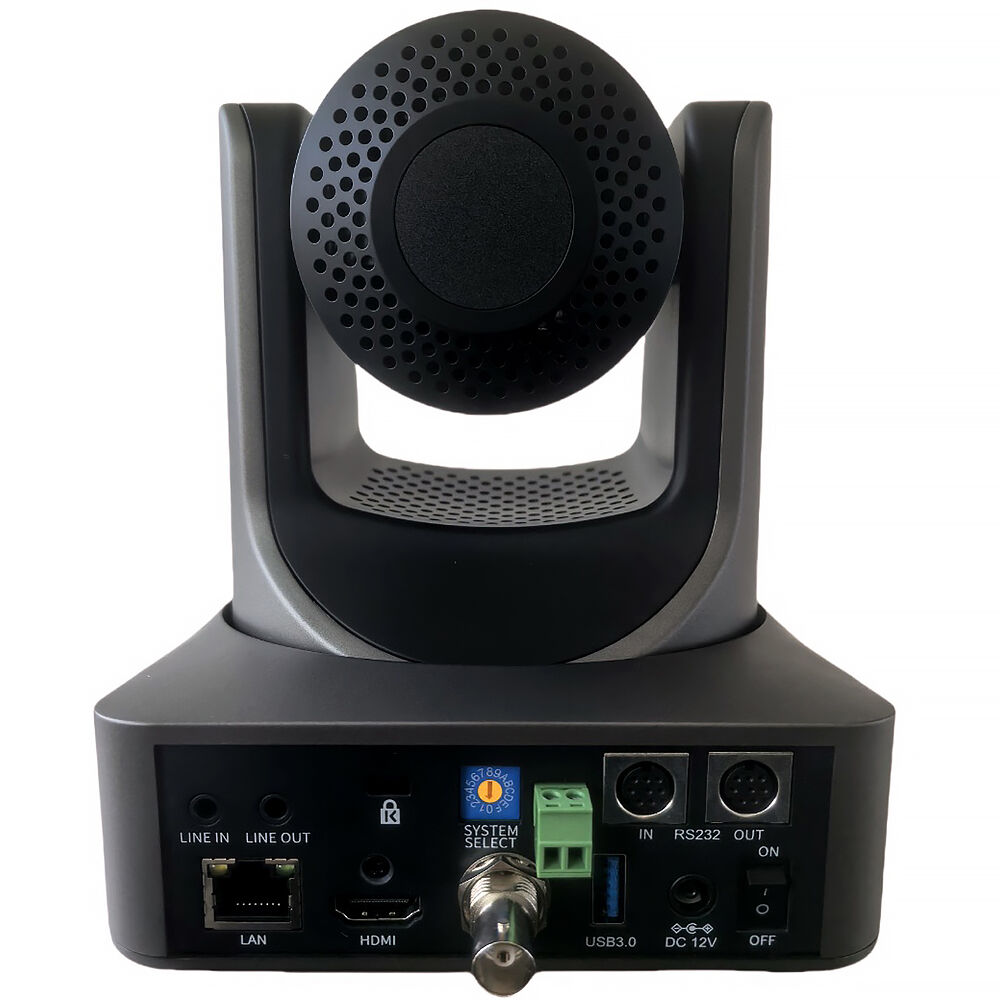

| Video I/O |
1x HDMI 1.4 Output
1x BNC (3G-SDI) Output 1x RJ45 (NDI) Output 1x USB-A 3.0 / 3.1/3.2 Gen 1 Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
1x 1/8" / 3.5 mm TRS Stereo Line Output |
| Other I/O |
1x Mini-DIN 8-Pin (RS-232) Control Input
1x Mini-DIN 8-Pin (RS-232) Control Output 1x Block 2-Pin (RS-485) Control Input/Output 1x USB-A (USB 3.0) |
| Built-In Microphone |
Stereo
|
| Built-In Speaker |
No
|
| PoE Support |
PoE+ 802.3at
|
| Power I/O |
1x DC (12VDC) Input
|
| Package Weight |
7.125 lb
|
| Box Dimensions (LxWxH) |
11.5 x 9.6 x 9.4"
|
