Description

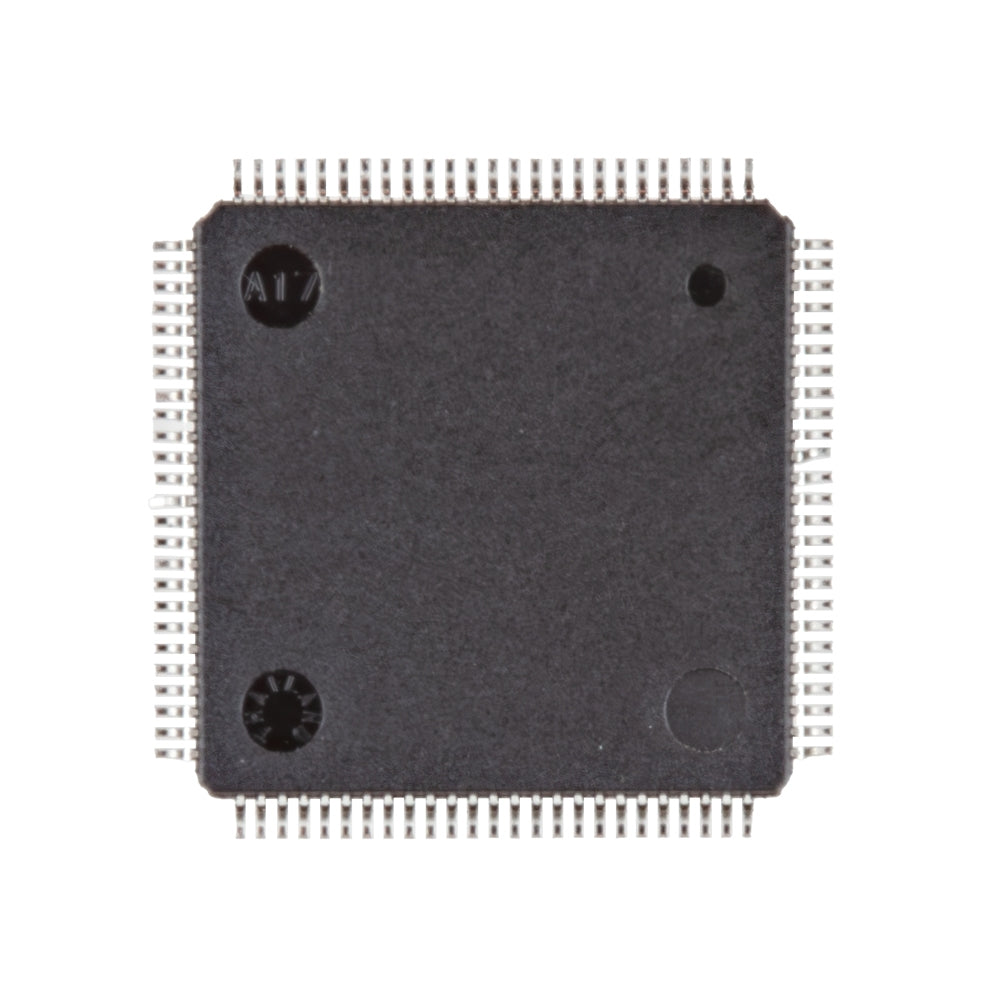

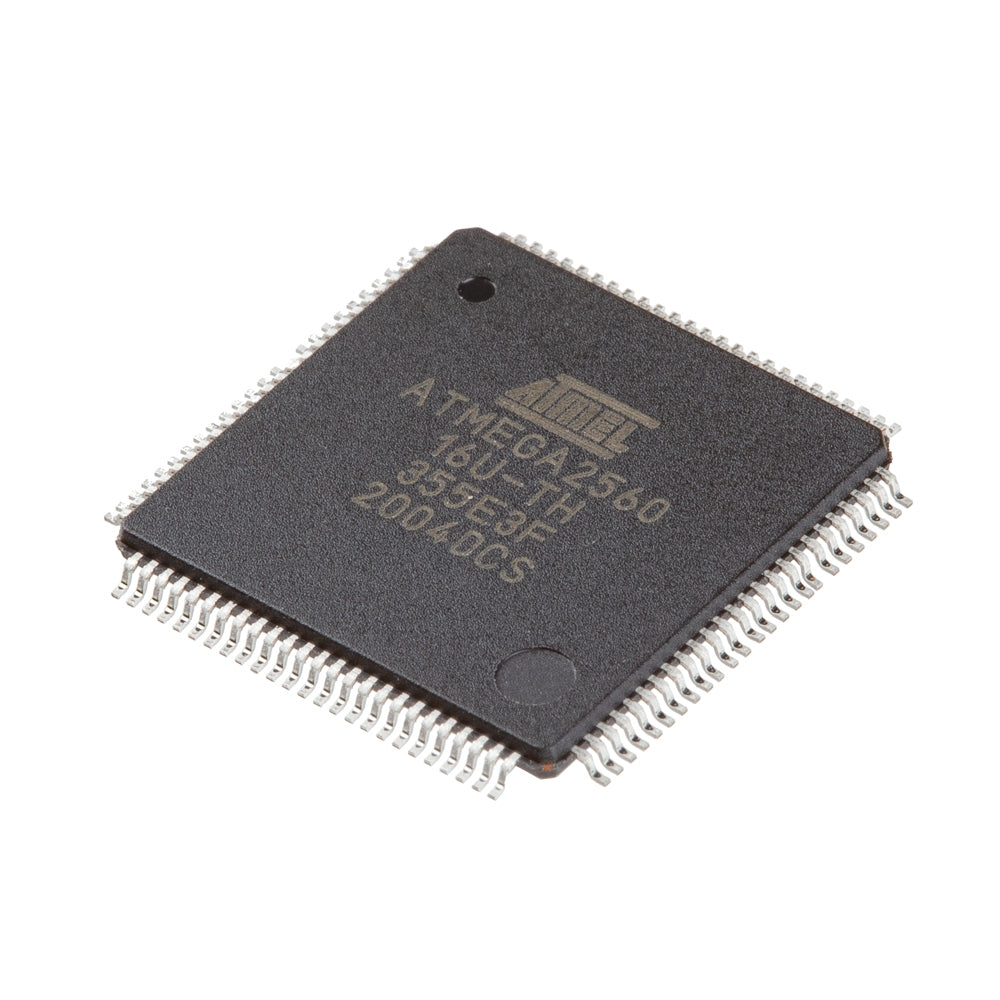

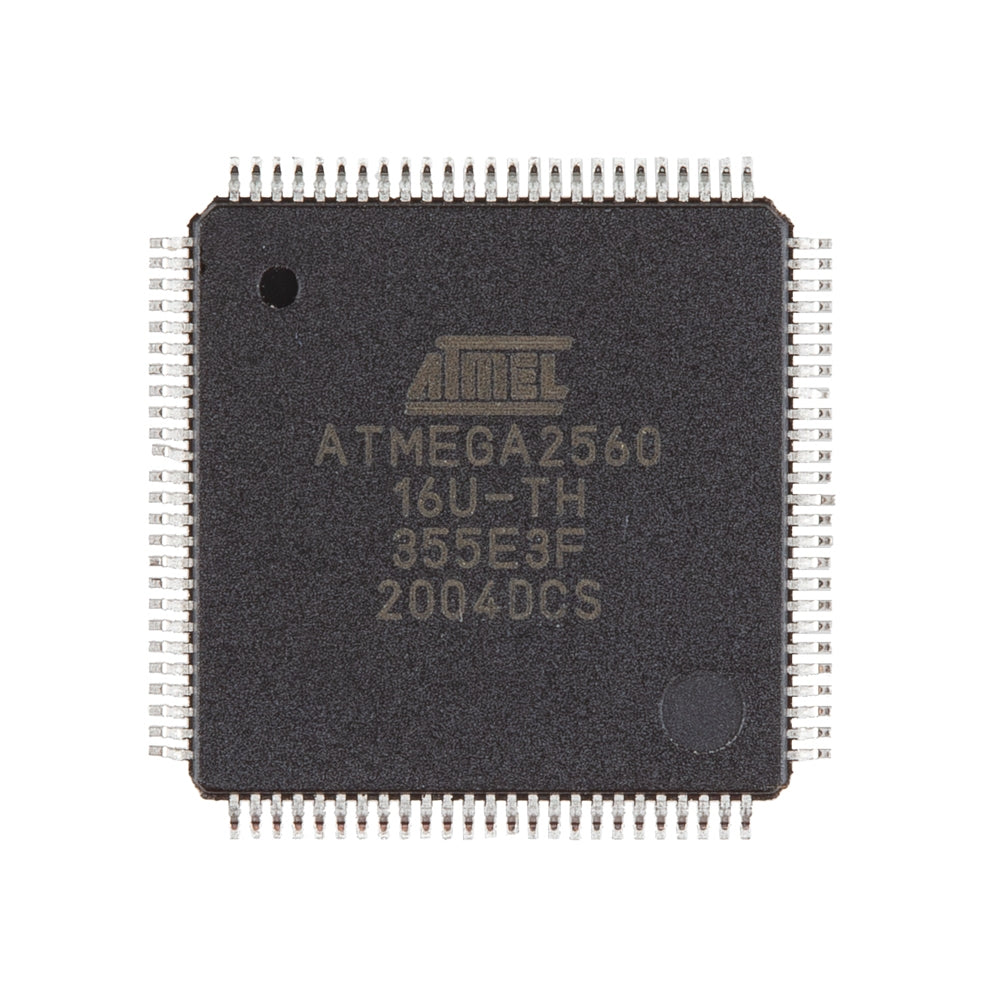

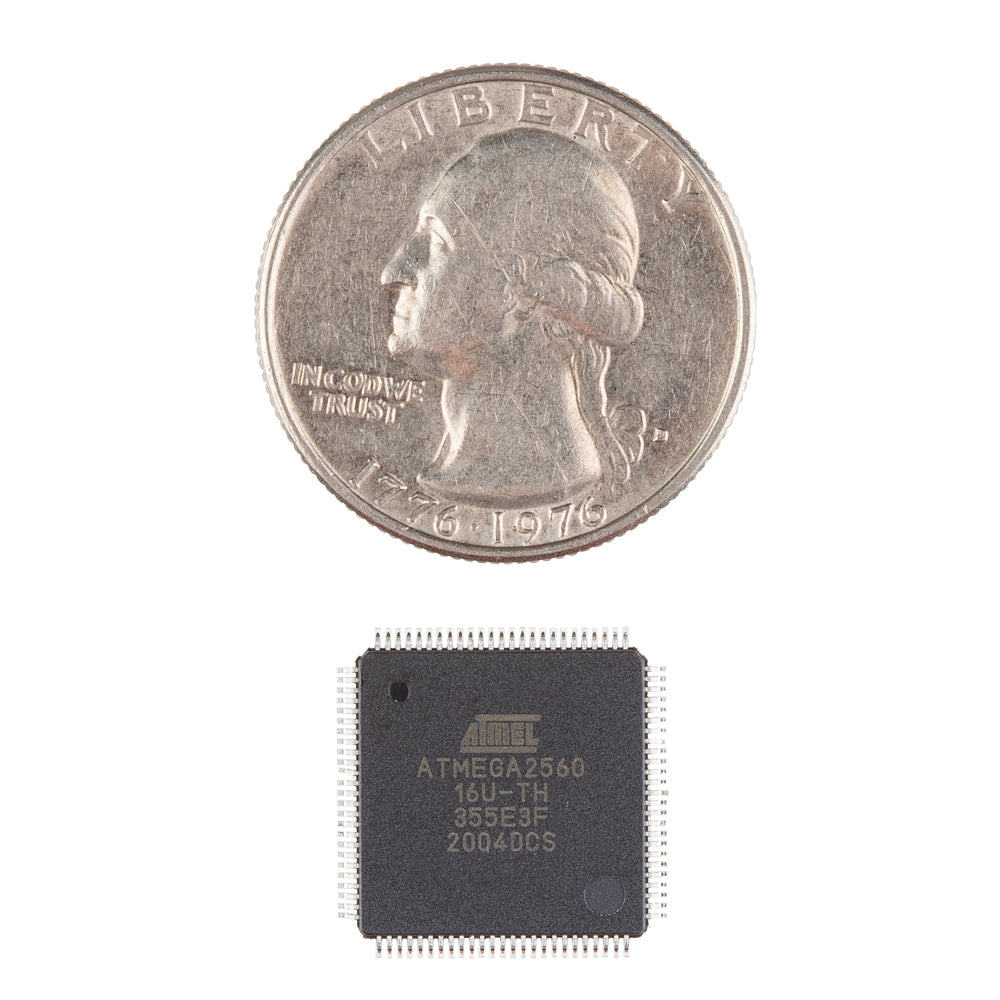

The ATMEGA2560-16AUR is the high-performance, 16MHz 8-bit AVR microcontroller from the Arduino Mega, featuring 256KB of Flash and 86 I/O lines for large-scale projects.
Features & Specs
- Core Processor: AVR
- Core Size: 8-Bit
- Speed: 16MHz
- Connectivity: EBI/EMI, I2C, SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
- Number of I/O: 86
- Program Memory Size: 256KB (128K x 16)
- Program Memory Type: FLASH
- EEPROM Size: 4K x 8
- RAM Size: 8K x 8
- Voltage - Supply (Vcc/Vdd): 4.5V ~ 5.5V
- Data Converters: A/D 16x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Mfg #: ATMEGA2560-16AUR
Features & Specs
- Core Processor: AVR
- Core Size: 8-Bit
- Speed: 16MHz
- Connectivity: EBI/EMI, I2C, SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
- Number of I/O: 86
- Program Memory Size: 256KB (128K x 16)
- Program Memory Type: FLASH
- EEPROM Size: 4K x 8
- RAM Size: 8K x 8
- Voltage - Supply (Vcc/Vdd): 4.5V ~ 5.5V
- Data Converters: A/D 16x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Mfg #: ATMEGA2560-16AUR
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3101.7 |
| 3-5 | ₹ 3070.05 |
| 5-10 | ₹ 3006.75 |
| 10+ | ₹ 2943.45 |
Bulk discount will be automatically applied during checkout based on quantity.
