Description
AtlasIED FC4 Overview

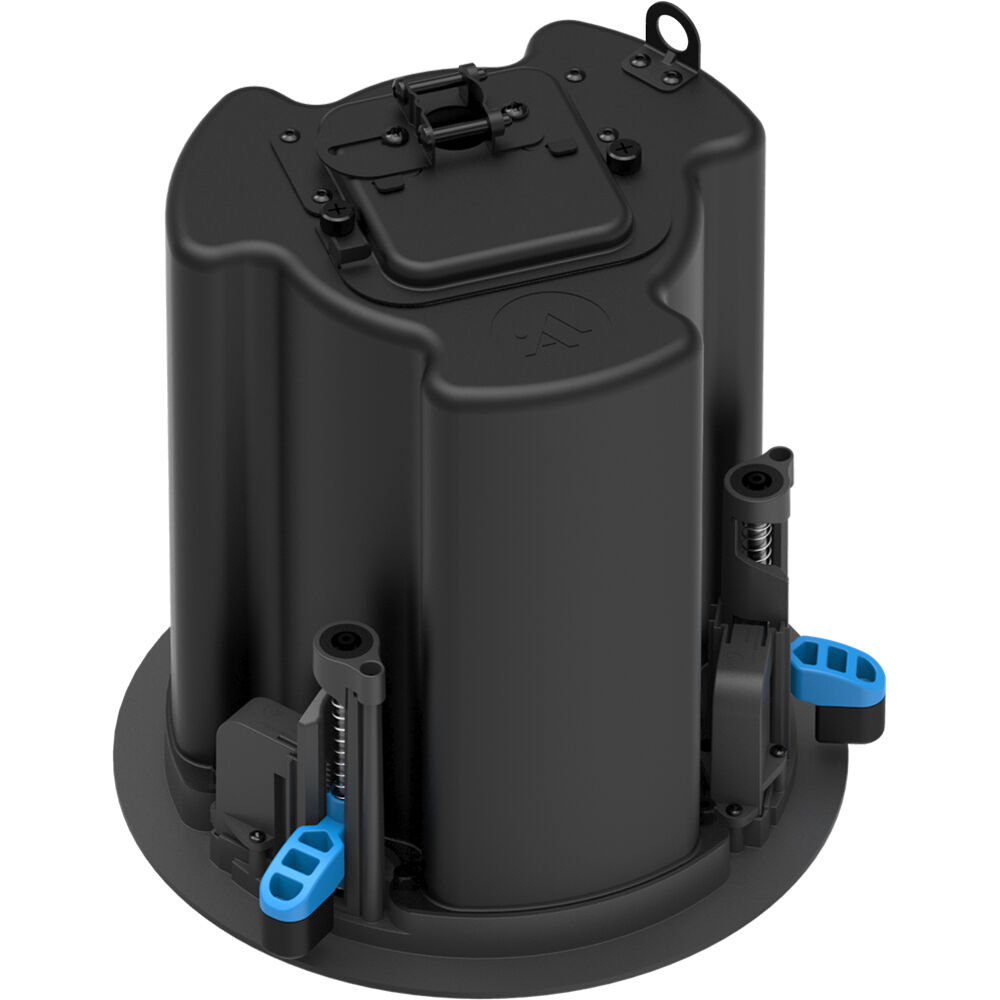

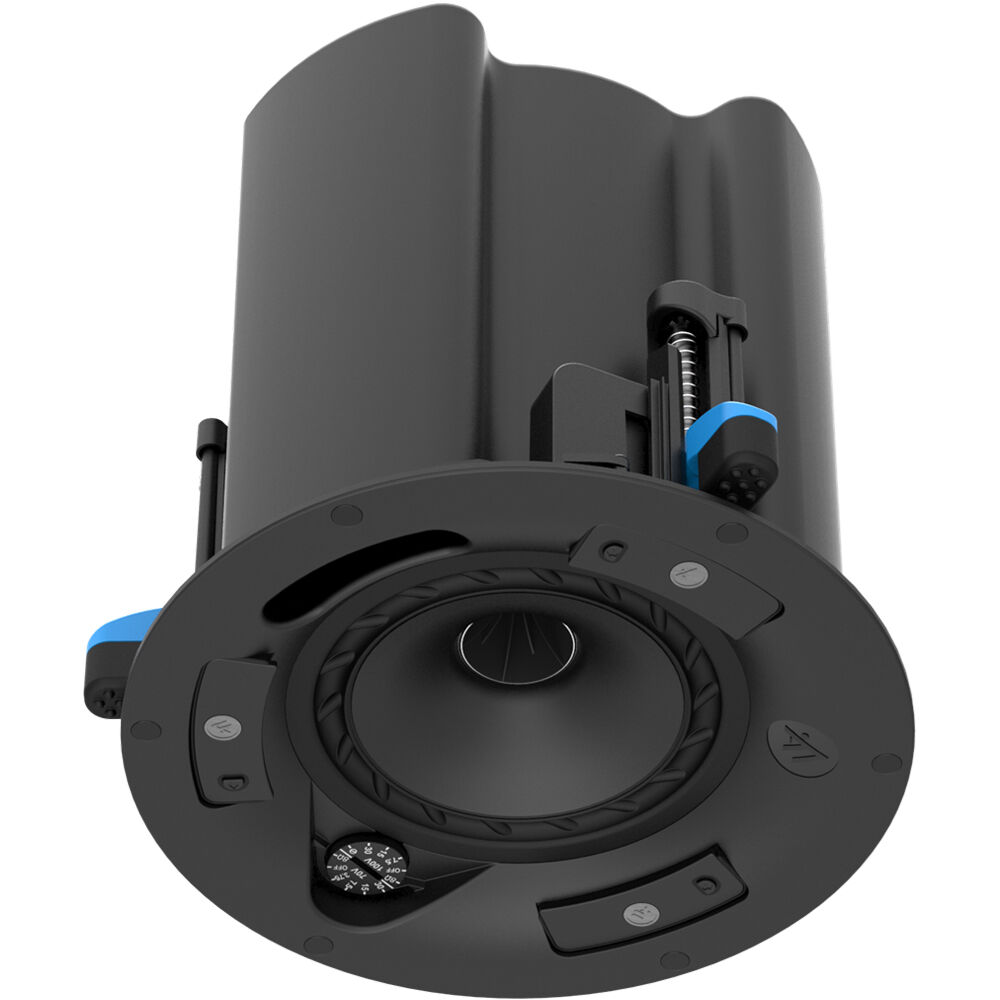

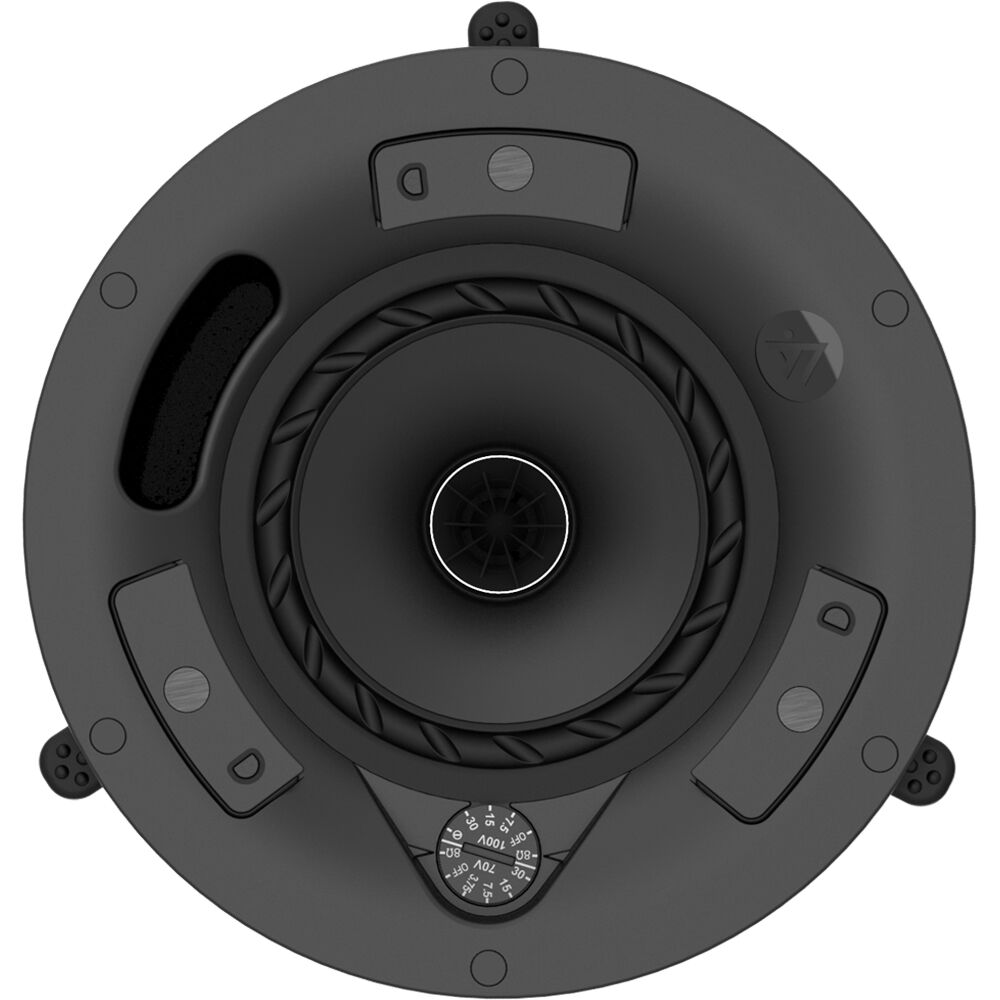

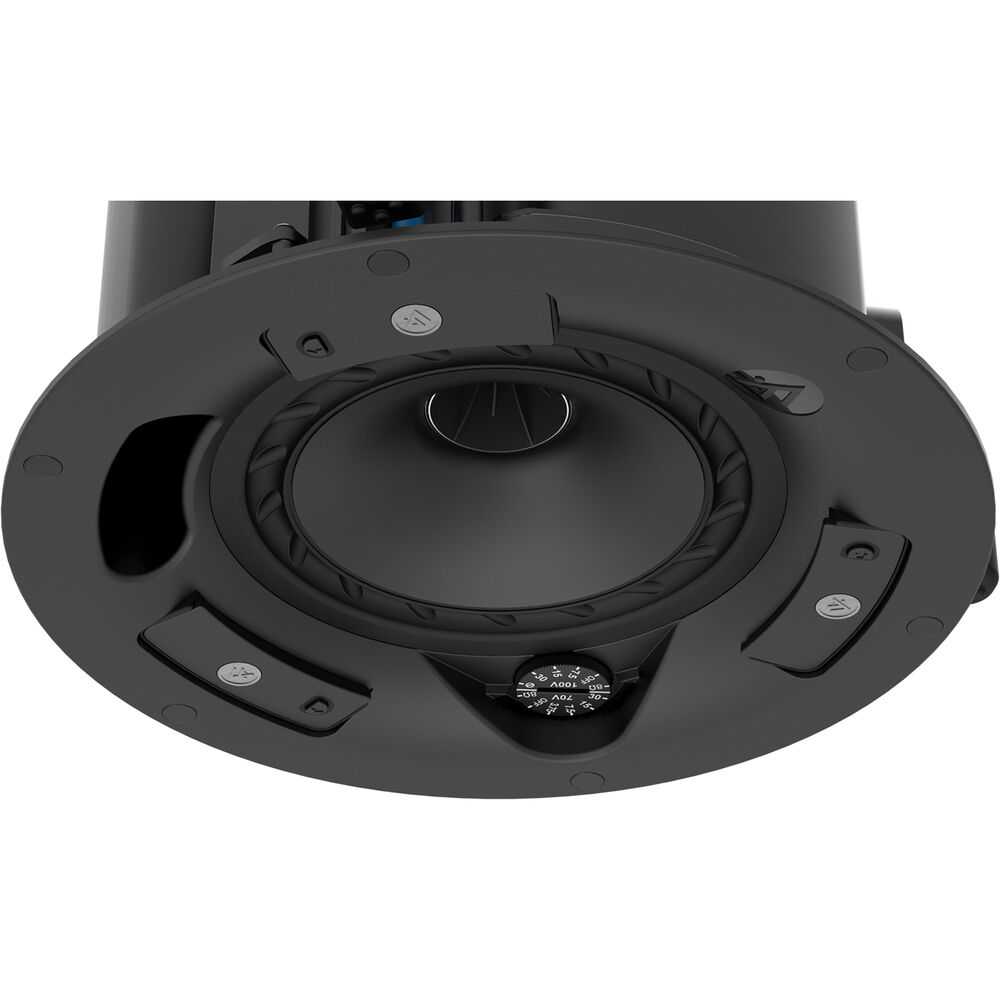

Sporting advanced IsoFlare technology for superb tonal balance and excellent coverage, the AtlasIED FC-4T is a high-sensitivity, wide-bandwidth ceiling loudspeaker sporting a ferrofluid-cooled titanium HF driver, a 4" polypropylene mid/bass driver with an optimized smooth-transition baffle to avoid diffraction. With up to 60W RMS power handling, the FC-4T is ideal for a wide range of environments.

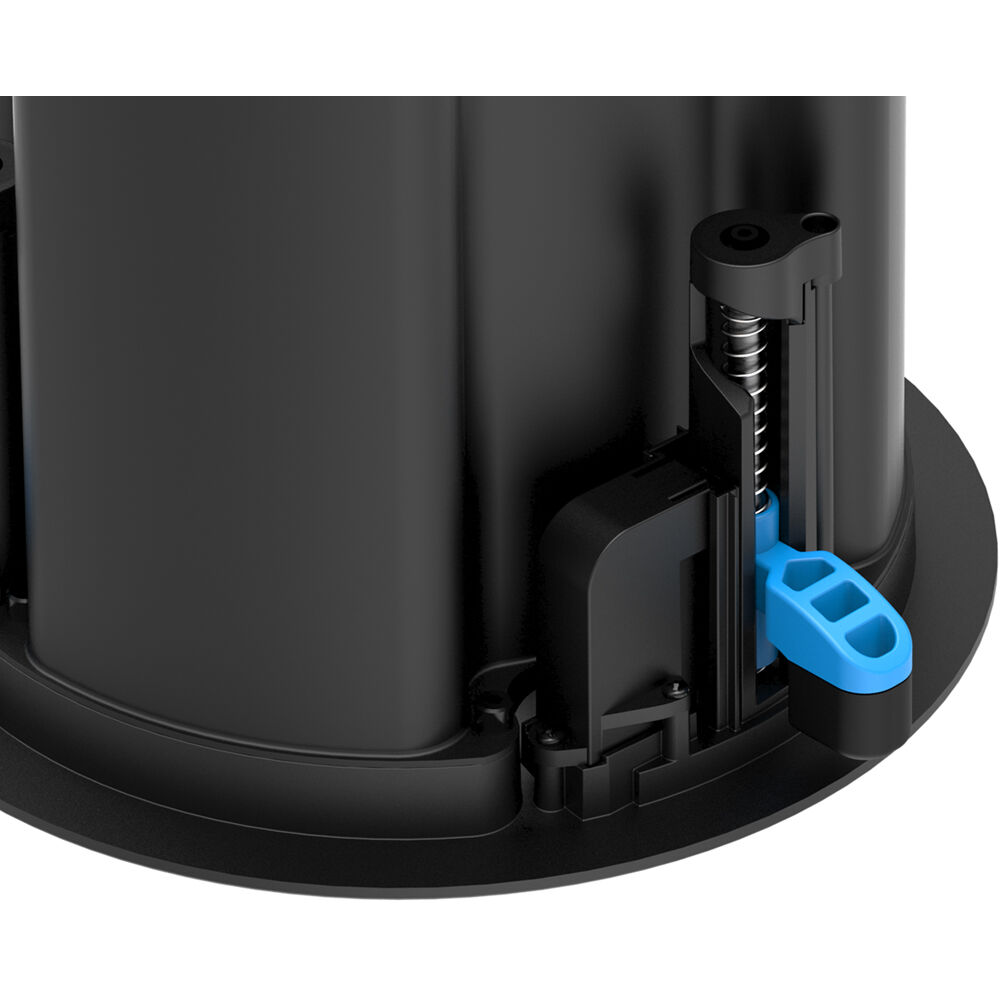

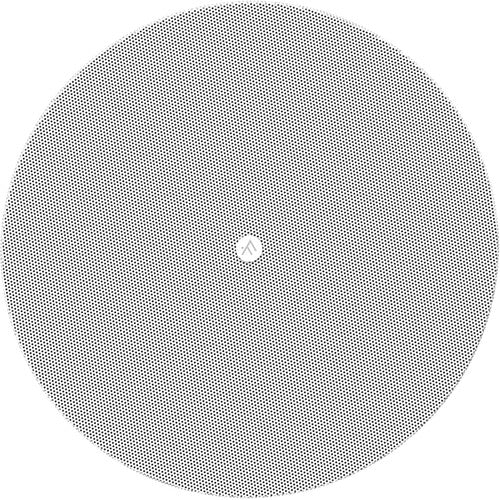

The loudspeaker is equipped with a 30W 70/100V multitap transformer with taps for 30, 15, 7.5, and 3.8W as well as a direct 8-ohm, low-impedance mode. Refined for premium sonic quality and aesthetics, the FC-4T provides a range of functionally useful and distinctive design features, including a magnetically attached bezel-free grille, a weather-treated multi-fiber cone that offers stiffness with controlled high-end roll off, Fluted Surround technology to avoid reflecting energy back down the cone, and high-current crossover components, including an air core inductors and polypropylene capacitors. The patented toolless high-travel secure-clamp mechanism makes installation fast and trouble free. And with the AtlasIED Atmosphere software platform, you can easily access enhanced voicing presets.
- Boardrooms and corporate offices
- Airports, convention centers, hotels
- Casinos
- Houses of worship
- Retail outlets and shopping malls
- Museums
- Lounges and bars
- Sports facilities
- Health clubs
- Performing arts centers
- Educational facilities
- Cruise ships
- Courtrooms
- Multizone foreground music and paging systems
Items Included
- AtlasIED IsoFlare FC-4T 4" Ceiling Speaker (Blind Mount, Pair)
Additional Resources
AtlasIED FC4 Specs
| Active/Passive |
Passive
|
| Number of Included Speakers |
2
|
| Speaker Configuration |
2-Way
|
| Power Handling |
60 W RMS
120 W Program 240 W Peak |
| Constant Voltage / Transformer Taps |
100 V
30 / 15 / 7.5 / 3.8 W or 8 Ohms Bypass 70 V 30 / 15 / 7.5 / 1.9 W or 8 Ohms Bypass |
| Impedance |
8 Ohms
|
| HF Driver |
1x 0.75" / 1.91 cm Titanium Dome
|
| LF Driver |
1x 4" / 10.2 cm Polypropylene
|
| Frequency Range |
62 Hz to 30 kHz -10 dB
|
| Color |
Black
|
| Active/Passive |
Passive
|
| Number of Included Speakers |
2
|
| Speaker Configuration |
2-Way
|
| Power Handling |
60 W RMS
120 W Program 240 W Peak |
| Recommended Amplifier Power |
120 W
|
| Constant Voltage / Transformer Taps |
100 V
30 / 15 / 7.5 / 3.8 W or 8 Ohms Bypass 70 V 30 / 15 / 7.5 / 1.9 W or 8 Ohms Bypass |
| Impedance |
8 Ohms
|
| Transformer Wattage |
30 W
|
| Enclosure Type |
Bass-Reflex
|
| HF Driver |
1x 0.75" / 1.91 cm Titanium Dome
|
| LF Driver |
1x 4" / 10.2 cm Polypropylene
|
| Magnet |
HF:
Neodymium |
| Frequency Range |
62 Hz to 30 kHz -10 dB
|
| Frequency Response |
80 Hz to 22 kHz ?3 dB
|
| Maximum SPL |
106 dB (Continuous)
112 dB (Peak) |
| Sensitivity |
88 dB
|
| Coverage Angle |
100? (Conical)
|
| Directivity |
4.7 dB (Directivity Index)
|
| Inputs/Outputs |
Block Speaker Input/Thru (Locking, Removable)
|
| Certifications |
CE, UL1480A, UL2043
|
| Environmental Resistance |
Dust/Water-Resistant (IP44)
|
| Operating Conditions |
-40 to 140?F / -40 to 60?C
|
| Color |
Black
|
| Mounting |
Ceiling Tile
|
| Cutout Size |
7.5" / 19.1 cm
|
| Rotation Range |
No
|
| Construction Material |
ABS, Steel
|
| Dimensions |
28 x 14.6 x 11.8" / 71.1 x 37.1 x 30 cm
|
| Weight |
7.9 lb / 3.6 kg
|
