Description

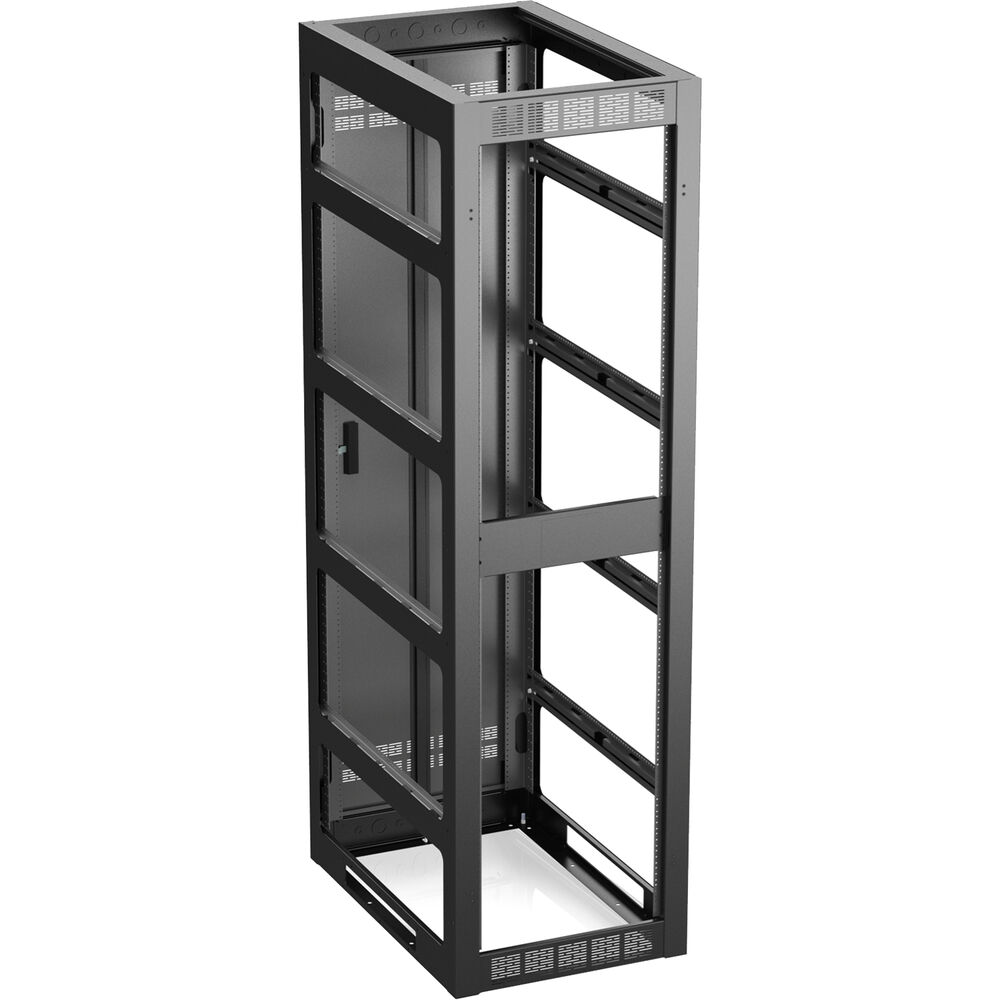

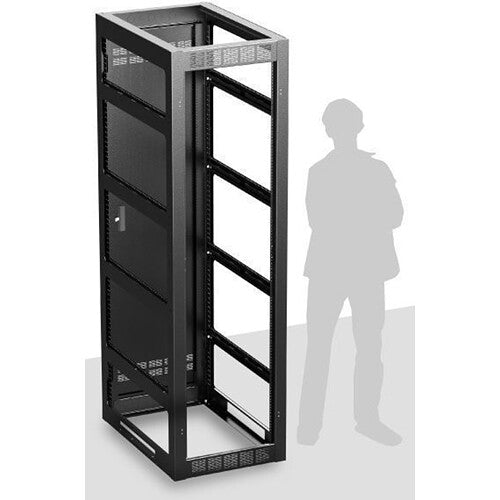

AtlasIED FMA44-32G Overview
The 32" deep, 44 RU tall Atlas Sound FMA44-32G Gangable Rack was designed with contractor input to meet storage and wire management needs for today and into the future. The unit features increased width for better wire management and includes a rear door. Construction for tops/bottoms/frames is 14-gauge steel. Hat sections provide rail slots and retainer holes for extra strength and two pairs of 12-gauge CRS adjustable mounting rails plated, drilled, and tapped 10-32 with hash marks to indicate rack unit increments are included.
Holes for optional surface doors are pre-drilled with threaded inserts factory installed to allow doors to be mounted after equipment is loaded. Hat sections are sized to facilitate standard 19" panels?handy for mounting "stick-on" modules and other hardware. Knock outs are provided on removable standard 2U panels (rear of cabinet top & bottom). These panels feature 3/8" KOs for BNC connectors (perfect for diversity wireless systems).
- 14-gauge top
- 16-guge bottoms
- "Swing-Out" side panels
- Hat sections accommodate atlas "Channel Net" installation of lacing bars, power strips or bus bars
- Hat sections are completely re-designed with rail slot and retainer "Hole" for extra strength
- Hat sections sized to facilitate standard 19" panels
- Two pairs of plated 12-gauge mounting rails tapped 10-32 that Include RU indicator markings
- UL2416 listed
- AtlasIED FMA44-32G Gangable Rack (32" Deep, 44 RU)
- Base Panel
- Top Panel
- 2 x Adjustable Rack Rails
- Solid Rear Door
- 4 x Leg Leveler
No additional resources available
AtlasIED FMA44-32G Specs
| Rack Form Factor |
44 RU
|
| Rack Depth |
32" / 81.3 cm
|
| Caster/Wheel |
No
|
| Fans |
No
|
| Material of Construction |
Steel
|
| Enclosure Design |
Open
|
| Certifications |
TAA, UL2416
|
| Exterior Dimensions (W x H x D) |
84.6 x 24.2 x 32" / 214.9 x 61.5 x 81.3 cm
|
