Description

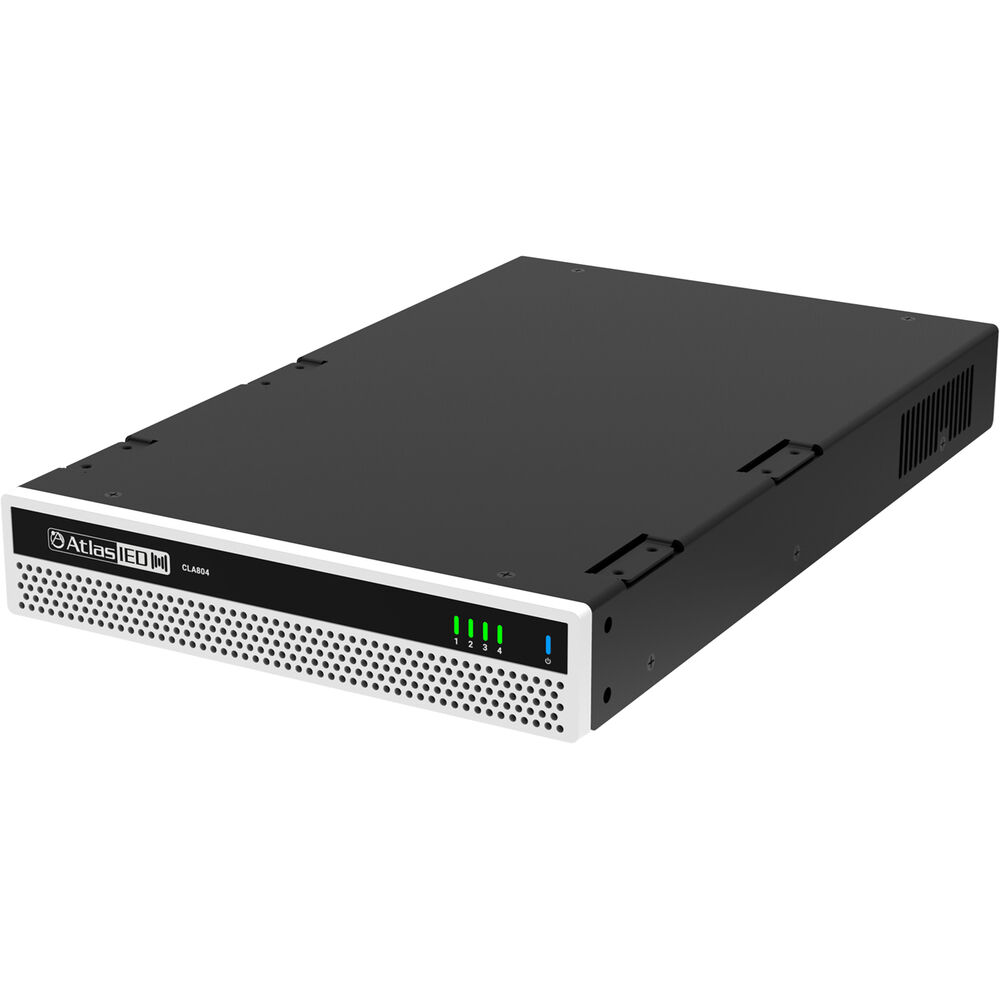

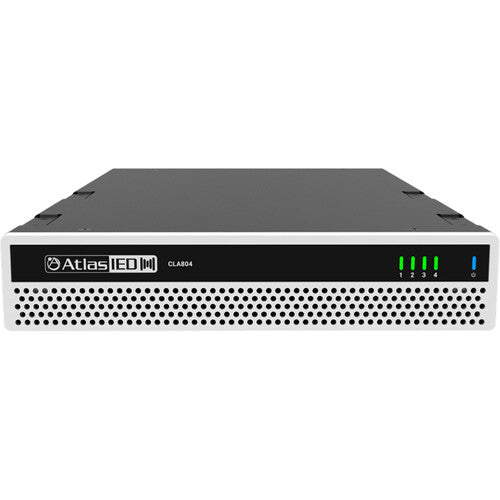

AtlasIED CLA804 Overview
Optimized for both commercial distributed systems and sound reinforcement applications, the AtlasIED CLA804 is a 4-channel 800W power amplifier with a unique Power Sharing feature that allows for configurable power levels to be applied to different zones regardless of load impedance. With a uniquely efficient output stage, this power amp stays cool, even when pushed.
The CLA804 is capable of operating in 25, 70.7, and 100V modes or in low-impedance 2-, 4-, and 8-ohm modes. The system is designed to be incredibly energy efficient, consuming just 1W in standby mode, and relying on simple convection cooling to remain frosty, even during demanding operation. When this is not sufficient, a low-noise variable-speed fan kicks in to maintain a low temperature. Input for each channel is via line-level block connectors, and the power amp also features remote level control and GPI connectivity via block connections. The internal power supply is of a universal, switch-mode design with auto sensing, making it compatible with global power input.
The CLA Series amplifiers are so efficient, generating so little heat, that most of the time they operate in a convection-cooled state. If additional cooling is required, the variable speed whisper-quiet fans will engage.
Items Included
- AtlasIED CLA804 800W 4-Channel Multi-Impedance Power Amplifier
- Limited 3-Year Manufacturer Warranty
Additional Resources
AtlasIED CLA804 Specs
| Number of Channels |
4
|
| Amplifier Power Rating |
4 Ohms / 8 Ohms / 70 V / 100 V:
200 W per Channel 25 V: 150 W per Channel 2 Ohms: 100 W per Channel |
| Load Impedance / Voltage |
25 / 70 / 100 V
2 / 4 / 8 Ohms |

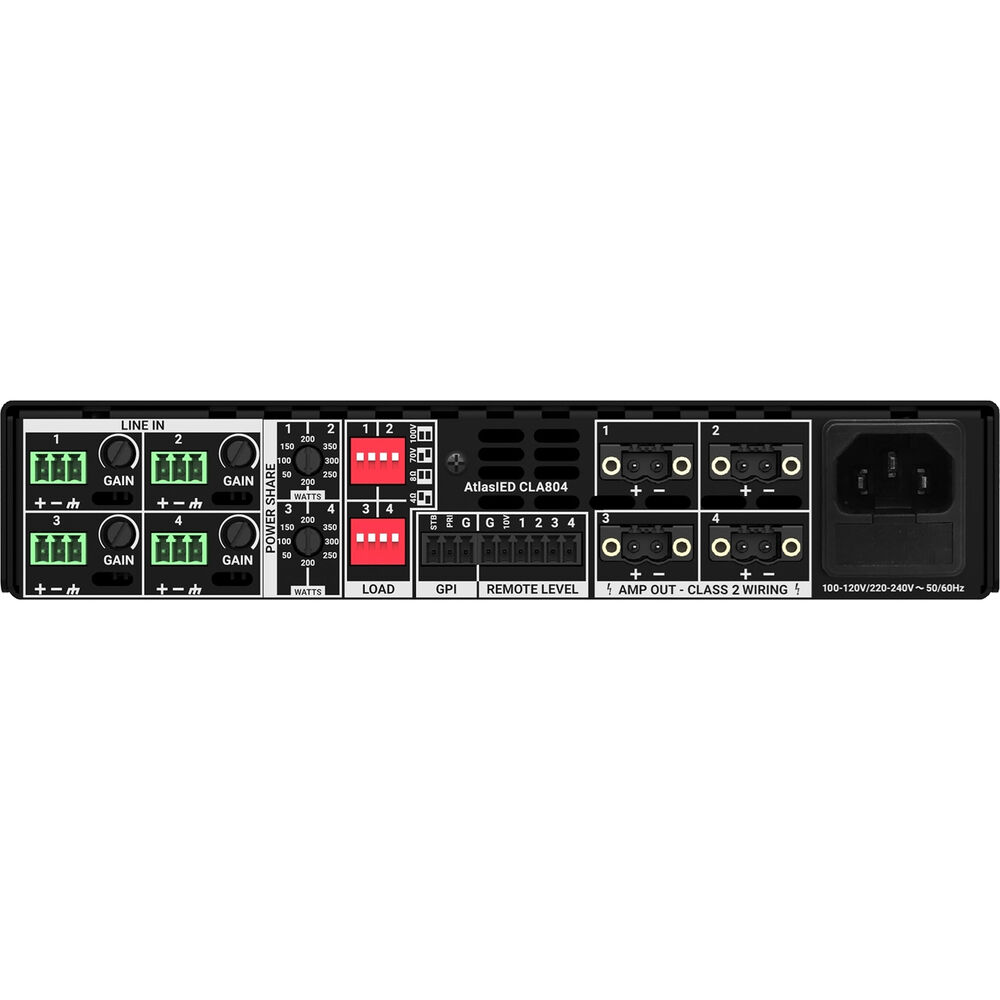

| Analog Audio I/O |
4x Block 3-Pin Balanced/Unbalanced Line Input (Detachable)
1x Block 3-Pin GPI Input 1x Block 6-Pin Remote Input 4x Screw Terminal 2-Pin Speaker Output (Detachable) |
| Digital I/O |
No
|
| Network I/O |
No
|
| Rackmount Size |
1 U (1/2-Rack)
|
| Number of Channels |
4
|
| Amplifier Power Rating |
4 Ohms / 8 Ohms / 70 V / 100 V:
200 W per Channel 25 V: 150 W per Channel 2 Ohms: 100 W per Channel |
| Amplifier Class |
Class-D
|
| Load Impedance / Voltage |
25 / 70 / 100 V
2 / 4 / 8 Ohms |
| Protections |
DC Fault, Overcurrent, Overvoltage, Power-On Delay, RF, RMS, Short Circuit, Signal Limiter, Thermal, Undervoltage
|
| Frequency Response |
20 Hz to 20 kHz +0/-1.5 dB (2-, 4-, 8-Ohm and 25V Modes)
50 Hz to 20 kHz +0/-1.5 dB (70 and 100V Modes) |
| Damping Factor |
> 250
|
| Input Sensitivity |
1 V
|
| Input Impedance |
20 Kilohms (Balanced)
10 Kilohms (Unbalanced) |
| Max Gain |
29 dB (at 4 Ohms)
32 dB (at 8 Ohms) 37 dB (at 70 V) 40 dB (at 100 V) |
| Max Input Level |
20 dBu
|
| SNR |
93 dBA (at 8 Ohms)
|
| THD |
? 0.15%
|
| Crosstalk |
> 70 dB
|
| Slew Rate |
> 18 V/?s
|
| Crossover |
No
|
| EQ |
No
|
| Compressor |
Yes
|
| Limiting |
No
|
| Analog Audio I/O |
4x Block 3-Pin Balanced/Unbalanced Line Input (Detachable)
1x Block 3-Pin GPI Input 1x Block 6-Pin Remote Input 4x Screw Terminal 2-Pin Speaker Output (Detachable) |
| Digital I/O |
No
|
| Network I/O |
No
|
| USB I/O |
No
|
| Mobile App Compatible |
No
|
| Wireless |
No
|
| AC Input Power |
Universal:
100 to 264 VAC, 50 / 60 Hz |
| AC Power Connector |
IEC
|

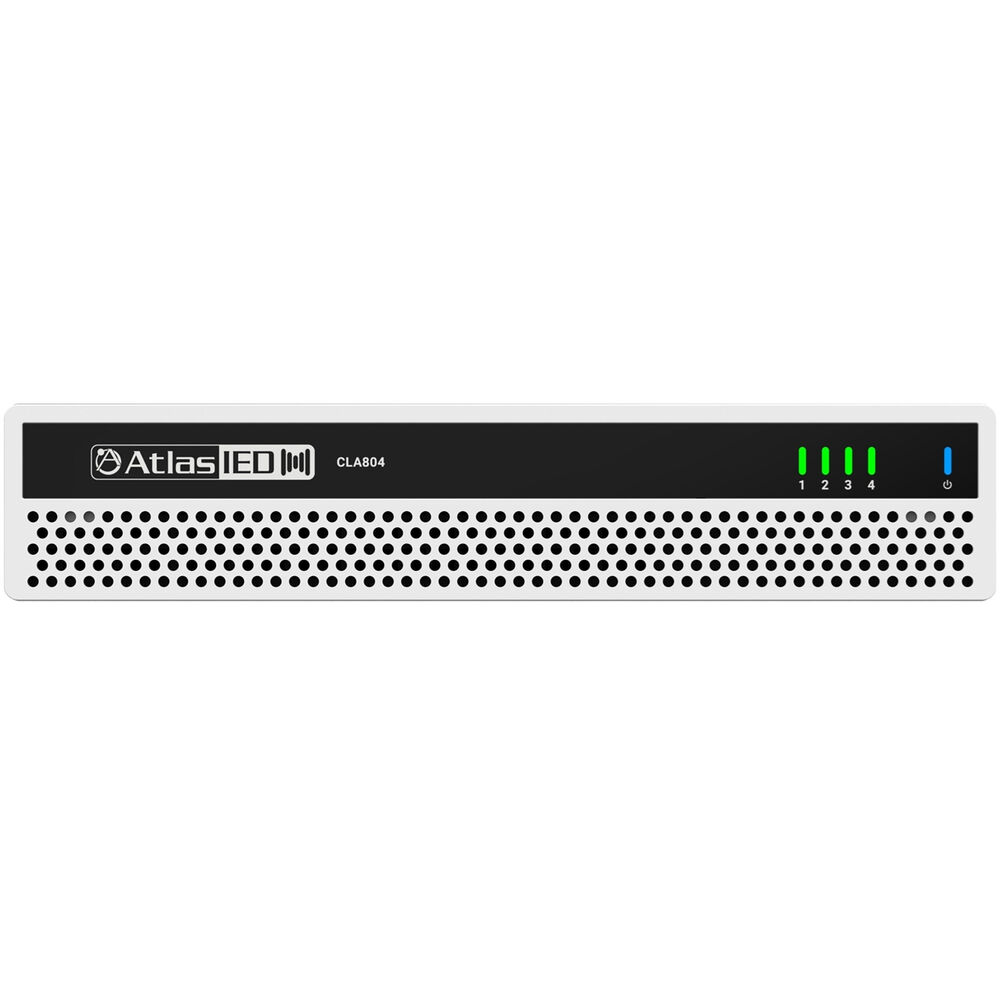

| Display & Indicators |
LED
|
| Rackmount Size |
1 U (1/2-Rack)
|
| Cooling |
Convection
Fan (Variable Speed) |
| Operating Conditions |
10 to 104?F / -12 to 40?C at 0 to 95% Humidity
|
| Dimensions |
13.7 x 8.5 x 1.7" / 34.8 x 21.6 x 4.3 cm
|
| Weight |
8.5 lb / 3.9 kg
|
