Description

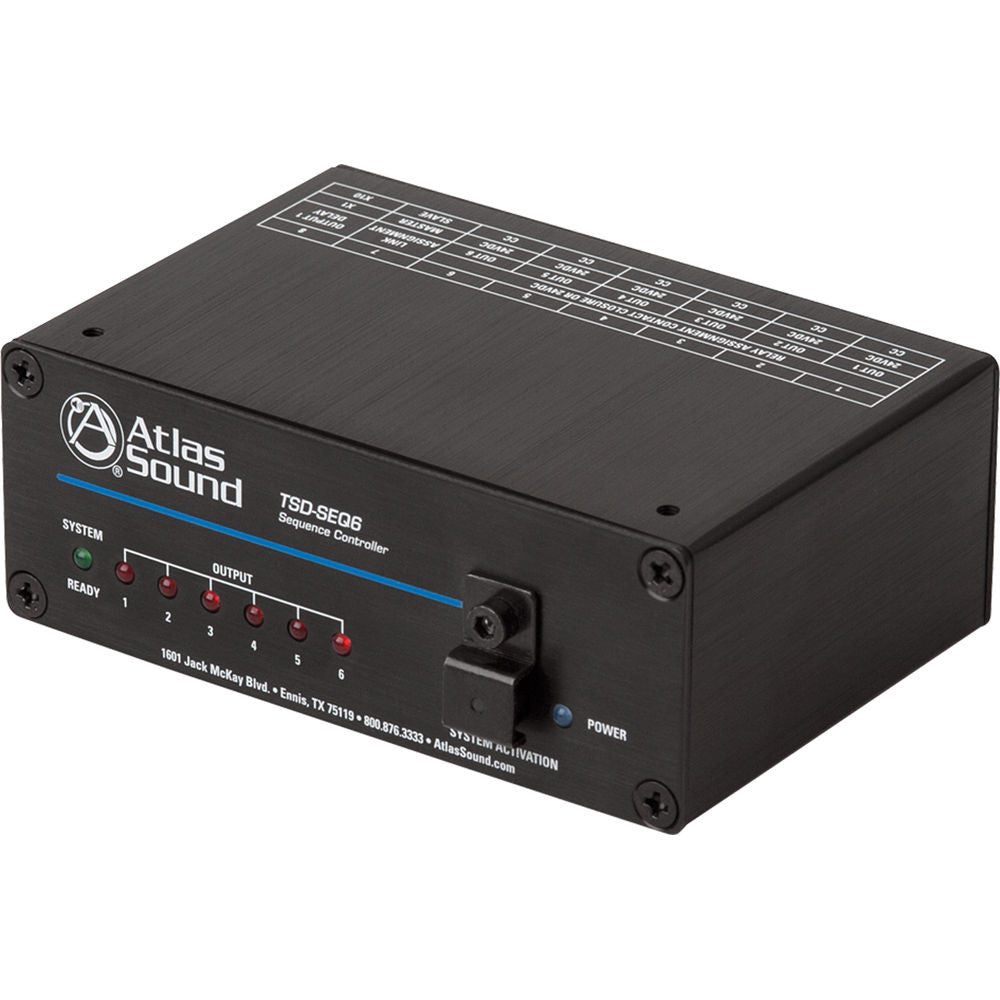

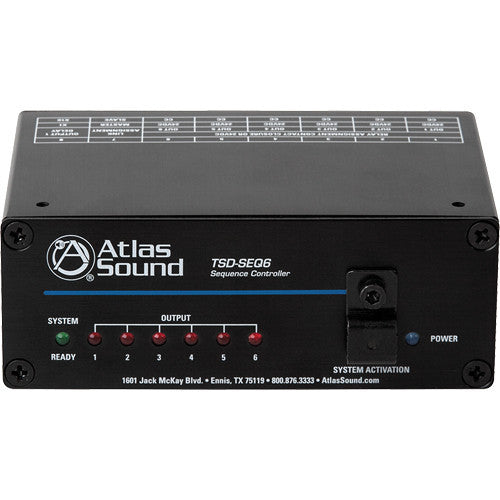

The Atlas Sound TSD-SEQ6 is an AC power sequencer controller than can be used in tandem with a compatible ECM series power distributor for sequenced power-up, and power-down of professional equipment in a wide range of scenarios such as restaurants, churches, schools, music venues, and other applications.

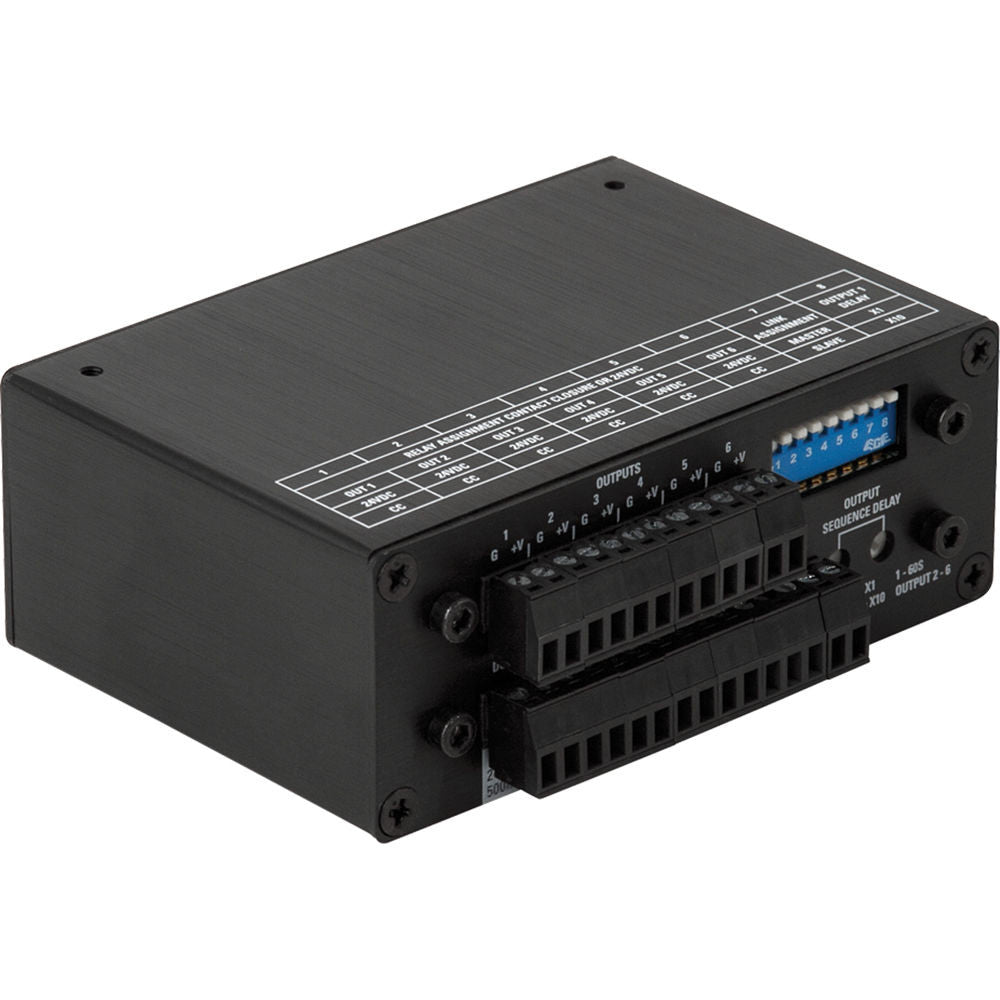

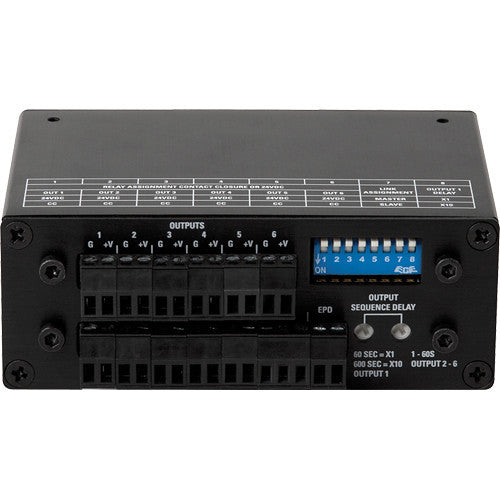

The TSD-SEQ6�features 6 outputs that are configurable individually to be either a 24VDC output or Hard Switch Contact Closure (CC). There are two separate output sequence time delay trimmers ranging from 1 second to 6 minutes. Activation can be done via the front panel or remotely via Hard Switch CC, Momentary Switch or DC Voltage. The TSD-SEQ6 also incorporates an Emergency Power Down (EPD) port for local fire codes. You can link two TSD-SEQ6 units together giving you 12 sequenced outputs.
The TSD-SEQ6 is part of a full line of Atlas Sound Time Saving Devices. These compact (1.5" x 4" x 2.75") units are designed to solve some of the common audio system problems in the easiest, most efficient, and cost-effective way. All models are made from high quality components and include removable individual I/O connectors for quick and precise wiring, separate ground terminals for all I/Os assuring secured connections, and removable level controls that can be replaced with tamper-resistant security covers. The TSDs are highly efficient and meet most energy standards as one 24V DC power supply (available separately) can power multiple Atlas Time Saving Devices.
�
- 6 Adjustable sequenced outputs
- Assignable 24VDC or hard switch contact closure (CC) per output
- Remote Activation via 5 - 24VDC, momentary contacts, hard switch contacts
- Status indicator for each output
- Emergency power down "EPD" port
- Link out for two TSD-SEQ6 controllers
- Voltage output for remote LED status display
- Separate wiring port for each input/output
- Cable management system
- Multiple mounting configurations
- Removable Phoenix style input/output connectors
- Hook and Loop Strap
- 2 x Mounting Bracket
- 2 x Cable Retainer
- Limited 3-Year Warranty
| Construction | Black aluminum |
| Compatibility | ECM-20, ECM-20M, ECM-15SH, ECM-20SH, ECM-30, and ECM-2063 power conditioning and suppressing modules |
| Outputs | 6 x 2-pin Phoenix, sequenced channel output 1 x 3-pin Phoenix, link input/output 1 x 2-pin Phoenix, output 24VDC for remote panel LED indicator |
| Controls | 1 x 2-pin Phoenix, momentary switch port 1 x 2-pin Phoenix, hard switch contact closure port 1 x 2-pin Phoenix, DC voltage port 1 x 2-pin Phoenix, Emergency Power Down (EPD) 1 x 2-pin Phoenix, power LED port DIP switch port #1-6: channel output assignment DIP switch port #7: link assignment configuration DIP switch port #8: Sequence output 1 time delay |
| LED Status Indicators | 1 x System ready, green 1 x Power, blue 6 x Output, red |
| Certifications | cUL, CE, RoHS, TUV |
| Voltage | 24 VDC, 500 mA |
| Power Consumption | 100 mA |
| Wattage | 2.4 W |
| Dimensions (H x W x D) | 1.5 x 4 x 2.75" (3.9 x 10.1 x 7 cm) |
| Weight | 6 oz (170 g) |
| Packaging Info | |
|---|---|
| Package Weight | 1.0 lb |
| Box Dimensions (LxWxH) | 5.2 x 3.6 x 2.4" |
