Description
- For Use Mounting Control Equipment
- Usable Depth: 4"
- Tilt-Out Design
- Two Position Door Opening
- Front Panels Have 45° Mitered Edges
- Six Concentric Knockouts of 1/2 and 1/4"
- 16 Gauge Cold Rolled Steel
- Ships Complete

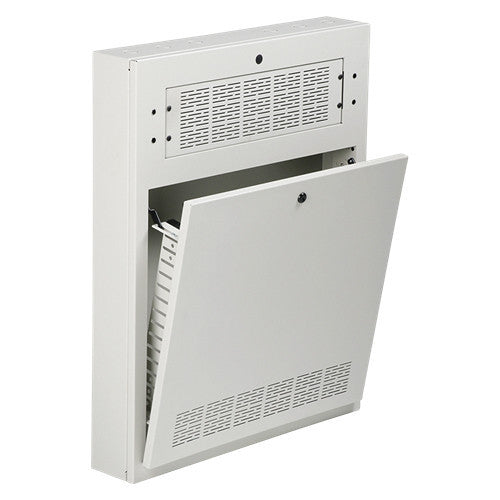

The Tilt Out Wall Cabinets for 19" Equipment 2RU from Atlas Sound features convenient access, and lock-in security highlights. This re-designed welded model can be surface or recessed mounted (trim ring included) and include a 3RU panel opening above the main bay for connector panels, or power distribution with a usable depth of 4". This cabinet is used for mounting remote amplifiers and control equipment. It is made from a 16-ga. CRS formed door frame, with a 16-ga. CRS locking tilt-out door that closes against rack face plate. The surface mounting door is attached to the frame internally with 2 pin-style hinges to prevent tampering.
Doors can be opened to two positions - tilt-out for operation, and, by releasing side catches, the door will open to approximately 90� for equipment installation and maintenance. The unit is furnished with two steel safety catch cables that suspend and hold doors at 90� The front panels have 45� mitered edges to present a clean flush appearance. The back box is 16-ga. CRS equipped with six concentric knockouts of 1/2" and 3/4". This item is shipped complete and ready for installation. Panel mounting holes accept 10-32 hardware.
- 2RU Panel
- Trim Ring
- Limited 5-Year Warranty
| Material | 16 gauge door frame and locking tilt-out door |
| Usable Depth | Top RU: 20" (51 cm) Bottom RU: 17.25" (43.8 cm) |
| Mounting Depth | 4" (10.2 cm) |
| Exterior Dimensions | 28 x 9 x 35" (71 x 23 x 89 cm) |
| Weight | 54 lb (25 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 54.0 lb |
| Box Dimensions (LxWxH) | 35.0 x 28.0 x 9.0" |
