Atlas Sound SM42T Overview

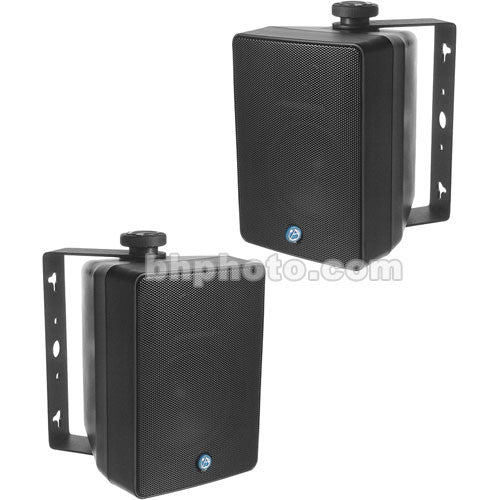

Sold as a pair, the black Atlas Sound SM42T-B is a weather-resistant, surface-mount loudspeaker offering consistent coverage and installation flexibility for indoor/outdoor environments such as retail shops, restaurants, warehouses, and more. The compact cabinet houses an efficient 4" polypropylene woofer and a 1" dome tweeter to deliver a frequency response of 115 Hz to 16 kHz. The TRX high-frequency waveguide system provides even 90 by 90° dispersion.
The integrated 16W transformer offers selectable power taps and allows the SM42T-B to be driven by 70V, 100V, or 8-Ohm power amplifiers (available separately). Internal PolyGuard circuitry protects the tweeter without compromising high-frequency performance. A removable cover guards the 2-pole barrier strip input, which accommodates wires up to 14 AWG. The SM42T-B includes a heavy-duty, C-shaped bracket for versatile horizontal or vertical mounting.
2-way loudspeaker for surface-mount configurations in residential, professional, or commercial applications
Weather-resistant construction allows you to use the speaker indoors or outdoors
4" woofer and 1" tweeter yield a frequency response of 115 Hz to 16 kHz
Drivers boast low-flux leakage, which allows speaker placement near video monitors
High-frequency waveguide system for even sound dispersion of 90 by 90°
Internal PolyGuard protection circuitry for smooth performance
Internal 16W transformer allows operation with 70.7V or 100V power amplifiers
Screwdriver-selectable power taps at 2, 4, 8, and 16 watts, plus an 8-Ohm transformer bypass position
Includes heavy-duty, C-shaped bracket with 5/8"-27 threaded hole for easy mounting
Standard 1/4"-20 brass hardware inserts let you use off-the-shelf security hardware
Compatible with OmniMount 10 brackets
In the Box
- Atlas Sound SM42T-B 4" 2-Way 16W Weather-Resistant Surface Speaker (Pair, Black)
- 2 x Mounting Brackets
- Limited 5-Year Manufacturer Warranty
Atlas Sound SM42T Specs
| Active or Passive |
Passive |
| Number of Included Speakers |
2 |
| Speaker Configuration |
2-Way |
| Power Handling |
16 W RMS |
| Constant Voltage / Transformer Taps |
70 V:
2 / 4 / 8 / 16 W |
| Impedance |
8 Ohms (Transformer Bypassed) |
| Shielded |
No |
Drivers
| HF Driver |
1" / 2.5 cm Mylar Dome Tweeter |
| LF Driver |
4" / 10.2 cm Polypropylene-Coated Woofer |
Performance
| Frequency Response |
115 Hz to 16 kHz ±5 dB |
| Sensitivity |
88 dB |
| Coverage Angle |
90° H x 90° V |
| Crossover |
4 kHz |
Connectivity
| I/O |
Barrier Strip 2-Pole |
| Maximum Wire Gauge |
14 AWG |
Environmental
| Environmental Protection |
None |
Physical
| Color |
Black |
| Mounting |
5/8"-27 Female Bracket Point |
| Construction Material |
Aluminum Grille, Polypropylene |
| Dimensions |
7 x 5.9 x 5" / 17.8 x 15 x 12.7 cm |
| Weight |
3.4 lb / 1.5 kg (without Bracket) |
Packaging Info
| Package Weight |
9.36 lb |
| Box Dimensions (LxWxH) |
15.7 x 12.25 x 7.15" |
